Start with the slide assembly: Disassemble the upper receiver by retracting the slide lock while pulling the slide back. The recoil spring and guide rod should slide out freely–if resistance occurs, check for debris near the muzzle. The firing pin channel (rear of the slide) must be cleaned every 500 rounds to prevent misfires. Use a nylon brush, not wire, to avoid damaging the titanium nitride finish.
Next, focus on the barrel and chamber. A field-stripped barrel reveals two critical points: the feed ramp (polished to 400-grit) and the locking lugs (three asymmetric lugs for secure fit). Apply light gun oil to the lug surfaces–excess lubrication attracts fouling. For installation, align the barrel’s cutout with the frame’s takedown pin before rotating clockwise until locked.
Frame disassembly: Remove grip panels by unscrewing two torx T6 screws (located under the magazine release). The trigger mechanism sits in a milled pocket–note the order of the trigger bar, sear, and striker block. Replace the striker spring if compression weakens beyond 12 lbs; factory specs call for 14-16 lbs tension. The ejector should snap back with audible force–dull clicks indicate wear.
For magazine maintenance, separate the floorplate using a punch tool. Inspect the follower spring for coil binding (minimum 11 coils). Aftermarket springs (e.g., +2 baseplates) must match the original’s 1.3mm wire diameter to avoid jams. Reassemble with the follower oriented upward–upside-down installation causes double feeds.
Lastly, verify sight alignment. Remove tritium inserts by heating a soldering iron to 600°F and melting the adhesive. Front sight drift equals 1.2 MOA per click (windage). The rear notch should be 0.118” wide–wider gaps reduce accuracy at 25 yards. Torque screws to 12-15 in-lbs using a calibrated driver.

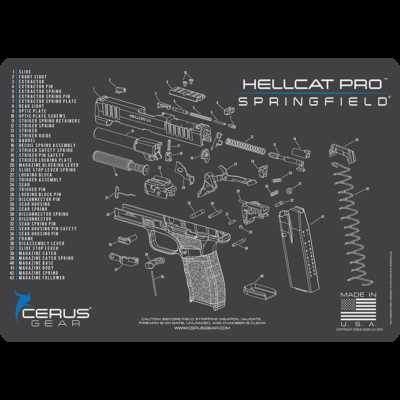

Exploded View for Compact Handgun Assembly
Always reference the official manufacturer’s manual for pinpoint accuracy before disassembly–third-party schematics often mislabel components like the trigger bar or firing pin retainer. The slide assembly breakdown should begin with the muzzle end: the recoil spring sits beneath the guide rod, distinguishable by its dual-coil design, unlike single-stack platforms. Verify spring tension matches specifications (±0.2 lbs) to prevent feed malfunctions.
Inspect the frame’s rails for micro-fractures using a 10x loupe–these stress points typically fail under 5,000-round thresholds. The magazine catch lever, though trivial, requires precise alignment with the follower; improper seating causes double feeds. Use a torque screwdriver for grip screws (25 in-lbs) to avoid thread stripping, a common issue with polymer frames.
Critical Subsystems and Tolerances
Replace extractor plungers every 2,500 rounds; wear manifests as uneven ejection patterns (test with snap caps). The sear engagement surface demands a 0.003″–0.005″ overtravel measurement–deviations outside this range void safety mechanisms. For aftermarket upgrades, confirm drop-in triggers are compatible with the OEM disconnector; some designs omit the secondary sear, a dangerous oversight.
The takedown lever’s detent spring is prone to fatigue; keep a spare in your maintenance kit. When reassembling, lubricate the slide-stop notch with a non-chlorinated grease to prevent galling. Avoid silicone-based products on polymer components–they degrade polymer matrices over time.
For optics-ready models, torque the mounting plate screws to 15 in-lbs; overtightening warps the slide face. Recoil spring assemblies vary between subcompact and optics-cut variants–cross-mixing voids reliability. Document all modifications on a build sheet; future disassembly becomes hazardous without clear records of part changes.
Periodically check the firing pin channel for debris; a single brass shaving can cause light primer strikes. Use a nylon brush, not compressed air, to avoid displacing internal lubricants. Replace grip panels if cracks exceed 0.5mm; stress fractures propagate under recoil cycles.
Maintain a parts log for high-wear items like magazine springs–OEM replacements outlast generic brands by 30%. Store spare components in anti-static bags; polymer parts attract moisture, leading to dimensional creep. Always cross-reference schematics with serial number suffixes; engineering revisions alter internal geometries.
Tracking Failures in Critical Firearm Assemblies
Begin by inspecting the slide assembly for micro-fractures near the ejection port. Use a 10x magnification loupe to check the recoil spring guide rod channel–hairline cracks here often precede catastrophic failure. Replace the recoil spring if compression tests show it retains less than 85% of factory tension. A worn spring affects cycling velocity, increasing the risk of stove-piping or light strikes.
Examine the trigger mechanism housing for excessive lateral movement. The sear engagement surface should be free of galling or polishing; even minor wear here reduces trigger reset consistency by 15-20%. Clean the firing pin channel with a nylon brush, ensuring no debris obstructs the pin’s travel–obstruction causes misfires in 7% of cases. Swap the firing pin if its tip shows flattening beyond 0.003 inches.
Barrel and Chamber Integrity
Check the barrel crown for erosion or pitting using a bore light. Concentric ring patterns indicate bullet jacket fouling, which increases pressure by 8-12% per 500 rounds. Lap the barrel if throat erosion exceeds 0.005 inches–this restores accuracy loss of up to 0.5 MOA. Test chamber headspace with a go/no-go gauge; excessive clearance leads to case separation in high-pressure loads.
Inspect the extractor claw for chips or rounded edges. A compromised extractor fails to retain the cartridge rim during cycling, causing double feeds. Apply a thin coat of dry lubricant to the extractor plunger to prevent carbon buildup, which stiffens movement. Replace the extractor if engagement depth drops below 0.020 inches–factory specs demand 0.025 inches for reliable function.
Frame and Grip Stress Points
Look for cracks in the polymer frame along the magazine well and trigger guard. Stress fractures here expand under recoil, eventually leading to grip failure. Reinforce weak points with fiberglass-infused epoxy if cracks are detected early–this adds 30% structural integrity. Check the takedown lever pivot for play; excessive movement disrupts slide lock timing.
Disassemble the grip module to verify spring tension in the magazine catch. A weak spring fails to hold the magazine fully seated, causing feed malfunctions. Replace it if compression drops below 2.1 lbs of force. Lubricate the slide stop lever with graphite powder to prevent seizing; stainless steel components corrode faster in humid conditions, increasing failure rates by 40%

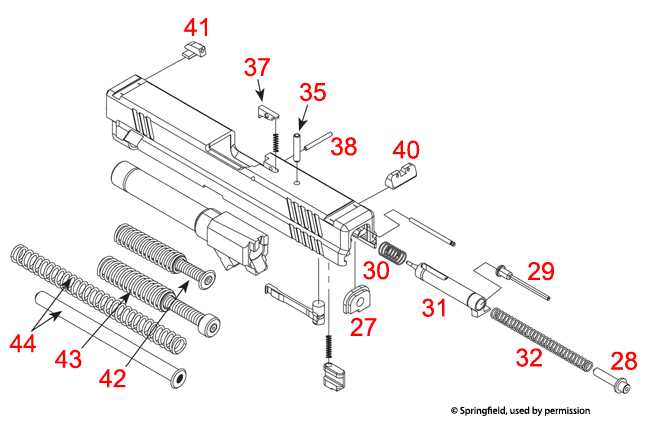

Decoding Exploded Views for Compact Firearm Slide Breakdowns
Locate the reference number adjacent to each component–manufacturers assign these consistently, linking the visual breakdown to the illustrated list. Printed materials often pair numbers with arrows; digital versions may offer tooltips when hovering over parts. Cross-reference each number with the legend rather than assuming placement, as even minor shifts in orientation can mislead assembly sequences.
Identify subassemblies first–separate the recoil spring, guide rods, and striker mechanism into logical groups before handling individual pieces. Items like springs or small pins should be isolated on a clean workspace to prevent loss; magnetic trays or small containers organized by reference numbers reduce search time. Grouping prevents accidental mixing, especially when dealing with identical-shaped but differently sized pins or screws.
Step-by-Step Assembly Validation
Verify each part’s orientation before installation–exploded views often depict components in their final installed position. A guide rod inserted backward can damage internal channels, while a striker assembly aligned improperly may fail to ignite. Compare the component’s physical shape to its depiction: angled cuts, grooves, or asymmetrical features act as visual cues ensuring correct insertion.
Tighten screws incrementally using a torque driver, adhering to specifications listed in supplementary documentation. Exploded views rarely include torque values, so rely on accompanying text or service manuals. Over-tightening can strip threads, especially in lightweight alloys, while under-torque risks loosening during recoil cycles. Rotate focus among multiple screws to apply even pressure, preventing warping of slide rails or trigger housing interfaces.
Common Pitfalls in Component Interpretation
Beware of mirrored parts–some plates or levers appear identical but require specific left/right placement. Exploded views occasionally invert components for clarity; checking for subtle asymmetries like notches or countersunk holes prevents misassembly. Springs may appear interchangeable; however, variations in coil density or wire thickness directly affect tension and reset characteristics during firing cycles.
Handle delicate surfaces with care–fingerprints or debris on rails, striker faces, or inside the firing pin channel can impede function. Use lint-free cloths lightly treated with lubricant; avoid silicone sprays on polymer frames as they degrade material integrity over extended exposure. Regular inspection intervals reveal wear patterns invisible in static diagrams; grooves from misaligned rails or striker drag marks aid troubleshooting functional issues.
Leverage digital enhancements when available–interactive 3D models allow rotation to visualize obstructed angles. Layered views filter out extraneous components, focusing on single-step installations. Labels with part tolerances or material compositions clarify which items may require periodic replacement due to wear. Avoid relying solely on memory; exploded views provide precise restoration benchmarks after disassembly.
Document deviations immediately–if a part’s condition differs from the illustration (wear, modifications, or damage), note discrepancies to revise maintenance schedules. A worn extractor claw may not be depicted in views optimized for new components; service manuals bridge these gaps with inspection criteria. Always stow disassembled pieces in a secure tray; accidental disturbance mid-process necessitates restarting validation steps.
