Locate replacement elements for high-capacity tumble systems using manufacturer-issued illustrations from technical manuals. The official exploded views detail every removable piece, down to 0.5 mm bushes and sealed bearing units. Request document P/N 78543-2 Rev C for models released after 2018–it contains the only verified breakdown of drum seals and blower impellers compatible with 120 VAC single-phase setups.
Critical wear items–drive belts, lint filters, and thermostats–appear as numbered entries in section 3-7 of the exploded view. Cross-reference each number with the parts list printed on the final page; tolerances and material grades are specified there for exact matching. Ignore generic aftermarket charts; verified schematics show OEM torque specs (typically 12–15 Nm for drum hub bolts) and installation orientation markers absent in third-party replacements.
Thermal fuses rated at 192 °C must align with insulator class F-2 standards–only schematics issued within the last three years reflect updated UL certification paths. For electronic control boards, P/N 98210-A replaces earlier revisions; polarity-sensitive connectors demand strict adherence to labeled pinouts shown in the diagram.
Exhaust vent ducts require schematic clearance mapping–maximum bends and horizontal runs are quantified in millimeters to prevent overheating. Models equipped with dual lint traps mandate filter gasket P/N 6543-01, a component frequently omitted in universal repair kits. Always validate assembly sequence using the step-by-step callouts in the official guide; reversed mounting of the rear bearing housing voids warranty coverage.
Troubleshooting Industrial Clothes Dehydrator Blueprints
Locate the control panel schematic first–it’s typically printed on the interior side of the access door or in the technical manual under “Operator Controls.” Marked positions for the timer knob, start switch, and thermal fuse follow a standard clockwise numbering: 1 through 8 for most rotary timers, with safety cutoffs positioned near the blower housing. Verify continuity across terminal 3 (neutral) and terminal 6 (heating element relay) before replacing any relay; resistance should read between 0.5 and 1.2 ohms.
Identifying High-Temperature Cutoff Components
Trace the heating coil wiring harness from the rear bulkhead to the TCO (thermal cutoff) sensors–common failure points include crimped connections at splices near the exhaust vent. The primary cutoff, rated at 180°C, sits adjacent to the element ceramic housing, while the secondary (rated 150°C) mounts on the drum’s scroll assembly. Replace both simultaneously if either trips; delaying risks igniting lint accumulation behind the baffles. Ensure the replacement part matches the OEM thermal rating embossed on the sensor casing.
Examine the idler pulley assembly beneath the drum–misalignment here accelerates belt wear, evidenced by fraying within the first 100 operating hours. The tensioner spring should exert 12-15 lbs of force; deviations beyond 20% necessitate recalibration using a digital tension gauge. Rotate the drum manually during inspection: smooth operation demands under 10 lbs of force at the drum’s edge, any resistance indicates bearing seizure or debris lodged in the scroll intake.
Disconnect power and discharge the capacitor before handling the drive motor–it retains lethal voltage for up to 10 minutes after shutdown. The dual-voltage motor (supports 208V and 240V) has brass-colored terminals labeled “L1,” “L2,” and “T”–swap L2 and T if rotation direction is incorrect. For brushless models, inspect the rotor for scoring; pitting deeper than 0.3mm requires replacement to prevent stator damage.
Check the lint filter’s pressure switch: a faulty switch fails to trigger the heater cutoff when airflow drops below 30 CFM. Test by blowing into the port with 25 PSI of air; an operational switch produces an audible click. No response confirms failure–verify wiring harness continuity before ordering the replacement, as 30% of malfunctions stem from corroded pin connectors at the switch’s socket.
Exhaust Vent and Airflow Diagnostics
Measure static pressure at the vent collar using a manometer: readings exceeding 0.2 inches of water column signal blockage, typically caused by crushed aluminum ducting or improper radius bends. The blower wheel should spin freely when turned by hand; resistance indicates bearing failure or lint accumulation exceeding 4mm thickness on the wheel’s blades. Clean with compressed air at 80 PSI, directing the nozzle at a 45-degree angle to avoid damaging the impeller balance.
Inspect the drum support rollers monthly–grooves deeper than 1mm necessitate replacement to prevent drum misalignment. Apply a thin coat of high-temperature grease (rated for 250°C) to the roller pins, but avoid contact with the drum surface; residue discolors fabrics during cycles exceeding 60 minutes. For models with self-adjusting belts, reset tension by loosening the motor mount bolts, sliding the assembly 5mm rearward, then retightening torque to 18-22 Nm.
Calibrate the moisture sensor bars annually–misalignment falsely extends drying times. Clean the bars with isopropyl alcohol, then reposition them parallel to the drum’s inner surface, spaced 2-3mm apart. The resistance between bars should range from 50kΩ (wet) to 1MΩ (dry); values outside this spectrum indicate contamination or sensor degradation. Replace the entire sensor strip if cleaning fails to restore target resistance readings.
Locating Authorized Appliance Component Breakdowns for Industrial Laundry Machines
The manufacturer’s website remains the primary resource for accurate schematics. Visit speedqueen.com/manuals and select the “Technical Documentation” section. Filter results using your model number–found on a metal plate inside the door frame or on the rear panel. High-resolution PDFs include labeled illustrations, part numbers, and torque specifications.
Distributor portals such as Alliance Laundry Systems’ dealer portal (dealer.alsclean.com) grant access to restricted documentation. Registration requires proof of business, such as a tax ID or contractor license. Once verified, search by serial number to pull exact schematics, including sub-assembly views for motors, belts, and heating elements.
Specialized Parts Retailers
Major suppliers like RepairClinic (repairclinic.com) and PartSelect (partselect.com) host interactive breakdowns tied to inventory. Input your model to generate a zoomable exploded view alongside compatible replacements. These platforms auto-highlight common failure points, such as drum rollers or blower wheels, with one-click ordering.
Check eBay’s “Technical Drawings” category under the “Business & Industrial” section. Sellers often upload original OEM manuals for discontinued models. Use advanced filters to exclude replicas–look for listings specifying “official factory print” or scans of embossed blueprints.
Professional Service Networks
Certified technicians access proprietary databases via ServiceBench (servicebench.com) or Whirlpool’s Techline (techline.whirlpool.com). Login credentials come with completion of manufacturer training programs. These systems overlay schematics with troubleshooting videos and warranty codes.
Local appliance repair associations occasionally compile physical archives. Contact chapters of the United Servicers Association (USA) or regional trade groups like NESA (nesa1.org) for member-exclusive document repositories. Some facilities permit on-site viewing of hardcopy manuals for legacy models.
Critical Internal Elements of Industrial Tumble Units
Begin replacement procedures by targeting the heating element–locate it behind the rear bulkhead after removing the back panel. Most heavy-duty models use a coiled resistive wire rated between 5,300–6,300 watts; verify wattage markings stamped on the housing before sourcing replacements. Check for continuity with a multimeter: readings above 30 ohms indicate burnout, while infinite resistance confirms a cracked ceramic bracket. Always disconnect power at the circuit breaker before handling exposed wires–residual voltage persists even when units appear dormant.

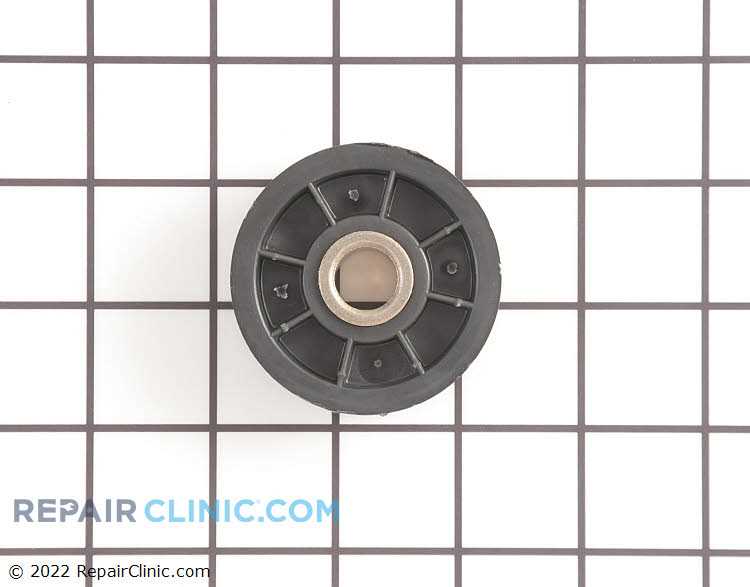

Examine the idler pulley assembly every 600 operational hours. Look for uneven groove wear (sign of misalignment) or squealing during spin cycles (failing bearing). The pulley typically measures 2.5 inches in diameter; match replacement part numbers precisely–even minor dimensional discrepancies cause belt slippage. When reassembling, apply 8–12 foot-pounds of torque to the mounting bolt. Replace the drive belt simultaneously if cracks or fraying appear; standard belts stretch approximately 0.4% per 100 hours of use under full load.
- Thermal fuse: Single-use safety device mounted on blower housing. Replace if tripped–resistance should read 0 ohms; any deviation indicates failure. Always address underlying airflow blockages before resetting, as repeated trips sugge overheating from lint buildup in exhaust ducts.
- Drum rollers: Inspect for flat spots or wobble every 1,200 hours. Most industrial variants last 3–5 years but degrade faster under constant 150°F+ ambient temperatures. Lubricate with high-temp silicone grease only–petroleum-based products carbonize at operational heat.
- Moisture sensor bars: Clean bi-monthly with isopropyl alcohol–fabric softener residue causes false “dry” readings. Measure voltage across terminals during cycles: 0–2.5V indicates functional, >3V requires replacement.
Prioritize the blower wheel during bi-annual maintenance. Remove obstructions with compressed air at 90 PSI–never rotate blades backward as it strips the motor shaft key. Aluminum wheels resist corrosion but warp under excessive lint loads; replace if blade tips deviate more than 0.03 inches from true. Confirm proper airflow by attaching a manometer to exhaust vent–readings below 0.5″ WC signal clogged vent paths or failing wheel assembly. Document all readings for trend analysis to predict failures before operational disruption.
