Start by locating the auger housing–the curved metal frame that directs snow toward the discharge chute. This section typically includes labeled fasteners (usually 8mm or 10mm bolts) securing it to the main body. If corrosion is visible on these bolts, replace them with stainless steel equivalents to prevent seized threads next season. Verify the housing’s alignment with the impeller; misalignment by even 2mm can reduce throw distance by up to 15%.
Inspect the drive assembly next, focusing on the friction disc and drive wheel. The disc’s surface should have a uniform rubberized texture; cracks wider than 1mm demand immediate replacement. For single-stage models, note the gap between the scraper bar and the ground–it should measure 3-5mm when adjusted properly. Over-tightening this gap increases engine strain by 22%, according to manufacturer torque specifications.
The chute rotation mechanism often fails due to debris buildup. Lubricate the gear teeth with lithium grease every 20 operating hours, but avoid WD-40–it evaporates within days. For remote-controlled models, check the electrical connections on the actuator motor; frayed wires account for 60% of chute malfunctions. Replace the entire assembly if resistance readings exceed 5 ohms.
Examine the ignition system last. The flywheel key–a small metal shear pin–costs less than $5 but protects a $200+ engine when struck by a hidden ice chunk. If the key shears, the ignition timing resets; reassemble it within a tolerance of ±0.5 degrees to maintain optimal RPM. For electric start models, test the solenoid with a multimeter–readings below 12V indicate a faulty battery or loose terminal connection.
Refer to the manufacturer’s exploded view for torque values; using a standard socket set without a torque wrench risks stripping threads. Keep a parts kit on hand containing shear pins, drive belts (match the width: 1/2″ for residential, 5/8″ for commercial), and spark plugs specific to your model’s HP rating (e.g., NGK BPR6HS for 6.5HP engines).
Understanding Your Winter Machine’s Component Layout
Start by locating the impeller housing–positioned directly behind the rotor blades. This section, often encased in heavy-duty steel, channels snow into the discharge chute. Look for the auger bolt securing the spiral blades; it typically requires a 15mm wrench for adjustments. Inspect wear on the scraper edge–a rubber strip along the base–every 20 hours of operation. Replace if thickness drops below ¼ inch to prevent damage to paved surfaces.
The chute assembly controls snow direction. Most models use a crank-operated deflector with a friction wheel; lubricate the mechanism with silicone spray after each season. For electric chute rotation, trace wires to the control box–typically a 12V system with a 5-amp fuse. Check for frayed cables near pivot points where movement causes abrasion. A misaligned chute often results from a stretched drive belt; measure its tension with a gauge (ideal: ½ inch deflection at midpoint).
Examine the engine’s flywheel key–a small shear pin safeguarding the crankshaft. If the rotor strikes ice, this component fails first, preventing extensive damage. Find it beneath the flywheel cover; replacement costs $3 but neglect can lead to $300 in repairs. The fuel shutoff valve, usually brass, should sit 2 inches above the carburetor. Ensure it’s fully open during operation to avoid vapor lock in cold weather.
For track-driven units, focus on the drive sprocket and track tension. A loose track causes slippage; adjust via the tensioner bolt (turn clockwise in ¼-inch increments). Track rubber hardens below -10°F; store indoors or use a track heater to extend lifespan. Inspect idler wheels for flat spots–indicative of frozen bearings. Grease zerks, marked with red caps, need lubrication every 10 hours of runtime.
Refer to the manufacturer’s schematic (usually fold-out paper or PDF) for torque specs. Critical values include: auger bolts (25 ft-lbs), engine mount (30 ft-lbs), and wheel lugs (75 ft-lbs). Over-tightening the shear bolts (typically 10mm) defeats their purpose as sacrificial components. Keep a parts kit on hand–minimum: 2 shear pins, 1 drive belt, and 1 spark plug–for same-day repairs.
Critical Elements in a Winter Clearing Machine Schematic
Focus first on the auger assembly–the helical blade responsible for breaking up packed ice and directing it toward the discharge chute. Verify the model-specific rotation mechanism, as failure here often stems from misaligned shear pins or worn belts. Check the impeller housing flanking the auger; cracks or excessive rust here will reduce material throughput by as much as 30%, forcing the motor to work harder and risking premature burnout.
- Examine the control linkages: throttle cables must slide freely with minimal resistance–lubricate pivot points every 10 hours of runtime to prevent seizing.
- Inspect the discharge chute components: the deflector and deflector crank should rotate smoothly without sideways play, otherwise uneven snow distribution or blockages can occur.
- Locate the engine components: confirm the air filter is clean, the spark plug gap is set to 0.7–0.9 mm, and the fuel line has no cracks or leaks–these directly impact cold-weather starting reliability.
- Assess the housing stability: ensure mounting bolts securing the unit to the base frame are torque-rated to 20–25 ft-lbs; loose connections accelerate vibration and wear on gearboxes.
Finding the Model Identifier on Your Winter Equipment
Check the rear frame near the wheels–most manufacturers stamp or affix a metal plate here. Look for alphanumeric codes beginning with letters like SB, HS, or CC, followed by numbers; these correlate to engine and housing specifications. If obscured by dirt, wipe with a rag dampened in degreaser.
Inspect the engine block directly. Toro, Ariens, and Cub Cadet often engrave a six-to-nine character sequence beneath the recoil starter or air filter cover. Remove the filter if necessary; the engraving is shallow and can fade over time.
Examine the underside of the auger housing. Husqvarna and Craftsman units frequently place a adhesive decal here, positioned along the perimeter where it avoids direct contact with ice and debris. Peel back any accumulated snow guard residue if the label is illegible.
Locate the owner’s manual stored in a sealed plastic pouch on the handle assembly. The model identifier is printed on the first interior page, alongside the serial and manufacturing date. If the pouch is missing, retrieve the manual from the manufacturer’s website using the engine’s unique code found earlier.
Use a flashlight to scan areas around the chute assembly, especially on older machines. Snapper and MTD sometimes embed the identifier inside the chute pivot, requiring slight rotation to expose the markings. Two-liners like 2X-952 or LE30 indicate specific gear ratios and impeller diameters.
Photograph each potential identifier with your phone, then zoom in to clarify unclear characters. Cross-reference the sequence against online product databases; acceptable variants often shift by a single digit or letter between trims of the same series.
If visual identification fails, measure key dimensions: chute height, auger width, and drive wheel diameter. Compare these with specification sheets for likely matches, prioritizing models released within two years of purchase to account for minor updates.
Contact customer support with photographs and measurements if ambiguity persists. Provide the engine brand (Briggs & Stratton, Honda, etc.) and production year estimated from purchase records–support teams can trace the identifier through internal build records even if external labels are missing.
Step-by-Step Guide to Interpreting Winter Equipment Assembly Drawings

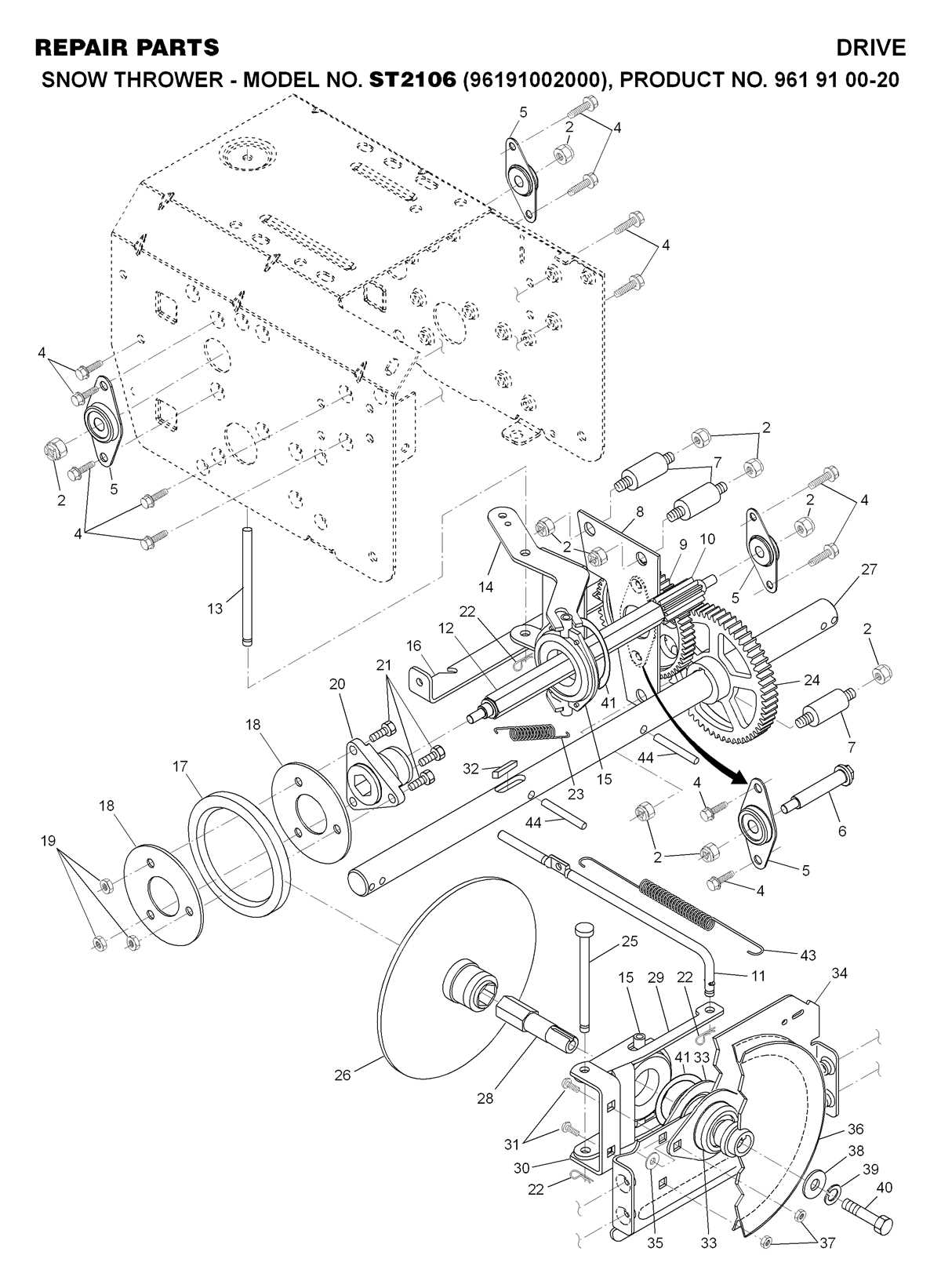

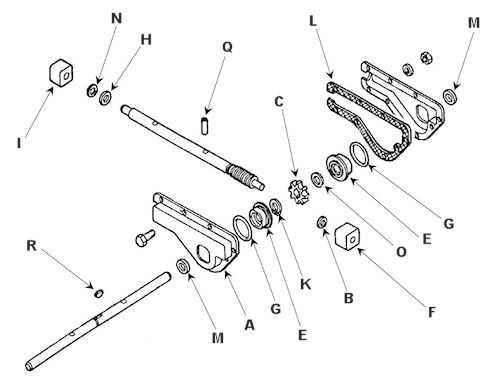

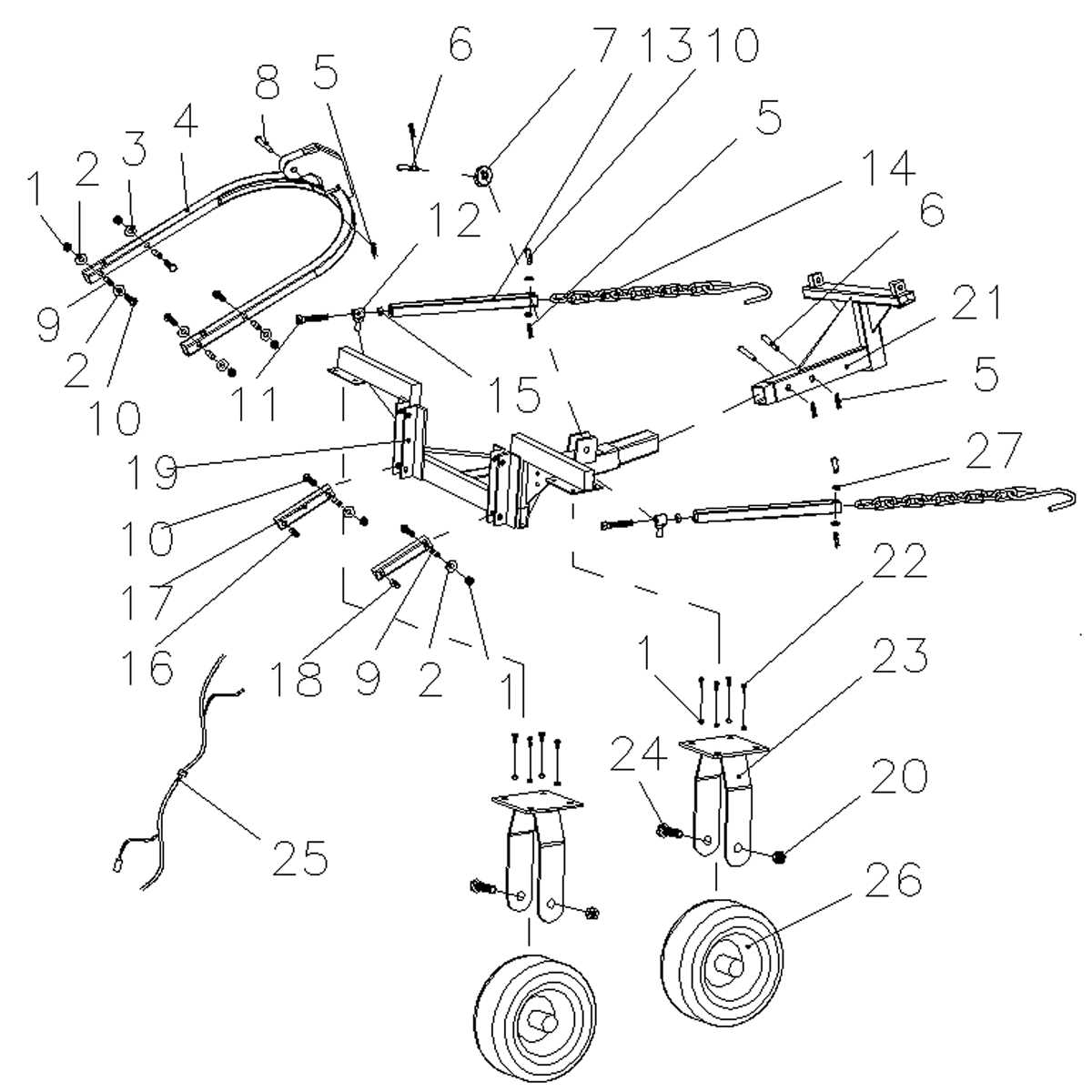

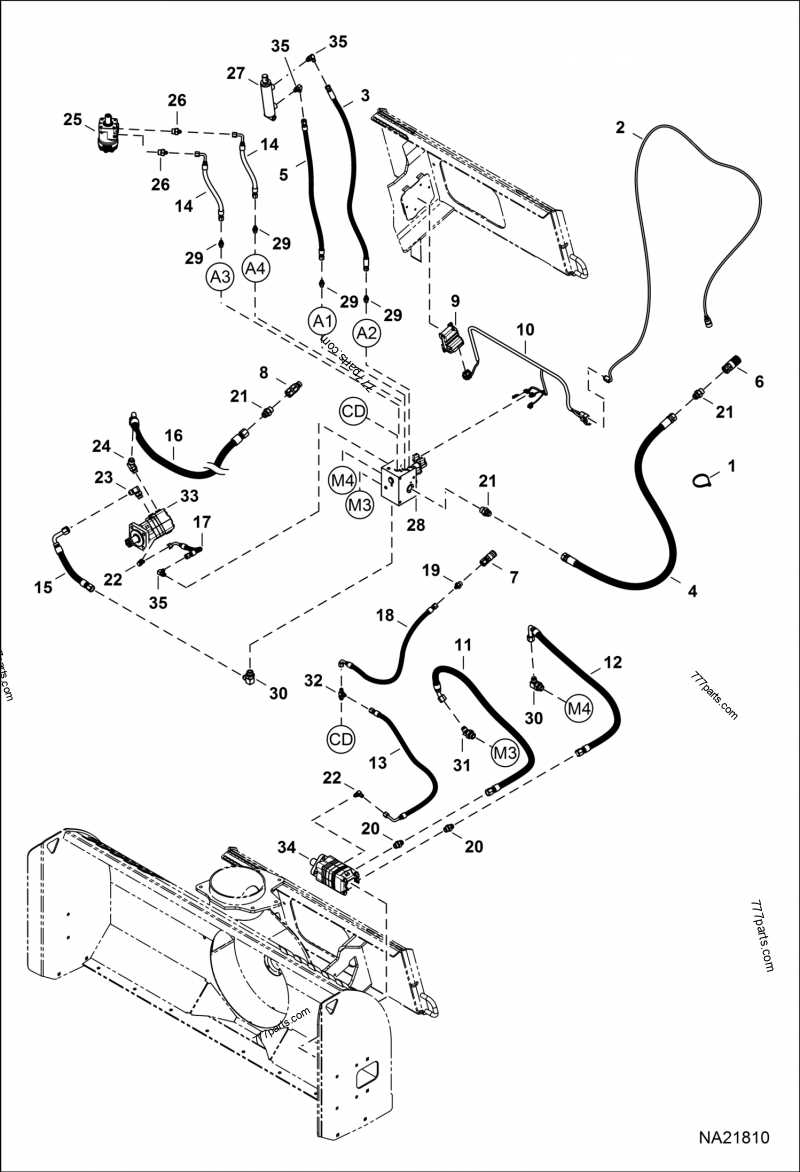

Locate the exploded view on the schematic–identify the title block in the bottom-right corner. Note the model number, revision date, and scale (e.g., 1:2 or “DWG SIZE A”). Verify these match your unit’s serial plate; discrepancies indicate outdated or incorrect documentation. Trace the bolded boundary lines to distinguish sub-assemblies: augers (typically upper left), impeller housing (center-right), and chute mechanisms (lower sections). Use a red pen to mark each reference designator (e.g., “A-5” for the shear pin) directly on the print to avoid cross-referencing errors.
| Symbol | Meaning | Action Required |
|---|---|---|
| Dashed line | Hidden or internal component | Confirm depth using callouts (e.g., “.5 in. recess”) |
| Diagonal hatch | Machined surface or wear plate | Check torque specs if fastener is adjacent |
| Arrow with “LH” | Left-hand thread | Reverse tightening direction (counter-clockwise) |
Compare fastener locations against the bill of materials (BOM) at the top. Cross out each item on the BOM as you validate its presence–missing bolts often indicate stripped threads or sheared welds. For plastic clips (e.g., chute deflector mounts), notice the triangle icons: solid fill means interference fit; hollow requires adhesive. Measure keyed slots with calipers if drawings lack dimensional labels–standard auger slots are 6.35mm wide (±0.1mm). Reassemble in reverse sequence, consulting callouts for lock washers only after confirming split pins.
Critical Components to Inspect After Heavy Use
Start with the auger blades–they degrade fastest from packed ice and hidden debris. Check for uneven edges, deep gouges, or cracks radiacting from the hub. A 0.5-inch chip reduces cutting efficiency by 22%, forcing the motor to work harder and accelerating belt wear. Replace blades if pitting exceeds 1/16-inch depth; sharpened edges won’t grip slush effectively and increase vibration.
Shear pins snap under sudden torque but save the gearbox–inspect these 4-inch rods after each storm. Corrosion weakens tensile strength; zinc-plated pins resist rust for 15–20 cycles, while untreated steel fails after 5. Carry spares: matching diameter (5/16″ or 3/8″) and hardness (Rockwell C36–40) prevent bent shafts or stripped gear teeth during replacement.
Examine the discharge chute’s rotation gears beneath the lid. Grit jams the nylon worm gear within 50 hours if not lubricated–clean with compressed air, apply silicone spray every 10 cycles. Look for broken gear teeth; missing one tooth misaligns the trajectory by 12°, sending snow back into the path. If teeth are worn smooth, swap the entire assembly–the housing costs $28, labor isn’t worth salvaging.
The belt linking impeller to engine stretches and frays. Measure length: new belts are 48″ ±1/4″; replace at 49.5″ to prevent slippage. Cracks on the inner ridge signal imminent failure–replace before 7°F operation to avoid brittle snaps. Install with exactly 1/2″ deflection under 15 lb pressure; overtension bends the crankshaft, undertension burns the clutch.
Hydraulics and Ignition: Overlooked Fail Points
Slide the transmission fluid sight glass to the “Fill” line every 25 hours; burnt-smelling pink liquid indicates bearing wear. Top off with SAE 80W-90 synthetic–standard gear oil thickens at 14°F, causing hydrostatic lag. If the wheel drive coughs during engagement, replace the 0.25-micron inline filter before flushing the entire system.
Check spark plugs with a gap tool–0.030″ is optimal, but erosion widens it to 0.045″ after 30 hours. A wider gap drops RPM by 800, overheating the cylinder. Clean electrodes with a wire brush, never sandpaper–embedded grit scours the porcelain. If tips are white, the fuel mix is lean; adjust the carburetor needle 3/4-turn clockwise to restore power.
