Start by locating the model number on the machine’s frame–usually stamped near the engine or auger housing. Ariens compact utility equipment follows a standardized numbering system, but variations exist between series like the Classic, Deluxe, or Platinum lines. Cross-reference this number with the official manufacturer’s service manuals available on Ariens’ technical support portal or authorized dealer resources.
For precise component identification, focus on three key assemblies: the impeller housing, drive system, and chute mechanism. The impeller assembly (often labeled under torque specifications) includes blades, wear plates, and shear pins–critical for preventing engine strain during heavy debris intake. The drive system comprises friction discs, belts, and augers; verify belt tension measurements against the manual’s tolerance ranges (typically ½ inch deflection under moderate pressure). Chute controls usually involve cables or electric actuators–check for fraying or misalignment if rotation fails.
If official schematics are unavailable, third-party repair platforms like Partstree or Jack’s Small Engines provide exploded views with OEM-compatible part numbers. Filter results by your model’s production year to avoid mismatched components. Pay attention to combustion chamber parts (spark plugs, carburetor jets) and lubrication points–some models require SAE 5W-30 oil in subzero conditions, while others specify synthetic blends.
For common replacements, stock up on shear bolts (standard ¼-inch hex heads), replacement skid shoes, and impeller housing gaskets–these wear rapidly in icy conditions. Always power down the unit and disconnect the spark plug before handling internal components to prevent accidental starts or electrical shorts.
Finding Component Schematics for Your Ariens Winter Equipment
Begin by locating the model number on your unit–typically engraved on a metal plate near the engine or augur housing. For Ariens machines, this identifier will start with a series code (e.g., “921,” “926,” or “AX”) followed by additional digits. Cross-reference this number with official manufacturer resources such as the Ariens product support portal or authorized dealer manuals. Third-party databases like RepairClinic or Partstree often host downloadable schematics, but verify compatibility against the original documentation to avoid mismatches.
| Component Group | Common Components | Tool Required for Inspection |
|---|---|---|
| Auger Assembly | Shear pins, scraper blades, gearcase | Torx screwdriver (T25/T30) |
| Impeller System | Fan blades, belt, pulley | Socket wrench (10mm-13mm) |
| Engine Unit | Spark plug, air filter, carburetor | Spark plug wrench, needle-nose pliers |
| Chute Mechanism | Deflector, control cables, housing | Adjustable wrench, cable lubricant |
When disassembling, label each fastener and component grouping. Store screws, bolts, and smaller pieces in separate containers or bags, noting their origin (e.g., “upper chute bracket–left side”). For gear-driven models, pay special attention to the torque specifications for shear pins–typically 5-7 ft-lbs. Over-tightening risks damage during impact with ice or debris, while under-tightening may cause premature failure.
Interchangeable components vary by series. Older units (pre-2015) may require proprietary parts like specific augur housings, while newer models often accept universal scraper blades or belts. Always measure critical dimensions–auger diameter, belt length, or impeller pitch–before ordering replacements. For example, Ariens Compact models use a 12-inch-wide housing, whereas Professional series units span 13 to 16 inches.
After reassembly, test the unit in a controlled environment. Engage the augur and impeller separately at full throttle, checking for unusual vibrations or noises. Lubricate control cables with silicone spray and apply grease to pivot points. If the chute rotation feels sluggish, inspect the gearbox for worn gears or insufficient lubrication–replace if teeth show excessive wear. Keep a record of replaced components for future maintenance cycles.
Locating Genuine Equipment Schematics for Ariens Machinery
Begin with the manufacturer’s main portal: ariens.com/support/exploded-views. The site hosts an interactive database with exact breakdowns for all models, including current and discontinued units. Search by serial number or product line–avoid generic filters for more precise results.
For older machines, such as models predating 2010, visit Partstree. They maintain archived schematics that align with official documentation. Enter the exact model code found on the equipment’s identification plate to bypass irrelevant matches.
Specialty dealers often host PDF repositories for immediate downloads. Sites like eReplacementParts and Jack’s Small Engines provide user-uploaded files alongside manufacturer-verified layouts. Verify file authenticity by cross-referencing part numbers with the original manual.
Manufacturing years matter. For 2015–2023 models, the official Ariens portal includes 3D renderings alongside standard line drawings. Use these for complex assemblies; rotate views to isolate component locations before ordering replacements.
Local distributors may grant access to dealer-only schematics. Contact authorized service centers–many will email PDFs upon request if you provide proof of ownership. Avoid third-party marketplaces like eBay or Amazon for schematics; their diagrams often lack critical updates.
For urgent repairs, Ariens Owners Forum features member-shared files. Moderators verify accuracy, but always confirm dimensions against a physical measurement before cutting or welding custom fixes.
If schematics are missing entirely, request a physical copy via Ariens customer service. They may ship a printed manual for a fee or direct you to an affiliated technician who maintains a private archive for rare equipment lines.
Critical Elements in a Rotary Clearing Machine Schematic
Begin troubleshooting or maintenance by locating the auger housing–identified in most schematics between the chute assembly and the intake housing. Confirm its serial number matches the model’s variant; Ariens often adjusts blade spacing, gearbox ratios, or reinforcement plates across production years. Misalignment here causes uneven ice discharge or premature wear on the shear pins, which are typically cadmium-coated and rated at 5/16” diameter–replace with identical specifications only.
Impeller and Auger Drive System
Focus next on the impeller–usually a stamped steel or cast iron disc mounted directly behind the helical cutter. Inspect the retaining bolts (often torqued to 35-45 ft-lbs) and verify the impeller’s clearance against the housing wall remains within 1-2mm; excess gap reduces suction efficiency and creates stray ice buildup. The drive mechanism, whether belt-driven or direct gear engagement, requires lubrication points highlighted in red on the schematic: gearbox oil (SAE 80W-90), bearing grease (NLGI #2 lithium), and axle zerk fittings. Overlooking these leads to seized components or belt slippage under wet packed conditions.
Verify the electrical harness routing–specifically the ignition coil, starter solenoid, and auger engagement switch–against the wire color codes shown. Even a slight deviation risks short circuits during cold starts, particularly in units with heated handles (resistance: 10-12 ohms). Schematics for newer models detail modular connectors; older versions use crimped terminals requiring solder rework if corrosion occurs–clean contacts with CRC 2-26 and apply dielectric grease before reassembly.
Identifying Compatible Components with Manufacturer Schematics
Locate the serial number plate on your outdoor power equipment–typically stamped on the chassis near the engine or under the rear panel. Reference this identifier against the exploded-view schematics in your service manual’s appendix; each assembly (e.g., impeller housing, augers, shear pins) lists corresponding part numbers in a grid adjacent to the visual breakdown. Cross-check these numbers with the vendor’s online catalog filters, sorting by model year to eliminate obsolete or superseded components–most manufacturers update tolerances annually, so a 2022 impeller may lack compatibility with a 2018 frame due to bolt-hole adjustments or shaft diameter changes.
Precision Measurements for Critical Assemblies
Use calipers to verify shaft diameters on drive components–common failure points like gearboxes or friction wheels often require ±0.02mm tolerance. Compare these readings against the schematic’s dimensional callouts (usually inset tables beneath the illustration) to confirm substitutes; aftermarket suppliers may list generic “universal” parts, but even minor deviations can cause premature wear. For belts or drive chains, note the pitch length and tooth count–schematics denote these in millimeters and groove profiles (e.g., “A-section” vs. “3L”), and mismatches void performance warranties. If the schematic lacks these details, contact the manufacturer’s parts department with your serial number to request Z-pattern drawings for the specific vintage.

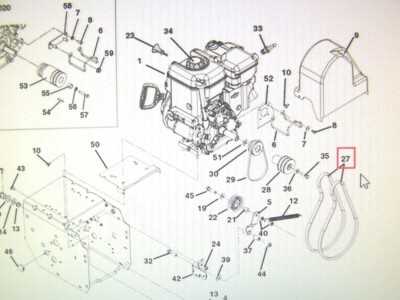

How to Decode an Exploded View for Your Winter Equipment
Locate the reference number grid first–typically printed along the edges or in a corner of the schematic. Each component will have a unique identifier (e.g., 24-701 or A-32) linking it to the list below or beside the illustration. Verify the equipment model and serial number match the ones noted at the top; mismatches will lead to incorrect replacements.
Identify the primary assemblies by their clustered layout. Major sections–like the auger housing, impeller, or chute mechanism–are usually grouped with subsidiary elements radiating outward. Use the legend if available; symbols like dashed lines indicate fasteners or optional add-ons, while solid arrows show movement or alignment direction.
Trace the part’s position in relation to adjacent pieces. For example, a shear pin (item 12-450) will intersect between the auger shaft (item 12-430) and the gear case (item 12-500). Note whether the component is flush-mounted, threaded, or press-fit–this determines the tools needed for disassembly.
- Bolts: Hex (usually 10mm–15mm) or Torx (T25–T30) heads.
- Gaskets: Typically rubber or paper; check for thickness if replacing.
- Bearings: Look for shielded (ZZ) or sealed (2RS) variants.
- Belts: Measure width/length before ordering.
- Shear elements: Brass or steel; ensure correct diameter.
Check for sub-assemblies labeled with letters (e.g., “12A”) or asterisks. These denote kits or multi-part units–like ignition systems or control linkages–that must be ordered as a set. Cross-reference the schematic’s callout with the OEM’s parts catalog to confirm compatibility; aftermarket alternatives may have slight deviations in tolerances.
Common Pitfalls in Schematic Interpretation
- Assuming symmetry–left/right components (e.g., skid shoes) often mirror but may differ in threading.
- Ignoring torque specs for critical fasteners (e.g., impeller bolts usually require 20–25 ft-lbs).
- Overlooking wear items not shown (e.g., shear key slots, shaft grooves).
- Misidentifying washers–flat, lock, and Belleville types serve distinct functions.
For electronics or wiring, follow colored dashed lines in the schematic–red for power, black for ground, and striped for sensors. If the exploded view lacks a wiring key, consult the separate electrical diagram. When reassembling, install components in reverse order of removal, using thread locker on critical fasteners (e.g., engine mount bolts).
