Locate the blade housing assembly at the base of the unit–this is the central hub where most wear occurs. Check the engine mounting bolts (typically 4–6, size #10 or M8) before disassembly; torque specs rarely exceed 25–30 ft-lbs. If threads strip, replace with grade 8 hardware to prevent future loosening under vibration.
The drive belt system spans the rear axle and transmission pulleys–inspect for cracks deeper than 1/32″ or glazing on the inner surface. Measure belt width against OEM specs (usually 3/8″ or 10mm); deviations suggest incorrect replacement or pulley misalignment. Adjust tension by loosening the idler arm bracket, ensuring 1/4″ deflection at midpoint without load.
Examine the cutting deck reinforcements: welded seams should show no gaps wider than 0.5mm, especially near the discharge chute. Rust spots larger than a dime demand grinding down to bare metal, followed by application of POR-15 or equivalent corrosion inhibitor. Replace the deck if structural flex exceeds 5mm under manual pressure testing.
For the wheel assembly, verify axle shaft diameter (commonly 12mm or 0.472″)–any bending requires immediate replacement to avoid uneven cutting patterns. Swap out bearings if play exceeds 0.3mm; use sealed 6202 or 6302 variants for longevity. Lubricate wheel hubs with lithium-based grease every 25 operating hours to prevent seizing.
Refer to publication #SNP-1987 for exploded views of the carburetor linkage–most failures stem from the throttle cable fraying at the connection point. Replace the cable if free play exceeds 1/8″ at full throttle, as hesitation during acceleration will damage the engine governor. Adjust the mixture screws (initial setting: 1.5 turns out from seated) only after confirming air filter integrity.
Understanding Your Self-Propelled Grass Cutter Component Layout
Begin by locating the engine assembly near the rear of the unit–identify the air filter housing, carburetor, and spark plug wires first, as these most frequently require maintenance. The air filter cover typically secures with one or two screws; remove it to access the foam or paper element. Replace the filter if debris obstructs airflow, as restricted ventilation reduces efficiency by up to 30%. Check the carburetor linkage for corrosion or misalignment, which often causes rough idling or stalling.
Examine the cutting deck’s structural integrity–look for cracks along weld points or bent edges near the blade spindle. A warped deck misdirects cuttings, leading to uneven patches. Inspect the drive wheels next; the ball bearings inside often wear after 50–75 operational hours. Apply grease through the zerk fittings every 20 hours to prevent seizing. If the wheels wobble, the axle pins may need replacement–they thread into the frame and secure with cotter pins.
Key Wear Points in Rotary Trimmers
The blade attaches to the spindle via a single bolt–ensure it’s torqued to 40–50 ft-lbs to avoid vibration. A dull or unbalanced blade tears rather than cuts, increasing fuel consumption by 15%. Sharpen it at a 40-degree angle using a file or replace it if chips exceed 1/4″. The deck height adjustment lever connects to the linkage rods; corrosion here causes inconsistent cutting heights. Lubricate the pivot points with silicone spray to maintain smooth operation.
Trace the throttle cable from the handlebar grip to the engine–fraying near the connector commonly causes loss of speed control. The cable housing should flex freely; stiffness indicates internal kinking. The recoil starter engages via a pawl mechanism; if pulling the cord yields no resistance, the spring may be broken. Disassemble the starter cover to inspect–clean debris from the cup to restore tension.
Inspect the grass discharge chute last; clogging here stems from two issues: either the deflector is bent inward or the impeller fins are worn. Straighten the deflector flap with pliers, ensuring it directs clippings outward. If the impeller shows wear, order a replacement–spinning it with damaged fins reduces suction by 40%, leading to repeated clogs. Store the unit upright to prevent oil seepage into the combustion chamber, which creates a smoky startup.
Identifying Key Engine Elements in Your Self-Propelled Cutting Machine
Begin by removing the upper cover–typically secured with four screws–using a 10mm socket or screwdriver. Beneath it, the primary combustion system sits centrally, often marked with a metal tag displaying model specifics (e.g., Briggs & Stratton 122T00). Locate the ignition coil directly above the flywheel, identifiable by its rectangular shape and two thin wires leading to the spark plug boot.
The carburetor attaches to the left side of the block, distinguished by its bowl-shaped reservoir and adjustment screws (idle and mixture). Trace the fuel line from the tank to confirm; a 3/16″ clear hose connects to the inlet. Nearby, the air filter housing–usually plastic or foam–clamps over an intake duct; press the tabs to release and inspect the filter element for debris buildup.
Check the underside of the deck for the blade spindle assembly. Rotate the cutting mechanism manually to expose the crankshaft endpoint, where the blade adapter secures with a single 1/2″ bolt. Use a torque wrench set to 35–45 ft-lbs for reassembly. For electrical components, follow the wires from the ignition kill switch to the solenoid–visible as a cylindrical unit with two larger terminals–mounted near the rear wheel axle.
Locating the Cutting Deck Assembly and Blade in Equipment Schematics

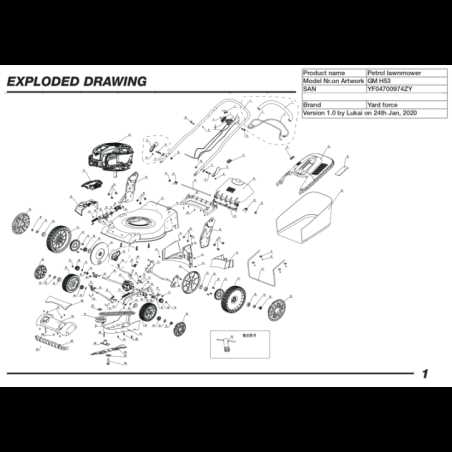

Manufacturer-issued service manuals remain the most reliable source for identifying the cutting deck assembly and blade in technical illustrations. These documents typically group components by functional sections, with the deck and blade often featured in the “Powertrain” or “Cutting System” chapter. For example, Briggs & Stratton’s official repair guides dedicate a labeled exploded view solely to the deck, showing its position relative to the spindle housing and belt tensioner. Numerical callouts in these schematics correspond to a bill of materials, enabling quick part number verification.
Online parts catalogs hosted by authorized dealers offer interactive schematics where users can hover over components to reveal SKUs and installation notes. Sites like Jack’s Small Engines provide layered diagrams that isolate the deck sub-assembly; filters let you toggle between “Blade,” “Deck Shell,” and “Spindle” views. A table below lists platforms with the most detailed deck breakdowns:
| Platform | Deck Diagram Features | Additional Tools |
|---|---|---|
| Jack’s Small Engines | Color-coded spindle mounts, blade rotation arrows | 360° rotation viewer |
| EReplacementParts | Side-by-side OEM vs aftermarket blade comparison | Torque specification popup |
| RIDGID Tool Parts | Multi-angle deck housing cutaways | Compatibility cross-reference |
Hardware retailers specializing in outdoor power tools frequently include QR codes on product packaging that link directly to animated assembly videos. These clips zoom into the deck’s underside, demonstrating blade clearance adjustments with a depth gauge overlay. Home Depot’s Pro Parts portal, for instance, pairs each blade diagram with a 12-second clip showing the correct engagement of the anti-scalp rollers with the deck edge.
Peer forums like MyTractorForum maintain threads where users upload annotated photos of their equipment’s underside with markers pointing to the deck’s wear points and blade positioning notches. One thread for residential-grade units includes a post with a cutaway sketch showing the exact point where the discharge chute exits the deck shell–details absent from OEM schematics. These contributions often highlight year-specific changes, such as a 2022 model’s reinforced blade stop bracket visible only when the deck is flipped upside down.
For vintage models, microfilm archives at public libraries preserve discontinued service bulletins that include hand-drawn deck schematics. A 1998 Kohler bulletin, available on request, features a cross-section detail of the blade-to-deck interface with tolerance measurements down to 0.003 inches. University agricultural extensions also host PDF scans of older manuals where the deck assembly is indexed under “Rotary Cutting Attachment,” offering an alternative nomenclature for searches.
Identifying Wheels, Axles, and Adjustment Mechanisms
Begin by examining the wheel hubs–most models feature a stamped metal or molded plastic cap securing the axle. Pry this cap gently with a flat-head screwdriver to reveal the retaining clip or cotter pin. Replace immediately if corrosion or bending is visible; even minor wear compromises stability during operation.
Measure axle diameter with calipers–common sizes range from 3/8″ to 1/2″ in residential units, while commercial-grade equipment may use 5/8″ or 7/16″ hardened steel. Mismatched replacements bind under load, accelerating tread wear on both rubber and composite wheels. Always cross-reference the OEM part number etched on the axle shaft before sourcing alternatives.
Check adjustment levers near the wheel wells: look for serrated washers or threaded collars that engage with the height setting notches. If loose, tighten the locking bolt until resistance is felt–overtorquing strips threads, while undertightening causes uneven cutting. For models with multiple height positions, verify each notch clicks securely into place to prevent unintended shifts during turns.
Inspect wheel bores for debris buildup, which creates drag and premature bearing failure. Clean with compressed air or a narrow wire brush, focusing on the inner lip where grass clippings accumulate. Lubricate sparingly with lithium grease; excess migrates to treads, attracting dirt and reducing traction.
Test wheel alignment by rolling the unit on a flat surface–misalignment produces a wobbling effect. Loosen the axle mounting bolts on one side, adjust until both wheels track straight, then retighten to 25-30 ft-lbs. Uneven alignment increases resistance and may damage deck components over time.
Replace wheels if tread depth falls below 1/8″ or if cracks appear in the sidewalls. Polyurethane variants outlast rubber in high-heat conditions but sacrifice cushioning; choose based on terrain. Match the bolt pattern precisely–most use four or five lug holes spaced evenly, though some compact models employ a center-lock hub with a single large bolt.
