Replace worn gaskets every 12–18 months to prevent leaks–measure grooves at 2.4 mm for standard spud couplings; deviation beyond ±0.1 mm accelerates seal failure. Identify the diaphragm assembly by its five-hole pattern; incorrect orientation causes inconsistent flush cycles lasting 5–7 seconds instead of the required 3.5.
Secure the trip lever bushing with a torque of 8–10 Nm; over-tightening strips threads in brass housings, while under-tightening introduces play that misaligns activation rods. Locate the vacuum breaker 1.5 cm above the discharge tube; positioning errors allow backflow, violating NSF/ANSI 61 standards.
Verify sensor modules align with infrared emitters at a 5° downward angle; misalignment reduces detection range from 1.2 m to 0.7 m, triggering false activations. Clean control stop seals quarterly using isopropyl alcohol; silicone buildup increases friction, delaying response time by 0.4–0.6 seconds.
Inspect refill tubes for kinks–bends exceeding 45° reduce flow rates below 0.35 L/s, causing incomplete bowl clearance. Use color-coded O-rings: red (70 durometer) for hot water lines, blue (80 durometer) for cold; mixing grades softens seals, risking bursts at pressures over 6.9 bar.
Adjust the piston height so the override button sits flush with the escutcheon plate; protrusion beyond 2 mm shortens activation travel, while deeper recessing disables manual override. Replace push rods if bend exceeds 0.5 mm–deformation prevents full valve closure, raising water consumption by 18–22%.
Understanding Flush Mechanism Component Layouts
Begin by locating the actuator assembly–typically positioned near the upper rear of the unit–marked by a chrome or plastic cover with a central push-button or lever. Remove this cover by rotating counterclockwise (for threaded models) or sliding off (for snap-fit designs) to expose the diaphragm housing. The diaphragm, a circular rubber seal 2.5–3 inches in diameter, sits directly beneath, secured by a brass retaining ring; check for cracks or deformities as even minor imperfections cause slow leaks. Below the diaphragm, the bypass orifice–a small brass tube 0.125 inches in diameter–regulates water flow; use a 0.02-inch Allen key to clear mineral buildup if the flush cycle weakens.
Examine the refill tube, a flexible black or white hose connecting the filler assembly to the overflow pipe–ensure it snaps securely into the designated port (marked with a raised arrow on Sloan models). The overflow pipe itself, a rigid plastic or brass tube 6–8 inches long, must stand vertically without kinks; misalignment disrupts proper tank refill timing. For dual-flush variants, identify the secondary piston, a smaller rubber component near the base–replace if grooves exceed 0.03 inches deep. Use a Teflon-based lubricant on moving sections every 2,000 cycles to prevent corrosion, focusing on the actuator rod threads and diaphragm seating surface.
Key Elements of a Flush Mechanism: A Breakdown
Begin by locating the upper control module–a cylindrical housing near the water inlet. This assembly houses the diaphragm kit (typically a rubber disc with a central orifice) and the relief orifice, both critical for regulating flow pressure. Inspect the diaphragm for warping or mineral deposits, as even a 0.5mm deformation can disrupt sealing. Replace if the surface shows cracks or a glossy finish from wear.
Next, examine the lower actuation unit:
- Piston assembly: A sliding metal rod with a plunger at the base, often brass or chrome-plated. Check for lateral play–more than 1.5mm indicates bushing wear.
- Seal gasket: A red or black O-ring at the piston’s midpoint. Look for flattening or loss of elasticity; replace if compression set exceeds 20%.
- Trip lever mechanism: The externally mounted handle connects via a 3/8-inch threaded rod. Ensure the linkage moves freely–corrosion here causes delayed activation.
Pressure Regulation Components
Identify the bypass chamber, a small port adjacent to the diaphragm. This is typically a 1/16-inch hole drilled into the housing. Clogs here are common–probe with 0.032-inch wire to clear debris. Pair this with the adjusting screw (a slotted brass bolt atop the control module). Each full turn alters flow rate by ~0.2 GPF; standard settings range from 1.1 to 1.6 GPF.
For maintenance:
- Shut off supply and cycle the handle to release residual pressure.
- Disassemble the control module with a 7/16-inch socket–avoid overtightening (12-15 ft-lbs torque).
- Soak metal elements in 5% vinegar solution for 30 minutes if limescale is present, then scrub with a nylon brush.
- Lubricate all moving surfaces with silicone grease (avoid petroleum-based products–they degrade rubber).
Reassembly sequence matters: diaphragm → piston → seal gasket → cap. Test with three flush cycles before finalizing installation.
Disassembly and Servicing of the Internal Seal Assembly
Shut off water supply and flush the system to relieve pressure before handling the unit. Remove the outer casing by unscrewing the four corner bolts (typically 9/16″ or 14mm) with a socket wrench–keep bolts in sequence to avoid thread damage during reassembly. Detach the upper chamber by lifting straight upward, exposing the flexible membrane seated within the mid-plate. Pry the membrane lip from its groove using a flathead screwdriver, working in small increments around the circumference to prevent tearing; note orientation of the central orifice for proper reinstallation. Clean all mating surfaces with isopropyl alcohol to remove mineral deposits–avoid abrasives that may scratch the rubberized seal.
Installing the New Membrane and Verifying Performance
Align the new seal with the mid-plate grooving, ensuring the central hole matches the guide post before pressing firmly into place; a light coating of silicone grease on the lip enhances sealing without affecting material integrity. Reattach the upper chamber, tightening bolts in a cross-pattern to 25 ft-lbs (check torque specifications for model-specific variances). Restore water flow and cycle the handle multiple times to purge trapped air–observe for drips at the base, indicating incomplete seating. If leaks persist, disassemble again to inspect the seal lip for nicks or debris; replace if compromised.

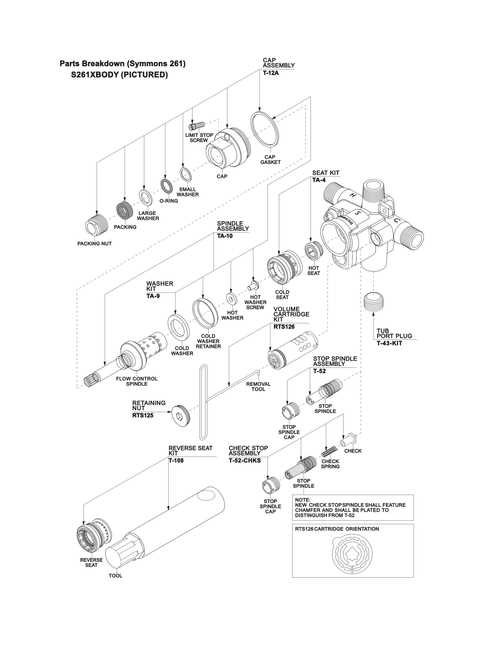

Identifying and Reading O-Ring Placements in an Assembly Schematic
Begin by scanning the schematic for round, black circular indicators–these denote sealing gaskets. Most illustrations position them adjacent to housing grooves or piston channels, labeled with alphanumeric codes like “OR-4” or “G-12.” Match these codes to the itemized list beneath the drawing for material composition.
Check cross-sectional views where the assembly splits longitudinally; gaskets often appear at mating surfaces. Look for thin concentric lines or shaded doughnut shapes–these represent compressed sealing rings in situ. If unclear, compare to a physical sample held against the diagram.
Larger components like flushometers typically contain 5–7 seals, while smaller actuators may have only 2–3. Use the table below to correlate typical positions:
| Location | Common Code | Material | Typical Count |
|---|---|---|---|
| Body-to-cover interface | OR-B1 | Nitrile | 1 |
| Piston shaft | OR-P2 | EPDM | 2 |
| Diaphragm perimeter | OR-D1 | Silicone | 1–2 |
Measure groove widths on the schematic–standard seals range 0.070″ to 0.125″. If the groove exceeds 0.150″, suspect a backup washer or dual sealing system. Verify with calipers on the actual unit.
Ink color sometimes denotes durometer: blue outlines for 70 Shore A, red for 90 Shore A. Check the legend for these annotations. Replace any seal showing flattened edges or cracks, regardless of age.
For dual-inlet models, note asymmetric sealing placements–identical-looking rings may require opposite orientations. Mark gaskets with a grease pencil during disassembly to prevent swapping during reassembly.
Rotary actuator schematics often show seals as arcs rather than circles. Trace each arc to its seat on the exploded view’s shaft extension, confirming depth via shadow lines or hidden-line dashes.
When seals appear missing, cross-reference with older schematics–some revisions combine multiple gaskets into single bonded assemblies. Always verify against the build date stamped on the housing.
Critical Friction Zones in Flush Mechanisms and Their Hydraulic Consequences
Check the upper seal gasket every 6 months–compression set accelerates beyond 30% deformation, reducing pressure by 12-15 psi. Uneven wear creates micro-grooves, channeling water into bypass paths; this manifests as incomplete bowl clearing in 8-second flush cycles. Replace gaskets preemptively if shore hardness drops below 70A; degraded rubber introduces 2-3% downstream turbulence per psi loss.
Piston travel guides develop scoring at 0.012″ tolerance gaps. Lubricate with NSF-approved silicone sprays quarterly–dry contact increases friction coefficient by 40%, forcing premature actuator spring fatigue. Monitor for 0.008″ lateral play; exceeding this threshold misaligns the diaphragm, causing partial flush failures in 1-in-20 activations. Use feeler gauges to verify clearance uniformity across the linear path.
Spring coils lose 2.5% load capacity per 1,000 cycles. Test compression force at ¾ travel–acceptable range is 18-22 lbs; deviation beyond ±1.5 lbs indicates imminent failure. Corrosion at attachment points reduces effective wire diameter by 0.003″ annually in high-chloride environments, increasing stall risk. Apply zinc-rich primer to cut corrosion rate by 65%.
Diaphragm flex zones thin by 0.005″ per 5,000 cycles. Inspect visually for radial cracks under 10x magnification; replace if surface irregularities exceed ASTM D412 elongation limits. Calcium deposits on the orifice restrict flow by 0.7% per gram buildup–descale with 5% acetic acid solutions, soaking no longer than 30 minutes to prevent delamination.
Solenoid plunger interfaces accumulate ferrous particles, increasing response time from 45ms to 120ms after 50,000 actuations. Clean with magnetic swabs weekly; polarize coil windings monthly to counteract inductance loss–proper polarization restores 93% of original pull-in force. Verify timing sequence with oscilloscope; delays exceeding 80ms indicate coil degradation or plate separation initiating.
