For precise ocular examinations, begin by identifying the illumination column–its adjustable aperture and filter controls directly impact the clarity of the anterior segment visualization. Position the light source at a 45-degree angle relative to the observation path to reduce glare and enhance contrast in corneal structures. The observation system’s magnification dial typically ranges from 6x to 40x; set it to 10x for general surveys of the cornea, lens, and iris, then increase to 25x for詳細 cellular inspections.
The joystick mechanism should move smoothly in all axes–lateral adjustments must not exceed 2 mm increments to maintain focus on specific layers, such as Descemet’s membrane or lens zonules. Check the slit width: a narrow (0.1–0.2 mm) beam isolates individual cellular details, while a broader (1–2 mm) section helps assess depth and topography. Ensure both oculars are aligned to your interpupillary distance; misalignment causes double vision and strains accuracy during prolonged use.
Examine the beam splitter’s condition–cracks or oxidation distort light transmission, compromising image fidelity. Dust on the cobalt blue filter will scatter fluorescence during fluorescein assessments; clean with a lint-free swab dipped in 70% isopropyl alcohol. The tonometer attachment’s calibration should be verified monthly; deviations greater than ±2 mmHg invalidate intraocular pressure readings. For higher-resolution imaging, the auxiliary lens kit’s +20D option is mandatory for vitreous examination, but it reduces working distance by 50%–reposition the device accordingly.
Regularly inspect the chin rest’s padding; tears or compression deformations alter patient positioning, leading to inconsistent imaging planes. The fixation target must be centered–deviation causes parallax errors during scleral evaluations. For pediatric cases, engage the diffuser mode to soften illumination intensity, preventing pupil constriction that obscures lens details. Always cross-reference findings with the device’s internal scale markings; the corneal thickness ruler’s divisions are 10 µm, ensuring measurements remain within clinical tolerance thresholds.

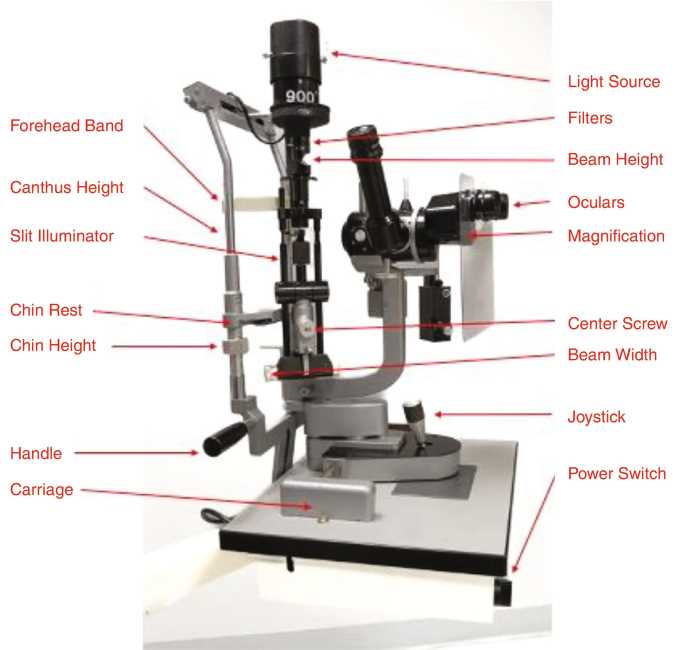

Visualizing Ophthalmic Microscope Components
Begin by locating the illumination column–its adjustable aperture controls beam width, critical for assessing corneal layers. Position the light source at a 45-degree angle for optimal contrast when examining the anterior chamber. Verify the filter turret includes cobalt blue for fluorescein staining and green (red-free) for vascular details; missing filters reduce diagnostic precision. Rotate the tower to align with the observer’s dominant eye to minimize parallax errors.
Precision Adjustments for Diagnostic Accuracy
- Joystick control: Ensure friction settings match the clinician’s grip strength to prevent drift during gonioscopy. Too much resistance delays fine movements; too little causes overshooting.
- Magnification dial: Use 10x-16x for general screening, reserving 25x-40x for endothelial cell counts and suture placement. Higher magnification demands steadier hand motion.
- Focal length: Adjust working distance to 90-120mm–shorter distances risk patient discomfort while longer ones reduce resolution.
The biomicroscope’s binocular head must support interocular distance adjustments from 55-75mm. Uneven alignment causes eyestrain and forces monocular viewing, distorting depth perception. Check the beam splitter: a 50/50 ratio balances image brightness for both examiner and documentation cameras. For ergonomics, tilt the oculars 5-10 degrees downward to reduce cervical strain during prolonged examinations.
Critical Wear Points and Calibration
- Examine the aperture slider for debris–even 0.1mm particles scatter light, creating false opacities in the lens.
- Test the color temperature: ideal halogen bulbs emit 3200-3400K; LEDs should match to avoid chromatic aberration in photographs.
- Inspect the chinrest pad for cracks–compromised padding alters patient positioning, skewing axial alignment by up to 3 degrees.
- Verify the locking mechanism on the illumination arm: loose joints cause drift during applanation tonometry, invalidating pressure readings.
Documentation ports often include a C-mount thread (1-inch, 32 TPI) for high-resolution cameras. Ensure compatibility with sensors rated for 12+ megapixels to capture fine detail in endothelial mosaics. For fundus imaging, attach a condensing lens (+90D) and rotate the light tower 180 degrees–failure to invert the beam axis results in upside-down images of the vitreous body.
Key Optical Components and Their Positions in Ophthalmic Examination Devices
Adjust the illumination arm’s beam splitter to a 45-degree angle for optimal corneal section visualization, ensuring alignment between the light source and microscope optics. Misalignment here reduces contrast in stromal details–calibrate before each exam by verifying the beam’s sharp edge against a test target.
The Galilean telescope system sits within the observation path, typically left of the central axis, near the eyepieces. Its two lenses (objective and ocular) should remain free of dust–clean with 70% isopropyl alcohol and lint-free swabs every 48 hours. Replace if magnification appears distorted beyond ±2% of the stated value (e.g., 10x or 16x).
Aperture plates rest in the illumination tower’s filter slot–use the cobalt blue for fluorescein dye assessment and the red-free for vascular studies. Position them precisely; even a 1mm offset causes uneven light distribution. Secure with the locking mechanism to prevent accidental rotation, which scatters the beam and obscures fine details like endothelial cell patterns.
The fixation target, usually integrated into the base or patient headrest, must align with the central optical axis at 0° inclination. For pediatric exams, use the adjustable LED variant (5–10 cd/m² brightness) to maintain steady gaze. Verify alignment monthly by projecting the target onto millimeter paper–any deviation over 0.5mm requires recalibration via the built-in micrometer screws.
How to Identify and Adjust the Illumination System
Begin by locating the rheostat dial on the base unit–typically a rotary knob or digital interface labeled with intensity percentages. Rotate it clockwise to increase brightness in 10% increments until reaching 60-70% for standard examinations; exceeding 80% may cause patient discomfort or reflective glare. Verify the alignment of the light source by ensuring the beam fires through the central aperture without obstructions; misalignment often creates uneven illumination patterns.
Inspect the condenser lens positioned directly behind the aperture plate for smudges or dust accumulation. Clean it with a lint-free swab lightly dampened in 70% isopropyl alcohol, using circular motions to avoid scratching the coated surface. Replace the lens if clouding persists, as degraded optical clarity reduces contrast by up to 40%. Confirm the lens holder’s locking mechanism clicks into place to prevent vibration-induced shifts during operation.
Adjust the angle of the beam projector by loosening the lateral tilt knob–usually marked with degree indicators–and pivoting it to match the examiner’s dominant eye (15° for most right-handed clinicians). Tighten the knob securely to avoid drift during procedures. Test the beam’s focus by narrowing it to a 1mm width on a calibration target; blurring at the edges signals a misaligned filament or degraded mirror coatings, requiring professional recalibration.
Check the filter selector wheel for smooth rotation between settings (neutral density, cobalt blue, red-free). Ensure each filter clicks into detents firmly, as loose engagement causes spectral inconsistencies. For fluorescence assessments, verify the cobalt blue filter’s peak transmission at 450-490nm using a spectrometer; deviations indicate aging filters needing replacement every 2,000 operating hours.
Calibrate the background illumination by setting the diffuser plate to its halfway position. Observe the uniformity of light distribution across a white surface–dark spots suggest dirt on the diffuser or misaligned reflectors. For slit-width precision, use the micrometer knob to achieve a 0.1mm deviation tolerance; inaccurate widths distort structural measurements in depth-focused techniques.
Finally, synchronize the illumination system with the observation optics by verifying parfocality. Adjust the beam’s focal plane to match the microscope’s working distance (±0.5mm) via the height adjustment knob. Store equipment with the rheostat at 30%, filters disengaged, and beam projector angled downward to prevent accidental damage or filament stress.
Binocular Microscope Alignment and Adjustment Steps
Adjust the interpupillary distance first by moving the ocular tubes until a single, circular field of view appears. Measure the distance between the centers of the eyepieces and note it–most instruments range between 55–75 mm. This setting minimizes eye strain and ensures stereoscopic vision for precise observations.
Rotate the diopter adjustment rings on both eyepieces to compensate for refractive differences. Cover one ocular, focus on a fixed target (e.g., etched reticle or fine print) with the other, then switch and adjust the second eyepiece without altering the focus knob. Repeat until the target remains sharp in both eyes without blurring.
Set the illumination angle to 45° for optimal contrast, avoiding direct glare into the observer’s line of sight. For corneal examinations, reduce the beam width to 0.1–0.2 mm; for lens clarity checks, expand it to 1–2 mm. Verify alignment by centering the light source on the target–misalignment causes shadowing or uneven illumination.
Check the coherence of the magnifications by comparing the left and right optical paths. If images appear doubled, rotate the left ocular tube slightly (less than 5°) while observing a fixed point until fusion occurs. Some microscopes feature a tension adjustment screw beneath the eyepiece–tighten it just until resistance increases, preventing accidental drift.
Calibrate the focus mechanism by testing both coarse and fine adjustments on a standardized target (e.g., micrometer slide). Ensure smooth, linear movement without play or sticking–irregularities indicate worn gears or misaligned guide rails. Lubricate lead screws with specialized grease (e.g., PTFE-based) if resistance exceeds 0.3 N.
Store the instrument with eyepieces capped and illumination off to prevent dust accumulation on lenses. Recheck alignment weekly if the device is frequently repositioned; daily adjustments may be needed in environments with vibrations or temperature fluctuations exceeding ±3°C.
