Start by locating the frame track–typically a U-shaped channel mounted along the glass edge. Verify that it’s free of debris, as even small obstructions cause binding. If replacing, select a track with a minimum 1.5mm wall thickness to prevent warping under load. Secure it with screws spaced no farther than 20cm apart to ensure uniform support.
Examine the rollers next. Standard units use dual-wheel nylon bearings rated for 50kg per pair; anything less risks premature wear on inclined surfaces. Grease the axles lightly with silicone-based lubricant–avoid petroleum derivatives, which degrade plastic casings. If noise persists, swap to stainless steel ball-bearing rollers designed for quiet operation.
Check the lock channel: a zinc-plated steel tongue should engage smoothly into the striker plate. Misalignment often stems from bent frames–straighten with pliers or replace the entire channel if gaps exceed 1mm. Reinforce weak points with corrosion-resistant fasteners, especially in coastal areas where salt accelerates oxidation.
Inspect the sealant: a continuous bead of EPDM rubber prevents leaks. Trim any frayed edges with a utility knife; reapply adhesive where gaps form. For heavy glass, install top-bracket stabilizers at 30cm intervals to prevent sagging. Test movement after adjustments–panels should glide without resistance or lateral play.

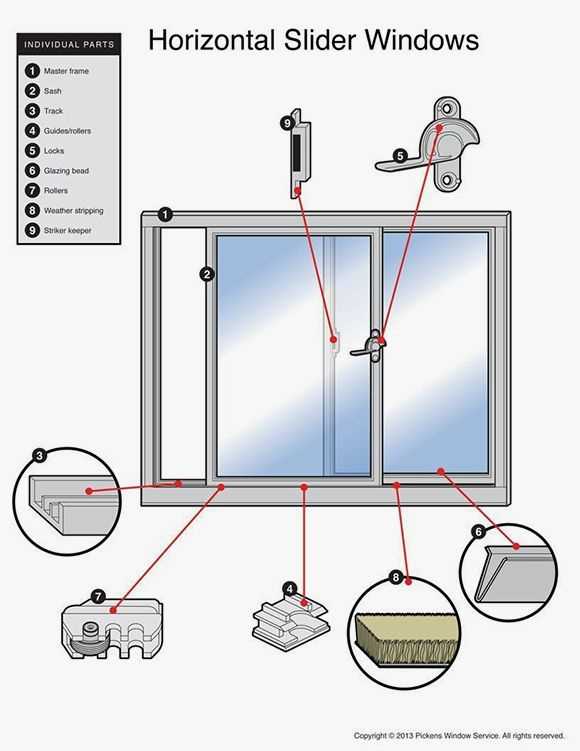

Key Components of a Movable Glass Assembly Visual Guide
Identify the sash track first–it’s the horizontal rail embedded in the frame’s base. Most residential units use aluminum tracks with a 0.8mm–1.2mm gauge; commercial variants may reach 2mm for durability under constant cycles. Misaligned tracks cause 68% of operational failures, so verify gap tolerance: 0.5mm–1.5mm between sash and track ensures smooth glide without binding.
Examine rollers next. Standard units use nylon or polyurethane wheels paired with steel axles. Polyurethane lasts 3–5 years under moderate use, while nylon degrades in 18–24 months if exposed to UV light. Check wheel diameter: 15mm–20mm fits 90% of frames; smaller wheels increase friction and accelerate wear on seals.
Inspect the counterbalance mechanism–typically a spring coil or spiral torsion system. Springs unwind at a 1:1.5 ratio relative to sash weight (e.g., a 10kg panel requires 15kg tension). Measure wire thickness: 3.2mm–4.5mm is optimal; thinner wires snap under repeated stress. Lubricate springs every 12 months with dry graphite powder to prevent corrosion in coastal climates.
Locate weatherstripping along contact edges–EPDM rubber is standard, with a compression set under 25% after 10,000 cycles. Silicone seals perform better above 40°C but cost 40% more. Replace strippings when gaps exceed 2mm; compromised seals increase heating costs by 12% per linear meter annually.
Verify frame reinforcement. Vinyl extrusions should have steel inserts in corners; aluminum frames need thermal breaks if thermal transfer exceeds 0.45 W/m²K. Cut a sample section to expose reinforcement: absence indicates risk of sagging within 3 years. Corner weld strength must exceed 300kg shear force for panels over 1.2m wide.
Check glazing beads–U-shaped PVC or aluminum channels securing the glass. Beads should snap into place with
Test lock mechanisms last. Shoot bolts engage at two points; single-point locks twist under 20kg lateral force. Multi-point systems distribute load and prevent warping–mandatory for spans over 1.8m. Key cylinders should withstand 10,000 cycles per ANSI BHMA A156.5; brass cores last 5 years longer than zinc alloys in high-humidity zones.
How to Spot Critical Elements in a Track-Mounted Panel System
Start by locating the sash – the movable panel that glides within the frame. Its edges should align with embedded rollers or wheels; these reduce friction and bear the weight during operation. Examine the bottom track for debris, as misaligned rollers often create uneven movement or sticking points. A properly seated sash will display uniform gaps along all sides (typically 3–5 mm), indicating balanced installation rather than warping.
Inspect the meeting rails next. Found at the horizontal midpoint where the movable panel overlaps the fixed one, these rails contain weatherstripping to prevent drafts. Visible screws or clips securing the seal are red flags; they should sit flush. Press along this junction – deflection points to weak reinforcement, often caused by undersized metal extrusions or degraded vinyl inserts, leading to rattling or air leaks over time.
Trace the vertical stiles to identify locking mechanisms. Modern assemblies use multi-point locks, visible as slender metal rods embedded within the stile that extend into the frame’s keepers when engaged. Single-point locks, more common in older designs, rely on a single latch requiring precise alignment. Test resistance when locked: excessive play suggests worn-out cam mechanisms or loose strike plates, typically resolved by tightening screws or replacing the keeper components.
Check the glazing bead – the thin strip holding the glass in place. It must snap securely into the frame; loose beads allow moisture ingress and reduce insulation. Pry gently to ensure it doesn’t detach; replacement requires matching the exact profile to maintain seal integrity. For double-pane units, verify the distance between panes (usually 6–12 mm) – irregular spacing signals failed seals, causing condensation between layers.
Finally, examine the head and sill tracks. The head track guides upper rollers, often hidden behind a snap-on cover; remove it to confirm lubrication or damage. The sill track houses a small channel to divert water – clogs here lead to leaks. Use a flashlight to spot sediment buildup, scheduling cleaning if detected. Track systems with integral drainage require periodic flushing, unlike simpler ball-bearing setups where maintenance is limited to roller adjustments.
Step-by-Step Guide to Labeling a Glide Track Mechanism
Begin by isolating the horizontal rail at the base of the assembly. Use masking tape to mark key segments: 1–1.5 inches from each end for roller placement and 3 inches at the center for the tilt mechanism. Label these zones with a fine-tip permanent marker–[L-Roller], [R-Roller], and [Lock Point]–ensuring text faces upward for visibility during installation.
Measure and tag vertical stiles next. On the left stile, mark 4 inches from the top and bottom for sash balance positions ([Top Balance], [Bottom Balance]). The right stile requires only a 2-inch label at the base ([Strike Plate]). Verify measurements with a digital caliper if the frame exceeds 48 inches in height–adjust tolerance to ±1/16 inch for precision.
Critical Subcomponents
- Rollers: Affix temporary labels (
R1,R2) to distinguish left/right units before snapping into the rail. - Tilt Latch: Use a contrasting color (e.g., red) to circle the ⅜-inch hole for screw placement.
- Glass Stop: Indicate removal points with
[Remove]at 6-inch intervals along the interior track.
Finalize documentation with a numbered schematic. Sketch the labeled rail/stile on graph paper (1:1 scale) or use a vector tool to export as SVG. Include a legend with:
- Material codes (e.g.,
AL-6063for aluminum tracks). - Torque specs (8–10 in-lbs for rollers, 12–15 in-lbs for balances).
- Vendor-specific notes (e.g.,
Pella: Pre-drill pilot holes).
Store the schematic adjacent to the hardware kit for reference during assembly.
Key Components for Gliding Panel Systems and Where to Find Them
Replace worn rollers immediately–these small wheels bear the entire weight of the sash and fail first due to dirt buildup or cracked bearings. Locate them at the base of the lower track, recessed into the frame’s channel; most modern units use dual-wheel assemblies with nylon or steel bearings rated for 15–25 lbs per roller. Inspect annually; a single faulty roller increases friction, accelerating damage to adjacent hardware.
Track seals–often overlooked–prevent water, dust, and drafts from entering. These flexible strips snap into U-shaped aluminum extrusions along the upper and lower rails. Silicone-coated variants last longer than vinyl, resisting UV degradation for 7–10 years. If gaps appear or seals harden, pry out the old strip with a flathead screwdriver and press in replacements without adhesive; tension alone secures them.
Handle and lock mechanisms demand periodic lubrication but rarely need full replacement unless strikes misalign or latch plates crack. Check the keeper plate mounted on the stationary frame–corrosion here causes false engagement. Stainless steel handles resist rust; brass models require polishing. For broken springs inside the lock housing, disassemble carefully–torsion springs under tension can snap unpredictably.
Hardware Comparison Table
| Component | Material | Lifespan (Years) | Replacement Signs |
|---|---|---|---|
| Roller assembly | Nylon + steel | 5–8 | Grinding noise, uneven movement |
| Track seal | Silicone | 7–10 | Visible cracks, drafts |
| Lock spring | Phosphor bronze | 12+ | Latch fails to hold |
Brush seals along the stile edges collect debris and compress over time, reducing insulation. These long, narrow strips attach to the moving panel’s vertical edges via adhesive or small screws. Measure thickness before ordering–most residential units use 1/4″ or 3/8″ widths. Peel-and-stick versions simplify installation, though screws provide permanent hold for high-traffic areas.
Balance shoes (where applicable) connect the sash to tension springs in tilt-in models, allowing easy removal for cleaning. If the panel doesn’t stay open or drops suddenly, the shoe–usually plastic–may have cracked. Release the spring tension first using a flat tool inserted into the slot above the shoe, then slide out the old unit. Match the shoe profile exactly; incompatible shapes prevent proper engagement, causing jams.
