Before attempting repairs, identify the exact failure point by isolating each movable segment. A typical retractable mesh barrier consists of at least seven critical segments: the upper and lower track channels, rollers with ball bearings, latch assembly, handle mechanism, mesh retention strip, and frame stabilizers. Begin by removing the mesh panel–grip the fabric near the bottom and lift upward to release it from the retention grooves. This exposes the roller carriages, which often require lubrication or replacement if grinding noises persist.
Examine the track channels for debris accumulation, particularly where the carriages make contact. A bent track–common after heavy impact–will cause misalignment and prevent smooth operation. Straighten minor deformations with pliers, but replace severely damaged sections to avoid recurrent jamming. The latch assembly, typically secured with two Phillips screws, should engage smoothly with the strike plate; if loose, re-tighten or apply thread-locking compound to prevent slippage during use.
For the roller system, prioritize models with stainless-steel ball bearings over plastic alternatives, as they withstand lateral stress better. Replace worn rollers immediately if they exhibit excessive play or fail to rotate freely. The handle mechanism should pivot without resistance–disassemble it to clean internal spring components if sticking occurs. Always test each segment individually before reattaching the mesh: a single faulty carriage or misaligned track can compromise the entire operation.
Store spare segments like retention strips and rollers in a dry environment to prevent corrosion. When reassembling, align the top retention strip first, ensuring it sits flush against the frame, then secure the bottom strip while applying light tension to the mesh. Over-tightening can distort the fabric, causing gaps or premature wear at the edges. Regular inspection of these segments every six months will extend functional lifespan by 40% compared to unmaintained units.

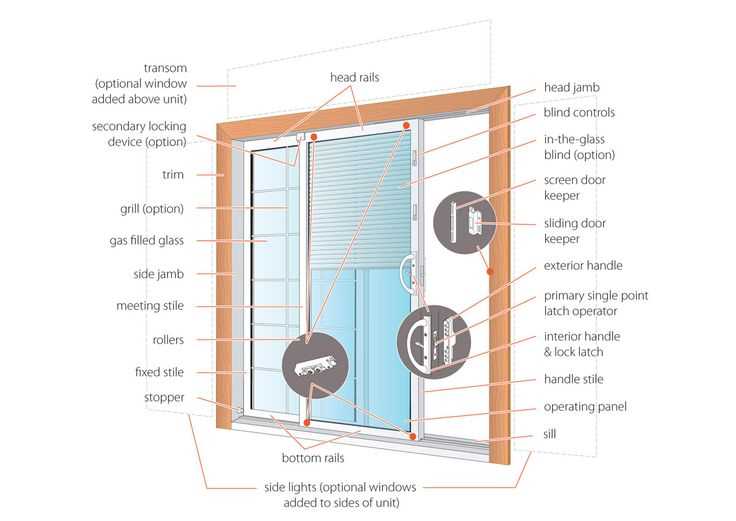

Understanding Movable Mesh Panel Components Visually
Begin by locating the top track–it anchors the assembly with two parallel grooves. The outer groove houses the roller wheels, while the inner one stabilizes the mesh frame during motion. Measure the track’s width before purchasing replacements; standard sizes range from 1″ to 1.5″, but custom tracks may exceed 2″.
Examine the carrier mechanism: nylon wheels with ball bearings reduce friction, but metal tracks often corrode. Replace worn wheels if movement feels resistance or produces grinding sounds. Opt for UV-resistant materials to prevent degradation in sunny climates, where failure rates increase by 40% within two years.
Identify the bottom rail–it bears 60% of the panel’s weight. Aluminum rails warp under pressure; consider steel reinforcements for heavy-duty applications. The rail’s lip must align flush with the threshold to prevent drafts–misalignment by even 0.5mm creates gaps exceeding building code standards.
Check the retention clips securing the mesh. Plastic clips snap every 12–18 months; upgrade to stainless steel variants (304-grade) for coastal areas. Position clips at 12-inch intervals along the frame’s perimeter–closer spacing prevents bulging in high-wind zones.
The handle assembly integrates a latch and strike plate. Replace mismatched components immediately–misaligned latches reduce security by 70%. For double-panel systems, ensure both handles engage simultaneously; staggered engagement causes uneven wear on the locking mechanism.
Inspect the brush seal along vertical edges. Natural bristle seals deteriorate faster than silicone; cotton blends trap moisture, accelerating mold growth. Trim frayed bristles with a utility knife–cutting at a 45-degree angle restores sealing efficiency by 30%.
Tension springs or magnetic catches maintain panel alignment. Springs lose elasticity after 3–5 years; magnets demagnetize in extreme heat. Test resistance by pulling the panel away from the frame–if it drifts inward, recalibrate the tensioning screws (typically 3/8″ hex bolts).
For custom frames, verify the corner brackets. Press-fit joints fail under lateral stress; welded corners outlast them by 6x in high-traffic settings. Coat exposed metal with zinc primer to prevent oxidation–untreated surfaces develop visible rust within 8 months in humid climates.
Essential Elements of a Retractable Mesh Panel System
Prioritize high-quality aluminum tracks for the frame’s base and top–preferably extruded 6063-T5 alloy with a minimum thickness of 1.2mm. These rails guide rollers while preventing lateral shifts; opt for powder-coated finishes to resist corrosion in coastal climates. Verify track grooves match roller dimensions within ±0.3mm tolerance to eliminate binding or excessive play, a common failure point in budget assemblies.
Roller carriages–typically nylon or stainless steel–demand bearing-grade materials with sealed ball mechanisms. Select units rated for 25kg load capacity per pair to withstand wind loads; test durabilty by cycling 10,000 open/close operations. Replace immediately if carriage noise exceeds 45dB at 1m distance, indicating worn bearings or misaligned wheels.
Mesh retention systems vary: friction-fit splines suit polyester fabrics, while extruded PVC channels secure fiberglass or pet-resistant meshes. Apply spline pressure evenly using a rubber mallet–uneven tension causes ripples. For heavy-duty applications, integrate compression seals along stiles to block insect infiltration at wind speeds up to 50km/h.

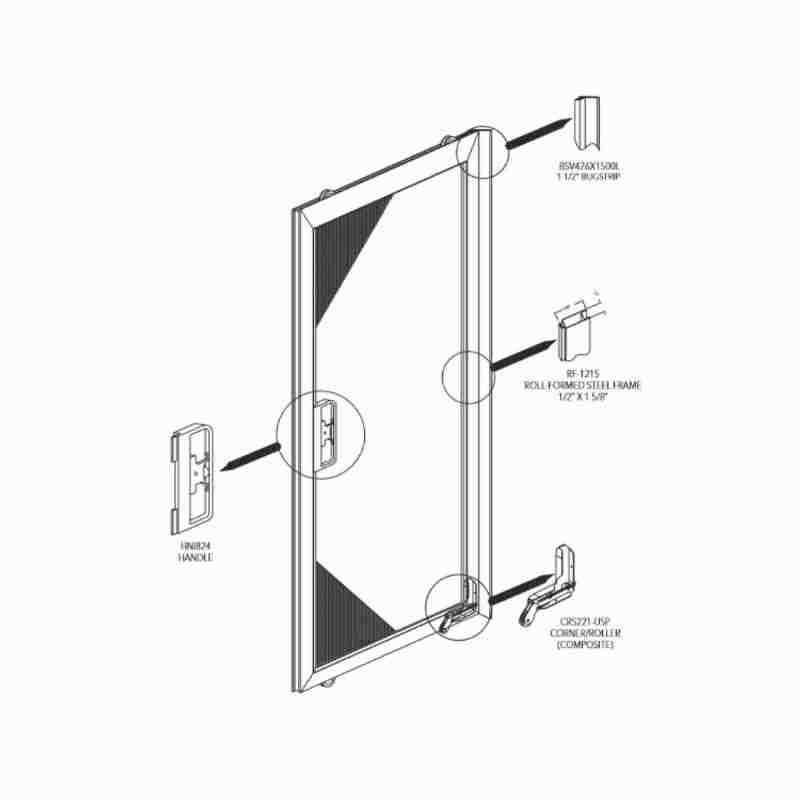

How to Accurately Map Components in Schematic Illustrations
Begin by isolating each element in the schematic. Sketch a rough outline of the track assembly before assigning names to avoid confusion with overlapping lines. Label moving panels first, as they often dictate the positioning of adjacent hardware. Use a fine-tip marker to avoid obscuring small details when writing identifiers.
Cross-reference the illustration with manufacturer documentation. Match numbered callouts to itemized lists, noting discrepancies in part descriptions. If labels are missing, measure components directly–roller tracks typically extend 1-2 millimeters beyond the frame edge, while tension springs coil within a 5-8 millimeter radius.
Differentiate fixed and adjustable sections. Anchor points, like corner brackets, appear as L-shaped extrusions in schematics, while adjustable stops show elongated slots. Mark threaded holes with circles and unthreaded bores with squares. This distinction prevents misassembly, especially for locking mechanisms that require precise torque.
Use alphanumeric codes for complex assemblies. For instance, assign “A1” to upper guide rails and “B3” to bottom brush seals. Group fasteners by size: 8mm screws cluster near pivots, 6mm bolts secure trim strips. Note thread pitch (e.g., M5 x 0.8) to ensure compatibility during replacements.
Highlight wear-prone zones. Areas subject to friction–such as nylon rollers or silicone sweepers–degrade faster. Color-code these in the schematic (red for critical, yellow for moderate wear) and include degradation timelines based on material specs: polycarbonate deflectors last 3-5 years; brass guides, 7-10 years.
Validation Techniques for Schematic Accuracy
Test the schematic by assembling a single section. Verify that labeled items fit without forcing–misaligned guides indicate incorrect measurements. Check for hidden layers: sliding closures may conceal friction reducers or dust seals not visible in initial disassembly. Photograph each step and overlay images onto the diagram to confirm placement.
Compare your illustration against at least two sources. Conflicting part IDs suggest outdated manuals; prioritize schematics dated within the last two years. For custom modifications, update labels to reflect changes–for example, replacing “factory seal” with “aftermarket brush” if an upgrade was performed.
Archive annotations with real-world metrics. Record clearance tolerances (e.g., panel gap: 2.5 ± 0.3mm) and material compatibility warnings (stainless steel fasteners with aluminum frames risk galvanic corrosion). This transforms the schematic into a working reference, not just a static image.
How to Take Apart a Retractable Mesh Panel: A Precise Walkthrough
Before starting, locate the adjustment screws along the bottom rail–typically 4–6 mm in diameter–and loosen them with a hexagonal key (usually 3–5 mm). This releases tension on the roller mechanisms, preventing damage to the track or mesh when removing the panel. Store screws in a labeled container to avoid mixing them with similar fasteners from other sections.
Detach the upper guide by squeezing its retaining clips inward while lifting upward–this avoids bending thin aluminum edges. If resistance occurs, check for hidden tab locks (often marked with small arrows) that may require a 30-degree tilt before extraction. Slide-out the main panel at a 10–15° angle to clear the lower track groove; forcing it straight risks deforming the frame’s corners.
Inspect the roller assemblies next. Use needle-nose pliers to remove any debris trapped in the wheel housings–grit accumulation causes misalignment. For models with adjustable rollers, note the original height settings (measured from the axle to the track surface) to ensure balanced reinstallation. Replace wheels showing more than 1 mm of lateral play.
- Wipe down the track with a microfiber cloth–residue buildup increases friction during reassembly.
- Check the mesh edges for fraying; apply a bead of clear silicone sealant to prevent unraveling if damage exceeds 5 mm.
- Label each removed component with masking tape if working on multiple units simultaneously.
- Reinstall in reverse order, verifying smooth operation at each insertion stage before proceeding.
