Locate the needle clamp assembly by following the vertical shaft from the motor. This component typically holds the needle in place with a screw–verify its tightness before disassembly. Loose fittings here cause skipped stitches or thread breakage. If replacing, match thread sizes: a size 14 universal fits most household models, while heavier fabrics require size 16 or 18.
The feed dog mechanism sits beneath the presser foot and moves fabric forward. Clean these teeth weekly using a stiff brush–accumulated lint reduces stitch uniformity. For damaged feed dogs, check the synchronizer gear inside the main housing. Misalignment here disrupts timing, manifesting as irregular stitch length or jamming. Refer to the machine’s model-specific manual for gear sequencing; generic diagrams rarely include this detail.
Assess the bobbin case tension by testing stitch balance. Place contrasting colors in the bobbin and top thread–tension is correct when both appear balanced on fabric’s underside. Adjust the small screw on the bobbin case clockwise to increase tension, counterclockwise to decrease. Turn the screw no more than ¼ rotation at a time; exceeding this risks permanent miscalibration. Replace the bobbin case if threads tug unevenly after adjustment–wear on the spring can’t be fixed.
Inspect the motor belt for slack or cracking. A properly tensioned belt should deflect ½ inch when pressed midway between pulleys. Replace if cracks exceed 2mm or if the belt slipped off once–damage accelerates failure. For belt replacement, route the new one identically to the old; reversed orientation twists the motor shaft, causing erratic speed or non-operation.
Identify the handwheel clutch (the central knob’s internal mechanism). Disengage it by loosening the set screw before bobbin winding–failure to do so burns out the motor. For models without a visible clutch screw, rotate the handwheel counterclockwise until it clicks. If resistance feels uneven, oil the inner shaft with sewing machine lubricant only–household oils gum up the mechanism within hours.
Illustrated Breakdown of Mechanical Components: A Hands-On Reference
Locate the presser foot lever behind the needle clamp–it lifts during thread adjustments. Most models label this with a stamped “A” or engraved arrow near the pivot point. Replace bent levers immediately; even minor bends cause uneven fabric feed.
Check needle plate screws monthly. A loose needle plate distorts stitch alignment. Use a small screwdriver and torque specifications from the manual–typically 8-12 inch-pounds. Over-tightening strips threads; under-tightening lets the plate shift mid-sewing.
Common Wear Points and Replacement Intervals
| Element | Average Lifespan | Failure Signs | Tool Required |
|---|---|---|---|
| Bobbin case | 3-5 years | Thread nestling, inconsistent tension | Precision screwdriver (PH0) |
| Feed dogs | 5-7 years | Fabric slippage, skipped stitches | Flathead (3mm) |
| Belt | 4 years | Motor whine, slow needle movement | Adjustable wrench |
Disassemble tension discs annually. Dust accumulation here skews thread control. Remove faceplate and wipe discs with lint-free cloth–avoid compressed air, which can force debris deeper. If discs show pitting, polish with 2000-grit wet sandpaper, then lubricate with silicone grease.
Inspect hook timing weekly. Misalignment causes thread breakage. Align the hook so its point meets the needle’s scarf at the 270-degree position. Use a strobe light for precision; rotate the handwheel slowly while observing the hook-needle interaction.
Quick Diagnostic for Motor Issues
Humming without movement signals seized bearings. Remove motor casing and spray penetrating oil on the armature shaft. If resistance remains, test voltage at the motor terminals–expect 115VAC for domestic models. Voltage below 108V causes overheating; a dropped power line typically requires replacement.
Grease bobbin winder sprockets every 6 months. Factory lubricants dry out, causing uneven wind or jamming. Use lightweight machine oil (ISO 32), applying two drops to each sprocket. Excess oil attracts lint; wipe residue after lubrication.
Photograph each disassembly session. Label wires if removing electronics. Store screws in magnetic trays sorted by subassembly–faceplate screws differ from motor mounts. Reference photos prevent reassembly errors, which can damage internal gearing.
Where to Locate Precise Machine Component Blueprints
Check the official manufacturer’s archived technical manuals–many older models’ schematics remain available through dedicated preservation platforms like ISMACS or Sewing Parts Online. These repositories retain original documentation for models dating back to the 1920s, including exploded views of internal mechanisms, needle assemblies, and gear arrangements. For post-2000 units, search the brand’s regional support portals, where PDF downloads often include detailed illustrations of presser feet, bobbin cases, and motor mounts. Private collector forums, such as the Vintage Sewing Machines group on Facebook, frequently share user-uploaded scans of rare manuals not indexed elsewhere.
Alternative Sources for Hard-to-Find Schematics
Repair service providers like Fix Sewing Machines often host proprietary databases with annotated breakdowns of discontinued lines. YouTube teardown channels–particularly those specializing in refurbishment–provide frame-by-frame references for component placement, especially useful for identifying obscure linkages in zigzag or embroidery variants. E-commerce listings on eBay or Etsy occasionally bundle physical manuals with part purchases; filter for “original” or “OEM” in item titles to bypass reproductions. For models with missing serial plates, cross-reference the outer casing engravings with the Singer Sewing Info database, which maps production years to corresponding blueprint variations.
Decoding Visual Markings in Sewing Machine Schematics
Bold lines in assembly charts typically denote primary structural frames–like the cast metal body or motor housing–while dashed or dotted lines usually indicate movable linkages or adjustment mechanisms. For example, a long dash might represent a needle bar, whereas short dashes often signal tension discs or presser foot lifters. Examine line thickness: heavier strokes mark load-bearing sections, while finer strokes trace wiring or decorative trim.
Recognizing Shape Codes
Circles in exploded views almost always pinpoint screws, washers, or bearings. Squares or rectangles generally outline fixed components–such as slide plates or bobbin cases–while arrows attached to circles highlight rotation points like handwheel axles. Triangles frequently tag pressure regulators, and hexagons identify nuts. Count sides: five-sided shapes often map feed dogs, six-sided mark internal gears.
Color or shading can differentiate materials: solid black usually signifies steel, cross-hatching indicates plastic, and speckled patterns reveal rubber parts. A single diagonal stripe often labels chrome-plated surfaces, while double stripes separate aluminum components. If a component appears half-shaded, expect it to combine materials–for instance, a metal core wrapped in synthetic padding.
Numbers paired with shapes–like “12” beside a zigzag line–correspond to foot pedals, whereas “C-4” next to a rectangle points to a specific cam stack. Letters alone typically annotate modular assemblies: “F” stands for faceplate, “B” marks the bobbin winder. Verify these against the legend; missing labels usually signal discontinued or custom accessories.

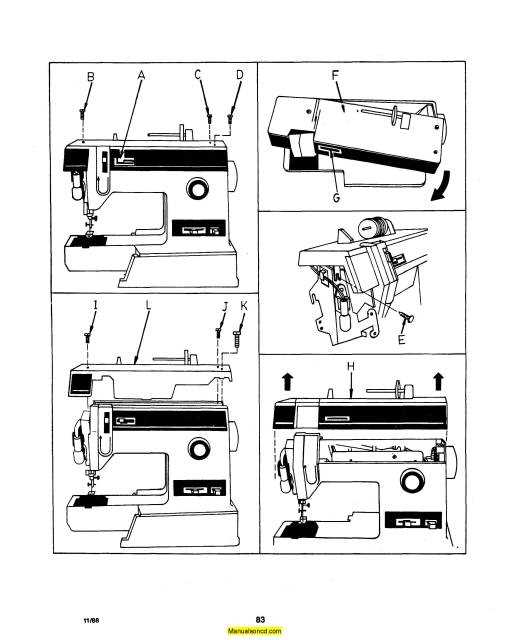

How to Systematically Take Apart Your Machine Using Illustrated Schematics
Before removing any components, lay out the schematic next to the device and cross-reference each fastener location. Most manuals group screws by length and threading–match these visually to avoid stripping. Use a magnetic tray to organize removed hardware by the step in which they were detached, preventing mixing during reassembly. If the diagram includes numbered references, note which step corresponds to each disassembly action to reverse the process later without guesswork.
- Start with external covers–hinged panels, side plates, or rear guards–since these typically require the fewest tools and offer immediate access to internal mechanisms.
- Apply penetrating oil to rusted screws 15 minutes prior, but avoid lubricants near belts or electric components.
- Photograph cable routing before disconnecting any wires to preserve original connections.
When handling delicate assemblies like feed dogs or needle bars, grip the casting–not moving linkages–to prevent bending. Some schematics indicate torque specifications; use a calibrated screwdriver if values exceed 5 Nm. Threaded connections prone to galling (e.g., aluminum housings) benefit from a light coat of anti-seize compound before reassembly. For plastics, heat-fused tabs may require careful cutting with a razor blade, though refasten them with epoxy if original clips break.
- Remove motor mounts only after securing the motor weight–some models exceed 2 kg and can shift suddenly.
- Check schematic inserts for adjustment markings (e.g., presser foot height) and record current settings before loosening calibration screws.
- If a sub-assembly refuses separation, consult exploded views for hidden clips or alignment pins often omitted in standard steps.
Ensuring Precise Component Selection for Your Sewing Machine Using Visual Guides
Locate the serial number plate on your unit–typically found on the right side of the base or near the motor housing. Cross-reference this identifier with the manufacturer’s official breakdown charts for your specific series. Models from the 1950s, like the 201 or 401, share bobbin cases and presser feet but require distinct feed dogs; verify dimensions before ordering.
Examine the exploded view illustrations in your manual or authorized service literature. Note the unique alphanumeric codes adjacent to each piece–these correspond to part listings in OEM catalogs. For instance, the needle clamp on a Featherweight (221) is marked “B24,” while the same function on a Slant-O-Matic (403) uses “A37”; swapping them will cause improper stitch formation.
Measure critical wear items like belts and drive gears before selecting alternatives. A 1/4-inch-wide belt on a 301 differs from the 3/8-inch variant on a 500A by less than 2mm, yet using the incorrect size leads to slippage or premature failure. Use digital calipers for precision, referencing tolerance values in the technical specifications.
Consult the wiring schematics when replacing electronic components on post-1970s machines. Earlier rotary models like the 66 use a single-coil motor configuration, whereas later zigzag units (500D) incorporate a split-phase design with separate start and run capacitors. Mismatching these can overload circuits or reduce torque by 30%.
Identify third-party compatible components by matching thread paths, shank diameters, and mounting hole patterns with OEM blueprints. Aftermarket foot controllers often omit voltage regulators present in genuine replacements; verify dropout rates in product reviews. The 513’s power module, for example, must handle 120V/6A without overheating.
Check for model-specific retention methods when sourcing rare pieces. The bobbin winder tension disc on a 27 has a threaded adjustment screw, while the 28 variant uses a spring-loaded friction plate–attempting to interchange these damages the flywheel. Document all modifications to avoid voiding remaining warranty coverage.
Validate replacements through functional testing before reassembly. Run unthreaded stitch cycles to confirm motor RPM stability, then test tension adjustments with scrap fabric. Needles sized 16/100R are standard for denim-capable models but cause skipped stitches on lightweight units if used incorrectly.
