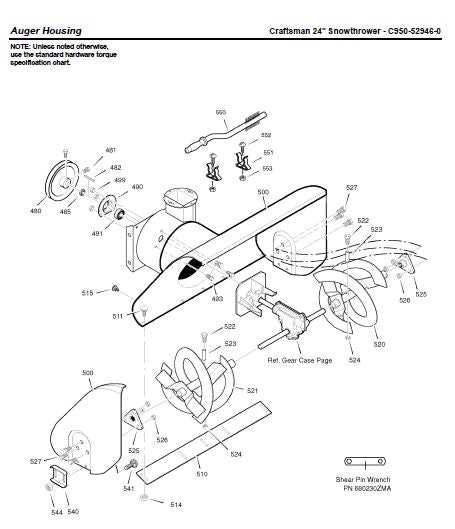

Begin by securing the official service guide for your model–typically available through the manufacturer’s support portal. Key in the exact model number (found on a metal plate or sticker near the engine) to filter irrelevant results. The exploded-view illustrations are grouped by assembly: auger housing, impeller, chute, control linkages, and engine section. Each component is labeled with a numeric or alphanumeric identifier; cross-reference these with the adjacent parts list to confirm compatibility before ordering replacements.
Prioritize verifying the drive system diagrams first. Belts and shear pins are high-wear items–locate their positions in the schematic to assess wear patterns without dismantling. The chute rotation mechanism often includes multiple pivot points; note the sequence of gears or cables in the diagram to avoid misalignment during reassembly. Engine components such as spark plugs, fuel filters, and oil dipsticks are frequently isolated in a dedicated sub-section–ensure measurements or torque specifications align with replacements selected.
For precision, print the relevant exploded view and highlight components requiring inspection. Mark critical tolerances (e.g., auger gap clearance) in the margin. If a digital version is used, zoom to at least 200% to distinguish small hardware like washers and cotter pins. Always cross-check the date of the manual: revisions may include updated part numbers or redesigned assemblies. Save the file in an accessible format for quick reference during maintenance sessions.
How to Locate and Identify Components in Your Winter Equipment Manual
Start by downloading the official exploded view PDF from the manufacturer’s website–search using your model number followed by “schematic” or “component breakdown.” Most brands provide indexed diagrams with numbered callouts, but if yours lacks one, cross-reference the engine section with a separate Briggs & Stratton or Tecumseh guide, as many powerheads share core assemblies. Keep a magnifying glass handy; small hardware like shear pins and impeller washers is often grouped near the chute or auger housing in dense illustrations.
Key Components to Verify Before Winter Maintenance
| Assembly | Common Fail Points | Visual Clues in Schematics |
|---|---|---|
| Auger drive | Belt stretch, gear wear, shear bolt failure | Look for a dotted circle near the paddle blades–this indicates the friction wheel |
| Impeller fan | Blade cracking, bearing seizure | Fan blades are usually shaded differently; bearings appear as small circles adjacent to them |
| Chute rotation | Cable snapping, teeth stripping | The rotation gearbox is often a separate boxed sub-assembly with meshing arrows |
| Powerhead | Spark plug fouling, carburetor clogging | Follow intake paths–air filters are represented by honeycomb patterns |
If the schematic uses color-coding, red typically denotes high-wear items requiring frequent checks. For instance, the auger belt should appear in bright contrast, while shear bolts might be marked in orange. Always compare the diagram with physical parts before ordering–some manufacturers reuse part numbers across unrelated components.
Use a ruler to measure distances between fastener holes on the actual unit if the diagram lacks dimensions. For example, mounting holes for the auger housing often fit M8 bolts spaced 85mm apart, but cheap replacement brackets sometimes deviate by ±2mm. Keep a digital caliper handy for verifying shaft diameters; impeller shafts commonly require 12mm or 15mm bearings.
When disassembling, lay components out exactly as they appear in the exploded view to simplify reassembly. Take photos of wire routing for electric-start models–the starter solenoid connections are often misidentified as ground wires. If your machine has a hydrostatic transmission, locate the control rod linkage before removing the panel; the adjustment nut is typically recessed and easy to strip.
For engines, focus on the ignition module gap (usually 0.025”) and valve clearance (0.004”–0.006”). Diagrams often exaggerate spark plug size, so measure electrode diameter–most winter-grade plugs are 14mm with a 19mm hex. Replace the fuel line if it appears brittle; ethanol-blend fuels degrade rubber faster, and replacement tubing should be spec’d to SAE J30R9 or higher.
After repairs, run the machine at half throttle without engaging the auger to warm the gearcase. Listen for unusual bearing whine from the impeller housing–this indicates improper preload. If the chute fails to rotate smoothly, grease the rotation gear teeth using NLGI #2 lithium complex grease; never substitute wheel-bearing grease, as it lacks film strength under torque.
Locating Critical Elements in Winter Equipment Schematics
Begin by isolating the auger assembly in the schematic–typically marked near the front housing. Look for labels like “rotating blades” or “cutting mechanism” to confirm its position. This component often connects to the gearcase via a shear pin; verify its replacement status if missing or damaged. Notate the blade diameter (commonly 20–28 inches) and material (steel or composite) to ensure compatibility with repair kits.
- Impeller fan (labeled “discharge chute rotor” or “blower wheel”) sits behind the auger–trace its linkage to the drive belt.
- Engine assembly must show spark plug wiring, carburetor, and oil drain points. Cross-reference the model’s displacement (e.g., 208cc) with service manual specs.
- Control cables (throttle, chute rotation) should terminate near the handlebars; check for fraying where they bend at pivot points.
Examine the frame and skid shoes section next. These wear surfaces regulate clearance height and attach with slot-mounted bolts for adjustability. Measure shoe thickness (typically 0.25–0.5 inches) against manufacturer tolerances–replace if worn below 0.125 inches. Identify whether skids use plastic or steel inserts, as mixing types alters performance.
Find the transmission housing by following the drive shaft from the engine. Note whether it’s a friction disk or hydrostatic type–this dictates lubricant requirements (e.g., 10W-30 oil vs. hydraulic fluid). The belt tensioner pulley should rotate freely; test by manually depressing it. If the schematic omits torque specs, default to 15–20 ft-lbs for bolts securing critical components.
Locating Authorized Engine-Driven Clearing Equipment Component Schematics on the Web
Begin at the manufacturer’s primary support portal: briggsandstratton.com. Navigate to the “Parts Lookup” section and filter by the specific model number etched on the engine housing or stamped on the rear frame rail. This portal hosts OEM blueprints, ensuring compatibility and exact measurements.

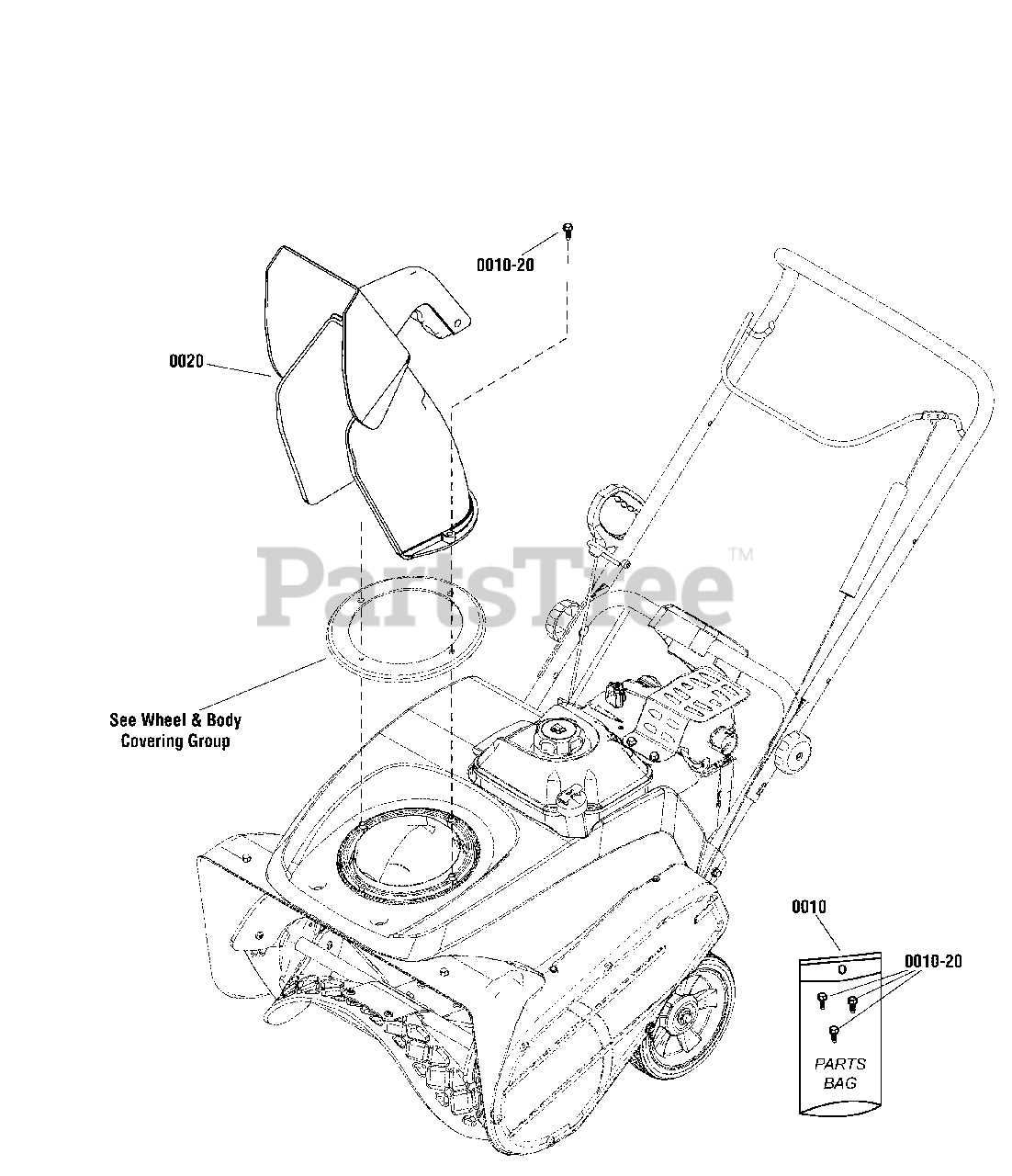

For legacy models no longer listed on the main site, visit Partstree. Enter the full model code, and the platform retrieves exploded-view schematics paired with itemized lists. Each line number links directly to suppliers stocking genuine replacements.
Independent dealers often mirror official schematics. Check Jack’s Small Engines–input the unit’s tag number, and download a high-resolution PDF. Their inventory cross-references each illustration with SKUs, pricing, and shipping estimates.
eBay’s “Motors” category doubles as a schematic archive. Search the model followed by “manual” or “service kit.” Sellers routinely upload original documentation; preview the embedded JPEG before purchasing to confirm clarity and completeness.
Regional agricultural cooperatives frequently archive manuals for seasonal equipment. Contact local branches–some provide complimentary access to member portals containing metric translations and regional adapter notes absent from global sites.
YouTube teardown videos occasionally embed schematic screenshots in their descriptions. Filter by the exact model, scan timestamps, and extract frame grabs of the chassis layout or shaft assemblies not depicted in standard brochures.
For immediate read-only access, query archive.org using the model’s full alphanumeric code. Historical manual snapshots may appear, often unaltered from the original print run.
Detailed Guide to Maintaining Your Winter Equipment Components
Begin by inspecting the auger blades–the most frequently worn elements on your machine. Replace them if edges appear dull or chipped, using only OEM-approved steel to maintain cutting efficiency. Measure blade clearance against the housing (ideal: 1/8″ gap) to prevent jamming and ensure consistent discharge. Always secure bolts with a torque wrench at 18-22 ft-lbs to avoid loosening during operation.
Check the impeller assembly next, focusing on vane integrity. Cracks or bends near the hub indicate fatigue and require immediate replacement. Before reinstalling, apply anti-seize compound to the shaft threads to simplify future disassembly. Verify impeller rotation by hand–it should spin freely with minimal resistance (bearing issues often manifest as gritty movement).
Electrical and Engine-Specific Components
For gasoline-powered models, prioritize the ignition coil and spark plug. Test coil resistance with a multimeter (primary: 0.5-1.5 Ω, secondary: 5-15 kΩ). Replace if readings fall outside these ranges. Use a NGK BPMR7A spark plug gapped at 0.030″ for optimal combustion. Clean the spark arrestor screen every 25 hours of runtime to prevent power loss from exhaust restrictions.
Belt tension is critical–stretch or fraying reduces torque transfer. Measure deflection (3/4″ at midpoint) and replace belts showing hairline cracks or glazed surfaces. The drive belt (part #532187381) typically lasts 80-100 hours under normal conditions. Lubricate the friction wheel with synthetic grease (NLGI #2) to extend its lifespan and ensure smooth engagement.
Structural and Safety Elements
Inspect shear pins (2-3 per auger)–zinc or brass versions are preferable for controlled breakage during obstructions. Replace bent skid shoes immediately to prevent uneven wear on the scraper bar. Adjust shoe height to 1/4″ above ground level for optimal clearance. Finally, test all safety switches (auger, chute, and drive engagement) before each use–misalignment can prevent startup and won’t trigger error codes.
