Examine the labeled breakdown of any premium insulated glass system, and you’ll notice a consistent structural hierarchy. The outer frame–typically extruded vinyl or fiberglass–secures dual-pane assemblies with a spacer bar separating the glass layers. This bar, often aluminum or warm-edge composite, maintains uniform gap width while housing desiccant to absorb trapped moisture.
Look for the glazing bead, a removable trim strip that clamps each panel into the sash. If corrosion-resistant fasteners aren’t evident, expect premature failure in humid climates. Weatherstripping–either bulb or fin type–must align flush against the meeting rails to prevent air infiltration.
Check the balance mechanism; block-and-tackle or spiral systems will have distinct track configurations. Reversed tilt latches should lock at exact 45° angles–variance here indicates worn pivot pins. Jamb liners, though seemingly minor, regulate sash travel and must match the frame depth precisely.
For hardware, prioritize stainless steel or zinc-coated components. Brass or unplated finishes corrode within 3–5 years under coastal exposure. Lift rails integrate with counterweights or coil springs–misalignment here causes uneven operation. Finally, verify that integrated screens use fiberglass mesh no coarser than 18×16 strands per square inch to deter insects without obstructing visibility.
Understanding Your Vinyl Framed Opening Components

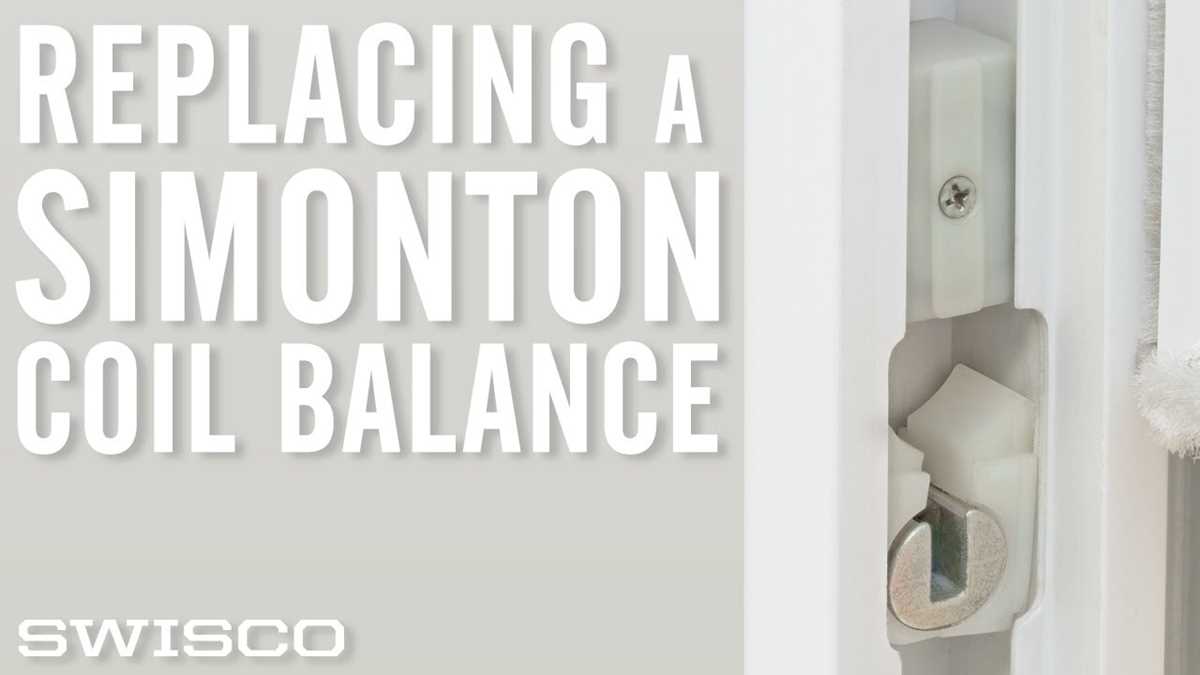

Begin by identifying the sash balance system–located along the vertical tracks inside the frame. These coiled springs or block-and-tackle mechanisms counterbalance the panel’s weight during operation. Check for corrosion or frayed cables, as compromised balances cause sticking or sudden drops. Replace only with manufacturer-specified models to maintain alignment tolerances within ±1/16 inch.
Inspect the jamb liners next. Extruded vinyl channels house weatherstripping and guide rails, forming a thermal barrier. Measure the compression of pile or foam seals; worn seals (less than 1/8 inch thickness) demand immediate replacement to prevent drafts. Use a non-abrasive cleaner to remove debris without damaging the finish, as scratches compromise insulation efficiency.
The meeting rails–where upper and lower panels interlock–require precise adjustment. Misaligned rails create gaps, allowing air infiltration. Loosen the tilt latches, adjust screws in 1/8 turns, then retighten. Verify alignment using a feeler gauge; gaps exceeding 0.03 inches indicate worn pivot bars or hinges. Lubricate pivot points with dry PTFE spray to ensure smooth operation without attracting dust.
Examine the sill’s weep system. Drainage holes clogged with dirt or insects trap moisture, leading to frame rot. Clear debris using a wire probe, then test drainage by pouring 8 ounces of water into the track. Proper flow directs water outward within 30 seconds; slow drainage signals blockage requiring deeper cleaning with a bent paperclip.
Check the glazing bead retention clips. Brittle or cracked clips fail to secure the insulated glass unit (IGU), risking seal failure. Pry old clips carefully with a plastic tool to avoid scratching the frame, then snap in new ones until fully seated. Verify IGU stability by applying gentle pressure–no movement confirms proper seating.
Hidden Components Affecting Performance
Assess internal reinforcement chambers. Some vinyl profiles include steel or fiberglass inserts to stiffen frames against wind load. Tap the frame; a dull thud suggests hollow sections prone to flexing under pressure. Reinforced sections produce a sharp, solid sound. If absent, consider aftermarket reinforcement kits rated for wind speeds exceeding 30 mph.
Review the thermal break design. Multi-chambered profiles separate interior and exterior temperatures more effectively than single-walled designs. Check for warping or bowing, which indicates thermal stress. Replace bowing sections to restore the airtight seal; even minor deformities increase energy loss by up to 12% according to ASTM testing standards.
How to Pinpoint Critical Elements in a Vinyl Glazing Assembly Breakdown
Begin by locating the sash frame–the structural base holding the glass panel. Examine the glazing bead (typically a thin strip along the perimeter) as it secures the insulated unit in place. If missing or cracked, moisture infiltration or drafts may occur. Measure its thickness: standard profiles range from 0.070″ to 0.125″. Verify the bead’s material–polyvinyl chloride (PVC) is common, but aluminum or composite options exist for high-performance models.
Inspect the balance system next. Check for coiled springs or block-and-tackle mechanisms housed within the jamb liner. A faulty balance will cause the operable vent to drop or bind unevenly. Look for frayed cords (if applicable) or bent track channels in tilt-latch assemblies. Replace any corroded pivot bars immediately; even minor oxidation can impede smooth operation. Compare left and right balances–mismatched tension leads to misalignment.
Key Fasteners and Seals to Validate
- Screws securing muntin bars: 6-32 thread pitch, #8 pan-head Phillips, corrosion-resistant coating.
- Foam tape strip: closed-cell polyethylene, minimum 3/8″ width, pressure-activated adhesive on one side.
- Weep holes: must remain unobstructed; standard diameter is 0.1875″. Use a 3/16″ drill bit if clearing clogged ports.
- Interlock meeting rail: ensure the weatherstripping fin is intact; silicone-coated options outperform rubber in UV resistance.
Prioritize the insulated glass unit (IGU) edges. Confirm the primary sealant–polysulfide, polyurethane, or silicone–forms a continuous bead around the spacer. Desiccant beads inside the spacer should appear opaque; a powdery or translucent state indicates saturation. For argon-filled units, check for micro-leaks using a thermal camera or spark test; voids as small as 0.001″ degrade thermal performance. If replacement is needed, match the spacer width–common dimensions are 0.5″, 0.75″, and 1″.
How to Precisely Identify Component Matches Using Visual Schematics
Begin by selecting the official exploded view for your product model. These documents are typically organized by assembly groups–frame, sash, hardware, and glass units. Each group lists individual pieces with alphanumeric codes printed next to illustrations. Cross-reference these codes with the list of available substitutes provided by suppliers; discrepancies in terminology are common, so verify measurements and connection types before ordering.
Examine the schematic’s callouts closely–some minor components share similar silhouettes but differ in subtle ways. A striker plate might look identical to a reinforcing plate, yet serve distinct structural roles. Note the orientation arrows or shaded areas indicating installation direction; ignoring these can lead to incorrect fitting during reassembly.
Use a caliper or micrometer to confirm dimensions if visual cues are ambiguous. Even slight variations–less than a millimeter in flange thickness or hole spacing–can prevent proper locking or sealing. Record each measurement alongside the corresponding code from the exploded view for faster validation when reviewing options from vendors.
If the original manual lacks sufficient detail, search for revised editions or service bulletins issued for the same series. Manufacturers often release updates addressing minor design modifications. These supplements frequently highlight discontinued elements and suggest compatible alternatives, saving time otherwise spent tracing obsolete pieces.
- Compare hinge profiles: Check for load-bearing curves or extended tabs that may not be visible in low-resolution schematics.
- Inspect cam lock slots: Some variants include anti-lift notches or asymmetric grooves requiring exact matches.
- Verify seal cross-sections: EPDM and silicone strips may appear interchangeable but perform differently under thermal stress.
Print the schematic at 100% scale and place actual detached components onto their corresponding outlines. This physical overlay method quickly reveals misalignments or irregular wear that static images miss. Mark any mismatches directly on the printout for later reference while contacting distributors.
When sourcing through third parties, prioritize vendors whose listings include both the manufacturer’s reference number and their internal stock code. This dual notation ensures alignment between legacy naming conventions and current inventories. Avoid listings with only generic descriptions–terms like “latch clip” can encompass multiple incompatible configurations.
- Create a checklist combining codes, measurements, and material notes for each item needing replacement.
- Contact at least two suppliers to compare lead times and authenticity guarantees before placing bulk orders.
- Retain a copy of the confirmed schematic with all personal annotations for future maintenance needs.
Key Hardware Components for Vinyl Framed Units and Schematic Locations
Replaceable mechanisms for modern glazing systems are cataloged in official manufacturer repair manuals. Download direct PDF schematics from the Simonton Residential Support Portal under the “Technical Documentation” section–filter by series (e.g., 5500, StormBreaker, Asure) and hardware category (latches, balances, tilt latches, operators). Retailers like WindowHardwareDirect and Erie Architectural Products also host exploded-view downloads for discontinued models, organized by SKU.
| Component | Typical Diagram Source | Identifying Markers |
|---|---|---|
| Cam lock (sash fastener) | Simonton Tech Library | Alphanumeric engraving: “SIM-CL-##” or “A-####” |
| Block-and-tackle balance | WindowHardwareDirect Guides | Notched side rails, color-coded coils |
| Tilt latch (dual-action) | ErieAP Schematics | Stamped “TILT” plus 3-digit variant code |
| Casement operator (dual-arm) | Simonton Install PDFs | Embossed gear ratio (e.g., “8/9”) near handle |
For hands-on identification, remove interior stops and inspect hardware housing–the casting marks usually specify OEM part numbers. Cross-reference these codes against the International Window Corp. Interchange List (available through fenestration distributors) to pinpoint equivalent aftermarket units. Local glass companies often stock generic replacements but verify torque specs: cam locks typically require 1.5–2.2 N·m of applied force, while balance systems support 45–68 kg of vertical load.
