Start by locating the motor housing assembly–typically secured with three Torx T20 screws. Remove these with a precision driver to avoid stripping, then lift the upper cover to expose the impeller. Misalignment here often causes excessive noise or reduced suction; check for debris wrapped around the shaft before reassembling.
Inspect the filter cage next. Most models use a foam sleeve paired with a pleated paper element–both require separate handling. The foam layer traps coarse particles and should be rinsed under lukewarm water, then air-dried for 24 hours. The paper element, however, must never be washed; tap it gently against a trash bin to dislodge dust or replace it if clogged beyond recovery. A torn filter reduces airflow efficiency by up to 40%, measurable via a differential pressure gauge.
Examine the hose connector’s O-ring. Degradation here manifests as air leaks–a hiss during operation signals the need for replacement. Use Buna-N rubber rings rated for -40°F to 230°F; silicone alternatives swell under heat, compromising the seal. Apply a thin coat of lithium grease to the O-ring before installation to prevent sticking during disassembly.
Tank latches demand attention. Cracks near the pivot point indicate stress fractures; replacing both latches as a matched pair avoids uneven tension. Test the latch’s spring mechanism with a torque screwdriver set to 8 in-lbs–excessive force risks damaging the polypropylene tank, while insufficient tension fails to secure the lid.
For motor brushes, mark their orientation before removal. Use a multimeter to verify resistance between commutator segments–values below 2 ohms suggest shorted turns, while infinite resistance indicates an open circuit. Replace brushes in pairs, ensuring they sit flush against the commutator’s surface to prevent arcing.
Use this schematic as a reference: upper lid → impeller → motor assembly → filter housing → tank base → wheels. Each section interlocks via molded tabs; prying tools risk breaking them. Document each step with timestamped photos–disassembly order varies by model, and reconnecting wires incorrectly can trip internal fuses.
Understanding Your Industrial Wet/Dry Vacuum Components
Begin by locating the motor housing–typically a cylindrical or box-shaped casing at the base. Remove the retaining screws (usually 4–6, Phillips #2) and set them aside in a magnetic tray to prevent loss. Inside, you’ll find the impeller, which should spin freely; resistance or scraping indicates bearing wear, often resolved by replacing the sealed unit (model-specific, e.g., #804-12-010 for 5-gallon units). Check the gasket between the motor housing and collection tank–if compressed or cracked, swap it immediately to maintain suction efficiency.
Key Replacement Priorities
- Filters: Cloth filters degrade after ~20 hours of use with fine debris; pleated HEPA filters last 50+ hours. For wet pickups, nylon mesh filters resist mold but require air-drying between uses. Always store filters vertically to prevent warping.
- Hoses and Attachments: Inspect the hose cuff (where it connects to the body) for cracks–replace if flexibility is compromised. Universal cuffs fit most models, but thread pitch varies (NPT 1.5″ vs. 2″). The crevice tool’s angle joint wears fastest; a polyethylene upgrade reduces breakage by 40%.

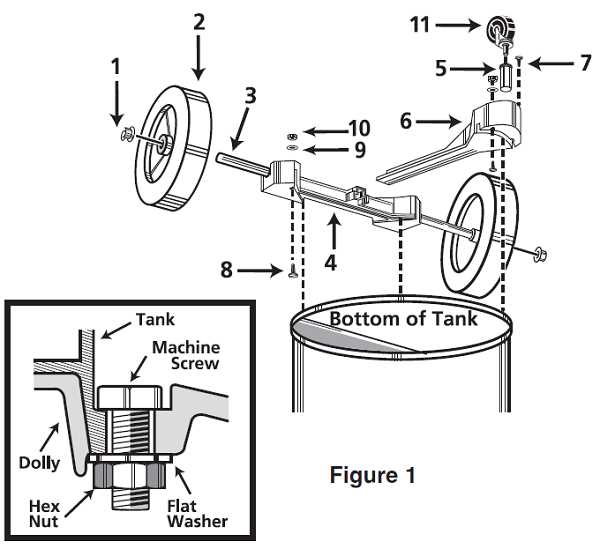

- Wheels and Casters: Replace nylon wheels if the tread is bald or hub bearings seize. Ball-bearing casters (e.g., 2.5″ diameter) handle uneven surfaces better than stationary pads. Secure axles with lock nuts, not split pins, to prevent loosening.
When reassembling, align the intake port with the tank’s baffle plate–misalignment reduces suction by up to 30%. Lubricate the float valve’s O-ring with silicone grease, never petroleum-based products, to ensure smooth operation during wet recovery. Test the vacuum with the lid off: if the motor draws air without the hose attached, the intake valve may need adjustment or the tank gasket is faulty. For 12-gallon models, verify the power cord’s strain relief (located near the switch) isn’t frayed–exposed wires require immediate replacement to avoid short circuits.

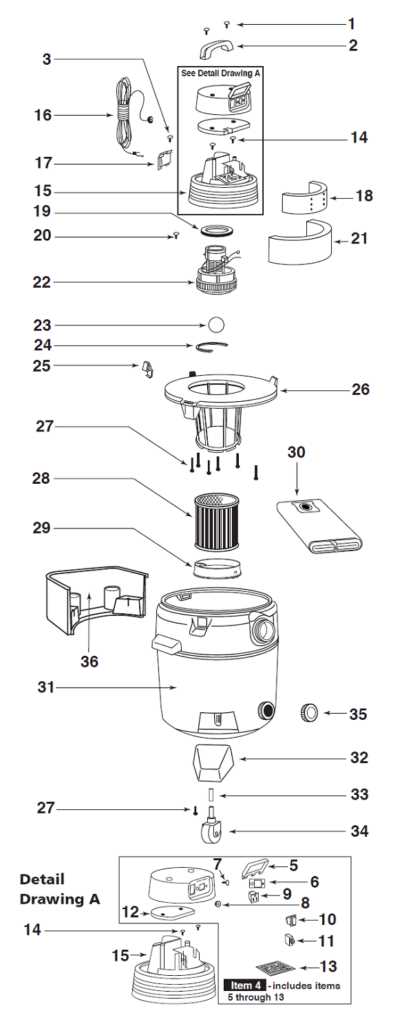

Locating Key Wet/Dry Vacuum Elements in Schematics
Examine the motor housing first–it’s typically marked near the base of the unit in exploded views. Look for labels like “impeller case” or “fan assembly” to distinguish it from the filter cage, often depicted above it with a mesh pattern. If the schematic uses color coding, the housing may appear in darker shades, while filters or seals use lighter, translucent tones.
Decoding Hose and Attachment Symbols
Hose connections are almost always shown as cylindrical extensions with arrowheads pointing inward or outward. Quick-release couplers may have a dotted line indicating their detachable nature. Brush tools and crevice nozzles are usually grouped at the top or side of the drawing, represented by elongated shapes with bristle icons or narrow cutaways respectively.
Dump valves or drain plugs appear as circular components with a slotted or threaded middle, often positioned near the collection tank’s bottom edge. In larger capacity models, expect secondary seals or gaskets illustrated as thin, concentric rings around these valves, labeled in fine print to prevent misassembly.
Onboard storage compartments for accessories–like wand clips or cord hooks–are frequently omitted in basic schematics but included in detailed manuals as rectangular cutouts with dashed borders. Cross-reference these with the parts list if the diagram lacks text annotations, noting item numbers that correspond to physical features like mounting brackets or latch mechanisms.
How to Identify and Source Components Using Technical Breakdowns
Begin by retrieving the official schematics for your model from the manufacturer’s website. Locate the section labeled “maintenance” or “service documentation”–these files typically include numbered callouts paired with component names. If digital copies aren’t available, check the product’s original packaging or user manual; most brands embed QR codes linking directly to interactive breakdowns. For older units, search using the model number followed by “service kit” or “exploded illustration” to uncover archives on forums or third-party suppliers.
Cross-reference each callout with the visible wear on your device. Mark discrepancies like cracked housings, frayed wires, or broken impellers next to their corresponding labels in the schematics. Use a magnifying glass for small components like gaskets or check valves, as misidentification leads to incorrect orders. Keep a spreadsheet of item codes–manufacturers often use alphanumeric sequences (e.g., “PV-12B” for a specific impeller) that differ from generic descriptions. Below is a sample comparison for common replacements:
| Schematic Label | Common Name | Manufacturer Code | Visual Clue |
|---|---|---|---|
| Upper Motor Housing | Top casing | UMH-45X | Warped edges or screw holes |
| Filter Retainer Clip | Filter clamp | FRC-7 | Broken tabs |
| Intake Nozzle Gasket | Seal ring | ING-22 | Dry or compressed foam |
Order replacements through verified distributors listed on the brand’s “authorized suppliers” page. Avoid marketplace listings without OEM packaging; counterfeit seals or motors may lack UL certification. For discontinued models, contact manufacturers directly–many maintain legacy stock. If lead times exceed two weeks, inquire about upgraded equivalents; brands often phase out older codes but offer compatible updates (e.g., “PK-9” replacing “PK-5”). Always request confirmation of compatibility before payment, attaching a photo of the original component alongside its schematic label.
Inspect delivered items against the schematics before installation. Verify dimensions, material finish, and connector types–some suppliers ship generic substitutes that require modifications. For electrical internals (e.g., switches, capacitors), test continuity with a multimeter if the original malfunctioned. Store schematics and receipts together; future repairs become exponentially faster when component history is documented. For rare assemblies, photograph each step of disassembly to reverse-engineer any proprietary mounting hardware omitted from public illustrations.
Leverage interactive breakdowns if available. Some manufacturers provide layered PDFs where clicking a label reveals pricing, stock status, and installation videos. For instance, Wagner Industrial’s portal allows filtering by serial number ranges, instantly displaying compatible upgrades for obsolete internals. Bookmark these tools; relying solely on printed manuals risks missing critical bulletins, such as recalls for faulty bearings or updated seal specifications introduced after market feedback.
Step-by-Step Breakdown of Industrial Wet/Dry Vacuum Components for Inspection
Unplug the unit and place it on a stable, flat surface before starting. Remove the collection canister by twisting counterclockwise until it releases–most models feature a bayonet-style lock. Set aside filters if they’re housed inside the canister; check for debris buildup or wear. Some systems integrate foam or pleated paper elements directly into the lid–detach these carefully to avoid tearing.
Accessing the Motor Housing and Internal Components
Locate the screws securing the motor housing–typically four to six on the base or sides. Use a Phillips-head screwdriver to remove them, turning each three full rotations before lifting the cover to prevent stripping. Inside, inspect the impeller for cracks or warping; rotate it manually to ensure smooth movement. Note the alignment of the fan blades relative to the motor shaft–misalignment indicates bearing failure or impact damage.
Disconnect wiring harnesses by pressing the release tabs before pulling–force can damage connectors. Label each connection with masking tape if multiple wires are present. Examine the motor’s brushes by removing the end cap (usually held by two small screws). Brushes shorter than 3mm require replacement. Clean commutator slots with a lint-free cloth; avoid compressed air as it can embed particles deeper.
Separate the motor from its mount by unscrewing the bracket–some designs use rubber grommets for vibration dampening. Check these grommets for cracks or hardening; replace if they no longer flex. On the underside of the motor, locate the thermal fuse–test for continuity with a multimeter. A reading of 0 ohms indicates proper function, while infinite resistance means failure. Reassemble in reverse order, ensuring seals and O-rings are properly seated to prevent air leaks.
Inspecting Hoses, Attachments, and External Seals
Detach hoses by pulling firmly at the coupling while twisting to release the locking mechanism. Inspect the inner liner for splits or blockages; run water through the hose to verify flow. Examine wand connections for worn threads–cross-threading during reassembly can cause permanent damage. Check the power cord near the strain relief for fraying; if damaged, replace the entire cord rather than splicing. Apply dielectric grease to seals before reattaching to prolong lifespan.
