Locate the exact schematic for your model by searching the engine serial number on the manufacturer’s official service portal. Brands like BRP label every component with a unique identifier, which simplifies ordering replacements. The first two digits indicate the year of production–store this detail to avoid mismatches with newer or older variations of the same assembly.
Break down the propulsion system into key sections: intake, exhaust, propulsion housing, and electrical connections. Each section has torque specifications for fasteners–most require a 10mm or 12mm socket with a torque range between 12-18 Nm. Over-tightening can strip threads, particularly on aluminum housings, while under-tightening risks leaks or loose fittings during operation.
Use a multimeter to verify electrical components before reassembly. Resistance readings should align with the values listed in the maintenance manual–typically 0.2 to 0.5 ohms for ignition coils and 4-6 ohms for temperature sensors. Deviations suggest corrosion in connectors, a common issue after prolonged water exposure, especially in saltwater environments.
Prioritize O-rings and gaskets when sourcing replacements. Silicone-based seals degrade faster under UV exposure, so opt for Viton-coated variants if operating in tropical climates. Apply a thin layer of marine-grade lubricant during installation to prevent cracking–this extends component life by up to 40% based on field testing.
Store disassembled units in labeled plastic bins to avoid misplacement. Group small hardware–like washers and clips–by size using magnetic trays. Cross-reference each part with the exploded view diagram during reinstallation to ensure correct alignment; misaligned impellers or stator plates can reduce thrust efficiency by 15-20%.
Understanding Your Watercraft’s Component Layout: A Hands-On Approach
Begin by locating the hull identification number (HIN) on the starboard side near the transom–this 12-character code holds the key to accessing the correct exploded view for your model year. Older units (pre-2015) use a three-digit prefix like “02A,” while newer models feature a four-digit format such as “ST300.” Cross-reference this code with the manufacturer’s official microfiche database or authorized PDF archives to avoid mismatched schematics.
Trace the fuel system first–follow the primer bulb hose from the tank to the carburetor or fuel rail, noting its clamp positions and routing. On direct-injection models, pay special attention to the high-pressure pump’s location (typically adjacent to the rear exhaust manifold) and its six-point mounting pattern. Replace any corroded banjo bolts immediately, as even minor leaks will degrade performance within 30 operating hours.
Inspect the electrical harness by removing the seat cowling and battery cover–label each connector with masking tape before disconnecting anything. Models with DESS (Digitally Encoded Security System) require a lanyard key match; if troubleshooting, measure voltage at the grey ECU plug (pin 4 should read 12V when the ignition is on). For older carbureted units, the CDI box is usually bolted to the port side frame–verify resistance across its ignition coils (expected range: 0.2–0.5 ohms).
Examine the impeller housing through the rear intake grate–use a flashlight to check for debris wedged between the stator vanes and wear ring. Rotate the driveshaft by hand to feel for smoothness; if grinding occurs, replace the rubber coupler and bearing assembly as a set. On GTX and RXT models, the jet pump’s linear ball bearings require annual repacking with marine-grade grease to prevent seizing in saltwater conditions.
When reassembling the intake manifold, apply a thin bead of Loctite 574 to the threads of the four mounting studs–this prevents vibration loosening. Torque specifications vary: 7–9 Nm for plastic components, 11–14 Nm for aluminum. Always use OEM gaskets; aftermarket substitutes often compress unevenly, leading to air leaks and fuel mixture issues.
For models equipped with a supercharger, remove the air silencer housing to access the clutch assembly. The drive belt should deflect no more than 8mm under 10kg of pressure–replace if frayed or glazed. Post-maintenance, run the engine at idle for 5 minutes while monitoring the exhaust outlet for even water flow; an irregular stream indicates a faulty ride plate fitting or clogged cooling passages.
Identifying Key Engine Elements in Your Personal Watercraft Schematic
Begin by isolating the powertrain section of the illustrated manual–typically found in the central pages or marked with a distinct color border. Locate the numbered legend matching components to their positions; most manufacturers group systems logically (e.g., intake, exhaust, cooling). Cross-reference the engine block’s labeled regions with the bill of materials to confirm placement.
Use the exploded view for complex assemblies like the crankcase or cylinder head. These detailed renderings break down multi-part units into subcomponents, often annotated with arrows or dashed lines indicating assembly sequence. Note: some schematics employ icons (e.g., gears for mechanical links, hoses for fluid pathways) instead of direct labels.
| Component Type | Schematic Identifier | Common Location |
|---|---|---|
| Spark plugs | Red-highlighted circles | Upper engine area, near valve covers |
| Fuel injectors | Dashed yellow outline | Between intake manifold and cylinder |
| Water pump impeller | Blue-filled triangle | Hull-mounted, visible in side cuts |
| Exhaust manifold | Solid black borders | Rear engine section, adjacent to turbo |
Prioritize components listed in the maintenance schedule’s “high-wear” section. These are frequently depicted in larger scale or with callouts showing torque specs or clearance measurements. If the schematic lacks this, filter by part numbers prefixed with “ENG” or “PWR” in the index.
Trace electrical connections by following colored lines–most manuals use red for positive, black for ground, and yellow for signal wires. Sensor locations (e.g., temperature, pressure) often require zooming into sub-diagrams, as they’re embedded within wiring harnesses or behind panels. Verify connector types (e.g., Molex, Deutsch) against the legend to avoid misidentification.
For rotary models, focus on axial cross-sections. These schematics dissect components along rotor planes, revealing internal seals, bearings, and apex edges. Compare against 3D perspective drawings if available, as two-dimensional views can obscure depth-dependent assemblies like stator mounts or balance shafts.
When unable to match visuals, use the OEM’s terminology filter. Enter keywords like “coolant jacket” or “balance shaft drive” into PDF search tools–this bypasses ambiguous icons. For older models, check supplement pages where revisions are consolidated; post-2018 manuals often renumber components without updating legacy references.
How to Locate the Correct Jet Pump Impeller Using an Exploded Schematic
Begin by identifying the model year and engine series of your personal watercraft–this determines compatibility. Most manufacturer schematics group components by propulsion system variants, such as 1503, 185, or RXT models. Check the upper right corner of the exploded view for a numerical or alphanumeric identifier matching your engine’s specifications. If the schematic lacks this detail, cross-reference the impeller’s OEM number stamped on the hub with the parts catalog. Mistaking a three-blade for a four-blade design can reduce thrust by up to 12%, so verify blade count and diameter before ordering.
Key Verification Steps
- Measure the existing impeller’s outer diameter–standard sizes range from 140mm to 160mm for performance models, while stock setups typically use 130mm to 145mm.
- Compare the hub spline count: newer models use 18-spline hubs, while older units may have 16 or 14. Mismatches prevent proper engagement.
- Inspect the wear ring clearance in the exploded view; optimal gaps are 0.2mm–0.3mm. Exceeding 0.5mm indicates replacement is needed.
- Note whether the assembly includes a stainless steel or aluminum impeller–stainless options outlast aluminum by 30–50% in saltwater conditions.
If the schematic labels components with vague terms like “jet pump assembly,” focus on sub-diagrams showing the impeller, diffuser, and housing in separate callouts. Some brands attach a small metal tag to the impeller hub with the exact part number–photograph this before disassembly. For aftermarket upgrades, target kits designed for your exact engine displacement; a Stage 2 impeller rated for 260HP will cavitate on a 170HP engine, causing premature wear. Store the schematic as a PDF on a mobile device for field reference while comparing physical components.

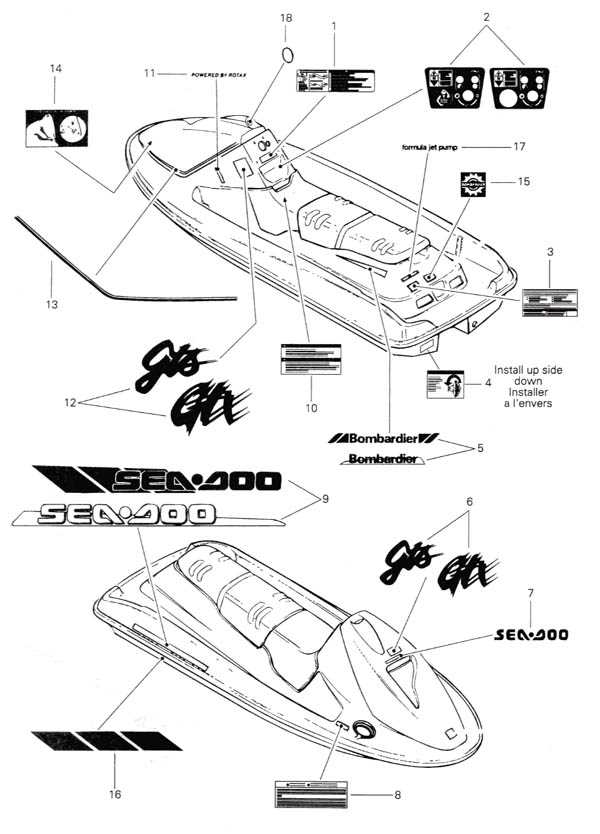

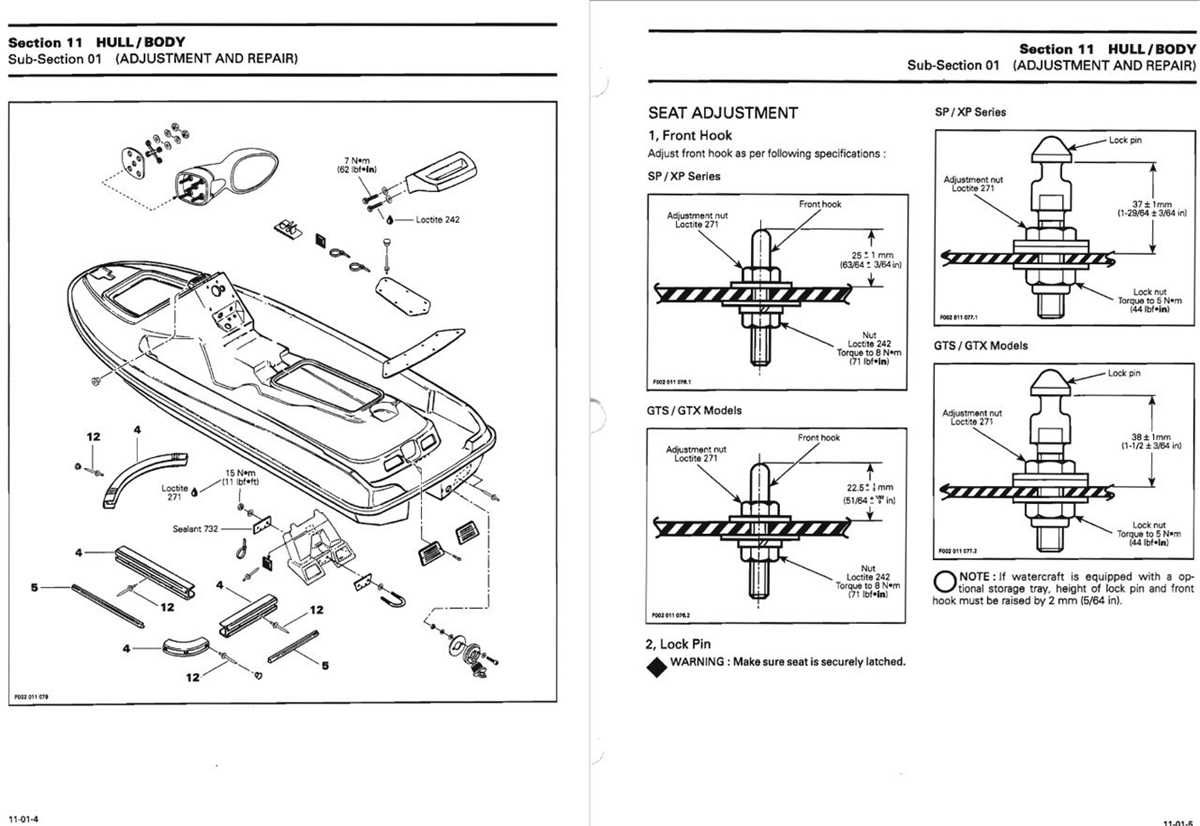

How to Interpret Your Personal Watercraft Hull and Deck Schematics
Locate the legend first–it’s typically a small box with numbered symbols or color-coded lines matching specific components. Each number corresponds to a label in the accompanying list, detailing the exact item name, material, and sometimes torque specifications. For example, bolt-on reinforcements on the deck edge may appear as *#15: Stainless reinforcement plate, 10-12 Nm*. Cross-reference every symbol with the list before handling any hardware to avoid misinstallation.
Trace Structural Assemblies from Bow to Stern
Begin at the bow and follow the schematic’s flow along the starboard side, noting how bulkheads, stringers, and mounting brackets interconnect. Pay attention to dashed lines–these indicate hidden elements like internal foam blocks or wiring harness clips embedded beneath panels. A common oversight is ignoring phantom sections where components overlap; verify depth by comparing their relative positions (e.g., a fuel tank mount should sit below the seat base, not beside it).
Check for duplicate references–some schematics reuse numbers if an item appears in multiple locations, such as drainage plugs (*#38 – 1/4″ NPT plug, x3*). Use a highlighter to mark each occurrence on the drawing; this prevents skipping critical fasteners during reassembly. For composite structures, solid lines represent molded grooves or bonding seams, while thinner lines often denote trim edges or access cutouts.
Verify assembly torque and thread type for all fasteners directly on the schematic–manufacturers often embed M6, M8, or #10-32 thread callouts next to bolt heads. Missing this detail risks stripping holes or loosening critical joints under vibration. If a sealant bead (e.g., *3M 5200*) is specified near a seam, the diagram will show a dotted outline; ensure surfaces are prepped before joining components.
