Begin by locating the framework rails–horizontal and vertical beams forming the outer perimeter. These typically include a top crosspiece, bottom sill, and two side jambs. Verify their condition: rust on metal models or warping in wooden units may necessitate immediate replacement.
Examine the mesh retainer strips–thin, flexible channels securing the fabric in place. Aluminum variants resist corrosion better than vinyl. Pry them loose using a flathead screwdriver, applying steady pressure to avoid damaging the grooves.
Identify the hinge assembly components: pivot plates, pins, and matching strike plates. Lubricate pivot points with silicone-based grease biannually; petroleum distillates degrade weatherstripping. Replace worn nylon bushings promptly–these prevent metal-on-metal grinding and maintain swing alignment.
Inspect latch mechanisms: handle, latch bolt, and keeper plate. Test tension by engaging the lever–smooth operation indicates proper spring calibration. Adjust keeper plate position along slotted holes if misalignment prevents secure fastening.
Check threshold seals. Worn rubber gaskets trap debris; clean grooves with compressed air before installing replacements. For stepped thresholds, ensure the seal compresses evenly along its length when closed to block drafts.
Disassemble carefully–label screws by length and placement. Phillips-head fasteners require magnetic drivers; hex bolts need matched wrenches. Store hardware in divided trays to avoid losing small components during reassembly.
Key Components of a Retractable Mesh Entryway Blueprint
Begin by identifying the frame assembly–the backbone of any retractable mesh entryway. Most models use aluminum extrusions for durability, with specific measurements typically ranging from 1.25″ to 2″ in width for residential units. Industrial variants may exceed 3″. Check for reinforced corners, often secured with self-tapping screws or corner brackets designed to withstand torque during installation. If replacing sections, match the alloy grade (commonly 6063-T5) to prevent warping over time.
The mesh fabric varies by weave density–measured in strands per inch–and material composition. Fiberglass mesh offers cost-effective corrosion resistance but degrades under UV exposure within 3-5 years. Stainless steel (fine wire) lasts 10+ years but requires precise tensioning to avoid sagging. For pet-resistant designs, opt for vinyl-coated polyester with a minimum 18×14 mesh count. Install tension springs at 6″ intervals along the side tracks to maintain even distribution.
Latching mechanisms demand particular attention. Bypass sliders use nylon rollers–replace these if track grooves show wear deeper than 0.5mm. Surface-mounted magnetic latches provide child-safe operation but lose effectiveness with gaps exceeding 0.25″. For security-enhanced models, prioritize multi-point locks with hardened steel bolts (minimum 3/16″ diameter) that engage fully into strike plates. Test alignment by sliding a 0.01″ feeler gauge–any binding indicates misalignment requiring shim adjustments.
Perimeter seals prevent airflow gaps but degrade faster than structural components. Brush seals last 2-4 years before compressing, while vinyl bulb seals maintain flexibility longer but collect dust. For high-traffic openings, reinforce the sill with an aluminum threshold plate to prevent track separation. Replace any seals showing cracks wider than 1/16″ or compression beyond 30% of their original height. For coastal areas, upgrade to EPDM rubber to resist salt corrosion.
Adjustable hinges often use hollow-core pins–a common failure point under lateral stress. Upgrade to solid brass pins if hinge sag exceeds 3° off vertical. Self-closing mechanisms rely on hydraulic dampers; replace if closing cycles extend beyond 5 seconds or if oil leakage appears. For custom heights, verify the header cap dimensions–some models accommodate extensions up to 4″ without structural modifications, while others require reinforced stiles.
Key Elements of a Retractable Barrier System: A Breakdown

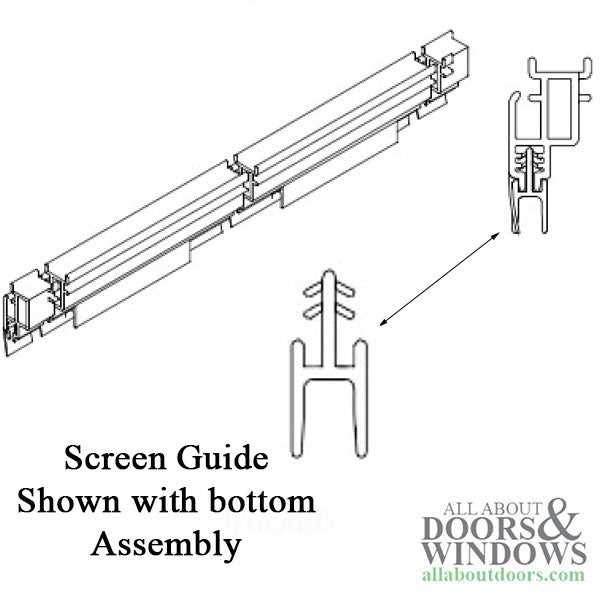

Start by locating the frame stiffeners–these are typically L-shaped aluminum extrusions running along the top and bottom edges. Their primary function is to prevent warping under tension; without them, the mesh may sag within months of installation. Measure their thickness: standard residential units use 1.2mm profiles, while commercial variants opt for 2.0mm for added durability.
The roller track sits embedded in the head jamb and must be inspected for debris accumulation. A single grain of sand lodged here can cause misalignment, leading to uneven retraction or audible scraping. Clean it with a cotton swab dipped in isopropyl alcohol, avoiding silicone sprays that attract dust over time.
Tension springs hidden behind the side stiles control the mesh’s deployment force. Count the coils: most systems use 5–7 wraps, with heavier-duty options featuring 9. If the fabric doesn’t retract smoothly, the spring may need recalibration–loosen the adjustment screw on the bottom rail incrementally, testing after each quarter-turn.
Examine the edge binders, the thin vinyl strips sealing the fabric’s perimeter. These prevent unraveling but degrade under UV exposure. Check for brittleness by flexing them–if they crack, replace the entire length rather than patching, as partial failure leads to uneven wear along the mesh boundary.
Mechanical Interactions
The guide pins fixed to the side rails interact directly with the mesh’s reinforced hem. These are usually nylon-coated steel, but low-cost models substitute plastic, which wears grooves into the hem within a year. Upgrade to brass-coated pins if replacements are needed, as they reduce friction by 40% compared to standard options.
Handle assemblies vary by system but share a universal weakness: the latch mechanism’s pivot points. Lubricate these monthly with dry graphite powder–never oil, as it migrates and attracts contaminants. If the latch sticks, check the strike plate alignment; a 1mm misalignment can prevent proper engagement.
Inspect the bottom weatherseal, often overlooked during routine maintenance. This rubber gasket compresses when the barrier is closed, creating a draft-proof seal. If it’s flattened or cracked, measure the gap between the sill and fabric–anything over 3mm indicates replacement is necessary to prevent insect ingress.
Lastly, verify the stop blocks mounted inside the top rail. These limit retraction travel and prevent the mesh from detaching. If the fabric sags when fully extended, these blocks may be loose or missing–tighten them with a 5mm hex key, ensuring they’re positioned no more than 5mm from the roller’s resting point.

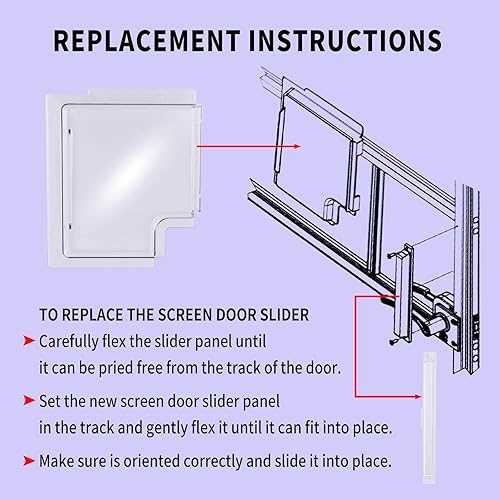

Detailed Guide to Identifying and Swapping Mesh Panel Components
Locate the tension spring at the bottom edge–it secures the mesh panel in place. Release it by pressing inward with a flathead screwdriver while pulling downward. Store the spring in a small container to prevent losing it during disassembly.
Examine the frame’s corners for hidden clips or screws. Older models often use Phillips-head screws; newer units may have snap-in plastic retainers. Use needle-nose pliers to gently pry these retainers free if no screws are visible. Label each retainer with masking tape if multiple panels are involved.
Slide the mesh upward to disengage the top rail. If resistance occurs, check for adhesives or dirt buildup along the track. Apply silicone spray sparingly–excess lubricant attracts debris, complicating reassembly later.
Replacing Worn Rollers or Tracks
Inspect rollers for flat spots or cracks. Replace immediately if wheels no longer spin smoothly. Remove the roller bracket by unscrewing the single mounting bolt–typically a 10mm or ¼-inch size. Keep screws separated by corner to avoid confusion during reinstallation.
Clean the track with a stiff brush to remove grit. Wipe with a cloth dampened in mineral spirits to dissolve old adhesive residue. Dry completely before inserting new rollers: misaligned wheels cause uneven movement and premature wear.
Securing the Updated Assembly
Reinsert the mesh starting with the top rail. Align the tension spring’s hook into its slot at the bottom, then press firmly until it clicks. Test the fit by sliding the panel horizontally–it should move without binding. If resistance persists, sand the frame edges lightly with 220-grit paper.
Apply a thin bead of clear silicone sealant along the inside perimeter of the frame before final assembly. This prevents dust infiltration and adds structural stability. Allow 24 hours for curing before exposing the unit to moisture or wind loads.
Key Latch Types for Mesh Entryways and Their Mechanics
Opt for a roller latch if you need silent operation and durability. These mechanisms use a spring-loaded cylinder that retracts when the handle is turned, allowing the panel to swing freely. Most models support 8–12 lb of tension, making them ideal for lightweight frames. Avoid excessive force–over-tightening can warp the strike plate. For outdoor use, choose zinc-coated variants to prevent corrosion from humidity.
Consider the following latch designs for specific needs:
- Mortise latch: Recessed into the frame for a clean look; requires precise alignment during installation (max deviation: ±1.5mm). Best for thicker panels (1.5″ or more).
- Surface-mounted hook latch: Secures panels with a J-shaped arm that engages a catch. Easy to install but less secure–avoid on high-traffic openings.
- Magnetic latch: Uses rare-earth magnets (N35–N52 grade) for a silent, no-touch closure. Ensure magnets align within 3mm; misalignment reduces holding power by 40%.
- Deadbolt-style: Provides maximum security with a 1/2″ throw bolt. Required for commercial applications; use a drill template for accurate hole placement.
Troubleshooting Common Latch Issues
If a latch sticks, apply graphite powder (never WD-40) to moving components. For misaligned strikes, adjust the plate using laser-cut shims–tape them before permanent fastening. Replace worn springs when tension drops below 5 lbs; coiled springs typically last 3–5 years under daily use. For hook latches, check the arm’s pivot point–lubricate with PTFE spray to prevent squeaking.
