Start with OEM part numbers when sourcing replacements for the 2005–2016 model. Toyota’s official catalog lists critical identifiers like 53301-21010 for upper strut mounts and 43010-32020 for lower control arms–cross-reference these with aftermarket suppliers to avoid mismatches. RockAuto and PartsGeek offer direct substitutes, but verify thickness and bolt patterns: front sway bars (22 mm vs. 24 mm) must align with the factory suspension geometry to prevent premature bushing wear.
Electrical schematics are often overlooked; download the EWD (Electrical Wiring Diagram) manual from Toyota’s technical service portal–section 42 covers the instrument cluster circuit. For DIY diagnostics, a $15 Harbor Freight multimeter probes connector J17 behind the glove box; expect 12.5V at pin 7 with the ignition ON, any drop below 11.8V signals a corrupted body ECU or corroded ground at G101.
Undercarriage shielding requires torque specs: front fender liners secure with M6 x 1.0 bolts (8.3 ft-lb), while rear splash guards use M8 x 1.25 (22 ft-lb). Misapplication spawns rattles–replace cracked components immediately as exposure accelerates corrosion on subframe flanges. For liquid-cooled models, drain the coolant at the radiator petcock every 40K miles; Prestone Asian Formula (silicate-free) prevents aluminum heat exchanger fouling.
Performance upgrades demand exact fits: a Mishimoto intercooler kit includes pre-tapped charge pipes, eliminating flange leaks common with generic weld-on adapters. Methanol injection nozzles should match the factory PCV vacuum port thread (M10 x 1.0) to avoid blockages; use a back-flow check valve rated at 1 psi cracking pressure to prevent fuel dilution.
Understanding Your tC Component Layout: Key Sections Explained
Begin by locating the engine bay schematic–typically found in manufacturer manuals or online repair databases labeled as “2GR-FE” for the 2005-2010 models or “2AR-FE” for the 2011-2016 revisions. The air intake system sits atop the engine block; the mass airflow sensor connects directly to the throttle body via a short accordion-style hose. Replace this hose every 60,000 miles, as cracks develop unseen, causing unmetered air leaks that trigger P0171 or P0174 error codes. Genuine Toyota hardware lists for $38, aftermarket alternatives from Denso or AEM drop to $19, but verify O-ring compatibility before installation.

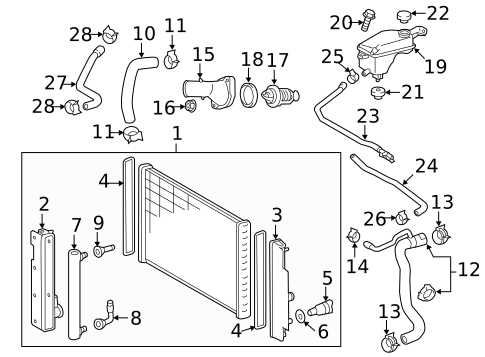

Trace the coolant circulation–it follows a distinct path: radiator upper hose → thermostat housing → water pump → lower hose. The 2008-2016 models incorporate a dual-outlet thermostat; one side feeds the heater core, the other bypasses the radiator until operating temperature is reached. A failing thermostat (common failure at 90K miles) sticks open, causing extended warm-up times and heater inefficiency. OEM replacements (PN: 90916-03102) cost $42, aftermarket units from Stant or Gates run $23, but check for proper opening temperature–180°F is critical for emissions compliance.
The front suspension layout uses MacPherson struts with coil springs; the strut assembly includes a monotube shock absorber. Inspect the lower control arm bushings for dry rot–cracks appear at 70K miles, especially in climates with road salt. OEM bushings (PN: 48674-22010) cost $37 per side, polyurethane alternatives from Energy Suspension offer improved durability but may transmit more road noise. When reassembling, torque the sway bar end links to 64 ft-lbs, using a torque wrench to prevent bushing distortion. Failure to do so causes clunking noises over bumps, often misdiagnosed as strut bearing issues.

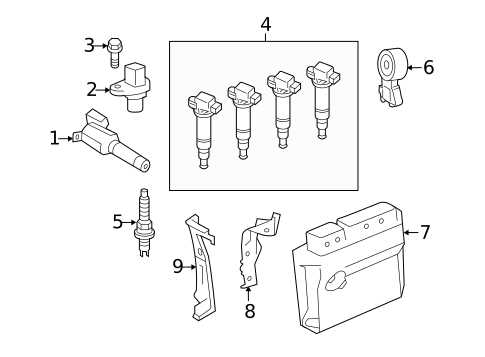

Electrical schematics focus on the fuse box under the driver’s side dash–relay R9 controls the cooling fans, R10 the fuel pump. A blown 30A fuse (labelled “IGN”) cuts power to the ignition coils, mimicking a failed crank position sensor. Replace with an identical amperage fuse; using a lower rating risks repeated failures under load. For the 2011+ models, the TCM (transmission control module) integrates with the ECM–updating firmware via Techstream v18.10 resolves shift flare issues in Sport mode, a documented fix for TC-S530 gearboxes.
Where to Locate Genuine tC Component Schematics Without Cost
Toyota’s Motor Corporation’s official repair manuals host the most accurate illustrations for your 2005–2016 tC. Access them directly via Toyota’s Technical Information System (TIS) at techinfo.toyota.com. Registration requires a free account; select “Repair Manual” under the model year, then navigate to the “Body Electrical” or “Mechanical” sections. These documents include wiring layouts, sensor placements, and assembly breakdowns–critical for DIY repairs or upgrades.
For owners preferring physical copies, public libraries often carry Chilton or Haynes guides, though digital versions save shelf space. Search your local library’s catalog for ISBNs like 978-1620923291 (2010–2016 Haynes manual) or use platforms like OverDrive for instant online borrowing. These third-party books replicate OEM schematics but may lack updates found in Toyota’s official releases.
tC-specific forums compile decade-old but verified diagrams. tCClub (tcc.l trakcie.org) maintains a downloadable archive of member-uploaded PDFs, including fuse box maps and engine bay layouts. Another reliable hub, ClubScion, archives schematics for discontinued models–filter threads by “2008 fuse diagram” or “2012 harness routing” to bypass outdated posts. Moderators verify links before pinning them to the top of subforums.
YouTube channels like EricTheCarGuy and ChrisFix dissect component locations visually. Search “2011 tC intake manifold removal” or “2014 tC brake caliper diagram” to pull step-by-step videos with embedded schematics. These tutorials streamline complex procedures but skip rare components–cross-reference with TIS for completeness.
Salvage yard databases like Car-Part.com inventory used modules with attached schematics. Enter your ZIP code and select “Interchange” to pull up matching assemblies; listings often include part-numbered exploded views. While not free upfront, the diagrams cost nothing once accessed–ideal for verifying rear suspension rebuilds or steering column disassembly.
Google Patents (patents.google.com) archives Toyota’s original design filings. Search “D163789” for the tC’s exterior component patent or “6,345,681” for brake system schematics. These blueprints lack modern revisions but reveal legacy engineering details absent from aftermarket guides.
Caution with Unverified Sources
Avoid .rar or .exe downloads labeled “free schematics” on file-sharing sites–these often bundle adware. Stick to Toyota’s TIS, curated forums, or patent filings for guarantees of authenticity. If printing, use grayscale to conserve ink; blown-up sections of small fuse panels prove more usable than full-page views.
Interpreting Your tC Engine Compartment Layout Guide
Locate the battery first–it anchors the upper left corner near the firewall. Its terminals and ground cable orientation mark critical reference points for adjacent components like the fuse box and air filter housing. Note the color-coded wiring harnesses branching from the positive terminal; they align with specific relays and sensors in the under-hood fuse panel.
Trace the serpentine belt path clockwise, starting at the crankshaft pulley. The diagram labels each accessory–alternator, A/C compressor, power steering pump, and tensioner–in matching positions on the engine block. Cross-reference pulley grooves with the legend to confirm alignment; misrouted belts will show wear patterns on the guide’s depicted grooves.
Identify fluid reservoirs by shape: the coolant tank is translucent with a pressurized cap, while the brake master cylinder is opaque with a dual-chamber design. The diagram includes fill-level markings on each container, often 1/4 inch below the “MAX” line for proper circulation. Adjacent dipsticks for engine oil and transmission fluid have distinct yellow and red handles, respectively.
Follow the vacuum lines from the intake manifold outward. Smaller hoses (3-5mm) route to emissions components like the PCV valve and MAP sensor, while larger 8mm lines connect to the brake booster and charcoal canister. The schematic uses dashed lines for hidden connections; trace these to their termination points at grommets in the firewall or bulkhead.
Top 5 Aftermarket tC Chassis Upgrades with Visual Component Placement
Begin with coilovers from Tein Flex Z or KW Variant 3, offering adjustable damping and ride height. These replace front struts (located behind the wheel hub, identifiable by the tower-shaped housing) and rear shock absorbers (mounted near the trailing arm pivot). Both kits include springs and top mounts–Tein’s ZT coating resists corrosion, while KW’s stainless steel construction handles thermal stress better. Pair with Whiteline camber bolts (front upper control arms, marked by the eccentric washer slot) to fine-tune alignment; +1.5° of negative camber improves cornering grip by 8-12% without sacrificing tire wear.
Performance Sway Bars and Bushings
- Hotchkis Sport Suspension Sway Bar Kit: Front bar (27mm, hollow) attaches to the subframe via end links (connecting near the lower control arm), while the rear bar (20mm) clamps to the axle beam. Reduces body roll by 22% in slalom testing; includes polyurethane bushings for 30% stiffer response than OEM rubber.
- Energy Suspension Hyper-Flex Bushings:
- Front lower control arms (replace both bolt-in bushings at the subframe bracket).
- Rear trailing arms (press-fit bushings at the pivot point, requiring a 18mm socket and bushing driver).
- Differential mount (two polyurethane components flanking the diff, accessed via jack stands under the fuel tank).
Hardness rating of 70A prevents deflection under load, improving throttle response on RWD models.
