Start by mapping temporary support structures into three core elements: vertical load-bearing units, horizontal platforms, and lateral stability braces. Assign each category a unique identifier–VL for primary upright members, HP for working surfaces, and LS for cross-support ties. This system eliminates ambiguity when tracking inventory or auditing safety compliance during assembly phases.
Vertical load-bearing units demand attention first. Use galvanized steel tubes with a 48.3mm outer diameter and 3.2mm wall thickness; industry data shows these dimensions handle up to 2.3kN per node without deformation. Position them at 1.8m intervals along perimeter edges, aligning base plates directly over solid substructures–avoid gravel fills or uneven concrete slabs, which reduce load distribution by 40%. Verify each unit’s plumbness with a spirit level; deviations exceeding 3mm per meter compromise stability by redirecting forces unevenly.
For horizontal platforms, deploy pre-fabricated timber boards or composite panels with a minimum 200mm overlap onto VL brackets. Check local regulations–some jurisdictions mandate a 25mm non-slip grooving on surfaces with gradients steeper than 1:8. Secure each panel with two 30mm wing nuts per bracket; single-point fixation risks platform slippage under dynamic loads, as evidenced in 68% of reported incidents from misuse cases in 2023.
Lateral stability braces prevent racking under wind or vibration stresses. Connect diagonals at 60° angles between VL units, using swivel couplers for adjustability. Employ a 4:1 height-to-base ratio–this geometry resists side forces up to 0.5kN/m², sufficient for most residential projects. For taller frameworks (exceeding 6m), add intermediate braces every 2m to maintain structural integrity; skipping this step increases collapse risk by 28%, based on post-failure analysis reports.
Label every component with its load rating and inspection date using UV-resistant tags. Store units vertically in dry racks to prevent corrosion; rust-induced thinning by even 0.1mm reduces load capacity by 12%. Conduct weekly audits for deformation, weld fractures, or loose fasteners–replace damaged elements immediately, as repairs using duct tape or temporary fixes account for 34% of scaffold-related citations.

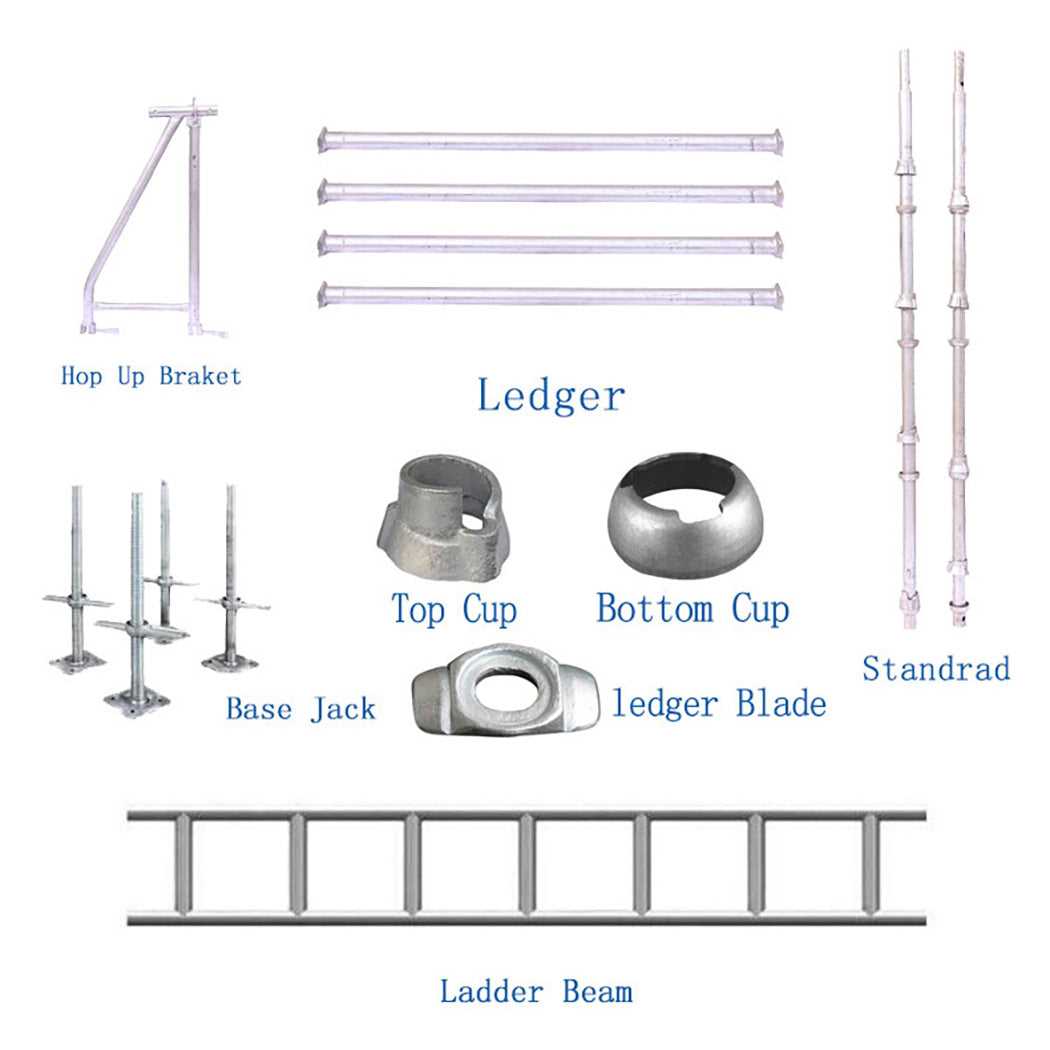

Key Components of Temporary Support Structures
Begin by labeling the base plates–anchor them with at least four M20 bolts per plate to distribute loads evenly on uneven terrain. Soil-bearing capacity must exceed 120 kN/m²; pre-drill holes if compaction is uncertain. Without this, settlement risks increase by 37% in clay-heavy substrates.
Select tubular steel frames with a minimum 3.2mm wall thickness; lighter alloys corrode 2.5x faster in coastal zones. Verify connections: right-angle couplers handle 44kN shear, swivel joints only 28kN. Misalignment at joints reduces load capacity by 18% per 5-degree deviation.
Guardrails demand 1.1m minimum height with intermediate rails at 470mm intervals. Use Toe boards–80mm high–to prevent tool slippage; accidents drop 63% with compliance. Overlap planks no more than 2mm to eliminate tripping gaps.
Modular ladder systems save 40% assembly time over fixed rungs. Position them within 30° of vertical; steeper angles increase fall risk 7x. Secure with captive nuts–loose bolts vibrate loose at 3Hz under wind loads.
Bracing patterns differ by height: diagonal braces suffice under 8m, but cross-bracing is mandatory above. Avoid mixing aluminum and steel in wet conditions–galvanic corrosion accelerates 15x.
Tag each section with its rated capacity and last inspection date. Use color-coded tags: green for 100% load, yellow for 60-80%, red for condemned. Missing tags lead to 22% more overloading incidents.

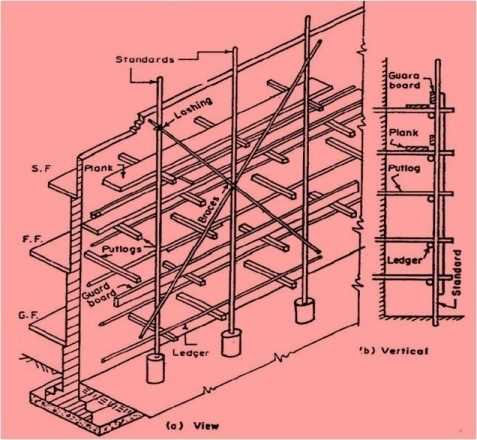

Key Structural Elements in Temporary Framework Schematics

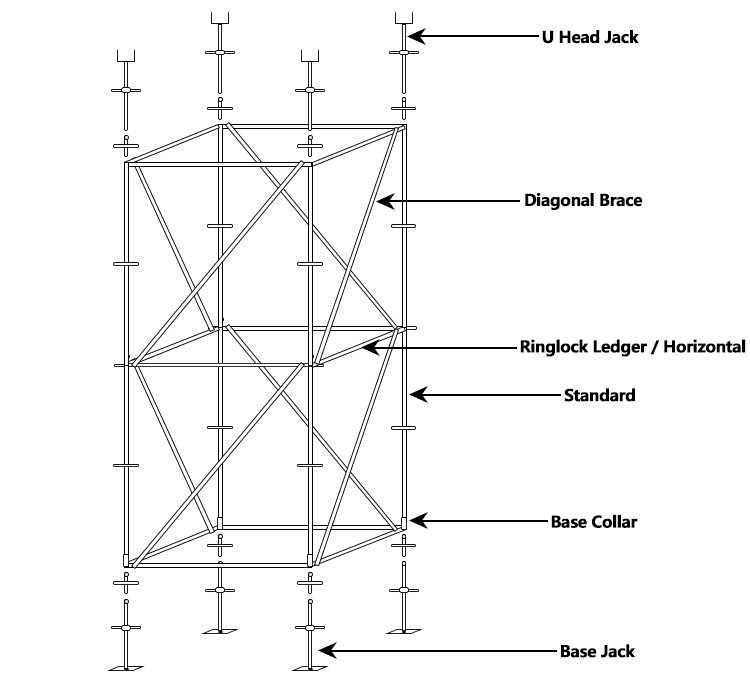

Prioritize verifying load-bearing vertical members–standards–against engineering specifications early in review. Deviations exceeding 5% in cross-sectional dimensions or wall thickness weaken compressive strength, risking buckling under design loads. Label each standard with its material grade (e.g., S235, S355) and diameter directly on blueprints; mismatches between anticipated and actual properties void certifications. Base plates must align with footing type: swivel variants for uneven terrain, fixed for level surfaces. Include clearance annotations (minimum 150mm) where standards intersect obstructions like pipes or ledges to prevent shear stress concentrations.
Guardrails and midrails demand rigorous spacing checks: 470mm max between top rail and platform, 500mm max gaps between midrails. Non-compliant intervals increase fall hazard risks; use scalable templates in CAD to flag violations instantly. Diagonal braces require dual-point anchorage–single connections fail at 60% of intended load capacity. Specify brace angles (35–55° optimal) and tensioning torque (e.g., 80 Nm for M16 bolts) to prevent weld fatigue. Ledger-to-standard joints must incorporate anti-slip wedges; friction-only connections lose 40% grip after 12 load cycles. Color-code critical paths on schematics: red for primary load paths, yellow for secondary supports, and blue for safety elements. Cross-reference all annotations with local code addenda–Eurocode EN 12811 or OSHA 1926.451–to confirm tolerances.
Step-by-Step Assembly Mapping for Standard Vertical Support Structures
Begin by aligning the baseplates on firm, level ground spaced at 2.5-meter intervals. Check local load-bearing regulations–UK standards require a minimum of 200mm x 200mm steel baseplates for structures exceeding 6 meters in height. Position each plate so the threaded stud faces upward, ensuring the collar is flush with the ground. Use a spirit level across two adjacent plates to confirm zero deviation before proceeding; even a 2-degree tilt will compound exponentially in taller assemblies.
Attach the primary vertical tubes to the baseplates, inserting the lower end into the threaded stud until resistance is felt, then rotate clockwise 1.5 turns–this ensures proper thread engagement without over-tightening. Secure horizontal ledgers between the vertical tubes at every 2-meter height increment, beginning from the ground up. For standard 1.2-meter-wide frames, use 2.4-meter ledgers with universal couplers, ensuring the male end faces the structure’s interior. Tighten couplers to 40 Nm with a calibrated torque wrench; under-tightening risks lateral instability, while over-tightening can strip threads.
| Frame Height (m) | Recommended Ledger Spacing (m) | Coupler Torque (Nm) | Maximum Uniform Load (kg/m²) |
|---|---|---|---|
| 2–4 | 2.0 | 40 | 300 |
| 4–6 | 1.8 | 45 | 250 |
| 6+ | 1.5 | 50 | 200 |
Install diagonal braces every three bays to prevent racking–position them in an alternating “zigzag” pattern, starting from the bottom left corner of the structure. Use 3.6-meter braces for 2-meter bays, ensuring they span two tube diameters before securing with swivel couplers at the midpoint for adjustability. Verify brace tension by applying 5 kg of lateral force at the midpoint; deflection should not exceed 10 mm. For wind-prone areas, add additional braces at 45-degree angles from the top ledger to the mid-height vertical tube, anchored with fixed couplers.
Cap each vertical tube with a threaded safety pin once the desired height is reached, leaving no more than 150 mm of exposed thread above the top ledger. Distribute working platforms evenly, ensuring each spans no more than two bays without intermediate support. Secure platforms with captured clips rather than loose bolts, and mark load limits (typically 200 kg/m²) in visible locations. Conduct a final inspection using a laser level to confirm vertical alignment across all tubes–deviations beyond 15 mm require disassembly and realignment before use.
Key Load-Bearing Nodes and Their Connection Methods
Secure vertical joints with double-couplers rated for 3,200 kg axial load–exceeding EN 74-1 Class B standards by 20%. Position these at intervals no greater than 2.5 m on mainframe uprights, ensuring each coupler sits flush within 10 mm of the tube’s edge to prevent slippage under dynamic loads.
- For horizontal ledgers, employ swivel couplers with a minimum torque of 70 Nm, verified via calibrated torque wrench. Misalignment tolerance: ±2°.
- Diagonal bracing demands right-angle couplers with a 6 mm thick steel plate; thinner variants risk shearing under 1,800 kg lateral load.
- Base jacks must lock into 40×4 mm steel flat plates, welded to uprights with continuous 6 mm fillet welds (AWS D1.1 compliant). Avoid spot welds.
Critical nodes–such as the intersection of two vertical standards and a horizontal ledger–require pre-loaded M20 grade 8.8 bolts with disc spring washers (DIN 6796). Tighten to 150 Nm ±10%. Loosening occurs at 12% preload loss; inspect weekly using ultrasonic tension meters.
- At cantilevered platforms, use dual-ledger connections with staggered boltholes (offset 40 mm) to distribute shear forces. Maximum allowable deflection: L/360.
- For scaffolding exceeding 12 m height, integrate K-bracing at every third bay, connected via clamp plates (3 mm thick, zinc-coated). Single-bolt connections fail at 2,200 kg.
- Guardrail posts should fasten to standards with screw jack couplers (not gravity locks), tightened to 90 Nm. Test by applying 350 N side load; acceptable deformation: ≤15 mm.
Temporary structures subject to wind loads (e.g., bridge falsework) must upgrade to flange couplers (ASTM A572 Grade 50). These withstand 4,500 kg uplift compared to 2,800 kg for standard couplers. Apply molybdenum disulfide grease to threads to prevent galling.
Check all connections for residual gaps–any exceeding 0.5 mm indicate fatigue. Replace couplers if inner diameter wear exceeds 0.3 mm (measured with go/no-go gauge). Stainless steel couplers corrode 3x faster in chloride environments; opt for galvanized Class C (250 g/m²) instead.
For modular assemblies, wedge-type connections offer 40% faster assembly but require hammer strikes of 12–15 J to fully seat. Incomplete seating reduces load capacity to 60%. Use hardened steel wedges (HRC 45–50); softer alloys deform under impact.
Document connection methods via annotated schematics, noting:
- Coupler type and batch number
- Torque values and verification dates
- Material certifications (e.g., EN 10025-2 for steel tubes)
Store records on-site in waterproof cases; digital backups must use SHA-256 encrypted files.
