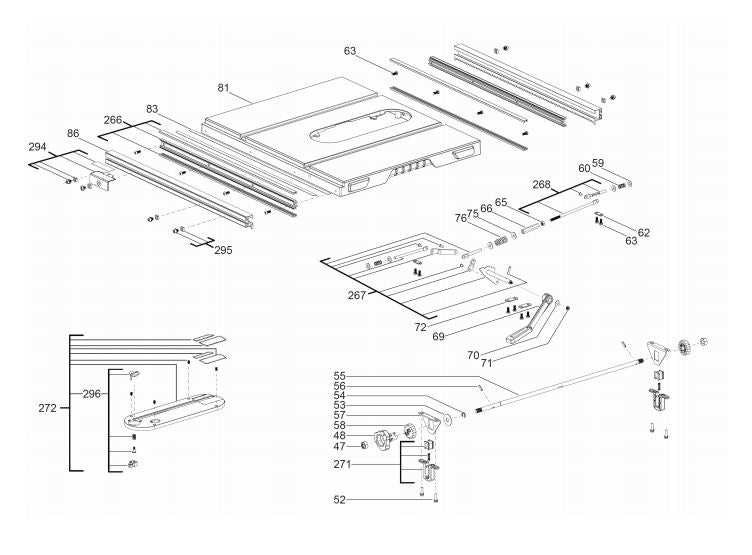

For precise repairs or upgrades, reference the official technical schematic provided in the manufacturer’s manual–specifically the exploded-view illustration on page 18. This document labels every mechanical and electronic element with exact part numbers, simplifying ordering and replacement. If the manual is unavailable, obtain the digital version from the brand’s support portal using the product’s serial number.
Critical assemblies include the blade braking system, motor housing, and fence alignment rails. The braking mechanism–comprised of an aluminum reaction cartridge, contact pad, and spring-loaded actuator–requires annual inspection for wear. Replace the cartridge immediately if resistance measurements deviate beyond ±5% of factory specs (consult section 4.3 for testing procedures).
Lubrication points demand synthetic grease with a viscosity rating of NLGI 2. Apply sparingly to the gear train, arbor bearings, and elevation worm gear to prevent dust adhesion. Avoid petroleum-based products; they degrade polymer seals in high-friction zones. For electrical troubleshooting, verify continuity across the circuit board’s safety sensor traces–use a multimeter set to 200kΩ range, probing test points labeled TP1 through TP4.
When reassembling the rip fence, ensure the T-slot extrusion aligns flush with the cast-iron surface. Misalignment of
Replacement parts must match the original specs precisely. Third-party replicas often lack heat-treated alloys in load-bearing components, leading to premature failure. Verify part codes against the bill of materials in the exploded view–cross-reference with the serial tag on the unit’s underside to confirm compatibility. For warranty-covered repairs, ship the defective assembly to an authorized service center; unauthorized modifications void coverage.

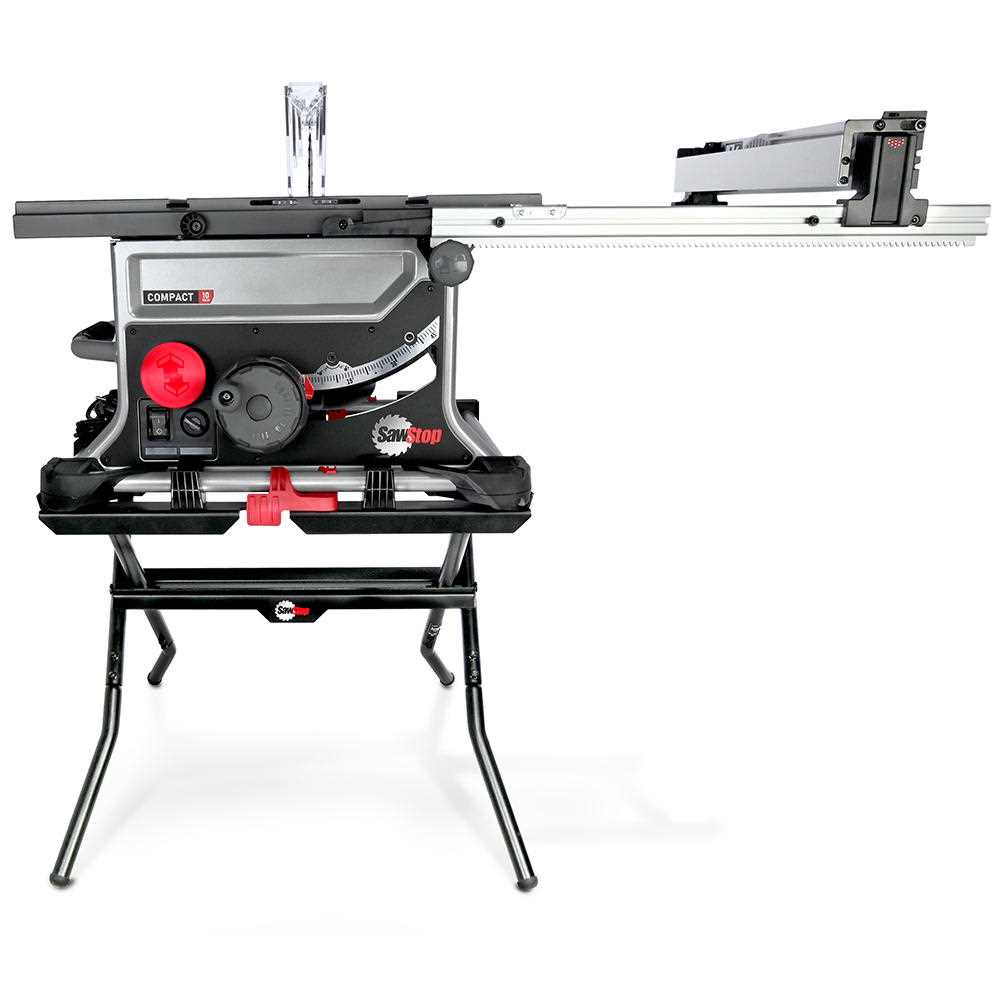

Understanding Your Precision Cutting Equipment Components
Begin by locating the brake cartridge–it’s embedded near the blade elevation assembly and activates during contact detection. Models released after 2020 include dual-cartridge configurations; check your purchase documentation for specifics. Below is a quick reference for critical replacement intervals:
| Element | Replacement Frequency | Indicators of Wear |
|---|---|---|
| Brake unit | Every 500 hours or post-activation | Visible scoring, slow response |
| Drive belt | Annually or 200 hours | Cracks, uneven tension |
| Arbor flange | After 300 cuts | Dents, misalignment |
Forge-proof alignment requires checking the trunnion assembly monthly. Loosen the four hex bolts securing the front trunnion plate, then adjust the gaps using feeler gauges–0.003 inches on both sides ensures consistent cuts. Misalignment beyond 0.005 inches risks premature blade dulling and inaccurate miters.
Lubricate the elevation and tilt worm gears with PTFE-based grease every six months. Apply sparingly; excessive buildup attracts dust, which compromises the safety mechanism’s responsiveness. Use a 3/16-inch hex key to access the tilt housing–ignore this step, and the gear may seize under lateral pressure.
Electrical systems demand quarterly inspection. Disconnect power, then remove the rear access panel. Test continuity across the two brush tachometer leads–any reading above 5Ω necessitates immediate replacement. Ignoring this risks degraded braking performance, extending reaction time beyond the standard 5 milliseconds.
Blade rise mechanisms vary by model year. Units manufactured before 2018 use a threaded rod; newer ones feature a rack-and-pinion setup. For threaded rods, apply paraffin wax to the shaft to reduce friction. Precision-cutting models introduce stainless steel reinforcements–these require silicone spray instead, as wax gums the delicate threads.

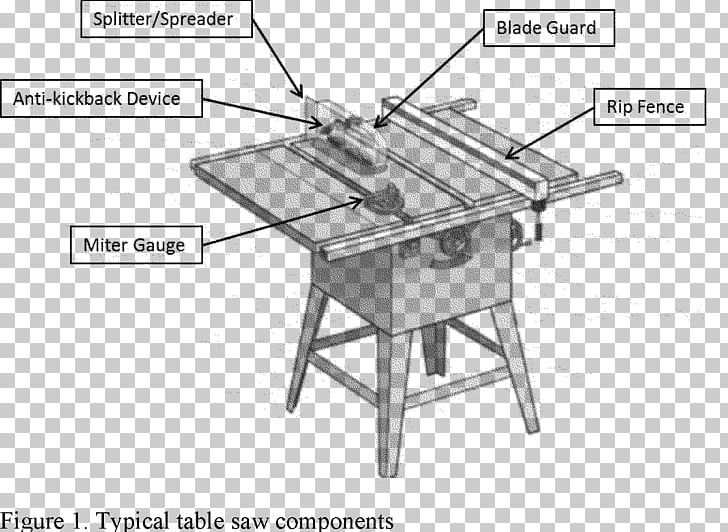

Critical Elements of a Precision Circular Blade Mechanism
Inspect the blade arbor first–its tolerance determines vibration levels. A precise arbor ensures the cutting disc runs true; deviations over 0.001″ cause wobble and premature wear. Tighten the arbor nut with a torque wrench (25-30 ft-lbs) to prevent slippage under load. Replace the nut if threads show stripping or galling, as thread damage introduces play, compromising safety and accuracy.
The anti-kickback pawls must engage instantly–delayed activation increases injury risk. Verify pawl sharpness; dulled teeth fail to grip wood fibers, allowing workpiece movement. Test functionality by simulating a sudden stop with a sacrificial board; ideal pawls halt movement in under 50 milliseconds. Replace pawls if engagement response exceeds 100 ms or if teeth show rounding beyond the original profile.
Examine the blade stabilizer flange for concentricity. A misaligned flange induces uneven stress, warping cuts. Use a dial indicator to measure runout–acceptable variance is ≤0.002″. If exceeded, disassemble and clean mating surfaces; residue buildup distorts alignment. Apply anti-seize compound to threads during reassembly to prevent galling, but avoid over-application–excess can migrate onto the blade, attracting debris.
The blade guard assembly must clear workpieces without binding. Check guide tracks for smooth travel; friction increases operator fatigue and reduces response precision. Lubricate tracks with dry silicone spray–avoid petroleum-based lubricants, which attract dust. Adjust guard height so it contacts–but doesn’t restrict–stock within 1/8″ of the cutting disc. Misalignment here forces operators to override safety features, nullifying protection.
Verify the sensor module calibration annually or after blade changes. Incorrect settings delay detection, increasing skin contact exposure. Use the manufacturer’s test key; the module should trigger a brake test within three milliseconds of contact. If response lags, recalibrate threshold voltages–consult service documentation for exact resistance values. Dust accumulation on sensor contacts falsely triggers brakes; clean with isopropyl alcohol and a lint-free cloth every 50 hours of operation.
Replace the brake cartridge at the first sign of wear–visible grooves or a 10% reduction in spring tension compromise stopping force. Cartridges degrade with each activation; track usage and retire after 3-5 engagements, even if visually intact. Store spares in climate-controlled conditions; temperature swings degrade pyrotechnic components. During installation, ensure electrical leads make unambiguous contact–corrosion here delays activation, converting a controlled stop into a kinetic hazard.

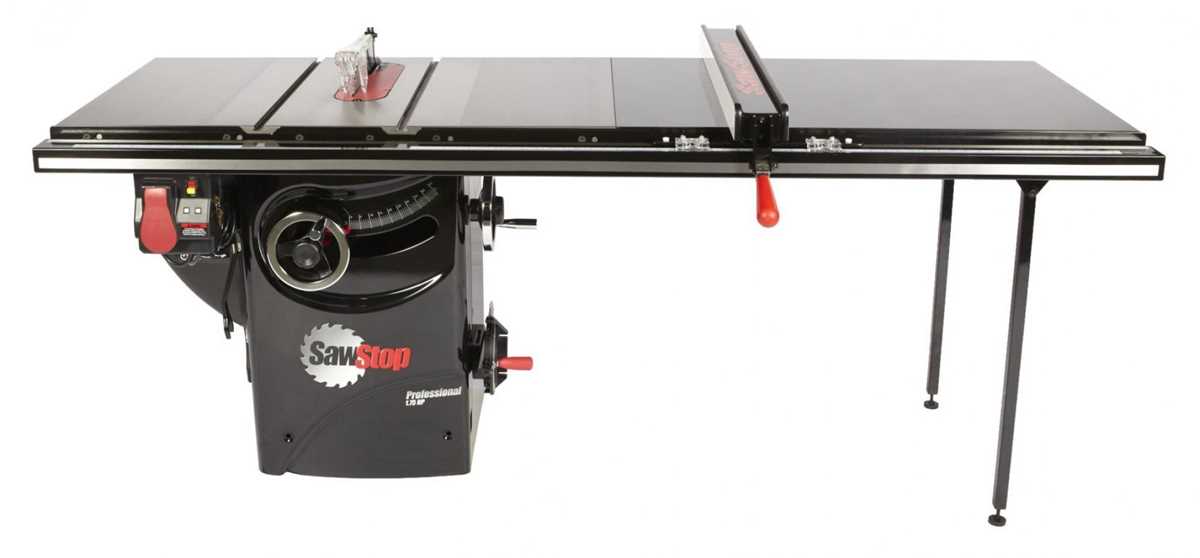

Step-by-Step Guide to Locating the Brake Mechanism in Precision Cutting Equipment
Begin by unplugging the device to eliminate electrical hazards. Remove the throat plate–typically secured by two screws–using a 5/16-inch hex key or a matching screwdriver. Set the plate aside to expose the internal components beneath the blade housing.
Locate the blade carriage assembly by following the arbor shaft toward the rear of the machine. The brake cartridge sits directly adjacent to this shaft, identifiable by its cylindrical aluminum casing with a series of notches at the base. Some models position it slightly to the left of the arbor, requiring minimal rotary tool clearance to inspect.
Examine the brake’s mounting bracket, which holds the cartridge in place via two Torx T20 bolts. Mark their original position with a felt-tip pen before loosening–misalignment during reassembly can compromise activation sensitivity. On industrial-grade units, an additional retention spring may encircle the cartridge; gently compress it with needle-nose pliers to release tension.
Tools Required for Access
Gather these before proceeding:
- 5/16-inch hex key
- Torx T20 driver
- Needle-nose pliers
- Non-marring rubber mallet
- Digital calipers (0.01mm precision)
If corrosion inhibits bolt removal, apply penetrating oil (e.g., Kroil) and wait ten minutes. Tap the bracket lightly with a rubber mallet to dislodge rust without damaging threads. Avoid excessive force–sheared bolts necessitate replacement of the entire carriage assembly.
Reassembly Verification
After servicing, reinstall the cartridge by aligning the notches with corresponding guides in the bracket. Torque the T20 bolts to 8-10 in-lbs using a calibrated driver. Verify the brake’s activation distance with digital calipers: measure from the blade’s teeth to the cartridge’s front edge–ideal clearance is 1.2-1.4mm. Deviations outside ±0.1mm require recalibration via the onboard control module.
Reattach the throat plate while ensuring screws do not contact the arbor or brake housing. Rotate the blade manually to confirm unimpeded movement before restoring power. Test the mechanism by triggering the safety system with a sacrificial wood scrap–listen for a metallic *click* followed by immediate blade retraction.
Key Consumable Components in Precision Cutting Equipment and Replacement Timing
Blade inserts require replacement every 3–6 months under regular use, or immediately if chipping exceeds 1mm. A worn throat plate disrupts dust collection efficiency by up to 40%, accelerates motor strain, and increases kickback risk. Check for deformation weekly–measure gap uniformity with a feeler gauge; variance beyond 0.2mm signals failure. Low-cost knockoffs warp faster than OEM variants, forcing premature arbor bearing stress.
Arbor flanges degrade from thermal cycling and resin buildup. Inspect annually for micro-cracks using dye penetrant–replace if hairline fractures exceed 0.5mm. Loose flanges cause blade wobble above 0.05mm TIR (total indicator runout), reducing cut precision and triggering false positive safety engagements. Apply anti-seize to threads during reassembly to prevent galling, but torque to 30–35 ft-lbs only–overtightening distorts the flange face.
Drive belts lose tensile strength after 120–180 hours of operation, visible as glazed surfaces or sidewall cracking. A slipping belt drops RPM below 3,450 (critical for proper safety reaction time) and increases current draw by 15–20%. Replace in matched sets–mixing old and new belts creates uneven tension, accelerating wear on brushless motor bearings. Stretch-fit belts to the pulley without forcing; alignment within 0.1° prevents premature failure.
Fence rails exhibit wear on sliding surfaces after 2–3 years. Grooves deeper than 0.3mm or lateral play exceeding 0.08mm compromise repeatability. Apply dry lubricant (PTFE-based) monthly, but avoid petroleum distillates–they degrade polycarbonate components. Calibrate fence parallelism after any adjustment; misalignment as little as 0.05° per foot skews miter cuts and voids warranty claims for precision-related motor faults.
Retraction springs in the braking mechanism lose 5–7% resilience per 1,000 actuations. Test spring force annually–should return the brake pawl to resting position within 20ms post-trigger. Weak springs cause delayed reset cycles (raising fire risk) or incomplete brake engagement (failure-to-halt renders safety features inert). Swap springs in pairs; single replacements create asymmetric force, warping the brake assembly. Store spares in vacuum-sealed bags–humidity accelerates hydrogen embrittlement.
