If your device stops heating or displays error codes, start by checking the magnetron assembly–positioned near the rear-left corner behind the control panel. Use a multimeter to test resistance (typically 2–3 ohms); readings outside this range indicate failure. Replace the part only after confirming no loose wiring or blown fuses in the high-voltage section.
The turntable motor and drive coupling sit beneath the cavity floor. Remove the outer cover to access these: the motor connects via two wires, while the coupling (a plastic gear) should turn freely by hand. If stripped, alignment with the roller guide track is critical to avoid uneven rotation. Always disconnect power before handling internal mechanisms.
Capacitors and diodes require cautious inspection. Discharge stored voltage using a 20,000-ohm resistor–neither metal tools nor direct shorting. The capacitor’s terminals should read infinite resistance; deviation suggests replacement. The high-voltage diode, typically housed near the capacitor, must show continuity in one direction only. Reverse polarity risks damaging the transformer.
For door switches, test each microswitch individually via continuity check. The primary latch (three- or four-pin connector) trips first; secondary switches activate sequentially. Misalignment often causes intermittent power loss–adjust mounting brackets to restore proper engagement. Refer to schematic labels (e.g., “SW1,” “SW2”) to avoid confusion.
Ventilation paths and thermal cutoffs demand periodic cleaning. Dust accumulation on the blower fan reduces airflow, tripping thermal protectors. Use compressed air to clear intake/exhaust grilles, but avoid dislodging internal sensors. If the appliance overheats despite clean vents, inspect the cutoff switch (usually a white or red disc near the magnetron) for signs of melting.
Understanding Your Appliance’s Component Layout

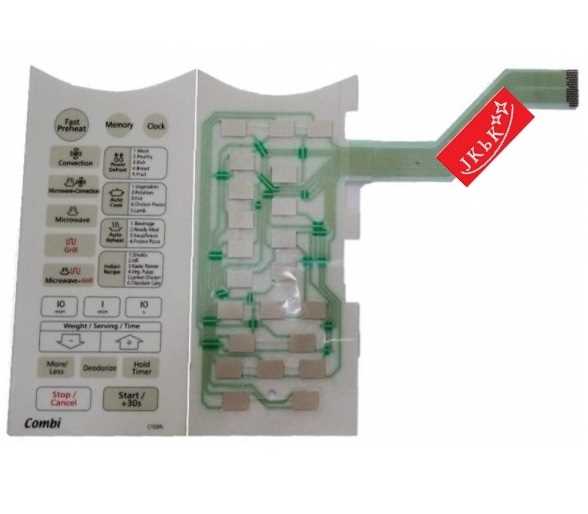

Begin by locating the turntable motor beneath the cooking chamber–it’s secured with two screws and connected via a 3-pin connector. Use a multimeter to verify voltage (typically 220V AC) at the motor terminals before disassembly. If readings deviate by more than 10%, replace the motor; part number DM72-00127A fits most models from 2018 onward. For control panel issues, check the membrane switch matrix first–press each button individually to detect unresponsive contacts, then clean with isopropyl alcohol (90% or higher). Avoid abrasive tools; even minor scratches can disrupt conductivity.
- Door interlock switches (primary/secondary): Test for continuity in both closed *and* open positions. Failure triggers error code SE–refer to schematic DG81-12345A for exact switch placement.
- Magnetron lifespan: Replace at 1,500–2,000 operating hours if microwave output drops below 500W. Preheat a 250ml water sample–deviation exceeding 15% from baseline (typically 1–1.5°C rise per minute) confirms degradation.
- High-voltage capacitor: Discharge *fully* before handling (short terminals with an insulated screwdriver). Inspect for bulging or leaks; replacement requires part DE31-20006B for 1100W variants.
How to Pinpoint Key Components in Your Appliance
Begin by unplugging the unit and removing the outer casing–typically secured with screws along the rear and sides. The magnetron, recognizable by its cylindrical shape and attached cooling fins, sits near the center, often flanked by a high-voltage capacitor and diode. These elements work in tandem to generate cooking waves; mismatched connections or burn marks signal failure. For safety, discharge the capacitor before handling–use an insulated screwdriver to short the terminals with a 10-ohm resistor.
Locate the turntable motor beneath the cavity floor, accessed by lifting the glass tray and removing the circular mounting plate. The motor shaft should rotate freely; grinding noises or resistance indicate worn bearings or a seized mechanism. Nearby, the stirrer fan (if present) disperses waves evenly–check for warped blades or dust buildup blocking airflow. Replace components only with OEM-matched models to avoid electrical hazards.
Critical Checkpoints Before Disassembly
- Verify power is disconnected–voltage test the capacitor terminals with a multimeter (expect 0V; residual charge can deliver lethal shocks).
- Inspect door switches (usually 2-3 microswitches) for proper alignment; misalignment causes intermittent operation or failure to start.
- Trace wiring harnesses for frayed insulation or melted connectors–common failure points after overheating.
- Examine the control panel’s membrane keypad for stuck buttons or moisture ingress, which can corrupt circuitry.
Quick Reference for Component Lifespans
- Magnetron: 2,000–5,000 hours (~7–10 years; replace if output drops or arcing occurs).
- Capacitor: 10,000–15,000 cycles (~15 years; bulging or leaking denotes failure).
- Motor: 5–8 years; replace if RPM slows or starts unevenly.
- Fuse: Instant failure from power surges–use the exact amp rating (commonly 10–14A).
How to Locate Your Appliance’s Internal Circuit Layout
Disconnect the power cord from the outlet before handling any electrical components. Remove the outer casing by unscrewing the fasteners typically located along the back panel and sides–use a #2 Phillips screwdriver for most models. Once the screws are out, gently slide the cover off, taking care not to strain any attached wires. Layers of protective shielding may obscure the wiring; peel these back only as far as necessary to expose the schematics.
Locate the service manual label adhered to the inner chassis–often on the right side near the control panel or beneath the magnetron housing. This sticker contains a miniature circuit schematic, including color-coding for wires and component identifiers (e.g., high-voltage capacitor, thermal fuse). If the label is missing, check the base of the unit for an embossed or printed reference code, usually a 7-digit alphanumeric sequence. Enter this code into the manufacturer’s official support portal to retrieve the full technical documents.
Alternative Methods for Schematic Access
If digital resources are unavailable, inspect the main control board for silkscreened traces. These thin copper lines form the actual circuit pathways and can be cross-referenced with the standard wire colors (red: power, black: ground, yellow/white: secondary circuits). For older units, consult a third-party repair database–upload a clear photo of the board to match existing diagrams. Avoid relying on generic templates, as mismatched schematics risk incorrect voltage readings or component damage.
Replacing a Defective High-Voltage Generator in Your Appliance: Step-by-Step and Precautions
Disconnect power immediately–unplug the unit or shut off the circuit breaker before handling any internal components. Voltage capacitors retain lethal charges even when inactive, discharging them safely requires a 10-ohm, 25-watt resistor: attach leads to capacitor terminals for at least 30 seconds to neutralize residual current. Verify discharge with a multimeter set to 1,000V DC or higher; readings should drop below 10V before proceeding. Failure to follow this step risks fatal electric shock or catastrophic damage to replacement components.
Identify the faulty component by referencing the appliance’s technical schematic–look for a cylindrical metal assembly usually mounted near the waveguide cover, secured by screws and connected via high-voltage wiring. Common failure signs include no heating despite normal operation, unusual humming, or visible arcing near the antenna dome. Before removal, document wire placements (use a smartphone photo for accuracy) and note screw sequences if present. Component labels often specify wattage and frequency; ensure replacement matches these exact ratings (e.g., 2M210 for models rated at 1,000W/2450MHz).
| Tool/Safety Gear | Specification/Purpose |
|---|---|
| Insulated screwdriver | 6mm tip, rated for 1,000V to prevent shorts |
| ESD wrist strap | Grounded to chassis to prevent static discharge |
| Torx T10/T15 bits | For security screws on waveguide cover |
| Thermal paste | Non-conductive, silicone-based for heat sink reapplication |
Install the new generator by reversing removal steps, ensuring thermal paste is applied evenly between the heat sink and mounting surface. Tighten screws in a star pattern to distribute pressure uniformly–over-tightening can crack the ceramic housing. Reattach high-voltage wires precisely as documented, using needle-nose pliers to seat connectors fully; loose connections cause arcing. Once secured, restore power and test with a glass of water for 30 seconds–water should reach 40–50°C if the replacement is functional. Recheck all screws and connections after initial operation, as thermal expansion may loosen components.
Locating Authentic Rotating Plate Drive Components and Wheel Assembly Units
Begin with the manufacturer’s official repair network. Authorized service centers maintain direct access to OEM replacements for turntable drives and roller ring assemblies, ensuring compatibility and performance. Locate the nearest outlet via the brand’s dedicated portal using your appliance’s exact model number–this often yields precise matches for motors rated at 220-240V AC or 5W DC variants, depending on your unit’s specifications.
Specialized online vendors like PartSelect, AppliancePartsPros, and eSpares stock verified components, providing exploded-view schematics alongside each listing. Filter searches by part category (“turntable motor” or “roller guide”), cross-reference dimensions (e.g., 4-5 prong connectors, shaft length 8mm), and confirm voltage ratings before ordering. Check for “manufacturer-approved” badges to avoid counterfeit units.
Local appliance distributors may carry universal alternatives if exact replacements are unavailable. Measure your existing assembly’s dimensions (diameter 230-250mm for standard rollers, shaft type–splined or smooth) and compare with aftermarket options from suppliers like RepairClinic or PartSimple. Ensure the motor’s RPM (typically 4-6) aligns with your oven cavity’s requirements; mismatches cause uneven rotation.
eBay and Amazon offer direct-from-warehouse listings, but scrutinize seller ratings and return policies. Limit searches to items with detailed technical descriptions (e.g., “DC 6V 5RPM 10oz-in torque”) and include high-resolution close-ups of electrical connectors and mounting brackets. Avoid “unbranded” or suspiciously low-cost listings–these often lack insulation-grade wiring or thermal protection, risking premature failure.
