Identifying faulty components in your high-capacity laundry appliance begins with a detailed schematic. Obtain the official breakdown of your model’s internals–either from the manufacturer’s repair portal or certified parts suppliers. Key elements to inspect include the drum suspension system (shock absorbers, springs), door lock assembly (latch, seals, sensors), and the motor coupling (drive belt, pulley, stator). Each component typically bears a unique serial code; cross-reference these with the illustrated guide to avoid misplacement.
Common failure points often involve the water inlet valve (clogged filters, solenoid malfunctions) and the main control board (burnt circuits, corroded connections). For precise troubleshooting, disconnect power and water supply before disassembly. Use a multimeter to test continuity on the heating element and pressure switches–readings outside 20-200 ohms indicate replacement needs. Always store removed screws and brackets in labeled containers to prevent reassembly errors.

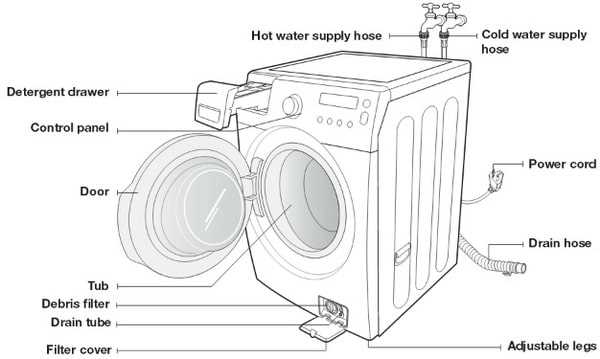

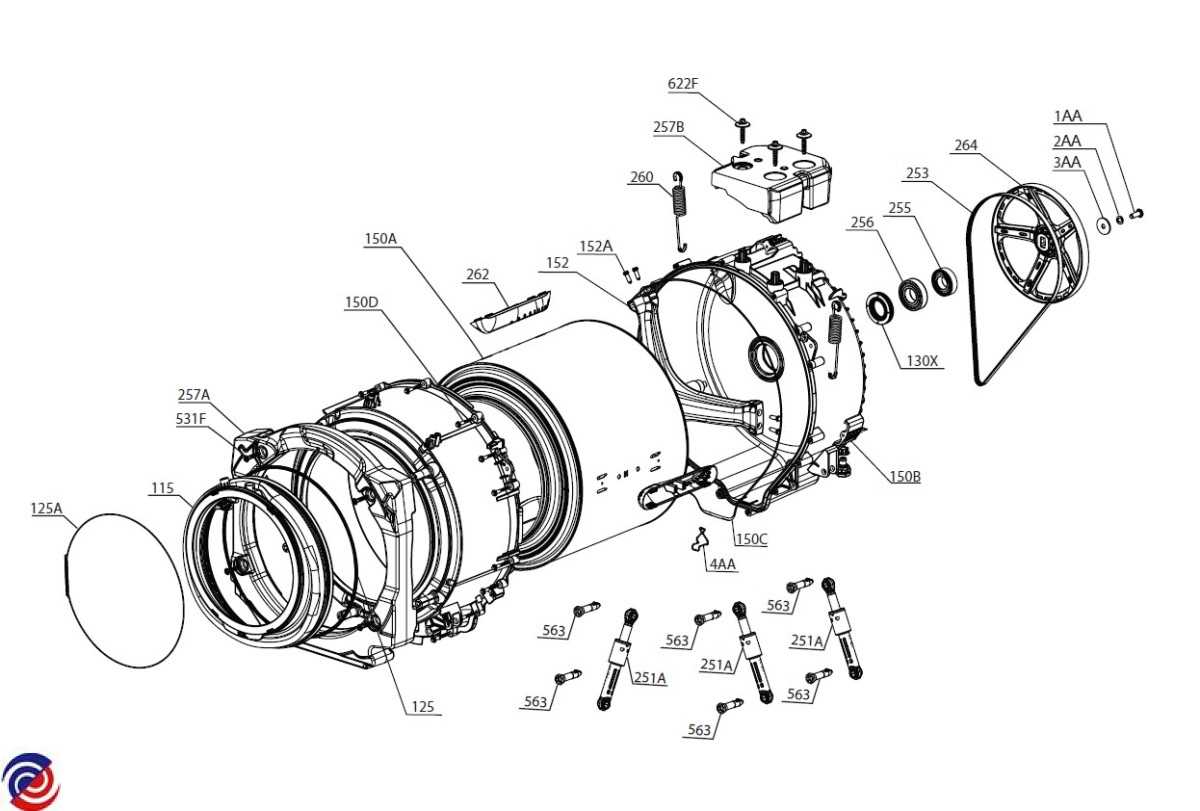

For self-repair, source OEM-certified replacements rather than third-party alternatives. Verify compatibility by matching the model-specific prefix (e.g., DC, WF, or WW series) and suffix (e.g., /AA, /ZA). Tools required include a torx T20 screwdriver, 5mm nut driver, and needle-nose pliers. Consult the exploded view under sections like “Dispenser Assembly” or “Outer Tub Components” to locate obscure items like the bleach siphon cap or drain pump impeller.
Proactive maintenance involves cleaning the detergent drawer sensor monthly and checking the drum bearing for unusual noise–grinding sounds signal imminent failure. If the machine exhibits error codes (e.g., 4E, dE, UE), reference the service manual’s troubleshooting matrix before ordering parts. Avoid forcing components into place; alignment issues can damage the tub gasket or door glass.
Understanding Your High-Efficiency Laundry Appliance’s Component Layout
Start by locating the door boot seal (gasket) – the rubber ring framing the porthole. Inspect it for cracks or mold, which often accumulates in the lower crease. Replace it if wear exceeds 2mm in depth; use model-specific part numbers like DC61-01702A for precise compatibility. Tools required: Torx T20 screwdriver for the retaining clamp, 500-grit sandpaper for cleaning residue.
Access the drum support by removing the back panel (four M8 screws). Note the spider arm configuration: newer models use a three-armed variant, while older units feature two arms. Look for signs of galvanic corrosion at the drum’s weld points – a telltale white powder indicates failure. Replacement requires part DC97-16845A; torque bolts to 12Nm using a calibrated wrench.
Key Sub-Assemblies and Troubleshooting
The inlet valve assembly (part DC97-15018A) sits behind the detergent tray. Test for continuity with a multimeter – resistance should read 500-1500 ohms. Clogged screens cause slow fills; soak in white vinegar for 30 minutes to dissolve mineral buildup. For the drain pump (located at the base), check the impeller for obstructions: a single sock fragment can reduce flow efficiency by 60%.
Examine the motor stator through the rear access panel. Hall sensors should register consistent signals; irregular readings suggest bearing wear. Replace bearings in pairs – radial play beyond 0.3mm will cause drum wobble. Use DC66-00495A for the bearing kit, applying SKF LGHB2 grease during reassembly. Always note wire harness connections before disassembly; a colored schematic sticker is often present on the inner side panel.
Critical Elements in Automated Laundry Appliance Blueprints
Begin diagnostics by locating the rotating drum assembly–the central cylindrical housing where fabrics circulate during cycles. Reference schematics typically display this component with detailed subassemblies: the inner perforated basket, outer tub, and balancing rings. Verify torque specifications for mounting bolts (usually 25-30 Nm) before disassembly, as overtightening risks thread striping on the stainless steel frame.
The motor stator and rotor connect directly to the drum via a belt or direct-drive coupler. Identify the wiring harness connections–color-coded wires (red: 220V input, blue: neutral, yellow: ground) terminate at the control board. Check for continuity between motor windings and the printed circuit board (PCB) using a multimeter; resistance should read 5-15 ohms for functional coils. Notch-type connectors often corrode; clean with isopropyl alcohol if oxidized.
| Component | Typical Voltage | Diagnostic Range |
|---|---|---|
| Thermal fuse | 220-240V AC | Infinite resistance if blown |
| Pressure switch | 12V DC trigger | Closed at 0-7 psi |
| Solenoid valve | 220V AC | 150-250 ohms |
Inspect the suspension mechanism composed of shock absorbers and springs. Blueprints highlight these as paired vertical struts with rubber mounts–ensure compression distances match specifications (e.g., 30mm stroke for 8kg capacity models). Worn bushings exhibit uneven wear patterns; replace if outer diameter exceeds 2mm variance. Lubricate pivot points with silicone grease only–petroleum-based compounds degrade rubber seals.
The heating element (resistance coil) operates at 1800W for standard cycles. Remove the rear access panel to expose the stainless steel sheath; test for 20-30 ohms resistance between terminals. Corrosion near the thermostat mount indicates moisture ingress–apply dielectric silicone to seal connections. Note tamper-evident seals on newer assemblies; void warranty if broken during inspection.
Dissemble the detergent dispenser tray by pressing release tabs on the underside–blueprints detail the three-compartment design: pre-wash, main wash, and fabric softener. Check for clogs in the siphon tubes; descaling monthly prevents calcium buildup. The water inlet valve connects via quick-release fittings (1/4″ tubing diameter); confirm 30-50 psi flow rate through each port during water intake cycles.
Examine the door lock assembly for the microswitch and electromagnetic latch. Voltage applied to the solenoid (24V DC) should produce an audible *click*–absence indicates a faulty relay on the mainboard. Replace the entire unit if cracks appear on the polypropylene frame; do not attempt adhesive repairs. The interlock prevents spin cycles when engaged–test by simulating door closure with a paperclip to bypass safety protocols temporarily.
Trace the drain pump circuit starting from the outlet hose clamp (3/4″ diameter) to the impeller housing. Schematics include exploded views of the impeller, volute, and magnetic rotor–inspect for foreign objects obstructing rotation. Pump resistance should measure 150-250 ohms; higher readings suggest failed windings. The noise filter capacitor (rated 2.2-4.7μF) often fails–listen for a 10kHz whine during drain cycles as an early warning sign.
Refer to exploded-view documents for torque values and adhesive types used in reassembly. High-stress components (bearings, seals) require Loctite 243 for metallic threads and RTV silicone for gaskets. Cross-reference part numbers with the service manual’s compatibility matrix–interchangeable parts vary by serial number prefixes (e.g., “WF” vs. “WW” models). Store removed fasteners in labeled containers to avoid mismatches during reinstallation.
How to Locate and Replace the Door Latch Mechanism in Your Appliance
Disconnect power and turn off the water supply before starting. Remove the top panel by unscrewing the two rear screws–slide the panel backward about an inch to lift it free. Locate the door latch assembly near the top front edge, secured by a single screw; use a ¼-inch socket wrench or screwdriver for removal. Disconnect the wiring harness by pressing the release tab while gently pulling the connector apart–avoid yanking wires to prevent damage.
- Check the replacement part number against the old latch–verify compatibility using the model tag inside the door frame.
- Test the new latch’s solenoid by manually pressing the lock tab: it should click and hold firmly, then release smoothly.
- Reattach the wiring harness by aligning the tabs before firm insertion–confirm a secure connection to avoid error codes during operation.
- Position the new latch, ensuring the alignment tab fits into the housing slot to prevent misinstallation.
Reassemble the top panel by sliding it forward into the front slots, then secure it with the two screws. Run a diagnostic cycle (hold Temp and Soil Level buttons for 3 seconds) to confirm proper function–listen for a distinct click when the door locks and unlocks. If the display shows an error, recheck wiring connections, latch alignment, and ensure the door closes fully; misaligned doors cause lock failures and incomplete wash cycles.
How to Disassemble Your Appliance’s Inner Framework
Unplug the machine before starting. Remove the top panel by unscrewing the two rear bolts–use a 10mm socket. Slide the panel backward by 2 inches, then lift it off. Set it aside on a stable surface to avoid damaging control wires.
Locate the counterweight at the rear of the tub. It’s a heavy concrete block secured with four bolts (size 13mm). Support its weight with one hand while removing the bolts; lower it gently to prevent cracking the base or straining the suspension rods.
Detach the door boot seal by peeling back the retaining clamp–use needle-nose pliers to release the spring tension. Fold the seal inward to expose the drum’s front edge. Disconnect the door lock assembly by removing the single Phillips screw holding it in place.
Tilt the appliance backward 30 degrees to access the bottom shock absorbers. Pinch the retaining clips at each end to release them from the tub and base frame. If the clips are corroded, apply penetrating oil 10 minutes prior to removal.
Support the tub with a sturdy brace or helper. Remove the suspension springs by hooking them off the tub’s top brackets–use gloves to avoid sharp edges. Lower the tub slowly to avoid snapping the remaining support rods or damaging the outer enclosure.
Inspect the drum’s rear bearing and spider assembly by shining a flashlight through the aperture. If play exceeds 3mm or grinding noises persist, replace the bearing seal unit–it’s press-fit, requiring a 60mm bearing puller and torque wrench set to 120 Nm for reinstallation.
