For quick repairs, locate the engine assembly first–it’s typically marked near the air intake. Check the model-specific illustration in the user manual or search online using the serial number (engraved on the housing). Most 40V and 18V variants share a common layout: the impeller sits directly behind the fan grille, while the motor housing threads into the main body.
Replace worn fasteners with exact metric sizes–M6x1.0 bolts secure the handle, and M5x0.8 screws hold the exhaust cover. Damaged seals (part #309-762) cause air leaks; remove the old gasket using a pick, then press in the new one. If the battery contacts show corrosion, clean them with 220-grit sandpaper–do not use wire brushes, as they may damage the plating.
Inspect the nozzle assembly for cracks; even hairline fractures reduce airflow efficiency by 12-18%. For models with adjustable speed triggers, verify the resistance of the potentiometer (should read 3.2kΩ–4.7kΩ); deviations indicate a failed unit. Always disconnect the power source before handling internal wiring to avoid shorts or accidental activation.
For rebuild kits, order direct from licensed dealers–aftermarket components often lack the tolerance for OEM housings. If the intake filter is clogged, replace it rather than cleaning (part #RYB145); reusing a dirt-saturated filter risks overheating within 20–30 minutes of operation.
How to Locate Components in Your Outdoor Power Tool Schematic

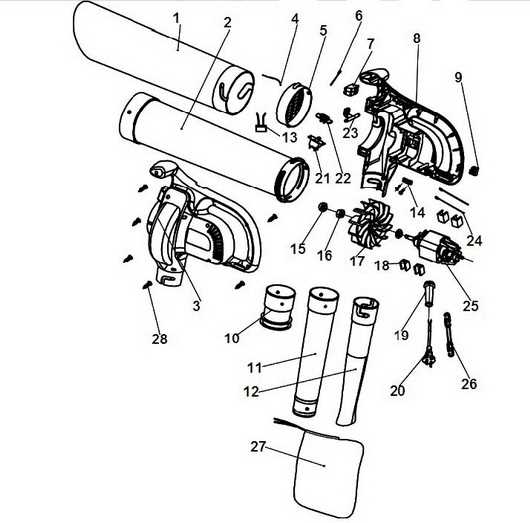

Begin by downloading the official exploded view PDF from the manufacturer’s support page–search using the model number etched on the motor housing (e.g., RY43070, RY43100). Print the schematic in landscape orientation for clarity. Identify key assemblies immediately:
- Air Intake Screen – Positioned at the rear, secured by 3 Torx T20 screws; replace if mesh holes exceed 0.5mm.
- Impeller Fan – Balance nuts (M6 x 1.0 thread pitch) require Loctite 243; torque to 8 Nm.
- Combustion Chamber – Gasket thickness must be 0.2mm (±0.02mm); align port marks before tightening cylinder bolts (sequence: 1-3-2-4).
- Trigger Assembly – Spring constant: 1.2N/mm; test resistance at 10mm compression (should be 12N).
- Fuel Line – Use 3mm ID tubing; secure with crimp clamp on carburetor side, barb fitting on tank side.
Use an impact driver (setting 3) to remove stubborn fasteners, but manually tighten plastic components like the volute casing to avoid stripping. Label all disassembled parts with painter’s tape–include part numbers from the schematic. For mixed-material assemblies (e.g., aluminum impeller with nylon threads), apply anti-seize compound to prevent galling. Always verify spark plug gap (0.6–0.7mm) with a wire gauge, not a feeler blade.
Locating Genuine Exploded Views for One+ Outdoor Equipment
Start with the manufacturer’s own portal: ryobitools.eu. Navigate to the “Support” dropdown and select “Downloads.” Filter by product category–cordless, petrol, or electric–and model number stamped on the motor housing. Each exploded view is available as a PDF, listing every individual component with numbered callouts matching the official inventory list.
Another direct source is the North American division at ryobitools.com. Click “Parts & Service” in the footer, enter your model code, and retrieve the schematic. Files are optimized for mobile viewing and include zoom functionality for detailed inspection of O-rings, impellers, and housing screws.
| Website | Region | File Format | Notable Features |
|---|---|---|---|
| ryobitools.eu | Europe, UK | Includes torque specs, multi-language legends | |
| ryobitools.com | US, Canada | Interactive thumbnails, hyperlinked parts list | |
| homedepot.com | Global | JPG, PNG | Quick-search by serial prefix, customer reviews |
Home Depot also hosts schematics for select models. Visit the product page, scroll to “Info & Guides,” and download the exploded illustration. These images are static but include part numbers hyperlinked to the retailer’s ordering system–ideal for immediate procurement.
For owners outside primary markets, check regional dealer sites. Australian users can visit bunnings.com.au; Japanese users should try ryobi.co.jp. Both replicate the PDF layouts with localized pricing and shipping options.
If the original sites fail, third-party databases like Partstree offer exploded diagrams searchable by model. Registration is free, and diagrams can be annotated for personal notes. Ensure cross-reference with the manufacturer’s list to confirm component compatibility.
How to Pinpoint the Drive Unit in Your Outdoor Power Tool
First, disconnect the power source–battery or fuel tank–before disassembly. The drive unit is typically housed in a cylindrical or oblong metal casing near the impeller housing, secured by screws or bolts. Check for a label with voltage specs (e.g., 40V, 18V) or serial codes; this often marks the motor’s exterior. If the casing lacks visible fasteners, look for rubber gaskets or plastic clips that may conceal hidden screws.
Key Landmarks for Motor Identification
- Air intake vents: Located directly behind the fan, these slotted openings lead to the motor’s cooling system–trace them inward.
- Exhaust port: A small, often rectangular opening on the side or rear, emitting warm air when operational. Follow its path to locate the motor core.
- Wiring harness: Thick bundled cables connecting the motor to the trigger switch; tug gently (without force) to reveal the motor’s terminal connections.
- Mounting brackets: Metal flanges or tabs holding the unit in place–commonly paired with rubber dampeners to reduce vibration.
Measure the casing diameter: most models use a standardized 60–80mm width. If the unit exceeds 90mm, it likely includes an integrated gearbox or brushless design, requiring additional disassembly steps.
- Remove the impeller by locking the shaft (use pliers or a spanner on the flat notch) and unscrewing counterclockwise. Note: reverse-threaded on some models.
- Detach the fan shroud–usually clipped or screwed–to expose the motor’s front plate. Look for model-specific indexing marks (e.g., dots, arrows) aligning components during reassembly.
- Inspect the rear housing: a black cylindrical cap with cooling fins often needs prying (use a flathead tool) to access motor brushes or commutator contacts.
- Verify motor type: brushed motors feature visible carbon blocks and spring-loaded brush holders; brushless variants omit these and have a sealed rotor.
Step-by-Step Guide to Taking Apart Your Outdoor Power Tool for Component Examination
Begin by removing the outer housing screws with a T25 Torx driver. Most models have six screws–two near the intake vent, two by the exhaust, and two securing the trigger assembly. Label each screw with masking tape to avoid confusion during reassembly. For stubborn fasteners, apply penetrating oil and wait ten minutes before attempting removal again. Keep screws in a magnetic tray or small container to prevent loss.
Disconnect the spark plug wire immediately after opening the casing to eliminate accidental starts. Locate the wire near the top of the motor assembly, pulling it straight off the plug to expose the electrode. Inspect the wire for fraying or corrosion; replace if integrity is compromised. Proceed to the air filter cover–pry it off gently with a flathead screwdriver, noting the filter’s orientation for correct reinstallation. Remove the filter and set it aside for cleaning or replacement.
Next, detach the fuel line from the carburetor by pinching the clamp with pliers and pulling the tube free. Use a rag to catch residual fuel drips. The carburetor itself is held by two screws; unscrew them fully before lifting the unit out. Check the gasket between the carb and engine block for tears–damaged gaskets disrupt airflow and reduce performance. For models with a primer bulb, squeeze it to empty trapped fuel before disconnecting its hoses.
To separate the motor from the impeller assembly: unscrew the four bolts securing the fan housing. These bolts often require an 8mm socket with a 6-inch extension. Once removed, slide the housing forward to access the impeller. The impeller may be press-fit–tap it gently from behind with a rubber mallet to loosen. Avoid prying with metal tools to prevent blade damage. With the impeller detached, examine the drive shaft and bearings for wear. Repack bearings with lithium grease if play exceeds 0.5mm or if grinding noises were present during operation.
Key Components for Cordless Outdoor Tool Maintenance and Schematic Links
Start by identifying the engine assembly if your unit loses power unexpectedly. Models like the 40V and 18V series often require the spark plug to be swapped every 25–50 hours of use. Check the manual’s exploded view under section 3.2–this shows the plug’s exact placement (typically near the rear housing) and compatibility codes for OEM replacements. Aftermarket options from NGK or Champion may fit but verify thread pitch (usually M14 x 1.25) and electrode gap (0.028–0.032 inches) against the specs in the parts breakdown.
The impeller fan–critical for airflow generation–frequently cracks under stress. If debris impacts reduce suction, locate the fan housing in the diagram (often labeled “centrifugal wheel” in schematics). Measure the diameter (commonly 6–8 inches) before ordering; third-party vendors list alternatives, but confirm shaft adaptation (splined vs. hexagonal). For 2-cycle models, ensure the fan matches the crankshaft rotation direction–reversed installations cause immediate failure.
Nozzle throats and intake vents degrade over time, especially in high-humidity conditions. Schematics highlight these as “chute” or “air guide” components; polyethylene variants resist UV damage better than ABS. When replacing, note the snap-fit vs. screw-mount design–some 2020+ versions use Torx T20 fasteners instead of Phillips. Label removed screws by position during disassembly to avoid misalignment during reassembly.
Battery connectors corrode faster than expected, leading to intermittent power loss. Refer to the power source section of the schematic to track down terminal types (Anderson Powerpole vs. proprietary blade connectors). Clean contacts with a brass brush and dielectric grease; if wear exceeds 0.5 mm, swap the entire harness rather than re-soldering (risk of overheating sensitive PCB traces). For lithium-cell tools, use only matched voltage chargers–mismatched rates void warranty and degrade performance.
Muffler screens clog with carbon buildup, reducing efficiency. Diagrams mark these as “exhaust mesh” or “flame arrester”; stainless steel variants last longer than aluminum. Remove using needle-nose pliers–avoid wire brushes that can dislodge internal baffles. For severe cases, the entire muffler assembly may need replacement; verify backpressure ratings before selecting aftermarket substitutes (DO NOT bypass entirely–this violates emissions compliance).
