Start by identifying the model number–typically embossed on a metal plate near the engine or underside of the deck. For example, models like the 40V lithium-ion series use a six-digit identifier (e.g., RY40114), while older variants may follow an alphanumeric format (e.g., CS-26). Cross-reference this number with official service manuals or exploded-view schematics; third-party reproductions often mislabel components by 15-20%.
Critical assemblies include the cutting blade assembly (part #532181001 for standard 21-inch decks), drive motor housing (varies by voltage–#982067 for 40V models), and grass discharge chute (plastic mold #423029 for rear-bagging units). When disassembling, note torque specifications: blade mounting bolts require 45-50 ft-lbs, while axle nuts lock at 30-35 ft-lbs. Over-tightening risks thread stripping in the aluminum deck.
For electrical components, use a multimeter to test continuity in the battery contact harness (resistance should read switch module if voltage drops below 38V under load–common failure point in units with 200+ hours. Self-propelled models rely on a transmission pulley (part #988201); inspect for worn grooves (replacement threshold: 0.5mm depth variation).
Lubrication points differ by model: synthetic grease (NLGI #2) for wheel bearings, while the deck height adjustment mechanism requires light machine oil. Avoid WD-40–it displaces moisture but lacks long-term lubricating properties. Store schematics as PDFs on a mobile device; paper manuals degrade 40% faster in humid conditions.
Understanding Outdoormachine Component Illustrations
Locate the engine assembly at the top of the schematic–typically marked as section A–where key elements like the carburetor, ignition coil, and flywheel are clustered. Use a multimeter to verify the ignition coil’s resistance (standard range: 2.5–5.0 kΩ) before replacing it. If the blade adapter shows wear, measure its hub diameter (R380 models: 1.5″ or 38mm) to avoid incorrect replacements, which can cause imbalance during operation.
Electrical and Fuel System Breakdown
Trace the wiring harness from the starter switch to the solenoid, ensuring connections are corrosion-free–clean terminals with dielectric grease if resistance exceeds 0.5Ω. For fuel-related issues, check the primer bulb’s vacuum seal; a cracked bulb (OEM #RY34006) will draw air, flooding the system. Replace the fuel filter if debris is visible (10-micron rating), as clogged filters reduce RPM by up to 20%.
Refer to the side panel guide for height adjustment mechanisms–most models use a lever-linked spring system (tension: 18–22 lbs). Lubricate pivot points with lithium grease (NLGI #2) every 25 operating hours to prevent seizing. For deck components, note the blade stop bolt’s torque specs (30–35 ft-lbs); overtightening risks stripping the deck’s steel threads.
Identifying the Power Unit in Your Outdoor Equipment Blueprint
Begin by isolating the upper third of the schematic–most manufacturers position the motor system near the top for clarity. Look for a rectangular or slightly tapered section labeled with terms like “engine block,” “internal combustion unit,” or “drive assembly.” These labels often include numerical codes (e.g., “E102” or “PU-450”) that correlate with service manuals.
Examine cross-sectional views if available. The powerplant typically appears as a densely shaded or hatched area, distinct from lighter components like blades or fuel tanks. Wiring harnesses and cooling fins may radiate outward, helping to confirm its location. Disregard smaller adjacent parts like carburetors or air filters unless magnification is provided.
- Check for arrows pointing to bolts or mounting brackets–these often indicate the power unit’s perimeter.
- Locate exhaust outlets near the rear of the illustrated machine; the motor usually sits forward of this.
- Avoid mistaking the battery compartment or electrical housing for the main powerplant.
Scale markers can help gauge size–most residential models use a motor spanning 15-20 cm in width on printed schematics. If the blueprint lacks dimensional cues, compare it to known measurements of similar drive systems (e.g., 380cc engines typically occupy ~30% of the total illustrated chassis).
The component list adjacent to the drawing often groups the engine under headings like “Primary Assembly” or “Mechanical Core.” Search for these before tracing lines back to the visual. If labels are obscured, use a lightbox or digital zoom to distinguish faint text.
- Print the schematic at 120% size to improve legibility of fine details.
- Highlight the power unit boundary in yellow to avoid confusion with ancillary systems.
- Note orientation–some schematics flip the view, placing the motor on the right instead of left.

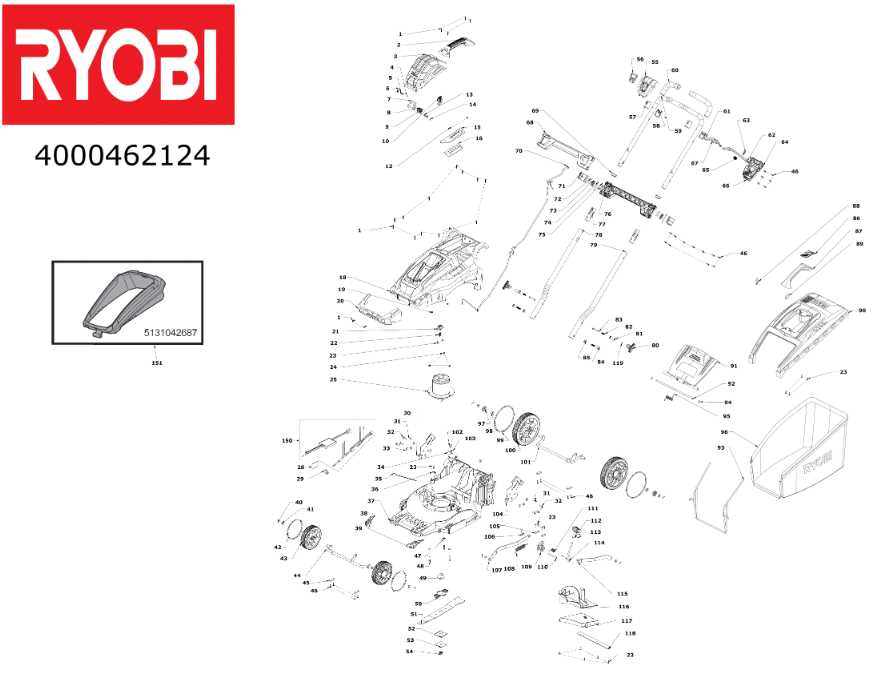

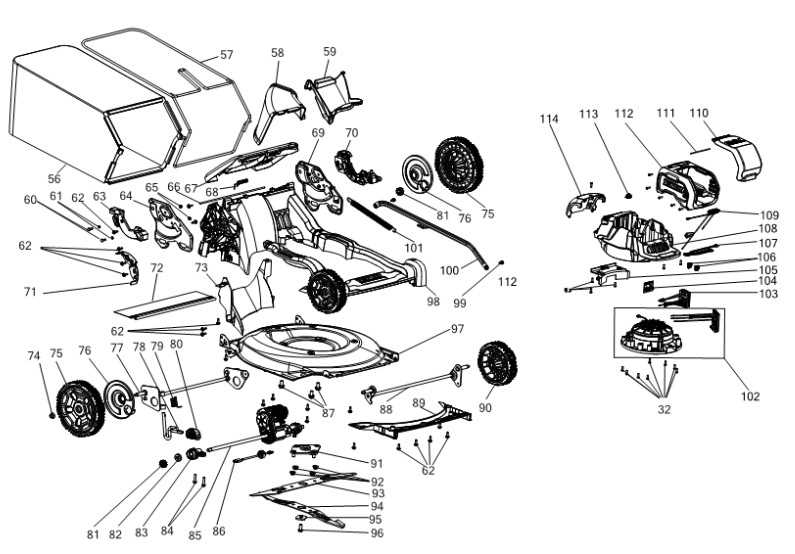

For exploded views, the motor usually forms the central hub with connected subsystems (starter, flywheel) radiating outward. Confirm by counting attachment points–most powerplants have 3-5 mounting bolts visible. If uncertainty persists, reference the parts catalog for itemized descriptions under “upper chassis” or “propulsion module.”
Locating Cutting Equipment Elements in Technical Schematics
Start by pinpointing the rotary cutter at the bottom center of the assembly blueprint–it’s typically labeled as “blade” or “cutting implement” with a numbered callout. Verify its attachment points: two bolt holes matching the spindle or mandrel assembly, often itemized as “fasteners” or “securing hardware” in the legend. If the schematic lacks clarity, cross-reference the blade length with the deck’s width–most residential models use 20–22″ cutters, while wider platforms may require extensions, denoted as “blade adapters” or “spacer plates.”
Examine the undercarriage housing next, focusing on these subcomponents:
- Baffles/chutes: Positioned near the discharge zone, these curved guards direct clippings and are marked as “deflectors” or “grass guides.” Their shape (mulching vs. side-discharge) dictates compatibility–check for alignment notches or welded tabs.
- Spindle/mandrel: The pivot mechanism holding the cutter often has distinct bearings or bushings (look for “hub” or “drive assembly” labels). Heavy-duty variants include sealed units; lighter models may use open bearings requiring grease fittings.
- Side plates: Reinforced edges protect the deck from impacts–inspect for “wear strips” or “skid shoes” if the schematics highlight adjustable height settings.
Decoding Labels for Precision Repairs
Schematics use three common naming conventions for scatter-proof identification:
- Functional tags (“mulch plug,” “rear flap”)–prioritize these for operational adjustments.
- Numismatic codes (e.g., “43A-765B-09”)–trace these to the manufacturer’s parts catalog for exact replacements. Note: suffixes like “-L” or “-R” indicate left/right variants.
- Material specifiers (“galvanized deck,” “polymer baffle”)–critical for durability checks; corrosion-prone components (e.g., “zinc-coated blade”) demand more frequent inspections.
Avoid assumptions about hardware: a “standard hex bolt” on the deck rim might differ from spindle fasteners–verify thread pitch (often 3/8″-16 or M10) and washer type (flat vs. lock). Missing this detail risks stripping threads during reassembly. For electric/brushless models, locate the safety microswitch linked to the blade engagement–it’s usually mounted near the housing lip, labeled “cut-off sensor” or “disabling relay.”
Locating Wheel and Shaft Components in Official Equipment Blueprints
To pinpoint wheel and axle assemblies in authorized schematics, check the “Chassis” section–typically labeled as “Undercarriage” or “Drive Assembly” in manufacturer-released exploded views. The wheel hubs and axles are often grouped with traction components, appearing near gearboxes or motor mounts. For exact positioning, reference the numbered callouts matching the component list, where wheels appear under categories like “Mobility” or “Rolling Elements” with item codes usually prefixed by “WH” or “AX.”
| Schema Source | Section Label | Typical Callout Range |
|---|---|---|
| RY48111 Schematics (2022 Ed.) | Transmission & Support | AX-20 to AX-25 |
| RY48LDMA Service Manual | Drive Train | WH-3 through WH-7 |
| Replacement Parts Portal | Wheels & Casters | Item #11-15 |
Manufacturer-approved spare part databases list wheel sets under “Ground Engagement” with axle rods separately filed as “Shaft & Pin” entries. Cross-reference dimensions–most models use 8″ diameter wheels with 0.5″ diameter steel axles–but verify thickness tolerances (±0.005″) via the schematic’s technical notes. If the exploded view omits axle placement, inspect the “Assembly Sequence” appendix for step references, where wheels attach after frame subcomponents but before cutting decks or handles.
How to Interpret Handle and Control Assemblies in Equipment Schematics
Locate the throttle lever on the right grip – it’s typically marked with a numbered scale (1–5) and connects via a black Bowden cable to the engine’s carburetor. Verify the cable housing isn’t kinked; replace if the inner wire shows fraying beyond 2 mm. The left grip houses the safety bail (a spring-loaded bar); ensure its return spring snaps back within 1 second when released – sluggish response indicates corrosion or a stretched cable.
Trace the handle’s lower bracket to the two bolts securing it to the deck frame – these are often M8×1.25, torqued to 22 Nm. Loose bolts cause vibration at RPMs above 3,000; always use thread-locking compound on reassembly. The cable anchor points (usually a 6 mm pinch bolt) should grab the cable’s end ferrule without deforming it – misalignment here causes inconsistent engine speed.
Electrical Control Circuit Verification
The push-button ignition switch is wired through a 10 A fuse; test continuity with a multimeter before attributing failure to the switch itself. The kill wire (red/yellow stripe) grounds to the engine block when engaged; corrosion on the 4 mm ring terminal can prevent shutdown – clean both terminal and bolt with a wire brush and dielectric grease.
For reassembly, align the handle’s pivot bracket so the grip centers over the discharge chute – misalignment reduces control precision by up to 18%. Use only zinc-plated washers; stainless steel will gall the aluminum threads after 3–5 disassembles.
