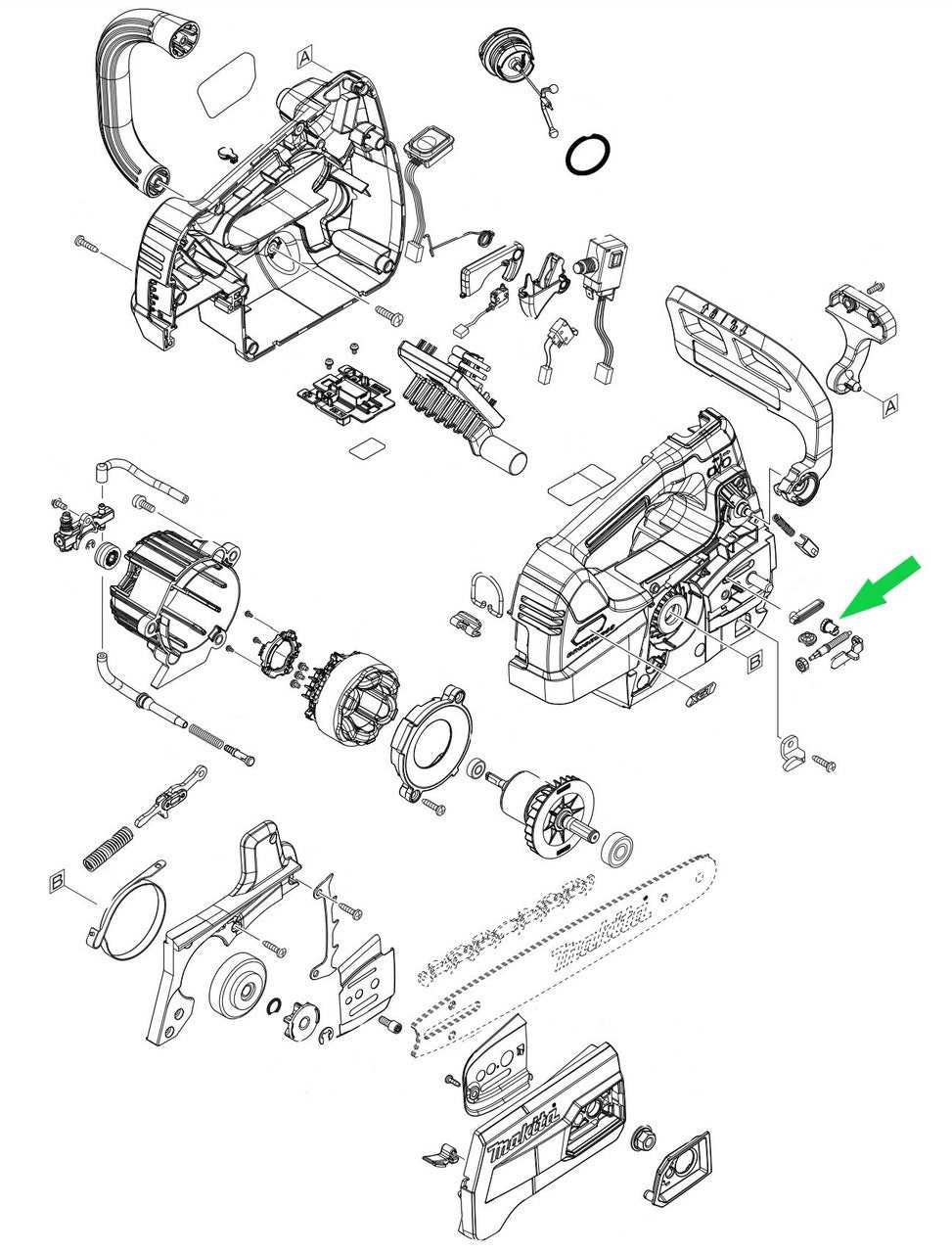

Identify the core assembly components by referencing the exploded view illustration provided in the manufacturer’s service manual. For models produced after 2018, focus on the air filtration unit, ignition coil, and bar mounting points–these are typically labeled with numerical callouts that correspond to replacement kits. Early versions may include a differently positioned oil pump, so verify compatibility before ordering spares.
The most common wear areas include the drive sprocket, guide bar grooves, and chain tensioning mechanism. Check the sprocket teeth for uneven wear; if grooves exceed 1.5mm depth, replace the part to prevent chain slippage. Bar rails should maintain a consistent thickness–measure at three points along the length with calipers. Rails thinner than 0.5mm require immediate replacement to avoid bar breakage during operation.
For precise disassembly, use the torque specifications outlined in the technical documentation: bar nuts (12-15 Nm), spark plug (20-25 Nm), and clutch cover bolts (8-10 Nm). Loose fasteners cause misalignment, leading to excessive vibration or component failure. Keep an organized workspace by placing removed screws in labeled containers–common issues arise from incorrect reassembly rather than faulty components.
Critical safety components include the chain brake and throttle trigger return spring. Test the chain brake by engaging it with moderate force; failure to stop rotation within 0.1 seconds indicates worn brake pads or a misaligned lever. Lubricate the spring with synthetic grease every 50 operating hours to maintain smooth throttle response.
Electrical faults often trace to the ignition module or stop switch. Use a multimeter to test resistance across the switch terminals (expected range: 0-2 ohms). If readings exceed this, inspect wire connections for corrosion–clean contacts with dielectric grease. For ignition modules, ensure the flywheel magnet aligns with the coil gap (0.2-0.4mm); misalignment reduces spark intensity.
Bar oil delivery systems demand regular inspection. Check the oil port for debris and ensure the pump discharge rate meets 4-6 ml per minute at full throttle. Clogged ports are a primary cause of overheating; flush with mineral spirits if blockage occurs. Replace the oil line if internal diameter narrows by more than 10%–reduced flow accelerates wear on cutting surfaces.
Visual Guide to Your Power Tool Components
Locate the exploded view schematic for your cutting equipment by entering the model number–usually stamped on the motor housing near the rear handle–in the manufacturer’s official repair portal. Key assemblies to identify include the clutch drum (position 12 on most schematics), sprocket nose (item 5), and the spring-loaded chain tensioner (item 8). If the guide lists “drive link count” as 62DL, ensure replacement cutting teeth match this specification within ±2 links to prevent derailment or excessive bar wear.
For models produced after 2020, check for a revised air filtration system: the dual-layer foam element (PN 984031) replaces earlier single-layer paper filters. Cross-reference the bar length with the user manual–16″ bars require a chain pitch of 3/8″, while 18″ or longer mandate .404″ pitch. Lubrication ports differ: older units have a single filler cap at the base; newer variants feature a secondary nipple beneath the oil tank for pressure-fed systems.
Locating Manufacturer-Authorized Schematics for Power Cutting Tools
Begin your search directly on the brand’s primary support portal at ryobitools.com/support. The site maintains an organized repository of exploded views for every model produced since 2015. Filter by tool category–select “outdoor equipment”–then enter your unit’s exact model number stamped on the housing near the fuel cap.
The brand’s European and Australian divisions host mirrors of these schematics on regional domains. For EU customers, visit ryobitools.eu, while Pacific users should bookmark ryobitools.com.au. Both sites replicate the U.S. database but often update diagrams sooner–particularly for metric fasteners–than the main North American server.
Accessing older schematics requires two steps: first, download the latest firmware for the Parts Lookup Tool software from the support page. Install the application, then enter the serial number found on the side plate beneath the engine. The program pulls archived blueprints going back to 2008, including discontinued lines like the CS-26 and CS-30.
| Model Prefix | Diagram Source | Last Update |
|---|---|---|
| CS-26, CS-28 | Parts Lookup Tool | March 2023 |
| RBC30, RBC40 | North America portal | July 2024 |
| RY37, RY40 | EU mirror | June 2024 |
Forums dedicated to outdoor power equipment frequently archive PDFs that the official site removes. The ArboristSite table hosts a sticky thread titled “One+PDF Library” with over 400 manuals, including rare 1998–2014 schematics. Registration is mandatory but free.
Authorized dealers receive physical service manuals that contain high-resolution schematics not published online. Locate a nearby service center using the Dealer Locator widget on the brand’s homepage–filter for “Repair Capable” shops. Most will email diagrams immediately upon request; some charge a $15–$25 fee for print copies sent via postal mail.
eBay sellers specializing in discontinued hardware often bundle original anatomy sheets with larger components. Search listings tagged “service manual” or “exploded view,” then message the seller to confirm the diagram matches your exact model before purchasing. Typical prices range from $8 for digital scans to $50 for vintage printed booklets.
Technical schools and vocational programs maintain private collections of mechanical guides. Contact the agriculture or small-engine department at local community colleges; many instructors provide diagrams for free if you explain the project purpose. Bring the unit’s model number–some schools restrict access to students only.
How to Locate Key Components on Your Power Cutting Tool
Begin with the guide bar–the elongated metal plate where the cutting teeth glide. Check for the model number etched near the mounting holes; this often matches the engine housing. If the rail shows uneven wear, measure its length–most residential models use 14″ to 18″ bars, while professional units may extend to 20″.
Examine the drive sprocket at the bar’s base. Two types exist: rim sprockets (replaceable without disassembling the clutch) and spur sprockets (integrated into the clutch drum). Rim variants have a distinct circular groove; count the teeth to order replacements. A worn sprocket will have asymmetrical tooth profiles or missing segments.
Clutch and Engine Assembly
Locate the clutch cover–it’s the plastic or metal casing enclosing the centrifugal clutch. Remove it by unscrewing the two or three bolts; store them in a magnetic tray. Inside, the clutch should have three weighted shoes. If grooves appear deeper than 0.5mm, or if springs feel loose, replace the entire assembly to prevent kickback.
The air filter sits under the pull-start housing. Release the latch or unscrew the cover to access it. Foam filters require cleaning with soapy water; paper filters should be tapped gently against a hard surface to remove debris. Replace if fibers appear frayed or clogging persists after two cleanings. A dirty filter reduces RPM by up to 30%.
Fuel and Ignition Systems
- Trace the fuel line from the tank to the carburetor–it’s a translucent hose approximately 2mm in diameter. Pinch the line while holding a container under the tank outlet; fuel should flow freely. If it dribbles, check for cracks or brittle sections. Replace with 4mm ID hose if originals degrade.
- Find the spark plug near the cylinder head–it’s covered by a rubber or metal boot. Use a 13/16″ socket to remove it. Measure the electrode gap: 0.5mm–0.6mm is standard. Black, oily deposits indicate rich fuel mix; white residue suggests lean conditions. Adjust the carburetor needle valves accordingly.
- Inspect the muffler–a finned aluminum component attached to the exhaust port. Remove the two screws holding it in place. Carbon build-up inside should not exceed 1mm thickness. Scrape excess with a brass brush; never use steel wool–it damages the ports.
Reassemble in reverse order, ensuring the bar’s oil port aligns with the automatic oiler outlet. Tighten the bar bolts to 15–18 Nm torque. Test by running the unit at half throttle for 30 seconds; bar oil should create a light mist near the sprocket nose. If it doesn’t, flush the oiler passages with kerosene using a needle-tipped oil can.
Step-by-Step Guide to Swapping the Cutting Link, Guide Rail, and Drive Gear
Always disconnect the spark plug before starting to prevent accidental ignition. Lay the tool on a clean, flat surface and locate the clutch cover–typically secured by two nuts or bolts. Use a 10mm or 12mm wrench to remove them, then carefully lift the cover away to expose the sprocket and bar mounting studs. If the clutch shows visible wear–grooves deeper than 0.5mm–replace it simultaneously to avoid premature failure of the new chain.
Removing the old components: Slide the guide rail off the mounting studs, noting its orientation for reinstallation. The drive gear (sprocket) may be pressed onto the crankshaft or attached with a snap ring–check your schematic for specifics. If it’s pressed on, use a puller tool designed for small-engine gears; if retained by a snap ring, pry it off with snap-ring pliers, taking care not to damage the crankshaft threads. Clean the mounting area with a wire brush to remove debris and old lubricant.
Installing the new assembly
Align the replacement guide rail with the oil holes matching the tool’s lubrication ports. Secure it with the mounting nuts, tightening in a cross pattern to 15-20 Nm. Fit the new cutting link onto the rail, ensuring the drive links mesh properly with the sprocket teeth–misalignment will cause uneven wear. If the sprocket was replaced, confirm its seating depth by spinning it by hand; resistance should be minimal and consistent. Reattach the clutch cover, torqueing the nuts to the same specification. Reconnect the spark plug, then test-run the tool at half throttle for 30 seconds to verify smooth operation before full use.
