Start by locating the serial number plate on the engine housing–this is critical for identifying exact replacement components. Most models manufactured after 2018 will have a digitally serialized layout with a 12-character code, while earlier versions use an 8-digit alphanumeric system. Cross-reference this code with the official service manual to avoid mismatched parts.
For the airflow assembly, examine the impeller and volute casing first. Cracks or warping near the intake vents indicate fatigue, often caused by debris blockages. Use a 0.3mm feeler gauge to check blade clearance–any gap exceeding 1.5mm requires immediate adjustment or replacement of the fan wheel. The impeller’s retaining nut torques to 18-22 Nm; over-tightening risks shearing the shaft.
The fuel system demands precision. The carburetor’s needle valve seats should be inspected for pitting–corrosion here disrupts fuel-air ratios, leading to hard starts. Replace the diaphragm if it feels stiff or shows visible swelling. For models with a primer bulb, ensure the one-way valve isn’t clogged; a blocked valve prevents proper fuel draw and necessitates replacement of the entire bulb assembly.
Disassembling the exhaust muffler reveals carbon buildup, especially in units with over 150 hours of runtime. Scrape deposits using a brass brush–never steel wool–to prevent damaging the spark arrestor screen. If the screen’s mesh integrity is compromised, replace it; a faulty screen heightens fire risks during operation.
Refer to the exploded-view schematics for exact part placement. Most OEM diagrams label components with three-tiered codes: e.g., 45-1234-01-A, where “45” denotes the engine group, “1234” the specific part, and “01-A” the revision. Mismatched revisions often lead to fitment issues, so verify compatibility before ordering.
Identifying Key Components of Your Outdoor Power Unit
Locate the manufacturer’s decal on the lower rear housing–it lists the model number critical for sourcing replacements. Replace worn ignition coils by disconnecting the spark plug wire, removing the two screws securing the coil cover, and lifting the assembly straight out. Avoid forcing tabs during reassembly: align them precisely with the mounting slots to prevent fuel leaks. Air filters for models BG43000 and BG6100 require different cleaning intervals–BG43000 every 10 hours, BG6100 every 25 hours–due to dust channel variations in their intake manifolds.
Examine the impeller blades under a bright light–cracks wider than 2mm demand immediate replacement. Use a torque wrench set to 12 Nm when reinstalling the flywheel; overtightening distorts the crankshaft taper. The throttle linkage on BG8000 units features an adjustable stop screw hidden beneath a red rubber cap–each quarter-turn increases idle speed by approximately 200 RPM. Fuel lines degrade unevenly: the return line (typically translucent) hardens faster than the supply line (opaque), requiring closer inspection every 30 hours of use.
Silencer gaskets deteriorate from heat cycles–inspect them quarterly by flexing the joint while the unit is cold. Replace if fragments flake off or compression set exceeds 30%. The starter rope pulley on BG43000 models incorporates a one-way bearing that fails silently–test it by rotating the pulley clockwise before each season. Lubricate the carburetor linkages with dry PTFE spray, avoiding WD-40: residue attracts dust, clogging the metering ports within 40 hours.

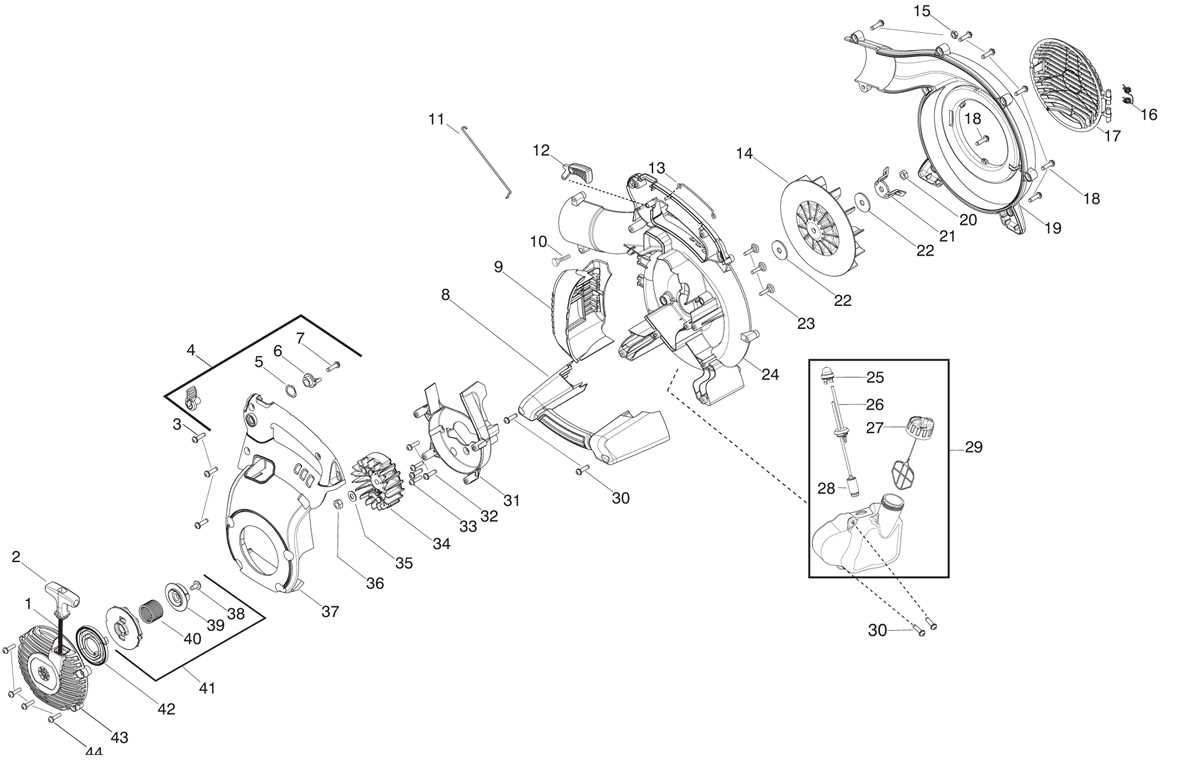

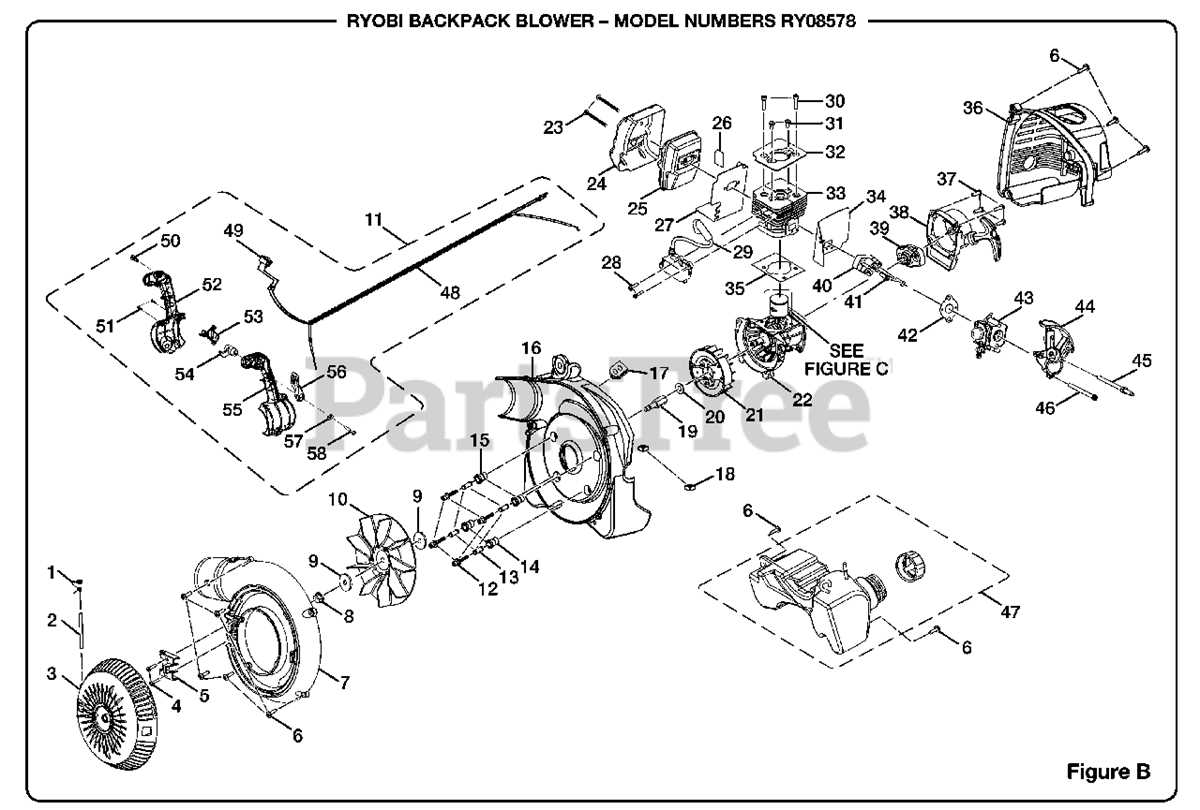

How to Read an Exploded View of Your Outdoor Power Equipment
Locate the fan housing assembly immediately–it’s typically positioned near the front of the schematic, identified by curved vanes encased in a cylindrical shell. This component channels airflow and often houses the impeller, critical for performance metrics. Check for numerical labels adjacent to screws or clips securing it; mismatched fasteners during reassembly will disrupt airflow balance.
Trace the fuel lines from the carburetor to the tank in the exploded view–follow the thin, flexible conduits marked with color-coded stripes or numbered ports. A single kink or incorrect routing can lead to fuel starvation or vapor lock. Note the placement of gaskets between the carb and engine block; they’re frequently overlooked but prevent air leaks that degrade throttle response.
Critical Filters and Seals Worth Double-Checking
Air filter canister appears as a rectangular or oval box near the intake side–verify foam or pleated filter media specs match OEM specifications. A clogged or improperly seated filter reduces efficiency by 15-20%. Inspect the sealing O-ring at the joint; even minor deformation here allows unfiltered debris into the combustion chamber.
Examine the muffler exhaust port in the diagram–look for heat shields or mesh screens denoted by cross-hatched patterns. Missing shields risk melting adjacent plastic components, while damaged screens let carbon buildup escape, reducing backpressure and power output. The exhaust gasket between engine and muffler must align precisely; misalignment causes overheating within 30 minutes of operation.
Fasteners and Small Components That Often Go Missing
Isolate every washer, spring, and clip–even a single 3mm retaining ring can halt startup if misplaced. Springs in the throttle linkage are critical; one weak return spring alters RPM consistency. Catalog screws by thread type (fine vs. coarse) and length; substituting a 10mm bolt for an 8mm one strips threads, requiring costly housing repairs.
Track the spark arrestor screen if present–it’s a small, perforated disk inside the muffler’s outlet. Some models require periodic cleaning to maintain compliance with local fire regulations. Failure to reinstall it can void warranty in wildfire-prone regions.
How to Identify Components for Your Outdoor Power Tool Repair
Locate the product’s model number first–it’s usually stamped on a metal plate near the engine housing or printed on a sticker beneath the fuel tank. Compare this number against the manufacturer’s official schematics, available on their support portal or in the owner’s manual PDF. If the paperwork is missing, search by the full model identifier (e.g., “RY43110” instead of just “43”) to avoid mismatched replacements.
Match labels on the illustration to physical pieces by checking both the name and part number next to each drawing. Focus on connectors, gaskets, and impeller housing if airflow issues exist; these elements degrade faster under debris or vibration. For carburetor or fuel line fixes, isolate the exploded view section showing those assemblies–misalignment here causes starting failures or inconsistent power output.
Purchase only from verified sources listing the exact OEM code; third-party listings often omit filters, seals, or mounting hardware included in factory kits. Keep a digital copy of the schematic open on a tablet during disassembly to cross-reference critical fasteners–losing a single 6mm screw can prevent proper airflow restoration.
Identifying High-Friction Components in Portable Outdoor Power Units
Replace the spark arrestor every 50 operating hours or when carbon buildup restricts airflow by 30%. A clogged arrestor reduces engine efficiency and increases fuel consumption. Locate it via the muffler’s rear housing–refer to section 4B in the exploded-view schematics. Use a wire brush with non-abrasive brass bristles for cleaning, but never force-rotate the mesh; distortion voids manufacturer tolerances.
Inspect impeller vanes for hairline fractures or edge wear at 25-hour intervals. Even minor deformation disrupts air velocity calibration, dropping flow rate by 12-18%. If damage exceeds 2mm depth on any vane, swap the entire rotor assembly–partial repairs cause imbalance. Use a go/no-go gauge to verify vane clearance; reference sub-assembly PL-19 in the technical breakdown for exact specifications.
Air Filter Maintenance Intervals
| Operating Environment | Replacement Frequency | Cleaning Method |
|---|---|---|
| Light dust (grass clippings) | Every 10 hours | Vacuum + gentle tapping |
| Moderate debris (dry leaves) | Every 5 hours | Compressed air (40 PSI max) |
| Heavy particulate (sawdust, soil) | After each use | Disposable–replace outright |
Failure to adhere to these intervals accelerates piston ring wear by 40%. Always install filters with the pleated side facing outward; inverted installation collapses intake channels.
Examine throttle linkages for slop exceeding 0.8mm at pivot points. Lubricate bushings with molybdenum disulfide grease, but never oil–fluid attracts dust, forming a grinding paste. If linkage play persists, replace the cable housing; stretched cables cause inconsistent RPM spikes, damaging reed valves. See section 3D for cable routing paths to avoid kinking during reinstallation.
Check fuel lines for brittleness or seepage at every refueling stop. Ethanol-blend fuels degrade rubber compounds in under 300 hours; crack propagation starts at the crimped connectors. Swap lines if hardness exceeds Shore A 85–test with a durometer. Secure clamps at 5 Nm torque; overtightening shears threads on the carburetor fittings.
Drive Belt Tension Benchmarks
| Belt Type | Proper Deflection (mm) | Adjustment Procedure |
|---|---|---|
| Toothed (8MGT) | 8-10 | Loosen motor mount, shift 3mm |
| V-belt (Class A) | 12-15 | Rotate idler pulley ¼ turn clockwise |
Misadjusted belts shed material onto the flywheel, fouling the ignition coil. Always align pulleys with a straightedge before final tensioning–angular misalignment shreds belts within 15 operational hours.
Inspect exhaust port gaskets for compression leaks. A 1mm gap reduces cylinder pressure by 22%, increasing vibration and piston slap. Replace gaskets if flattened beyond 0.3mm thickness. Apply anti-seize compound to bolt threads, but never to the gasket face–it prevents proper sealing. Torque bolts incrementally in a star pattern: 8 Nm, then 12 Nm, finishing at 15 Nm.
