Check the sealant around movable panels before adjusting hardware–cracks or gaps wider than 2 mm often lead to leaks during heavy rain. Replace worn gaskets immediately; silicone-based options last longer than rubber under constant vibration. Verify hinge alignment with a spirit level; misaligned frames cause binding and premature wear on pivot points.
Secure locking mechanisms need periodic lubrication–use dry graphite spray to avoid attracting dust. Examine sliding tracks every 5,000 miles; debris buildup increases resistance by up to 30%. For awning vent assemblies, apply UV-resistant tape to edges prone to splitting–this extends lifespan by preventing moisture ingress.
Inspect retaining clips annually; corrosion weakens structural integrity. If replacing panes, choose tempered acrylic–it resists impacts 7 times better than standard glass. Label all hardware during disassembly; diagrams rarely match aftermarket kits. Store small components in magnetic trays to prevent loss during on-site repairs.
Test electrical defrosters before cold seasons; faulty wiring creates hotspots that crack surfaces. Replace worn wind deflectors; damaged models reduce fuel efficiency by 5-8% at highway speeds. Clean drain tubes quarterly; clogs cause condensation pooling inside frames. Measure tolerance gaps precisely–over-tightening warps aluminum channels.
For pop-up vents, recalibrate tension springs after every third usage; incorrect settings strain lift mechanisms. Apply anti-seize compound to threaded rods in areas with high humidity. Document torque specifications for critical bolts–manufacturers often omit this data in manuals. Always pre-drill pilot holes when modifying surrounds to prevent cracking.
Understanding Your Mobile Living Space Opening Components
Begin by locating the locking mechanism on the lower frame–most travel trailers use a dual-action latch requiring a quarter-turn to disengage. Inspect the rubber gasket surrounding the glazing; cracks wider than 1mm compromise insulation and necessitate replacement with EPDM strips matching the original 12mm profile.
Examine the weep holes along the bottom track–these must remain unobstructed to prevent moisture buildup inside wall cavities. Use a 3mm drill bit to clear blockages if standing water exceeds 5mm depth after rain exposure. Failure to maintain drainage risks delamination of aluminum frames within 18-24 months.
Sealant and Fastener Specifications
Apply butyl tape (0.5mm thickness) between the outer pane and frame during reinstallation; avoid silicone as it degrades UV stability after 36 months. Secure trim pieces with stainless steel screws spaced no more than 150mm apart–corrosion-resistant variants prevent premature failure in coastal climates.
For slider models, lubricate the roller assembly biannually using PTFE dry lubricant; petroleum-based products attract dust and accelerate wear on nylon wheels. Replace bent tracks immediately–even minor misalignment increases effort by 40% and shortens mechanism lifespan.
Check the screen fabric tension every 5,000 travel miles–loose mesh accumulates debris and tears under wind loads exceeding 35 mph. Most frames allow adjustment via concealed turnbuckles accessed by removing the interior trim panel; tighten until fabric produces a high-pitched resonance when plucked.
Glazing and Structural Integrity
Inspect tempered glass for “spiderweb” cracks radiating from impact points–these propagate rapidly under temperature fluctuations exceeding 30°C and require full panel replacement (standard thickness: 4.76mm). Polycarbonate alternatives (6.35mm) reduce weight by 22% but scratch easily; use microfiber cloths only for cleaning.
Verify the window’s operational range: single-hung units should open to 75% of total height without binding, while sliders must travel smoothly across the full track length. Resistance during movement signals worn carrier blocks or misaligned stiles–test by inserting a 0.2mm feeler gauge between the frame and sash; gaps beyond 0.5mm indicate structural fatigue.
How to Pinpoint Critical Elements in Your Recreational Vehicle Glazing Unit
Begin by examining the framing structure holding the glazing in place. Most travel trailers and motorhomes use an extruded aluminum or vinyl track system–these components form the perimeter and determine long-term stability. Check for corrosion, warping, or loose screws, as these defects compromise insulation and security. Replace damaged tracks immediately; delay risks seal failure and water intrusion.
Inspect the sealing gasket circling the glass pane. Look for hardening, cracking, or dislodged segments–these flaws create entry points for moisture and drafts. High-quality gaskets typically last 5–7 years before degrading; silicone-based variants outperform rubber in extreme climates. Press firmly along the seal path while opening and closing the vent to reveal hidden gaps.
Locate the latch mechanism–commonly a rotary handle or sliding lever–and test operation before assessing condition. A stiff or grinding latch often signals misaligned hardware or corroded internal gears. Lubricate moving points with dry silicon spray every six months; avoid petroleum-based products that attract dust. For pop-out styles, verify accordion-style hinges aren’t bent or missing fasteners.
Evaluate glass integrity by sliding a credit card along edges to detect hairline fractures often invisible to the eye. Tempered glazing should shatter in uniform cubes if broken, while laminated variants hold together despite cracks. Replace any pane showing signs of delamination or fogging; condensation between layers indicates failed dual-pane insulation.
- Muntin bars in decorative grid patterns add structural stress points–remove them before drilling for upgrades like solar screens.
- Window cranks require low-torque testing every quarter; excessive resistance means stripped internal gears.
- Awnings attached above openings need independent track inspection; misalignment jams both mechanisms.
- Dual-latch vent assemblies lock at two points–verify both engage simultaneously to prevent uneven closure.

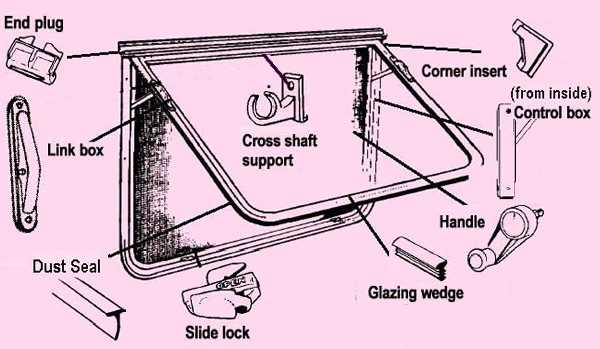

How to Interpret RV Glazing Component Schematics
Locate the legend first–it decodes symbols and abbreviations used throughout the schematic. Typically positioned in a corner, it maps each mark to a specific element like seals, latches, or frames. Cross-reference every line or icon with its corresponding entry to avoid misreading materials or assembly sequences. Many schematics use color-coding for layers (e.g., red for gaskets, blue for hardware), so verify the key even if colors seem intuitive.
Identify the section view marker–usually a dashed line with arrows–to understand depth relationships. This cutaway reveals how inner components nest within the outer housing, such as a sliding mechanism concealed behind a stationary pane. Note measurements in millimeters or inches along the edges; precision here prevents alignment errors during reinstallation or repairs. If the schematic lacks dimensions, compare adjacent panels to infer scale.
Isolating Functional Assemblies
Trace the motion path for movable panes: hinges, tracks, and rollers are often depicted with dashed or bold lines. Count the fastener holes–schematics frequently omit screw sizes, but hole spacing indicates standard sizes (e.g., #8 or M5). For seals, look for hatched or stippled patterns; these denote compressible gaskets that require specific torque when reassembling.
Check for exploded views, which break down sub-assemblies into individual screws, bearings, or clips. These inset diagrams zoom into tight spaces, like a latch mechanism or drainage channel. Label numbers correspond to a parts list–always verify item quantities to avoid shortages. If the list doesn’t match the schematic, contact the manufacturer with the model year and serial number for updated documentation.
Key Seals on Travel Trailers and Where to Swap Them
Replace failing butyl tape seals around fixed glazing units every 3–4 years. Clean the frame groove with isopropyl alcohol, press ¼-inch butyl rope into the channel, then reinstall the panel, tightening screws diagonally to 5–7 ft-lbs. Missed spots collect water behind the glass, bubbling the interior trim.
Quick-Reference Seal Replacement Map
| Seal Type | Typical Fail Points | Swap Procedure |
|---|---|---|
| EPDM wedge gasket | Sliding-frame tracks, vertical meeting rails | Peel old seal, scrub track with brass brush, apply silicone spray before pressing new ⅜-inch EPDM; close assembly 3x to seat |
| Compression bulb | Awning-style openings, hinged vents | Snap new bulb into retainer slot, align hinge screws at 11 & 1 o’clock positions to compress seal evenly |
| Foam tape backer | Fixed acrylic panels, roof skylights | Remove frame, strip old tape, cut ⅛-inch closed-cell foam to frame perimeter, reinstall with #8 stainless screws at 4-inch intervals |
Inspect rubber grommets inside crank-out assemblies monthly. Rotational wear splits the 5/16-inch O-ring after ~200 cycles; swap with nitrile ring rated for -40°F to +250°F. Lubricate the new ring with dielectric grease before threading it onto the worm gear; misalignment grinds glass into the sill track, cracking tempered panes near the bottom corners.
Essential Gear for Servicing Recreational Vehicle Glazing
Start with a non-marring putty knife (1.5″–2″) to pry off interior trim without gouging frames–plastic variants snap under force, while aluminum requires careful leverage at welded joints. Pair it with a set of Torx drivers (T15, T20, T25) and security Torx bits (TR10–TR40); RV manufacturers frequently use tamper-resistant fasteners on latches and hinges that standard Phillips or flathead won’t grip. Include a flexible magnet pick-up tool (30+ lb capacity) to retrieve dropped screws in tight cavities near seals–avoid retrieving by hand to prevent seal damage from oils on skin.
Specialized Instruments for Precision Work
- Glass suction cups (dual-handle, 100+ lb rated): Mandatory for removing panes without cracking laminated layers–store them at room temperature to maintain grip strength.
- Butyl tape roller (narrow width, 1/8″–3/16″): Apply even pressure during seal replacement; generic rollers create air gaps leading to leaks.
- Heat gun (750W–1500W with adjustable nozzle): Softens aged adhesive without warping frames–use 300°F max, moving continuously to avoid scorching rubber.
- Laser thermometer (infrared, ±2°F accuracy): Verify sealant cure temperatures (ideal range: 60°F–80°F) to prevent premature failure.
- Torque wrench (inch-pound, 0–30 in-lb): Reinstall hinge screws to factory specs–over-tightening strips threads in lightweight alloys.
For exterior frame adjustments, use a feeler gauge set (.0015″–.025″) to check reveal gaps; misalignment beyond .010″ causes wind noise and water intrusion. Keep a spray bottle of isopropyl alcohol (99%) to clean glass surfaces before reapplying adhesive–residue compromises bond strength.
