Begin with locating the access panel at the rear of your machine–most models require removing two screws to reveal the belt and motor assembly. Refer to the technical schematic if your unit includes a direct-drive configuration, as pulley alignment varies between front-load and agitator-based designs. Misalignment by even 2mm can cause abnormal vibrations during spin cycles.
Check the drain pump filter before proceeding–clogs here account for 37% of service calls. Turn the filter counterclockwise to remove debris; expect residual water, so place a shallow container underneath. For units with electronic controls, disconnect power for five minutes to reset error codes after repairs.
Inspect the suspension rods if the tub wobbles during operation. These rods degrade over time, typically after 1,200–1,500 cycles. Replacement requires supporting the tub weight with a hydraulic jack while removing the old mounts. Use only OEM components for the damping springs to maintain proper counterbalance.
Examine the lid switch assembly if the machine fails to start. A faulty switch interrupts the circuit even when closed. Test continuity with a multimeter; readings below 0.3 ohms indicate a failed component. Bypass temporarily during testing, but replace promptly–this safety feature prevents operation with an open lid.
For belt-driven units, tension the new belt to 25–30 lb·ft of torque. Over-tightening causes premature motor bearing wear, while loose belts slip, reducing efficiency. Mark the original pulley position with tape before disassembly to ensure accurate reassembly.
Locating Key Components in Your Appliance Repair Guide
Begin by referencing the model number–found on a small plate inside the main door or along the rear frame–to ensure accuracy. Most schematics split the machine into three primary zones: the control panel (upper front), the tub assembly (central), and the motor-base section (lower rear). For quick identification, consult the official service manual’s numbered legend: symbols like triangles mark friction points, squares indicate fasteners, and circles highlight electrical contacts. Common breakdowns occur in the lid switch (item #843456), agitator dogs (#91209), and drive belt (#4735). Replace these with OEM replacements only–third-party alternatives void warranties and often fail within 60 cycles.

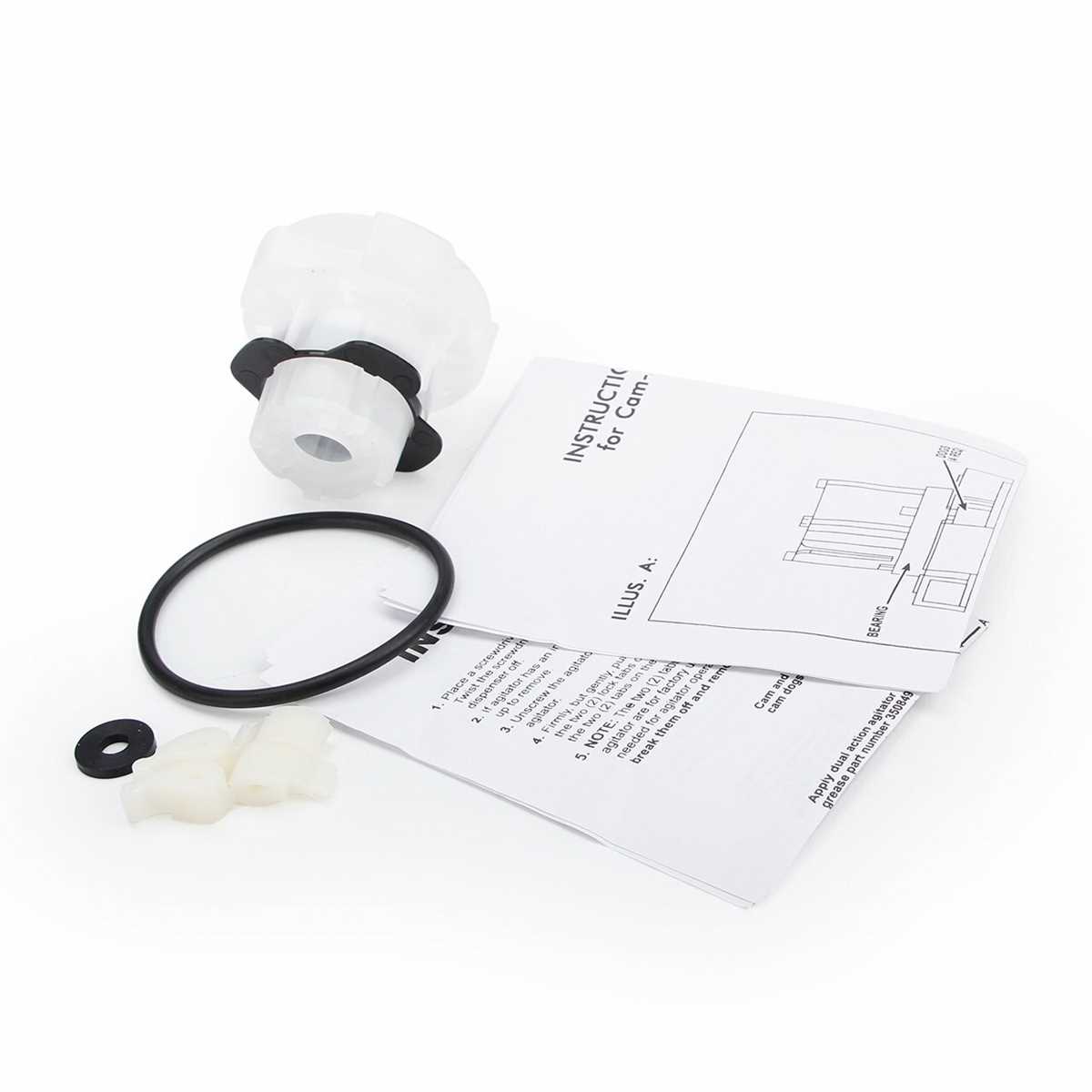

| Reference Code | Component Name | Tool Required | Torque Spec (Nm) |
|---|---|---|---|
| #843456 | Door latch sensor | Phillips #2 | 1.2–1.5 |
| #91209 | Cam assembly | 1/4″ socket | 3.0–3.3 |
| #4735 | Pulley drive belt | Needle-nose pliers | N/A |
Critical Precautions Before Disassembly
Power down by unplugging the unit–avoid relying solely on the circuit breaker, as capacitors retain charge up to 30 minutes. Wear ESD wristbands when handling board modules (#12784) to prevent static damage. Note bolt lengths during removal: tubular screws (M6) secure the outer casing, while shorter variants (M5) fasten internal brackets. Misplacement of a single 10mm bolt can misalign the drum, causing imbalance codes F7E2 or F7E3. Label each cable harness with masking tape–color coding fades after prolonged exposure to moisture and detergent residue.
Locating Manufacturer-Authorized Schematics for Laundry Appliances

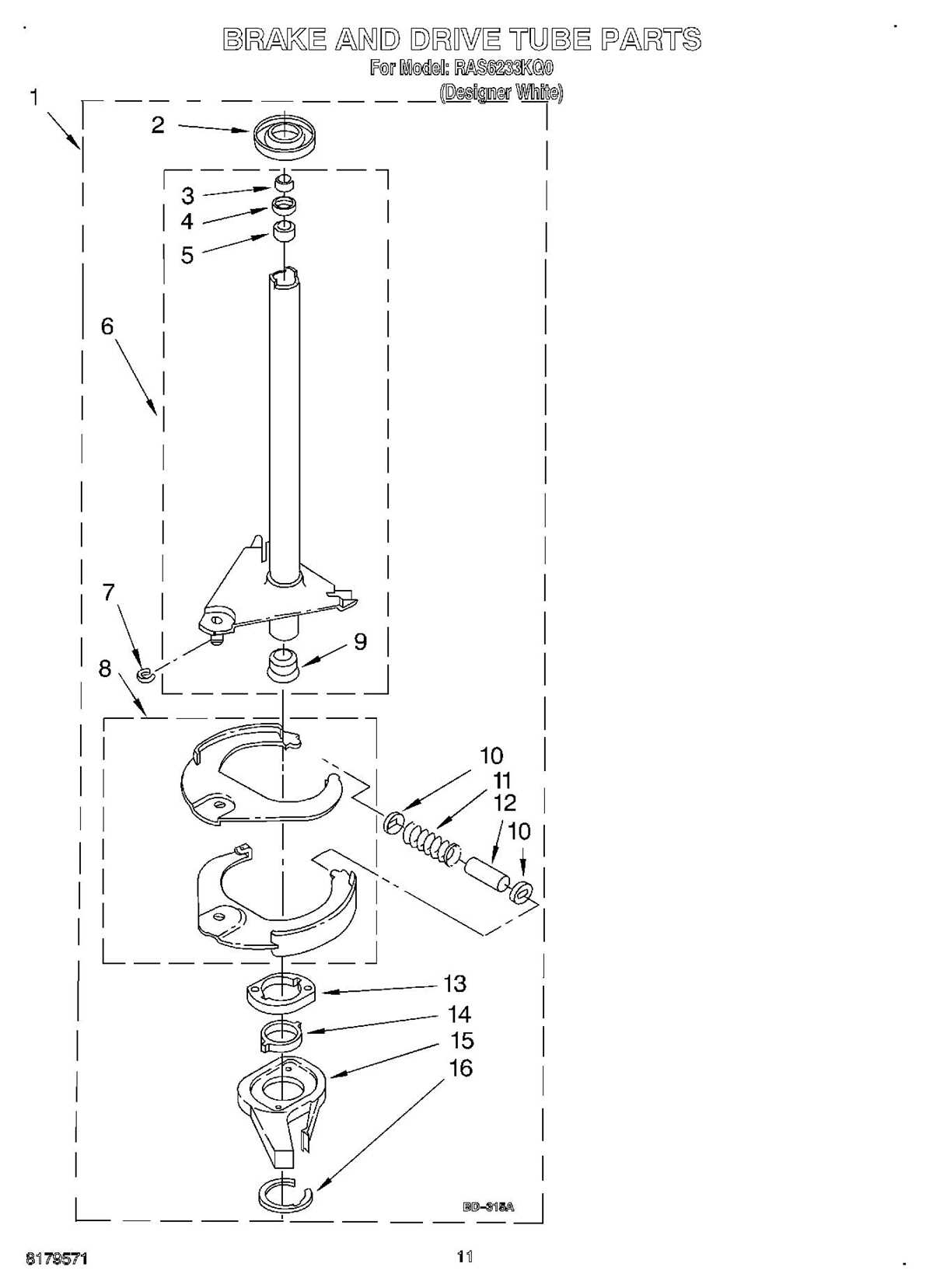

Begin with the Whirlpool Corporation’s official support portal at whirlpool.com. Enter the model number–typically found inside the door frame or on the back panel–in the search bar under “Product Manuals.” Filter results by selecting “Exploded View” or “Component Breakdown” from the document types list. These schematics include part numbers, nomenclature, and assembly sequences, updated quarterly to reflect engineering revisions.
- For discontinued models (pre-2015), append “/discontinued” to the URL after the serial code–this triggers archived blueprints.
- Use the “Compare Parts” feature to cross-reference compatible assemblies across similar series (e.g., REX vs. RAB platforms).
- Download high-resolution PDFs for offline access; embedded hyperlinks in the diagrams link directly to inventory pages.
Sears PartsDirect (searspartsdirect.com) maintains a parallel database with two advantages: first, it retains schematics for units sold exclusively through Sears retail channels (identified by “K” or “W” serial prefixes). Second, interactive BOMs allow toggling layers–hide decorative panels to expose motors and pumps. Check the “Alternate Views” tab for rear-panel or underside layouts unavailable elsewhere.
- Activate the “Zoom” tool (magnifying glass icon) to inspect tolerances in high-wear zones like the agitator spline.
- Toggle “Installation Notes” for torque specifications and sequential mounting instructions.
- Export CSV files listing every fastener and seal associated with a subassembly for inventory purposes.
Third-party platforms like PartSelect (partselect.com) offer downloadable CAD-compatible SVG files–useful for repair shops integrating schematics into work-order software. Their “Blow-Up View” feature overlays dimension callouts for each clip and gasket. Note discrepancies: non-OEM vendors occasionally substitute generic illustrations; verify against the manufacturer date code stamped on the frame.
Locating Critical Elements in Your Laundry Appliance Blueprint
Begin by scanning the schematic for the motor assembly, typically marked near the bottom rear of the layout. Look for labels like “drive motor” or “pump assembly” – these denote the primary power source converting electrical energy into rotational force. Verify the presence of shaft connectors and mounting brackets, as these secure the motor to the tub base.

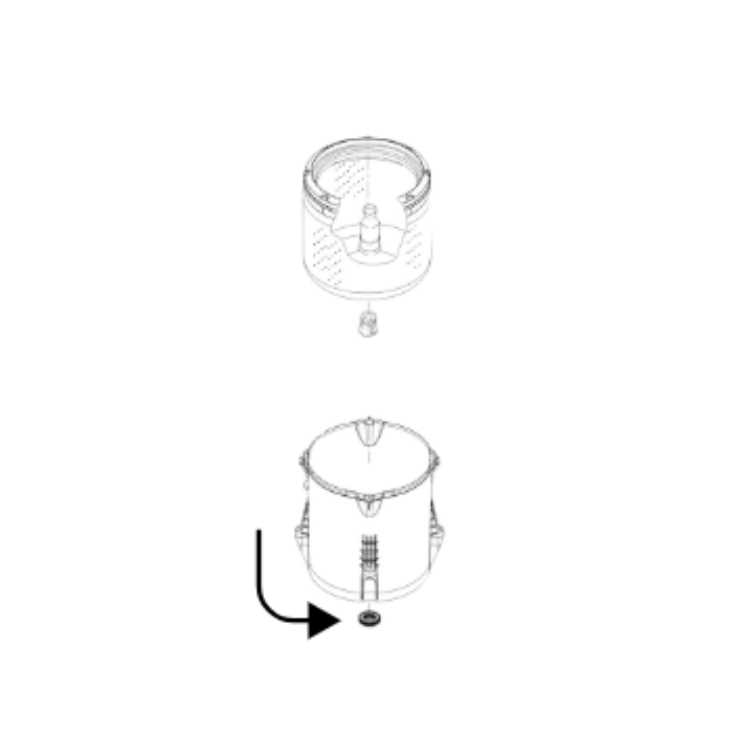

Examine the tub cluster next, identifying the outer container and inner drum. The diagram should distinguish between the stationary housing (often labeled “outer tub”) and the perforated spin basket (“inner tub”). Pay attention to suspension rods or springs anchoring the tub to the frame – these absorb vibrations during high-speed cycles.
Trace the water inlet system, which includes the fill hoses, valves, and dispenser tray. Cold and hot water valves appear as separate components, usually near the top rear. The detergent drawer mechanism connects here, featuring a siphon tube or flush channels to distribute additives during rinse phases.
Inspect the control console area, where switches, timers, and circuit boards regulate cycles. A rotary selector or push buttons interact with a central microprocessor. Wiring harnesses branch from this point, linking to sensors like the lid switch or water level pressure switch, which halt operation if safety protocols are triggered.
Locate the drain pump and associated plumbing near the front or side of the base. The pump impeller (visible in cutaway views) forces water through the discharge hose, which should terminate at a household drain or standpipe. Check for a debris filter or coin trap in the drain assembly – these require periodic cleaning.
Identify moving linkage components like agitator mechanisms or drum couplings. Direct-drive models integrate the motor shaft directly to the agitator post, while belt-driven systems include a pulley-and-belt arrangement tensioned by an idler arm. Bearings or bushings support these rotating elements and degrade over time.
How to Navigate Appliance Schematics for Quick Fixes
Locate the model number on your machine’s rear panel or beneath the lid–this is critical. Most manufacturers provide exploded views online through official portals, which organize components by assembly groups like the tub, motor, or control board. If the label is faded, check the owner’s manual or receipts, as retailers often print identifiers there.
Identify the faulty section by cross-referencing unusual noises, leaks, or error codes with the illustrated breakdown. For example, a grinding sound during spin cycles typically points to the drive belt or bearings, both detailed in separate callouts. Print the schematic and circle suspect areas with a highlighter to avoid distractions from unrelated assemblies.
Gather tools listed alongside each component in the visual guide–common ones include socket wrenches (sizes 1/4″ to 9/16″), needle-nose pliers, and a multimeter. Some fasteners require specialty drivers (e.g., Torx T20) or anti-seize compound for threaded parts prone to corrosion. Verify torque specifications in the margin notes to prevent overtightening, which can warp housings.
Disassemble in reverse order of assembly sequences marked by numbered steps. Tag cables with masking tape and note connector positions, as reversing wires on relays or sensors can cause immediate malfunctions. For gears or pulleys, document alignment using photos–misalignment by even 1/16″ can throw timing belts off track. Temporary markers (like a screwdriver scratch) help reorient parts during reassembly.
Inspect removed elements under direct light for cracks, burns, or wear. Compare brushes, valves, or pump impellers to the reference artwork–deviations in shape or color usually indicate failure. Test electrical components (e.g., thermal fuses, door locks) with a multimeter set to continuity mode; readings outside 0-5 ohms suggest replacement is needed. Non-conductive coatings on contacts often cause intermittent faults–clean with isopropyl alcohol and a fiberglass pen.
Replace only parts matching the exact part number from the exploded view. Aftermarket alternatives may lack tolerances for voltage spikes or vibration resistance, leading to premature failures. Lubricate moving interfaces (e.g., agitator cams, suspension rods) with manufacturer-approved grease–standard lithium-based compounds can degrade rubber seals. Tighten fasteners in a star pattern to distribute pressure evenly and prevent stress cracks.
Reassemble by following the schematic backward, reconnecting sensors before securing covers. Run a diagnostic cycle (consult the manual for combo-button sequences) to verify fixes–common post-repair errors include unbalanced loads or drainage issues, which often trace back to skipped steps like leveling the machine or reseating hoses. Keep the annotated diagram for future reference; note any deviations from expected performance for troubleshooting repeat incidents.
