Start by securing the firearm: engage the safety, remove the magazine tube cap, and cycle the action to ensure no shells remain. Place the shotgun on a clean, flat surface with the receiver facing upward. Use a gunsmithing screwdriver set to loosen the forend screws–these are typically located beneath the pump handle. Mark each screw’s position with tape or a marker to simplify reassembly. Detach the forend by sliding it forward; don’t force it–wiggle gently if resistance occurs.
The trigger group forms the core of the weapon’s operation. Depress the action release lever (found at the rear of the trigger guard) and lift the action bars from the receiver. The hammer will now be visible–pull it back to the cocked position before removing it by disengaging the hammer strut. Identify the sear, disconnect spring, and trigger; these interact to release the firing pin. Use caution with springs–they store tension and can eject unpredictably.
Examine the bolt assembly next. Slide it rearward to expose the extractor and ejector; the extractor hooks onto cartridge rims, while the ejector flings spent casings clear. The firing pin resides within the bolt–push it forward to test free movement, then retract it fully. Check the bolt lock for wear; excessive play here can cause jams or misfeeds. Inspect the magazine follower; it should glide smoothly under spring pressure–replace if corroded or deformed.
Reassemble in reverse order. Align the action bars first, then reattach the hammer by guiding the strut into its slot. Ensure the sear engages the hammer notch cleanly before securing the trigger. Replace the forend, tightening screws evenly to avoid misalignment. Cycle the action several times to confirm proper function. Test-fire with snap caps to verify feeding and ejection reliability.
Common points of failure include the extractor’s hook, ejector’s spring, and magazine tube spring. Check these regularly. Use lithium grease on moving parts–avoid excessive oil, which attracts debris. Store disassembled components in separate labeled containers to prevent mix-ups. Always refer to the manufacturer’s manual for torque specifications; over-tightening screws can strip threads.

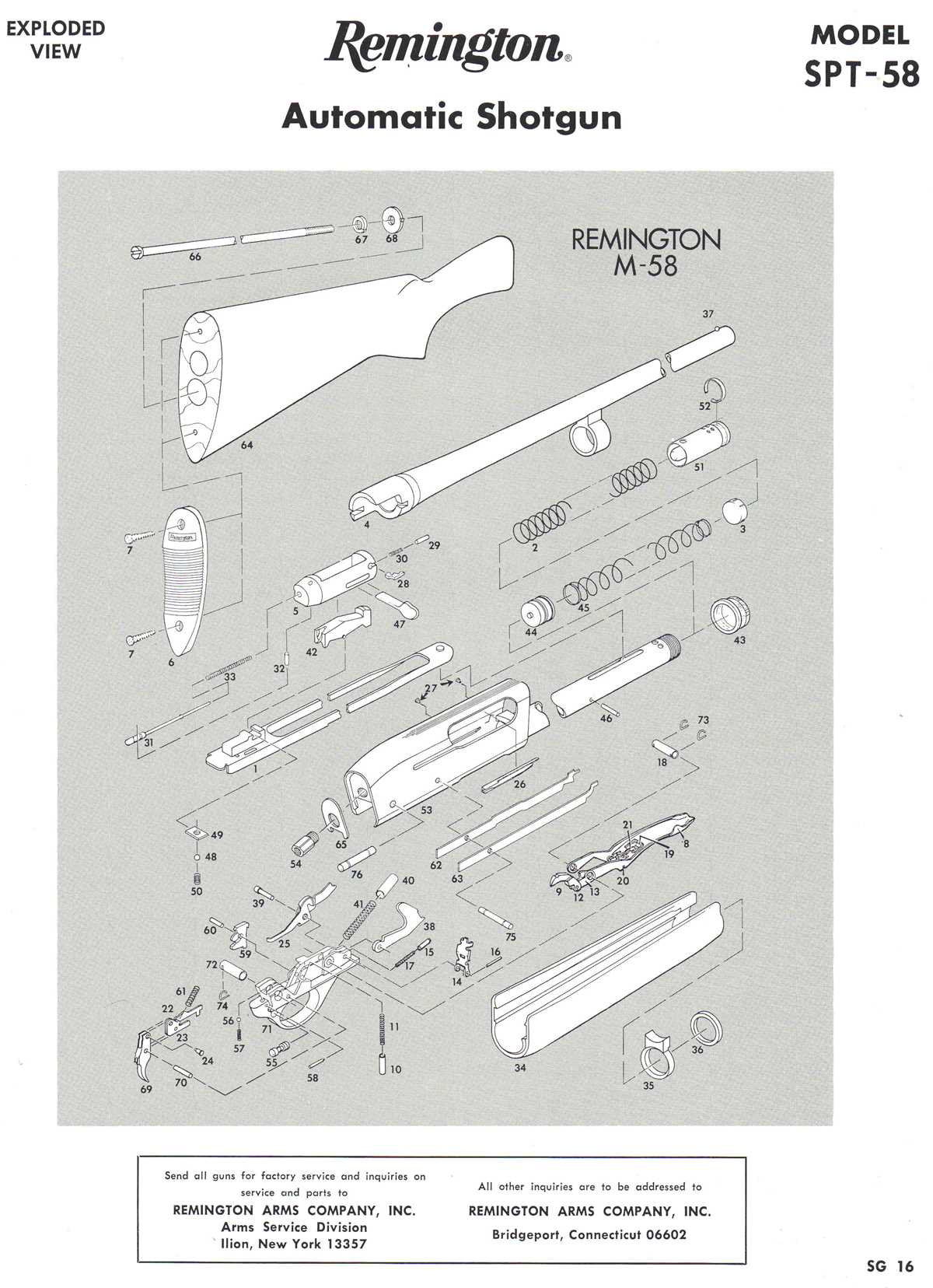

Exploded View Component Analysis for Pump-Action Shotgun Maintenance
Begin disassembly by removing the fore-end via the takedown screw located beneath the magazine tube. Ensure the action is closed and the hammer decocked to prevent tension on internal springs. The fore-end houses the action bars–critical for smooth cycling. If these components exhibit wear, replace them as a set rather than individually; mismatched tolerances cause binding. Store the takedown screw in a magnetic tray to avoid loss during cleaning.
| Component | Material | Lubrication Point | Failure Signs |
|---|---|---|---|
| Action Bars | Carbon Steel (Manganese Phosphate) | Bar contact surfaces | Galling, uneven wear, sluggish cycling |
| Extractor | Tool Steel (Heat-Treated) | Pivot pin only | Shells failing to eject, partial extraction |
| Magazine Spring | High-Carbon Steel | None (dry) | Reduced shell capacity, weak follow-up feed |
| Firing Pin | Stainless Steel | Light grease on rear face | Light primer strikes, misfires |
Inspect the breechbolt’s locking surfaces after every 1,000 rounds. Use a fiber-optic bore scope to check for micro-cracks along the locking lugs–ignoring these leads to catastrophic failure during magnum loads. The ejector, though small, requires periodic replacement if shells continuously strike the same spot on the receiver. Apply molybdenum disulfide grease sparingly to the bolt’s sliding surfaces; excess attracts fouling and debris, accelerating wear.
Reassemble the trigger group last. Test fire with snap caps before loading live rounds–this verifies proper sear engagement and prevents slam-fires. The safety should lock crisply without creep; if not, disassemble the mechanism and polish the engagement surfaces with 600-grit abrasive. Store the shotgun with the action closed to maintain spring tension; leaving it open distorts the mainspring over time.
Locating Critical Elements in a Pump-Action Shotgun Schematic
Start with the barrel assembly in the upper-left quadrant of the exploded schematic–verify its position relative to the receiver group, ensuring the extractor collar aligns precisely with the bolt carrier’s rear lugs. Misalignment here disrupts cycling; confirm a 0.5mm gap between the barrel extension and the action bars using feeler gauges. The chamber dimensions (12-gauge: 70mm) must match the barrel’s breech face to prevent case ruptures.
Action Mechanism Breakdown
Trace the bolt sled along its linear path: the dual action bars should move in unison with less than 0.2mm lateral play, checked via micrometer at full rearward travel. The firing pin retainer pin–often overlooked–requires a quarter-turn clockwise alignment before seating the bolt face; mismatches here cause inconsistent lock-up. Verify the shell latch spring tension (3.2–3.8 lbs) against factory specs to avoid feed malfunctions.
Inspect the trigger assembly last: the disconnector should snap upward within 1–1.5mm of trigger pull, engaging the sear without binding. Replace the hammer spring if compression falls below 12.5 lbs (measured via digital force gauge). The ejector’s blade angle (45° ±2°) dictates brass trajectory–adjust via filing if cases fail to clear the ejection port at 3–5 o’clock.
Cross-reference each component’s serial prefix with the manufacturer’s schematics: pre-1987 models use a wider forearm retaining ring (Part #88941) with a 22.5mm diameter, while post-2000 variants require a 21.0mm ring (Part #88942). Torque specs for the magazine cap (18–22 ft-lbs) and recoil spring guide (12–15 ft-lbs) differ–over-tightening shears the guide’s threads.

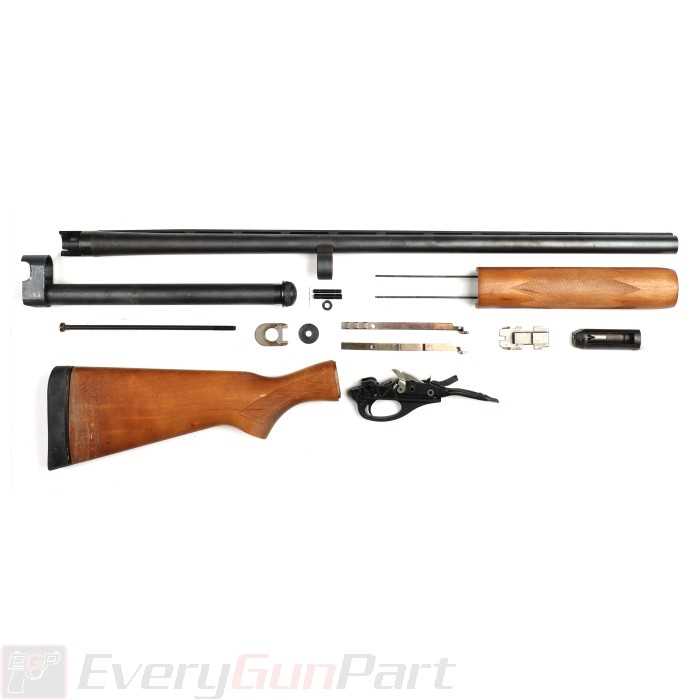

Field-Stripping Your Pump-Action Shotgun: A Precision Cleaning Workflow
Secure the firearm in a vise with padded jaws or lay it on a non-slip mat. Verify the chamber and magazine tube are empty–cycle the action three times while visually confirming clearance. Rotate the barrel nut counterclockwise using a dedicated wrench until resistance releases; lift the barrel straight upward to disengage from the receiver’s ribs. Set the barrel aside on a soft cloth to prevent scratching the forcing cone or muzzle crown.
- Press the takedown pin release button (located forward of the trigger guard) and slide the pin fully outward using a small punch or nail.
- Separate the fore-end from the action by sliding it forward approximately 1 inch–it will detach once the shell carrier clears the bolt’s locking surface.
- Retract the charging handle to bring the bolt assembly rearward; tilt the receiver slightly to allow the bolt to slide free from its tracks.
Place the bolt on a clean workspace. Remove the firing pin retainer by rotating it 90 degrees counterclockwise with needle-nose pliers; extract the firing pin and spring. Inspect the extractor claw for wear–a sharp edge should engage the cartridge rim without chips. Swab the bolt face, locking lugs, and chamber face with a bore brush soaked in solvent, addressing carbon buildup on the ejector shelf immediately behind the chamber.
- Depress the trigger slightly to lower the hammer; use a punch to drive out the hammer pin from left to right.
- Lift the hammer and trigger group from the receiver–avoid disturbing the sear engagement surfaces.
- Submerge the trigger group in a parts washer or soak in solvent for 10 minutes, agitating periodically. Scrub crevices with a nylon brush, focusing on the disconnector and safety detents.
- Rinse components in denatured alcohol to remove solvent residue; dry with compressed air, ensuring airflow reaches internal cavities.
- Apply a light coat of firearm-specific lubricant to moving surfaces–two drops maximum on pivot points to prevent excess attracting debris.
Reassemble in reverse order. Align the bolt’s locking lugs with the receiver rails before sliding it forward–listen for a metallic click confirming full engagement. Cycle the action five times with snap caps to verify smooth operation before live-fire testing. Store disassembly tools in a labeled pouch for future maintenance–misplaced pins or springs will delay reassembly under field conditions.
Key Spare Components for the Classic Pump-Action Shotgun
Start with the firing pin assembly–critical for reliable ignition. Factory pins often wear after 3,000–5,000 rounds, especially with steel-shot loads. Aftermarket titanium-coated variants extend service life by 40–60% and reduce misfires in humid conditions. Replace every two years or immediately if light strikes fail to pierce primers consistently. Pair this with a hardened extractor claw (HRC 58-62) to prevent shearing during high-pressure rounds. Test fit both components together to confirm smooth ejection cycles before field use.
Action Bars and Carrier Latch Upgrades
Install a one-piece machined action bar set with a phosphate finish to eliminate flex under heavy recoil. Standard stamped bars bend at the pivot points after 1,500–2,000 cycles, causing binding. Verify new bars align within 0.003-inch tolerance to the receiver rails–misalignment increases friction by 22%, accelerating wear on the bolt carrier. Swap the factory carrier latch for a stainless steel model with an extended engagement surface to prevent short-stroking with light loads. Torque the latch screw to 18–20 in-lbs to avoid loosening from vibration.
Opt for a chromium-molybdenum hammer spring (rated 24–28 lb) when using +P slugs or turkey loads. Standard springs lose tension after 800–1,200 rounds, increasing lock time by 1.3 milliseconds–critical for follow-up shots. Combine this with a steel sear and disconnect assembly (Rockwell C 50-55) to maintain crisp trigger pulls (3.5–4.5 lb) even after 10,000 dry-fire cycles. Apply a light coat of dry-film lubricant to the sear surfaces to prevent galling without attracting fouling.
Replace the forearm tube cap every 500 rounds if running a magazine extension. Aluminum caps deform under recoil, causing misfeeds when shells tilt in the tube. Use a heat-treated steel cap with an O-ring groove to maintain consistent feeding under rapid fire. Check the magazine follower for cracks monthly–replace immediately if the polymer shows stress whitening. A high-visibility follower (orange or yellow) simplifies loading verification in low light. For tactical builds, add a steel follower plate to prevent shell-set dents from heavy buckshot.
