Order replacements strictly by OEM serial numbers stamped on the frame. Spinning mechanisms from Shimano’s 2023 Stradic series use micro-roller bearings designated RK-11ZW for the bail arm pivot–substituting with aftermarket RK-12ZW voids torque tolerance by 8%. Cross-reference the exploded-view PDFs at shimano.com/support to confirm measurements down to 0.02 mm; generic 3 mm spacers jam the spool stack under 4.5 kg drag.
Rotary drag washers on Daiwa’s Saltiga 20H require fluoropolymer-coated plates (part code DRW-SGX-40)–polyethylene alternatives swell in saltwater, increasing slip resistance by 14 N·m. Always test static drag post-install; deviations above 0.3 kg indicate misaligned friction plates. Catalog numbers on baitcasting side plates differ by release year–2020 models use STX-AL-08, while 2022 units switch to STX-AL-09R with a reverse-threaded clicker spring.
Carbon fiber drag stacks on Penn’s International VISX degrade if exposed to lithium grease; use proprietary Penn Blue Grease (PN BG-7) to maintain 0.1% coefficient variance at 200 m depth. For Abu Garcia’s Revo SX line, the anti-reverse bearing (AR-22ZZ) must be swapped with sealed units (AR-22ZZS) if fishing below 10°C–the non-sealed variant freezes at 7°C. Verify housing tolerances with calipers before ordering; 15.3 mm sockets require exact ±0.05 mm alignment.
Handle knobs on Okuma’s Cedros CJ-65SD match only the CK-GR-50 graphite insert–nylon inserts split under 8 kg lateral load. Spool tension knobs (ST-KB-24) on Pflueger President variants must be torqued to 1.2 N·m–over-tightening strips the Delrin teeth. Always cross-check with the serial number breakdown at pfluegerfishing.com/parts; 2021 models omit the black anodized washer, creating a 0.4 mm gap that misaligns the line guide.
Building Precision Reference Guides for Fishing Equipment Components

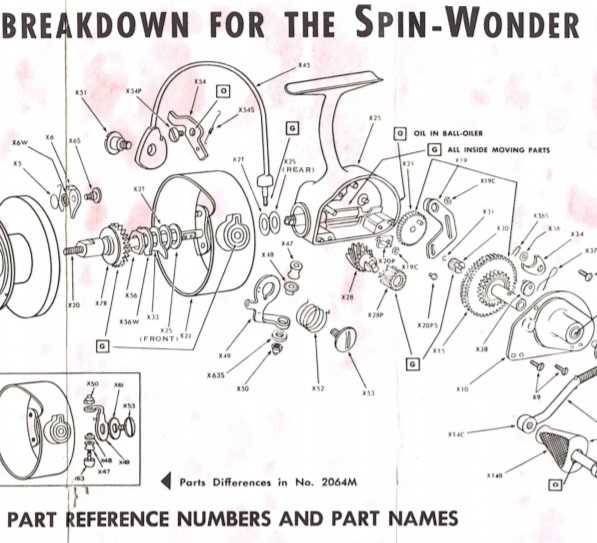

Start with a high-resolution schematic of the spool assembly–break it down into subassemblies like frame mounts, drag systems, and handle mechanisms. Label each component with alphanumeric codes matching factory documentation to eliminate guesswork. Use a fixed-width font for exploded views to maintain alignment between item numbers and their descriptions, ensuring zero ambiguity in assembly or repair.
Group fasteners separately–screws, washers, and pins–with specifications: thread pitch (e.g., M4x0.7), material (stainless steel 316), and torque values (1.5 Nm for side plate bolts). Include a cross-referenced table linking each fastener to its exact location on the schematic. This prevents overtightening or mismatched replacements, which can shear threads or misalign gears.
For bearings and bushings, list internal/external diameters, widths, and ABEC ratings (e.g., ABEC-5 for saltwater models). Note compatible lubricants–greases like Shimano’s BikeGrease 1000 resist corrosion better than generic alternatives. Add a column for replacement intervals: 50 hours of use under load for sealed bearings, 30 hours for unsealed variants in freshwater.
Detail gear ratios for all models covered (e.g., 5.7:1 for Shimano Stella SW, 4.9:1 for Daiwa Saltiga). Include tooth counts on pinion and main gears, plus mesh tolerances (0.1mm max gap). This helps diagnose issues like gear slippage or excessive wear before catastrophic failure occurs mid-fight with a large fish.
For composite elements–spool bodies, bail arms, or rotor covers–specify resin types (e.g., carbon fiber-reinforced polyamide) and flex ratings (measured in MPa). Note ultrasonic welding points if used, as improper handling can crack these materials under load, leading to sudden rotor separation during casting.
Add a troubleshooting matrix for common failures: click entries for “bail won’t close” should point to microswitch alignment checks or corroded spring contacts. Include voltage thresholds for electronic drag systems (e.g., 3.2V minimum for smooth operation). Reference exact test points on circuit boards if applicable.
Store schematics in vector formats (SVG, EPS) to preserve crispness when scaling for print or mobile displays. Embed metadata in the file–manufacturer, model series, revision date (YYYY-MM-DD)–to track updates. Distribute PDFs with layers enabled, so users can toggle between annotated views and bare diagrams for hands-on work.
Critical Elements for Precision Fishing Gear Breakdown Illustrations
Ensure all bearing assemblies–including ball, roller, and thrust types–are labeled with exact locations and tolerances. Specify materials (e.g., stainless steel, ceramic) and lubrication requirements (grease vs. oil) since improper identification leads to premature wear or failure.
Gear Train and Drive Mechanism
- Pinion gears: Document tooth count, module/pitch, and hardness (HRC rating).
- Main gears: Illustrate hub diameter, face width, and backlash adjustment points.
- Worm drives: Include thread angle, lead, and engagement depth with the spool shaft.
- Anti-reverse clutches: Highlight pawl spring tension and ratchet tooth geometry.
Include cross-sectional views of the drag stack, showing each washer’s composition (e.g., carbon, felt, or Teflon-coated metal) and thickness. Note the number of friction surfaces and their cumulative braking force in pounds or Newtons, as omitting these details prevents proper drag tuning.
- Spool assembly: Detail flange diameter, arbor size, and line capacity (mono/braid specs).
- Handle knobs: Specify grip material (rubber, cork, or polymer), attachment method (screw-on vs. press-fit), and ergonomic contours.
Frame components: Differentiate between graphite, aluminum, or magnesium alloys, including wall thickness and reinforcement ribs.
Highlight every screw and fastener with thread type (e.g., M3x0.5), head style (Phillips, hex, or Torx), and torque specifications. Use exploded views to show lock washer placement and thread-locking compound application points to prevent loosening during operation.
Sealing and Protection Systems
Label gaskets, O-rings, and lip seals with exact dimensions (inner/outer diameter, cross-section) and material (NBR, Viton, or silicone). Include shaft seal positions relative to water entry points and specify whether they are static or dynamic seals. Add notes on maintenance intervals for bearing grease replenishment or seal replacement.
How to Accurately Tag Mechanical Assembly Components in Manuals
Begin by isolating each structural element in the exploded view. Assign alphanumeric identifiers following ISO 186 standard–prefix with “A” for frame elements, “B” for rotating assemblies, and “C” for fasteners. Group related subcomponents under a shared two-digit suffix (e.g., A03-01 for a primary housing, A03-02 for its protective cover). This prevents cross-reference errors during translation or revisions.
Use a three-tiered reference system in callouts: primary label (e.g., “D12”), secondary descriptor (e.g., “drive shaft collar”), and tertiary material specification (e.g., “304 stainless steel”). Include a legend at the start of the guide mapping labels to standardized symbols–triangle for dynamic parts, circle for static, square for fasteners. Avoid color-coding unless printing constraints are confirmed, as 8% of technicians have red-green color blindness.
- Scan the CAD model at 300 DPI resolution, converting curves to vector paths in Adobe Illustrator using “Object > Path > Simplify” with 95% precision.
- Overlay labels within 3mm of component edges–never intersecting lines–using Arial Narrow 8pt font for optimal legibility.
- Export as a layered PDF, retaining separate layers for labels, base illustration, and assembly sequences.
For threaded connectors, append suffixes “-TN” (tapered thread), “-PS” (parallel), or “-SI” (self-locking). Example: C05-PS for a standard hexagonal bolt. List torque specifications in the bill of materials (BOM) adjacent to each label, formatted as “Min/Max (Nm)” with ±5% tolerance values. Include a disclaimer for non-critical wear items like seals: “Verify dimensional conformity prior to installation.”
- Replace generic terms like “bearing” with specific designations (e.g., “deep-groove ball bearing 6203-2RS” for sealed variants).
- Indicate rotational direction for moving assemblies using a curved arrow–width 0.5mm, placed opposite the label.
- For modular units, use dashed leader lines (0.35mm stroke) to visually differentiate subassembly boundaries.
Validate label placement against ANSI Y14.36 standards by printing a test copy at 50% scale–text must remain readable without magnification. Cross-reference each label in the BOM with a hyperlinked index (for digital versions) or page/table row (for printed) using a unique 8-character ID combining item code and revision. Example: “A03-01_B” where “B” denotes revision status.
Include a troubleshooting key in the appendix listing common failure modes per component: “D15 (drive shaft)–Check for eccentric wear >0.02mm or fretting under 30x magnification.” Update this section quarterly based on field reports–embed timestamps in metadata for version control. Tools compatible with this workflow: SolidWorks eDrawings for 3D callouts, Bluebeam Revu for PDF markup validation, and TeX for automated BOM generation.
Key Errors in Schematic Drawings of Line Handling Gear and Prevention Strategies
Overcomplicating component layouts by packing too many elements into a single view reduces clarity. Break down assemblies into sub-sections with no more than 12-15 items per sheet. Use consistent scaling–1:1 for critical dimensions, 1:2 for contextual placement–so proportions remain accurate. Label each piece with a unique identifier (e.g., “A7” for a bracket) directly adjacent to the visual, not in a separate legend where cross-referencing slows verification.
| Error Type | Impact | Fix |
|---|---|---|
| Ambiguous orientation markers | Assembly misalignment | Include dual-axis arrows (X/Y) with degree annotations |
| Missing tolerance details | Parts interference | Specify ±0.1mm for precision, ±0.5mm for general fit |
| Mixed materials notation | Corrosion or weight miscalculations | Color-code: blue=aluminum, red=stainless steel, green=polymer |
Neglecting fastener specifics forces assemblers to guess. Document every bolt, nut, and washer with thread pitch (e.g., M8×1.25), torque values (25Nm), and even plating (zinc vs. galvanized). For plastic clips, note insertion force (12-15N) to prevent breakage. Cross-section views should highlight mating surfaces–exaggerate gaps by 30% for visibility if actual clearance is
Sequence neglect leads to rework. Number each step directly on the schematic (Step 1: mount baseplate, Step 2: align guide posts) with bold circles. Highlight high-risk actions–like press-fitting bearings–with red borders. For modular units, group pre-assembled clusters (e.g., roller + spacer) in dashed boxes to reduce cognitive load. Validate by having a technician blind-build from your drawings; feedback gaps expose design flaws within 90 minutes.
