Regular checks of the winch strap every 50 miles of towing prevent failures during transit. Secure connections between the frame and leaf springs–corrosion here triggers misalignment within the first 2,000 miles. Replace cracked equalizer beams immediately; even hairline fractures propagate under load cycles exceeding 1,200 lbs.
Examine hub assemblies for uneven grease distribution–dry bearings seize after 18 months of saltwater exposure. Measure brake magnet wear at 0.045 inches; beyond this threshold, stopping distance increases by 30%. Lubricate sliding components on the support roller with marine-grade grease to avoid seizure during submerged launches.
Check light housing gaskets quarterly–moisture intrusion corrodes wiring harnesses in under 90 days. Verify coupler latch engagement force at 40 lbs; weaker tension risks detachment at speeds above 45 mph. Inspect leaf spring shackle bolts for stretch marks; elongated threads indicate fatigue failure imminent within 500 miles.
Conduct a tire pressure audit every 300 miles–underinflation by 10 psi reduces sidewall durability by 40%. Rotate torsion axles annually to equalize wear; uneven load distribution warps centerline alignment after 1,500 miles. Replace cracked fender mounting brackets–vibration fractures widen sharply once initiated.
Use a torque wrench on wheel lugs, setting 90 ft-lbs for 1/2-inch studs–over-tightening distorts rotors. Inspect safety chains for kinks or thinning links; inspectors flag chains lacking 2x rated load capacity. Apply dielectric grease to trailer plug connections quarterly–oxidation disrupts signal integrity within 6 months.
Visual Guides for Towed Marine Transport Components
For precise identification of axle assemblies on your hauler, refer to the exploded view drawings included with OEM documentation–specifically the section listing bearings, hubs, and spindle nuts. These schematics distinguish between torsion and leaf-spring suspension setups, each requiring distinct torque specifications: 65–85 ft-lbs for leaf springs, 90–110 ft-lbs for torsion axles. Mismatched values risk premature wear on the equalizer bars, often mistaken for bushing failure when uneven pavement causes stress fractures.
Winch mounts vary by model year; pre-2015 units integrate the strap guide directly into the frame rail, while later versions separate the roller assembly for modular replacement. Check the bolt pattern–typically four M10x1.5 fasteners spaced 3.25″ apart–but confirm with a caliper as some aftermarket upgrades use metric-threaded inserts incompatible with standard ANSI washers. Label each removed component with painter’s tape noting orientation; the crank handle’s gear ratio (1:4 or 1:6) alters retrieval speed, a critical detail during saltwater exposure recovery.
Lights and wiring harnesses follow a color-coded matrix: brown for tail, yellow for reverse, white/blue stripe grounds the brake controller. Use a multimeter to test continuity at the connector plug–corrosion at the pin terminals (especially the #5 slot for marker lights) creates intermittent failures undetectable by visual inspection. Replace brittle wiring with tinned copper strands rated for 18 AWG minimum; regular PVC coatings degrade within 18 months under UV exposure, even when parked in shaded storage.
Coupler grease fittings require lithium-based NLGI #2 lubricant, applied quarterly at 1,200-mile intervals or before submersion. Avoid silicone sprays; they displace water but lack sufficient film strength, allowing fretting corrosion on the ball hitch’s 2″ coupling. Verify the surge actuator’s master cylinder fluid level monthly–DOT 3 brake fluid absorbs moisture, expanding at 3% annual saturation rate, which lowers the activation threshold during emergency stops on 6% grades.
How to Pinpoint Critical Elements in Your Marine Transport Blueprint
Start by locating the suspension assembly–typically at the axle midpoint. Look for leaf springs or torsion axles, depending on load capacity. Verify the U-bolts securing the springs to the frame; corrosion here is a common failure point. Replace any rusted hardware immediately with grade-8 bolts and zinc-coated washers to prevent seizing.
Inspect the winch mount at the front. Ensure the strap is intact–fraying strands reduce breaking strength by up to 40%. Check the gear mechanism; a faulty pawl can cause unintended slack. Lubricate moving components with marine-grade grease every 50 operational hours to avoid saltwater buildup.
Hitch and Coupling Verification

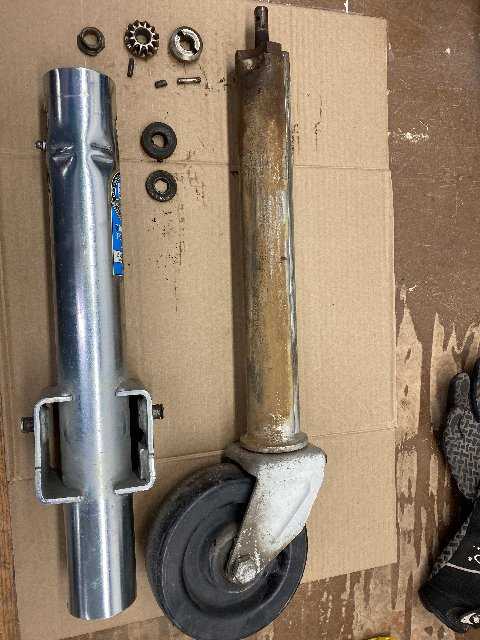

Examine the tongue jack for smooth operation. A bent shaft misaligns the coupler, increasing hitch stress. Test the latch mechanism–replace if the spring tension feels weak. Verify the safety chains cross under the tongue; this prevents tongue-drop disasters if the coupler fails.
Focus on the lighting harness next. Corroded wiring at connectors causes intermittent failures. Use dielectric grease on all electrical contacts to shield against moisture. Replace bulbs with LED variants–they last 25 times longer and draw less current, reducing battery drain during transport.
Check the hub and spindle assembly for proper bearing adjustment. Over-tightened bearings generate excessive heat, leading to premature failure. Spin the wheel; it should rotate freely with minimal resistance. Pack bearings with high-temperature grease annually, or after every 10 immersions in saltwater environments.
Evaluate the bunks or rollers supporting the hull. Warped or cracked bunks create uneven pressure points, risking structural damage. Replace any worn carpeting–bare metal increases friction, making launches and retrievals harder. Adjust roller tension so they contact the hull snugly but don’t bind during movement.
Maintenance Schedule Based on Blueprint Analysis
Record each component’s condition in a logbook. Prioritize repairs based on failure risk: bearings and suspension rank highest due to safety implications. Perform a full inspection before off-season storage, addressing issues like anode corrosion on galvanized parts before they worsen. Use the blueprint to cross-reference OEM specifications, ensuring replacements meet load ratings.
How to Interpret Your Vessel Transport Electrical Blueprint
Locate the grounding symbol first–a vertical line terminating in three parallel, horizontal bars. This identifies the metal frame or negative bus serving as the anchor point for all circuits. Verify its connection to the primary power source (usually a seven-way plug) before proceeding; corrosion here mimics intermittent failures. Use a multimeter set to continuity mode to confirm conductivity between the grounding point and the plug’s pin 3 or 7, depending on manufacturer specifications.
Trace each colored conductor from the harness to its endpoint. White wires typically link to the running lights on fenders, brown to clearance illuminators at the rear, and yellow to the left-side stop/turn signal cluster. Green wires indicate the right-side equivalent. Mark discrepancies where a single conductor splits into multiple branches–this suggests a junction block or inline splice, both prone to voltage drop under 12.8V when wet.
Isolating Subsystems for Faster Troubleshooting
Separate the lighting array into three subsystems: marker lights, turn signals, and brake circuits. Measure voltage at the bulb socket while powering each subsystem individually. A drop below 0.5V from source voltage signals excessive resistance, often found in deteriorated pigtail connectors. Replace any terminal showing green oxidation–this contaminant raises resistance by 12-15% per square millimeter.
Identify relays within the schematic by their square outline containing a coil symbol (two parallel lines) and contact pair. Test relay functionality by manually actuating its switch; a distinct *click* confirms coil engagement. If absent, swap the relay with a known-good unit from the same amperage rating–most transport rigs use 30A relays, but verify against the blueprint’s numerical annotation.
Inspect wiring gauge notation alongside each conductor. Common gauges include 14AWG for lighting circuits and 10AWG for braking systems. A mismatch–such as 16AWG supplying a 20A brake solenoid–creates overheating risks, visible as melted insulation or discoloration. Upgrade undersized wires using adhesive-lined heat shrink tubing at splices to prevent moisture ingress.
Cross-reference fuse ratings with circuit amperage. A 15A fuse protecting a circuit drawing 18A leads to nuisance trips; scale to a 20A fuse only if wire gauge supports it. Note transient loads–like hydraulic winches–that may spike to 25A briefly. Document fuse locations with a permanent marker on the wiring duct for future reference, reducing diagnostic time during trail-side repairs.
Essential Components for Marine Transport Units and Sourcing Locations
For immediate support failure, replace leaf springs with heavy-duty alternatives rated for 1,200–1,500 lbs per axle. Leading suppliers such as etrailer and Dexter Axle stock direct-fit kits, including u-bolts and shackles. Avoid mismatched measurements–verify eye-to-eye length and width against OEM specs before ordering.
Winch straps degrade after 2–3 years, especially in saltwater environments. Opt for 2-inch-wide polyester straps labeled “break strength 3,500 lbs” from manufacturers like Strapworks or Tractor Supply Co.. Pair replacements with stainless steel cleats if corrosion is visible on existing mounts. Always inspect strap hooks for wear; bent or cracked hooks require immediate upgrade.
Axle and Bearing Upgrades
| Component | Replacement Type | Supplier | Cost Range (USD) |
|---|---|---|---|
| Hub assembly | Pre-greased sealed bearing | Bearing Buddy | 80–120 |
| Spindle | Drop-in shaft | etrailer | 150–220 |
| Electric brake pads | Ceramic composite | Dexter Axle | 40–75 |
Wheel bearings should be repacked every 5,000 km or annually; failure to do so risks wheel detachment. Use a torque wrench set to 15–20 ft-lbs for spindle nuts–over-tightening crushes races, under-tightening causes play. For torsion axles, grease fittings every 6 months with marine-grade lubricant; neglecting this step accelerates inner bushing erosion. Measure spindle diameter with calipers before sourcing parts–common sizes are 1.0625″, 1.25″, and 1.375″.
LED marker lights last 10+ years but corrode quickly in coastal regions. Replace with submersible 12V models from Bojie or Amazon, using dielectric grease on connections to prevent oxidation. For tandem setups, upgrade to 5-bulb assemblies instead of standard 3-bulb; increased visibility reduces rear-end collisions. Always secure wiring with adhesive-lined heat shrink tubing–zip ties degrade under UV exposure within 18 months.
Coupler and Safety Chain Maintenance
Couplers rated below 2″ ball diameter should be upgraded to 2-5/16″ for payloads exceeding 3,000 lbs. etrailer carries drop-forged steel couplers with adjustable latches; aluminum models corrode within 3–4 years. Safety chains require grade-70 or stronger; criss-cross chains under the tongue and secure with 3/8″ clevis pins. Avoid quick-links–opt for bolted master links rated for 10,000 lbs minimum. For surge brakes, rebuild kits ($30–50) restore faulty actuators but only delay inevitable replacement (ballpark $180–250 for full actuator assemblies).
