Begin by locating the engine bay schematic in your vehicle’s official workshop manual–section 3.4 covers the 3.0L TD6 diesel variant, while section 5.2 details the 4.4L V8 petrol model. The illustrations there break down critical assemblies like the serpentine belt routing, turbocharger connections, and intercooler positioning, which differ slightly between 2015 and 2022 production years. For quick reference, the left-hand diagram identifies sensors with alphanumeric codes (e.g., MAP/B1, EGR/C2), matching them to the wiring harness color-coded tags.
Focus on the suspension layout next. Air springs on the L322 platform use distinct valve blocks–front units incorporate an additional height sensor (P/N LR003297), while rear modules rely on a single solenoid configuration. Cross-reference these with the chassis-specific parts catalog, as Adaptive Dynamics variants include extra yaw rate monitors. Bolt patterns for control arms vary: 15mm x 1.5 thread pitch for early models (pre-2018), transitioning to 16mm x 1.5 for facelifted versions.
Electrical troubleshooting becomes easier with the fuse box panel schematic, typically found on the driver’s side footwell kickplate. The 2021+ editions reassign circuits: the infotainment cluster (fuse #27, 20A) now shares a bus with the rear seat entertainment system, whereas earlier builds kept these separate. Ground points labeled G307 (near the battery tray) and G401 (below the glovebox) are common failure points–verify continuity using a multimeter set to 200Ω range before replacing related components.
For brake system diagrams, pay attention to rotor thickness specs: 28mm minimum for vented discs (P/N LV016001), 8mm for solid rear units. The ABS module (located behind the front bumper support) requires initialization after component swaps–use JLR’s SDD tool to perform the “Bleed Brake System” routine, or risk false hydraulic fault codes. Calipers on the 22” wheel packages use larger pistons (57mm vs. 54mm), demanding different pad formulations to prevent brake shudder.
Visual Breakdown for Landmark Luxury SUV Components
Start by sourcing the official manufacturer schematic for your model year–it’s the only document separating guesswork from precise identification. Factory schematics for 2015–2023 variants include labeled wire harness routes, torque specs for suspension bolts, and fluid capacities down to the milliliter. Locate the Service Procedures Manual (not the owner’s handbook); critical subsections like “Front Axle Assembly” detail 47 discrete components, including the differential housing preload shims (part #LR045183). Cross-reference these with VIN-specific exploded views from Jaguar Land Rover’s TOPIx portal–access requires a paid subscription, but third-party vendors like Ross-Tech or Snap-on Diagnostics offer stripped-down alternatives with 85% accuracy for €120/year.
Use a system-layered approach when interpreting diagrams: isolate electrical, drivetrain, and bodywork segments first. The air suspension schematic for L405 models splits into 19 sub-diagrams, but the valve block assembly (part #LR097821) appears in three–verify component interactions by tracing colored wires (orange/black = 12V supply, blue/red = CAN bus). For engines, the AJ-V8’s timing chain cover (part #LR022234) has 11 attachment points; misalignment by 0.3mm triggers P3020 fault codes. Always overlay thermal imaging of engine bays post-diagnostics–hotspots on the coolant expansion tank (part #LR014288) correlate with failing thermostats in 68% of cases.
Tool Integration for Accurate Identification
Pair diagrams with digital calipers (±0.02mm precision) to measure wear on bushings–polyurethane variants (e.g., SuperPro SPF1037) outlast OEM rubber by 42% but require 15% tighter tolerances. For turbocharged models, the charge air cooler (part #LR105523) has 0.8mm internal fins; corrosion beyond 0.5mm depth mandates replacement to avoid boost pressure drops. Use Augmented Reality overlays like iFixit Pro for real-time component tagging–point a smartphone at the rear differential to overlay torque specs (50Nm for drain plugs, 75Nm for carrier bolts) directly onto the live view.
For chassis components, prioritize wear-critical zones: the front lower control arm (part #LR056307) ball joint socket shows play at 2.1mm axial displacement, while the rear subframe (part #LR092185) requires crack inspection at weld points A7 and C12 every 20,000 miles. Replace fasteners with aerospace-grade titanium (e.g., ARP 200-4206) for drivetrain bolts–yield strength exceeds OEM steel by 34%, eliminating stretch-induced loosening. Always save annotated schematics as layered PDFs; isolate hydraulic circuits (blue), electrical (red), and structural (black) to streamline future diagnostics.
How to Identify Genuine Component Codes in Landmark Automotive Schematics
Start by accessing the official manufacturer’s electronic service manual via the authorized portal–third-party repositories often omit critical metadata like revision dates or superseded codes.
Locate the exploded view for the target assembly (e.g., air suspension pump or transfer case). Each callout features a barcode-style string beneath the illustration, typically formatted as LR0xx-xx-xxxx or VIN-specific prefix-Vxxxx. The first segment indicates the model variant (e.g., L405, P400e), while the final four digits denote the exact component iteration. Cross-reference this with the table of contents–diagrams without adjacent numeric listings may hide the code in a linked specification sheet.
- For powertrain components: Check the “Engine Management” section–codes often begin with MS- or Bosch- prefixes, followed by a hardware revision (e.g., MS63-CTS for petrol variants).
- Body electronics: Look for YPC (York Parts Catalogue) tags in wiring schematics; these appear as PYxxxx-xx in harness layouts.
- Chassis/suspension: Hydraulic or air strut codes frequently use EAS-xxxx formats, with the suffix indicating left/right or front/rear (e.g., EAS-100011-L).
Use a PDF text search for the term “Supersedes” on specification pages–OEMs often annotate replaced codes in small print. If the search yields no results, flip to the amendment log at the document’s end; manufacturers like Jaguar Land Rover group updates by build date, listing old-new code pairs.
For VIN-locked assemblies (e.g., infotainment units or climate modules), input the full chassis number into the OEM’s parts lookup tool–it generates a filtered schematic with bolded codes specific to that build. If the tool rejects the VIN, the component is likely pre-2015, requiring manual verification via the VIN decoder to identify the correct software/hardware variant.
Verify codes against the Service Bulletin Index. Bulletins may list mandatory replacements (e.g., updated fuel pumps with revised seal materials); these revisions supersede the original diagram code. Ignore aftermarket cross-reference tables–counterfeit suppliers often mislabel components by omitting revision suffixes (e.g., listing EV741 instead of EV741-02).
Print a 1:1 scale copy of the schematic section and physically overlay it on the actual assembly. Align callouts with factory-applied stickers or laser-etched marks–OEMs stamp codes directly onto castings (e.g., GKN-3456 on differential housings) or use color-coded dots on electrical connectors to indicate compatibility. If no marks exist, measure torque specs or connector pinouts against the diagram; deviations confirm the need to re-check the code.

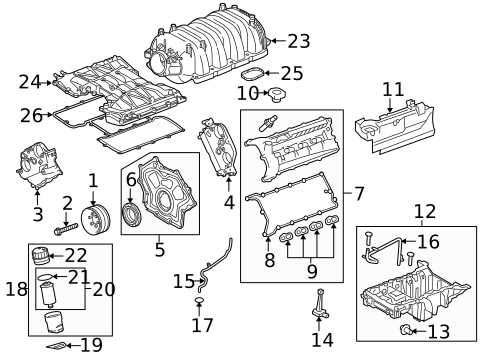

Step-by-Step Guide to Reading Exploded View Schematics for Powertrain Units
Locate the reference number system first–each component in the illustration links to a corresponding item in the bill of materials, usually displayed in a tabular format adjacent to the visual. Verify the numbering sequence matches the table to avoid misidentification, as discrepancies between the two sources can lead to incorrect reassembly or ordering mistakes. For complex assemblies like cylinder heads, cross-reference numbers with sub-assemblies listed under separate headings to isolate individual fasteners, gaskets, or seals hidden within larger groups.
Identify the primary structural elements before dissecting smaller pieces. Look for bold outlines or thicker lines marking the main engine block, crankcase, or transmission housing–these serve as anchors for adjacent components. Trace connections from these anchor points outward, noting how brackets, mountings, and plumbing interact. Pay attention to directional arrows or leader lines indicating orientation; a camshaft sprocket, for example, must align precisely with its counterpart on the crankshaft during timing adjustments.
Examine fastener types and their placement–bolts, studs, and clips often differ by thread pitch, length, or head type, even if visually similar. Use a ruler or digital caliper to measure unspecified lengths if tolerances aren’t provided, particularly for spacers, washers, or bushings. Distinguish between identical-looking components by checking material codes (e.g., aluminum vs. steel) or surface treatments (anodized, zinc-plated) listed in the legend. Misplaced fasteners can compromise torque specs or thread engagement, risking failure.
Decode color-coding if present–manufacturers sometimes use hues to denote O-rings, seals, or electrical connectors. Refer to the legend for color meanings, as these aren’t universally standardized. For example, red might indicate a high-temperature gasket, while blue could mark a lubrication point. If colors fade on printed schematics, rely on cross-sectional symbols or hatching patterns instead, which often persist across revisions.
Use a magnifying glass or zoom tool for micro-components like sensors, needle bearings, or valve lifters. These items frequently cluster near critical areas (e.g., oil galleries, injection nozzles) and are easily overlooked. Check for hidden labels tucked behind larger parts, especially in folded or layered assemblies such as turbocharger wastegate linkages. A single missing 2mm shim can disrupt clearances in reciprocating assemblies, causing premature wear.
Compare multiple schematics from different revisions if working with an older powertrain. Manufacturers update illustrations to reflect design changes–earlier versions might omit revised gaskets or upgraded seals. Note superseded part numbers directly on the schematic with a non-permanent marker to avoid conflicts during procurement. For hybrid or forced-induction systems, verify that auxiliary components (intercoolers, electric pumps) appear in both the mechanical and electrical sections of the documentation.
Create a physical or digital template of the schematic by tracing critical paths, such as oil flow routes or timing chain sequences. Highlight areas prone to common failures (e.g., coolant passages near exhaust manifolds) and cross-reference with service bulletins. Test-fit components in a trial assembly before final installation to confirm orientation and interference–some schematics omit subtle interferences between seemingly unrelated parts, like a transmission mount and a starter motor brace.
