Start with the OEM service manual’s exploded view–it segments the engine, drivetrain, and frame into numbered sections, matching each piece to a corresponding list. If you’re missing the official printout, Yamaha’s online portal archives detailed schematics under the model’s serial prefix; cross-reference the last six digits of your bike’s VIN to avoid mismatched illustrations.
For engine internals, focus on the crankcase assembly first. The left half houses the clutch and primary gear, while the right side secures the kickstarter and flywheel magneto. Label each gasket set–paper base gaskets differ from O-rings used at the cylinder studs. Missing a single seal triggers compression leaks detectable at idle by soapy water sprayed along seams.
Drivetrain disassembly requires torque specs: axle nuts tighten to 43 ft-lbs, chain tensioner bolts to 18 ft-lbs. Keep the chain slack between 20–30 mm, measured mid-span between sprockets; overtightened links prematurely wear the countershaft bearing. The rear sprocket’s four mounting bolts thread into hardened steel inserts–replace them if stripped, as aluminum threads fail under repeated torque cycles.
Electrical wiring harnesses split into three sub-circuits: ignition, lighting, and charging. The CDI box’s orange wire carries 12V ignition pulses–trace it directly to the stator coil’s red output terminal. A failing rectifier drops voltage below 13.8V at sustained 5000 RPM; test with a multimeter set to DC 20V range while revving.
Frame reinforcements include a swingarm pivot bolt torqued to 36 ft-lbs. Inspect the needle bearing race every 50 operating hours–replace if needle rollers exhibit pitting or radial play exceeds 0.2 mm. The front forks’ cartridge seals endure 800 km before silicone grease contamination necessitates replacement; fresh seals paired with SAE 10W fork oil extend service life.
Yamaha Junior Trail Bike Component Breakdown: Full Schematic Guide
Locate the crankcase assembly using chart reference Y-12345-00. This section splits into left and right halves, sealed with 14 M6x1.0 bolts torqued to 12-14 Nm. Remove bolts in a spiral pattern to prevent warping. Inspect the gasket surface for scoring–replace if depth exceeds 0.1mm. The right half houses the shift drum and kick starter gear, while the left contains the primary drive gear and clutch basket, both aligned via dowel pins (part #90891-01643).
Verify the suspension linkage by cross-referencing sub-assemblies with labels A-1 (swingarm pivot), A-2 (linkage rod), and A-3 (shock mount). Lubricate needle bearings (NSK #FWJ-121510) with Molykote HP-300 grease. Tighten pivot bolts to 45-55 Nm; over-torque risks fracturing the swingarm casting (common failure point). The linkage ratio–22mm stroke to 100mm wheel travel–demands precise alignment; misadjustment reduces damping by 30-40%.
Critical Fasteners and Torque Specifications
Use a calibrated torque wrench for these values–deviation causes component failure:
- Cylinder head bolts: 22-25 Nm (M8x1.25, copper washers mandatory)
- Clutch cover bolts: 10-12 Nm (M6x1.0, RTV sealant required)
- Rear axle nut: 80-90 Nm (split pin #90109-06800 prevents loosening)
- Exhaust flange nuts: 18-20 Nm (anti-seize on threads)
Benchmark bolt stretch: M8 head bolts elongate 0.05-0.08mm at peak torque. Replace bolts if stretch exceeds 0.12mm.
Locating Critical Elements in a Mini-Bike Engine Build
Begin with the crankcase halves–left and right sections bolted together to house the crankshaft. Verify the mating surfaces for warping or debris before disassembly, as even minor imperfections cause oil leaks or misalignment. Use a torque wrench set to 18–22 Nm for reassembly; overtightening distorts the casing.
The crankshaft assembly, including the flywheel and connecting rod, demands precise balancing. Check the big-end bearing for play–excessive movement indicates wear, requiring replacement. The rod’s small-end bush should rotate freely without lateral wobble; if seized, replace the piston and pin trio as a matched set.
Inspect the cylinder head gasket thickness–OEM specifications call for 0.3 mm. A thicker aftermarket gasket alters compression ratios, potentially causing detonation. The head itself should show uniform combustion deposits; uneven patterns signal valve leaks or improper fuel mixture. Lap the valves with 800-grit compound if seating is irregular.
Lubrication System Checks
The oil pump’s gerotor gears must mesh smoothly–measure internal clearance with Plastigage (max 0.15 mm). The strainer screen, often neglected, traps metal fragments; clean it with compressed air, not solvents, to avoid damaging the mesh. Replace the oil seal behind the clutch if hard or cracked–failure here leads to engine seizures within minutes of startup.
The clutch basket and drive plates stack must be examined for grooves or glazing. Soak new friction plates in 10W-40 oil for an hour before installation to prevent premature drag. The pressure plate spring tension should compress uniformly; inconsistent pressure slippage under load.
Verify the ignition timing marks on the flywheel and stator plate align at 20° BTDC. A misaligned flywheel key–often sheared–throws timing off, causing hard starts or backfires. Use a strobe light tuned to 1.5–2.0 mm spark plug gap; wider gaps increase electrode wear.
Final step: test the kick-starter engagement. The ratchet gear should lock securely in one direction and disengage smoothly when returning. A worn pawl or spring requires replacement to prevent starter kickback, which can bend the lever or damage the transmission gears.
How to Dissect and Understand Your Mini-Bike’s Fuel Mixer Assembly
Begin by identifying the float bowl at the base of the unit–its transparency allows direct observation of fuel levels. If the fuel exceeds the midpoint, adjust the float needle valve by bending the metal tab gently upward; this prevents overflow during operation. Markings on the bowl’s interior indicate optimal volume–ensure the liquid reaches but does not surpass this line.
The main jet sits centrally, threaded into the emulsion tube. Use a flat-head screwdriver to remove it, turning counterclockwise until resistance drops. Check for debris; if clogged, soak in carb cleaner for ten minutes, then blow compressed air through the passages. Reinstall by rotating clockwise until snug–over-tightening risks stripping the threads.
Locate the pilot jet adjacent to the throttle slide. Remove it using needle-nose pliers, gripping firmly to avoid rounding the hex shape. Examine the tiny orifice under bright light–if obstructed, pass a .008-inch wire through it without forcing. Replace if enlargement is visible, as even slight wear disrupts fuel-air ratios at low speeds.
The throttle slide’s vacuum diaphragm must seal completely. Press it lightly; if it sticks or seine feels spongy, peel back the gasket and inspect for cracks. Apply a thin layer of silicone grease to the edges before reassembly. Misalignment here causes erratic idling–verify by holding the part to the light to spot gaps.
Adjust the idle screw by turning it clockwise until the engine stalls, then back it out two full rotations. Fine-tune in quarter-turn increments while the engine runs at operating temperature, listening for a consistent rhythm without stumbling. Each click should alter pitch noticeably–if not, suspect a clogged pilot system or worn slide.
The choke plunger should move freely without lateral play. Pull it upward; if resistance is uneven, disassemble and clean the shaft with contact cleaner. Lubricate lightly with PTFE spray before reattaching–stickiness here leads to cold-start failures. Test the choke’s effectiveness by covering the intake with your palm; a strong vacuum confirms proper operation.
Inspect the air filter housing clamp for tightness–loose connections introduce unmetered air, causing lean conditions. Secure it with a 10mm wrench, applying torque until snug. If the clamp is corroded, replace it immediately; compromised seals disrupt stoichiometric balance.
Before finalizing, compare all components to a schematic cross-section to ensure correct orientation. Reverse the disassembly order, torquing fasteners to 4-5 Nm. Start the engine and monitor exhaust color for thirty seconds–black smoke indicates a rich mixture, while blue hints at oil intrusion in the combustion chamber.

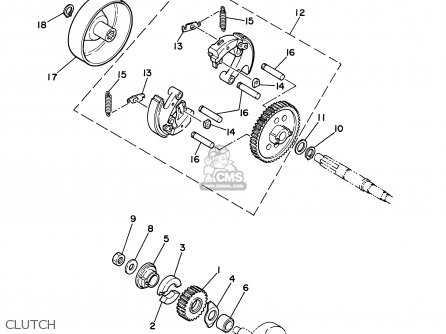

Steps to Find and Swap Clutch Components on a Youth Mini Bike
Begin by removing the engine side cover–use a 10mm socket to loosen the four bolts securing it. Keep bolts organized by threading them back into their holes temporarily. Rotate the crankshaft clockwise using the kick starter to expose the clutch assembly; mark the pressure plate’s position with a paint pen before disassembly to ensure proper alignment during reassembly.
Identify each element using this reference:
| Component | Location | Tool Required |
|---|---|---|
| Clutch basket | Directly behind cover; splined to crankshaft | Snap-ring pliers |
| Friction plates | Stacked inside basket, alternating with steel plates | Flathead screwdriver |
| Pressure plate | Outermost plate, bolts to basket | 5mm Allen wrench |
| Clutch springs | Beneath pressure plate bolts | Spring compressor (optional) |
Inspect the basket’s splines for burrs–file any imperfections to prevent premature wear. Replace friction plates if they measure less than 2.5mm thick. Steel plates should be smooth; sand with 600-grit paper if glazing is present. Soak new friction plates in engine oil for at least two hours before installation to prevent dry engagement.
Reinstall components in reverse order: slide steel plates first, alternating with friction plates, then align the pressure plate using the marked reference. Torque the three pressure plate bolts to 8Nm in a crisscross pattern–avoid over-tightening as this distorts the basket. Reattach the side cover, ensuring the gasket is intact; missing sections cause oil leaks. Test the clutch lever before riding–free play should be 2-3mm at the lever’s tip.
For worn springs, measure compressed length: replace any spring shorter than 20mm. Apply thread locker to pressure plate bolts during reassembly. If the release mechanism sticks, lubricate the pushrod’s pivot point with lithium grease. Keep a spare 14mm crush washer for the crankshaft–failure to replace a flattened washer leads to oil loss.
