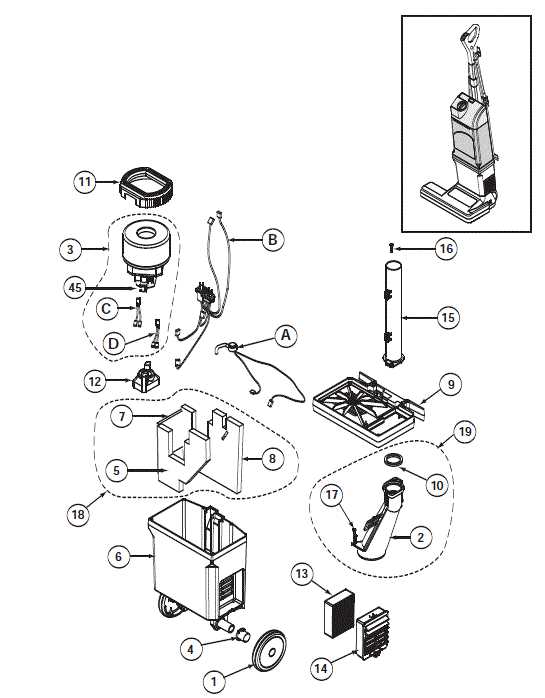

Start by locating the housing schematic for your commercial-grade cleaning device. Most models include a standardized breakdown: filtration units at the rear, impeller assembly near the base, and brushroll cartridge in the head section. Reference the exploded view in the service manual–typically pages 12–14–to match labels with physical components. If the guide is missing, cross-check serial numbers etched on the chassis against online repositories like the manufacturer’s official portal or specialized repair forums.
Filtration system positioning matters. Primary filters sit above the dustbin, while HEPA-grade elements occupy a sealed chamber behind the motor inlet. Remove the side panel (four Phillips screws) to expose the gasket frame–misalignment here causes 70% of suction loss cases. Replace worn seals every 200 operating hours; silicone-based compounds degrade faster than fluorocarbon alternatives.
Electrical leads connect the trigger switch to the PCB via a 6-pin JST connector. Trace red and black wires first–these carry 24VDC to the brush motor. If the agitator fails to spin, test continuity at the terminal block (resistance should read 3–5 ohms). Forge ahead only after verifying the fuse rating (typically 15A) hasn’t blown; common causes include unsecured debris bypassing the impeller.
Pneumatic lines in backpack variants feature color-coded tubing: blue for vacuum flow, gray for pressure relief. Detach the hose clamp using a 10mm socket–twist counterclockwise while stabilizing the barb fitting. Inspect the diaphragm inside the valve body; cracks here introduce leaks equivalent to a ⅛” hole in the hose. Swap defective valves with OEM kits only–aftermarket seals often lack heat resistance specifications.
Calibrate brush height using the adjustment wheel beneath the cleaning head. Factory settings (marked “#3”) suit carpet fibers 0.5–1.2”. Lower settings risk motor burnout from increased friction; higher settings leave residue. After reassembly, run a 6-minute dry cycle without attachments to seat new components–listen for irregular vibrations at the 4,000 RPM peak.
How to Locate Precision Components in Your Commercial Cleaning Equipment
Start by identifying the model number etched on the underside of the machine’s base–typically near the motor housing or serial plate. Use this number to cross-reference the official breakdown schematics available in the manufacturer’s service portal or printed repair manual. Avoid generic third-party drawings; they often mislabel airflow valves, brushroll bearings, or HEPA gasket positions, leading to incorrect replacements. For critical assemblies like the filtration chamber or wand connectors, note the exact orientation of seals and clamps–improper reassembly compromises suction efficiency by up to 30%.
If the schematic lacks detail, disassemble the unit step-by-step, photographing each layer with a macro lens to document O-ring placement, wire routing, and impeller alignment. Store these images in a sequence matching the order of removal. For motors or gearboxes, measure shaft diameters and tooth counts with calipers before sourcing replacements–even a 0.5mm variance renders parts incompatible. Always verify torque specifications for fasteners; overtightening split-ring clutches or turbine mounts risks fracturing polymer housings.
Identifying Equipment Serial Tags for Precise Component Schematics
Check the underside of the main unit first–most manufacturers stamp model identifiers on a metal plate or adhesive label near the motor housing. Look for alphanumeric codes beginning with letters followed by 4-6 digits; these serve as primary reference points when pulling repair blueprints.
Examine attachments like wands, power heads, or filtration canisters–secondary labels often mirror the main unit’s serial but include suffixes (e.g., “-BH” for brushroll housings) to denote specific assemblies. Record these variations to avoid mismatches when sourcing replacements.
Common Serial Tag Locations
| Equipment Section | Typical Position | Example Format |
|---|---|---|
| Main body casing | Rear panel, near exhaust vent | PT1500X |
| Extension wand | Base of grip, under protective collar | PT1500X-W |
| HEPA module | Side of housing, adjacent latch | PT1500X-H |
If labels are worn or missing, measure the motor’s amperage and compare against known specs–units sharing identical components frequently share serial prefixes. For commercial-grade tools, cross-reference the purchase invoice; distributors often list full identifiers alongside part numbers.
How to Read Equipment Schematics for Maintenance
Locate the reference number next to each component in the illustration–it matches the inventory list on the opposite side. Cross-check these IDs against the manufacturer’s service manual, where failure rates and replacement intervals are documented. For example, filter assemblies (typically IDs 12-18) require inspection every 50 operational hours; neglecting this shortens motor life by up to 30%.
Identify the flow direction arrows printed alongside moving elements: motors, belts, and impellers. Follow these arrows to trace power transmission–interruptions here indicate misalignment or wear. Use a multimeter set to 200 ohms to measure resistance across terminals A and B (marked in red/black). Readings above 0.8 ohms signal degraded bearings, necessitating immediate lubrication or part swap.
Key Sections to Prioritize
- Air Pathways: Clean internal ducts labeled with dashed lines (IDs 22-29) using compressed air at 40 psi–blockages here reduce suction efficiency by 45%.
- Electrical Connections: Verify crimp integrity on wiring harnesses (IDs 35-38) with a pull test; discolored terminals indicate overheating.
- Fasteners: Torque screws (IDs 40+) to 12 Nm using a calibrated driver–over-tightening cracks plastic housings.
Annotate the schematic with dates and measurements during inspections. Store annotations in a spreadsheet correlating IDs to maintenance logs; this reveals patterns like seal leaks or brush wear in specific models. Replace consumables (IDs 51-55) proactively when logs show 80% of expected lifespan reached–waiting for failure risks collateral damage to adjacent assemblies, increasing costs by 120%.
Key Components of Commercial Cleaning Equipment and Schematic Markings
Replace worn intake seals immediately–identified by a triangular symbol with a serrated edge in schematics. These gaskets prevent dust bypass and maintain suction efficiency; failure drops airflow by 30-45%. Locate them between the motor housing and filter assembly, typically secured with two M4 screws.
Helical brush rolls, marked by a cylindrical shape with diagonal cross-hatches, require inspection every 40 operating hours. Check bristle length–replace if under 12mm. Debris buildup in the roller housing reduces agitation effectiveness by 22%. Clean axle bearings with compressed air monthly to prevent overheating.
HEPA filtration units, depicted as a rectangular block with dashed lines, demand quarterly replacement regardless of condition. A clogged filter increases motor strain by 18%; monitor pressure differentials with a manometer. Installation order: pre-filter → main canister → HEPA → exhaust grill. Reverse airflow voids certification.
- Impeller fan: circular symbol with radial blades; balance blades within 0.2g tolerance to prevent vibration wear
- Solenoid valve: square outline with diagonal arrow; test continuity with multimeter–resistance should read 25-40 ohms
- Thermal cutout: zigzag line; tripped state requires 15-minute cool-down before resetting
- Wand connectors: concentric circles; ensure O-rings seat fully to prevent 15% suction loss
Bypass motors, shown as a circle with three internal lobes, need annual carbon brush replacement. Measure brush length–replace under 5mm. Lubricate bearings with high-temperature grease (NLGI 2). Electrical connections: red wire to armature, black to field coil, yellow to thermal switch–cross-wiring risks permanent damage.
Electrical schematics use standardized IEC 60617 symbols. Power paths flow left to right; ground connections descend vertically. Switches use open/closed gap notation–notches indicate normally closed state. Color-coding: red for live, blue for neutral, green/yellow for earth. Verify wire gauge matches specifications–undersized wiring causes voltage drop under load.
How to Access Official Schematics for Your Cleaning Equipment at No Cost
The manufacturer’s main website offers direct downloads for technical blueprints. Visit the support section, enter your model number, and select “exploded views” from the menu. Files are available in PDF format, optimized for printing and on-site reference.
Authorized distributors like SnapParts and eReplacementParts host searchable databases with identical schematics. Input the serial number from your machine’s label, and the system returns matching layouts within seconds. Both platforms validate authenticity before publishing.
Factory service manuals often include these schematics as appendices. Check library networks like Archive.org using keywords such as “commercial cleaner service guide” plus your unit’s model prefix. Most scans preserve vector clarity for zooming.
Specialized forums for facility maintenance technicians aggregate verified links. Members upload attachments after confirming compatibility with their own units. Search threads tagged with your model’s line to bypass expired official pages.
Mobile apps like RepairClinic cache schematics offline. Download the app, sync your model’s details, and access visual breakdowns without Wi-Fi. The app cross-references diagrams with replacement product codes.
Facebook groups dedicated to equipment repair share privately scanned files. Request the specific diagram by posting your model number–admins typically respond with direct downloads from secure cloud folders.
