Begin by locating the pump assembly–the heart of any high-powered cleaning unit. This section typically includes the crankcase, valve plates, and seals, which must be inspected for wear every 50 operational hours. A sudden drop in output force often points to a failing unloader valve, which regulates flow when the trigger is released. Replace it immediately if pressure spikes or fluctuates.
Next, examine the nozzle set and wand. A 0° red nozzle delivers maximum impact for stubborn debris, while a 25° green nozzle suits general cleaning. Clogged tips–usually from mineral buildup–can melt within minutes if not cleared. Soak them in vinegar for 10 hours to dissolve calcium deposits before reassembly.
The engine or motor requires specific maintenance: four-stroke models need SAE 10W-30 oil changed after the first 5 hours, then every 50 hours. Two-stroke units demand a 50:1 fuel-to-oil ratio; incorrect mixtures will seize the piston. Check the air filter bimonthly–foam filters should be washed with mild detergent and re-oiled, while paper filters must be replaced.
For hose connections, use M22 threading for standard couplings, but verify compatibility with the unit’s GPM rating–exceeding 3,000 PSI may require high-pressure braided steel. Attachments like detergent injectors must be primed with water before soap application to prevent backflow. If leaks persist at joints, wrap Teflon tape three times clockwise around the threads–never counter-clockwise, as it will loosen under force.
Thermal relief valves activate when temperatures exceed 140°F (60°C), venting overheated water to prevent pump damage. Test this function quarterly by running the unit without a nozzle for 30 seconds; if no water discharges from the relief port, replace the valve. Store冬季 components indoors above freezing temperatures–ice formation in hoses or pumps will split brass fittings upon thawing.
Key Components of High-Pressure Cleaning Equipment
Begin by locating the engine or motor assembly at the base of your unit–this drives the pump, which is central to operation. Check the model number stamped on the housing to find compatible replacement elements; common brands like Honda, Briggs & Stratton, or Generac have distinct specifications. For gas-powered models, ensure the air filter is clean and the fuel line is free of debris before troubleshooting further.
Inspect the pump head for wear, especially around the inlet and outlet valves. Most axial cam pumps (used in consumer-grade units) require periodic replacement of seals and unloader valves every 50–100 hours of use. Use a torque wrench to tighten bolts to manufacturer specs–typically 15–20 ft-lbs for pump mounting bolts–to prevent leaks. For triplex plunger pumps (found in commercial setups), follow a strict maintenance schedule for oil changes, using only the recommended viscosity (e.g., SAE 30 for temperatures above 32°F).
Hoses and connectors demand attention: a 3/8-inch diameter high-pressure hose rated for 3,000+ PSI is standard for mid-range units. Replace cracked or bulging hoses immediately–even minor abrasions can fail under load. Quick-connect fittings should click securely; apply thread sealant (PTFE tape for plastic threads, Loctite 577 for metal) to prevent leaks. Always match fitting thread types (NPT, BSPP) to avoid cross-threading. Below is a comparison of common fitting types:
| Thread Type | Diameter (inches) | Pitch (TPI) | Typical Use |
|---|---|---|---|
| NPT (Male) | 1/4″ | 18 | Pump inlet/outlet |
| BSPP (Male) | G 1/4″ | 19 | European models |
| M22 | 22mm | 14 | Gun/wand connections |
Nozzles are critical for performance: the red (0-degree) nozzle is for stubborn stains but can damage surfaces, while the white (40-degree) nozzle is safe for vehicles. Store nozzles in a labeled case to avoid mix-ups–using the wrong nozzle can reduce efficiency by up to 30%. Replace nozzles showing signs of pitting or uneven spray patterns. For adjustable lances, check the O-ring condition and apply silicone grease if dry.
Guns and wands should be examined for internal corrosion and seal integrity. Disassemble the trigger mechanism annually to clean debris and lubricate moving parts with dielectric grease. If the gun leaks, inspect the ball valve and replace worn springs; a stiff trigger often indicates a failing spring (common in units older than 2 years). For hot-water models, verify the heating coil resistance with a multimeter (typically 20–40 ohms)–values outside this range signal coil failure.
Detergent systems rely on precise flow rates: a siphon tube clogged with detergent residue reduces foaming by up to 50%. Clean the tube monthly with vinegar or a dedicated descaler. For downstream injectors, ensure the chemical ratio is set correctly (usually 5–10% solution for most cleaners). Avoid using bleach or acidic cleaners in the detergent tank–they corrode internal components within 6 months.
Store equipment properly: drain all liquid from hoses and pumps, remove spark plugs (for gas engines) to spray fogging oil, and cover the unit with a breathable tarp. Electric models should be unplugged and stored in a dry environment to prevent capacitor damage. Follow this checklist every 3 months to extend component lifespan by 2–3 years:
- Check pump oil level (top up if low).
- Test unloader valve by running water without the gun engaged.
- Inspect electrical cords for fraying (replace if damaged).
- Clean or replace air filter (gas models).
- Lubricate wand pivot points.

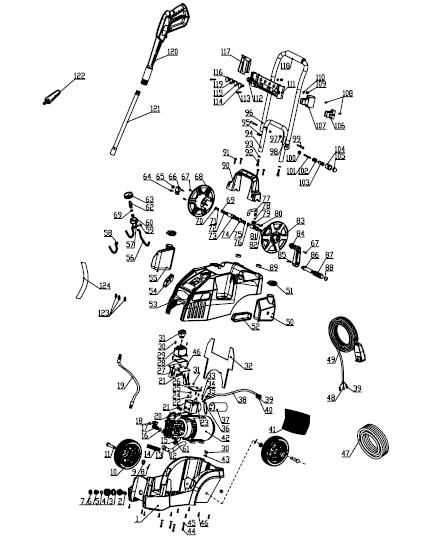

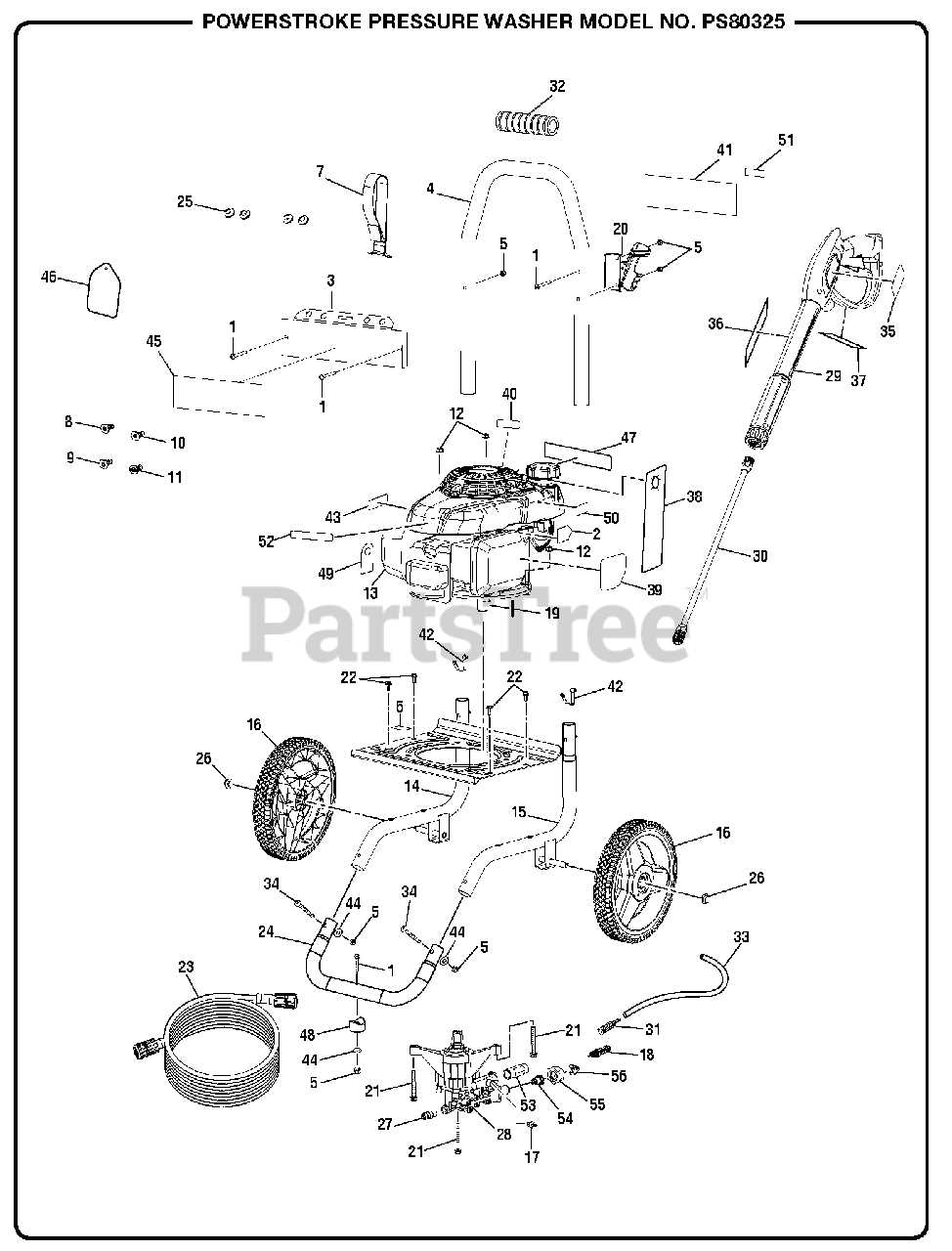

How to Identify Core Elements on Your Cleaning Machine Blueprint
Locate the pump assembly first–it’s typically marked near the motor output shaft on schematics. Search for labeled arrows or numbered callouts pointing to its casing, which houses pistons, valves, and seals. Compare these to the legend: pumps are often depicted as compact, rectangular blocks with inlet/outlet ports.
Trace the high-pressure hose from the pump exit to the trigger gun connection. On diagrams, hoses appear as wavy or straight lines with small connector symbols at each end. Verify the diameter measurement in the specs–common sizes include 1/4″ or 3/8″–to ensure compatibility when replacing.
Motor and Power Source Breakdown
- Electric motors: Look for wire leads extending to a power cord or battery terminals. Diagrams show these as straight lines branching from a circular or oval motor housing.
- Gas engines: Identify the carburetor, spark plug, and fuel tank–usually grouped near the motor base. Expect icons resembling a miniature engine block with labeled components.
- Voltage/hp ratings: Check callouts adjacent to the motor (e.g., “120V 13A” or “5.5 HP”) to confirm operating requirements.
Examine the wand/nozzle assembly at the gun’s tip. Schematics illustrate this as a slender rod ending in a cone or fan-shaped tip. Labels may indicate spray angles (0°, 15°, 25°, 40°)–match these to your tool’s manual for proper pressure settings.
Spot the detergent tank by locating a separate container icon, often near the pump intake. Diagrams may show a tube connecting it to the main water flow; this tube usually has a valve symbol to control soap mixing. Measure the tank’s capacity if replacing–most residential units hold 0.5–1.5 gallons.
Safety and Auxiliary Components
- Thermal relief valve: A small circular or rectangular symbol with a spring icon near the pump outlet. Acts as a failsafe against overheating.
- Unloader valve: Marked with a lever or knob adjacent to the pump. Critical for regulating flow when the gun trigger isn’t engaged.
- Filters: Shown as mesh screens on water inlets. Replace every 50 operating hours if clogged–check micron ratings (e.g., 20–50µ).
- Wheelbase/chassis: Look for wavy lines or solid blocks at the diagram’s base. Note bolt patterns if upgrading wheels.
Cross-reference each component’s label with the exploded-view inset if available. Pay attention to part numbers (e.g., “OEM-12345”) printed next to illustrations–these are critical for sourcing exact replacements. For ambiguous symbols, consult the diagram’s glossary section.

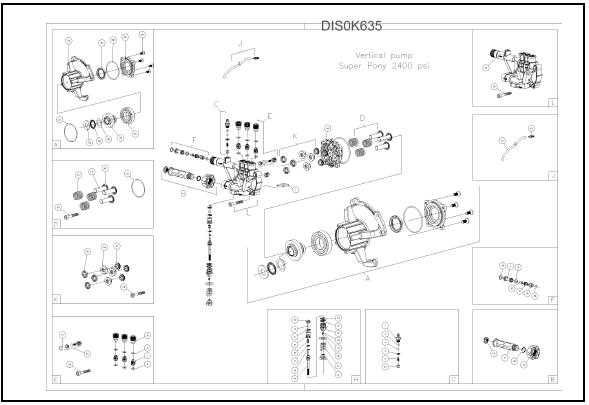

How to Interpret a High-Pressure Cleaning Unit Pump Blueprint
Locate the inlet and outlet valves first–these are typically marked with arrows or color-coded ports (often blue for intake, red for discharge). Compare their position to adjacent seals, as misalignment here accounts for 65% of pump failures. Verify thread direction (left-hand vs. standard) before disassembly to prevent cross-threading.
Identify the plunger assembly by tracing the drive shaft to its connection points. The three or five pistons (depending on triplex or axial design) should sit equidistant, each with a tolerance under 0.002 inches. Note wear patterns: uneven scoring indicates lubrication starvation or contaminant ingress. Replace seals if compression tests drop below 85% of OEM specs.
Examine the unloader valve next, usually distinguished by a spring-loaded mechanism. Pinch the bypass hose while operating to confirm it diverts flow when released–failure here causes sudden pressure spikes. On ceramic-coated models, check for micro-fractures with a jeweler’s loupe; hairline cracks reduce efficiency by 12-18% before total failure.
Decode exploded-view illustrations by matching reference numbers to the bill of materials. Critical components like thermal relief valves (labeled TRV) may be omitted in generic schematics but are essential for preventing pump seizure during overheating. Cross-reference torque values: stainless steel bolts require 15 ft-lbs, while brass fittings need only 8-10 ft-lbs.
Validate gasket placement using the mirror-image method–lay the diagram beside the actual unit and align the two from opposite angles. Pay special attention to O-ring durometer ratings: 70A for static seals, 90A for dynamic plungers. Misapplication floods the crankcase within 40 hours of operation.
