Replace the fluid reservoir cap immediately after inspection to prevent contaminants from entering the system–even microscopic debris can accelerate wear on seals and bearings. The rotor and vane assembly operates under pressures up to 1,500 PSI; inspect vanes for scoring or uneven wear every 30,000 miles. A worn vane reduces pressure output by up to 40%, forcing the vehicle’s assist mechanism to work harder and increasing fuel consumption by 3-5%.
Check the drive pulley for misalignment if you notice a whining noise or vibration at idle. A pulley offset by just 0.5° can reduce belt lifespan by 60%. The pressure relief valve should open at 1,200–1,400 PSI–test it with a pressure gauge during flush procedures. If it sticks, internal leaks will overheat the fluid, degrading seals and causing premature failure of the entire assembly.
Examine the housing bore for pitting or corrosion. A surface roughness exceeding 0.2 micrometers will prevent proper sealing, leading to hydraulic slip and inconsistent assist. The input shaft seal must be replaced with every bearing service–ignoring this leads to fluid leaks and catastrophic bearing failure within 5,000 miles. Use only OEM-spec seals; aftermarket alternatives often lack the required nitrile coating, reducing durability by 30%.
Measure the flow control valve spring tension with a dynamometer–spec is 8–10 lbs at full compression. Weak springs cause the valve to open prematurely, reducing assist at low speeds and increasing driver fatigue. The reservoir screen should be cleaned during every fluid change; clogged screens restrict flow by up to 50%, starving the system of lubrication and causing cavitation in the rotor assembly.
Ensure the pressure hose fittings are torqued to 25–30 ft-lbs–over-tightening cracks the aluminum housing, while under-tightening leads to leaks. The return line orifice must remain unobstructed; a blocked orifice increases backpressure, overheating fluid and damaging the drive shaft seal. Replace the entire high-pressure hose if internal reinforcement wires show signs of fraying–even a single broken strand reduces burst pressure by 20%.
Understanding Your Hydraulic Assist Gear Component Layout
Begin by locating the reservoir cap–it often doubles as the dipstick for fluid checks. Most units, like the ZF or Saginaw models, position it on the upper rear, marked with “MAX” and “MIN” indicators. Check fluid weekly; contamination causes 60% of assist failures.
Identify the flow control valve next. This brass or aluminum component regulates pressure and sits between the inlet and outlet ports. Corrosion here restricts fluid movement, reducing assist by up to 40%. Clean it with a nylon brush and alcohol-based solvent.
Inspect the rotor and vane assembly–the core of fluid displacement. Vanes slide within the rotor’s slots; wear here creates grooves, leading to whining noises. Measure vane length against specifications (e.g., 20.5mm ±0.1mm for TRW units). Replace if worn beyond tolerance.
- Pressure hose: Attached to the outlet port, rated for 1,200–1,500 psi. Replace immediately if brittle or leaking.
- Return hose: Lower pressure (50–100 psi), prone to collapse. Reinforce with spring wire inserts if kinked.
- Pulley: Press-fit; requires specialized puller for removal. Misalignment causes belt squeal.
The shaft seal prevents fluid leaks where the driveshaft exits. A faulty seal drips fluid onto the drive belt, causing slippage. Replace with a Viton seal for synthetic fluid compatibility–standard seals degrade in weeks.
Dismantle the unit methodically: label every component with position numbers. Use a magnetic tray for small items (e.g., springs, washers). Clean all parts in hydraulic fluid–not brake cleaner, as it attacks seals. Reassemble with fresh fluid; never reuse drained fluid.
After reassembly, prime the system by turning the pulley by hand until resistance increases–indicates fluid circulation. Start the engine and turn the wheel fully left and right three times to purge air. Check for leaks under 1,000 psi load; tighten fittings if damp spots appear.
Recognizing Core Elements in a Hydraulic Assist Mechanism Schematic
Begin by locating the reservoir–the fluid storage chamber typically positioned at the upper section of most assemblies. Its translucent or semi-opaque housing allows visual inspection of fluid levels, and it often includes a dipstick or sight glass for accurate measurement. Verify the cap’s venting system; clogged or malfunctioning vents cause aeration, leading to erratic assist performance. Check for sediment buildup at the base, as contaminants degrade seals and reduce system longevity.
Next, trace the rotor and vanes within the housing–the heart of pressure generation. The rotor, driven by the pulley, spins eccentrically within a cam ring, while the vanes slide in and out of slots to maintain contact with the ring’s inner surface. Uneven wear on vanes or scoring on the cam ring indicates excessive contamination or misalignment. Measure vane length against manufacturer specifications; worn vanes compromise flow rates, resulting in delayed or inconsistent force feedback.
Evaluating Fluid Flow and Control Valves
Inspect the flow control valve, usually integrated into the outlet port. This component regulates fluid release to the rack or gearbox based on demand, preventing overpressure during high-speed maneuvers. A stuck or clogged valve causes either stiff response or over-assistance; test by manually cycling the wheel with the engine off–abnormal resistance suggests valve failure. Replace O-rings and seals if fluid leaks appear around the valve body, as degradation here leads to system-wide inefficiency.
Finally, examine the pressure relief valve, often a spring-loaded piston near the pump’s output side. Its role is critical: it diverts excess fluid back to the reservoir when pressure exceeds safe limits. A weakened spring or corroded valve seat allows unregulated pressure spikes, risking hose bursts or internal leaks. Disassemble and clean the valve annually, replacing springs if compression is below spec. Use only manufacturer-recommended fluid to maintain optimal viscosity and seal compatibility.

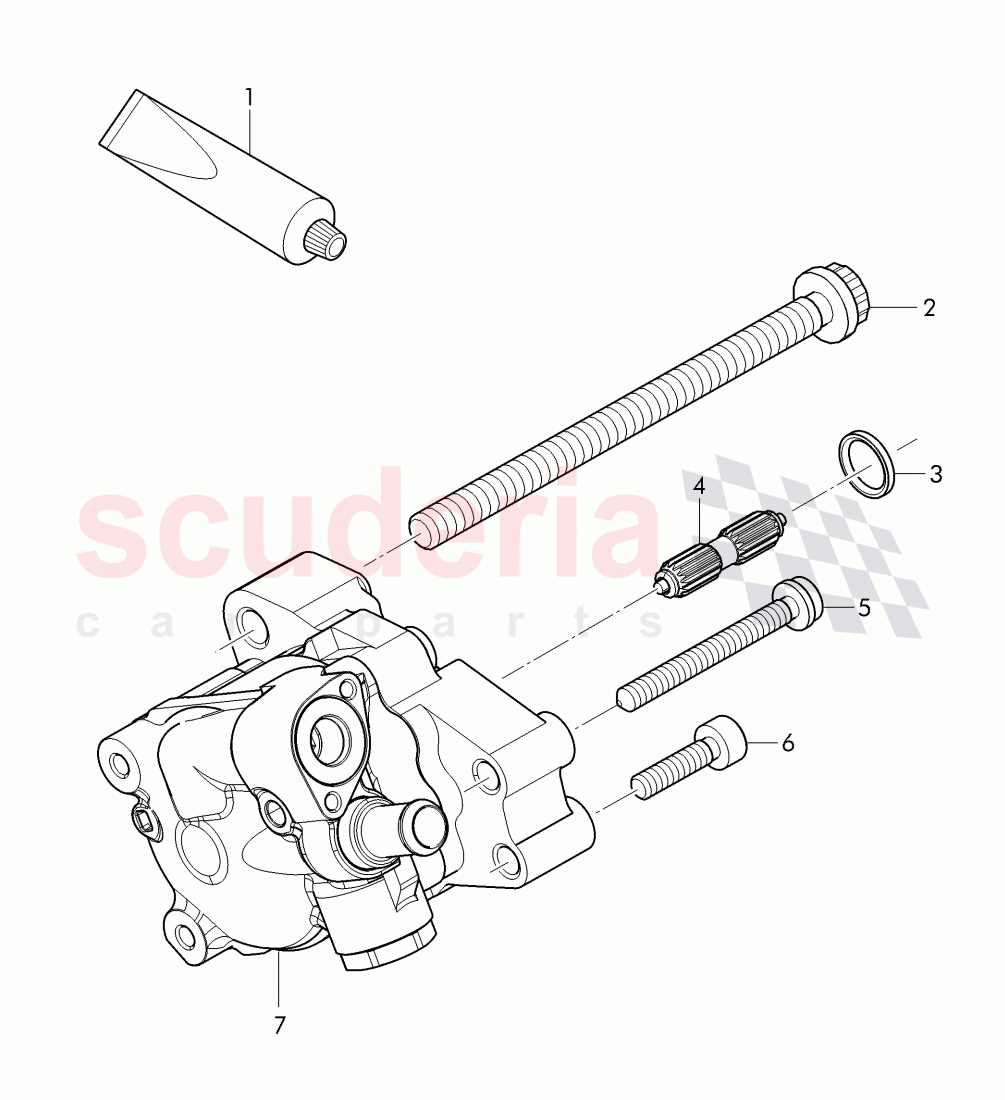

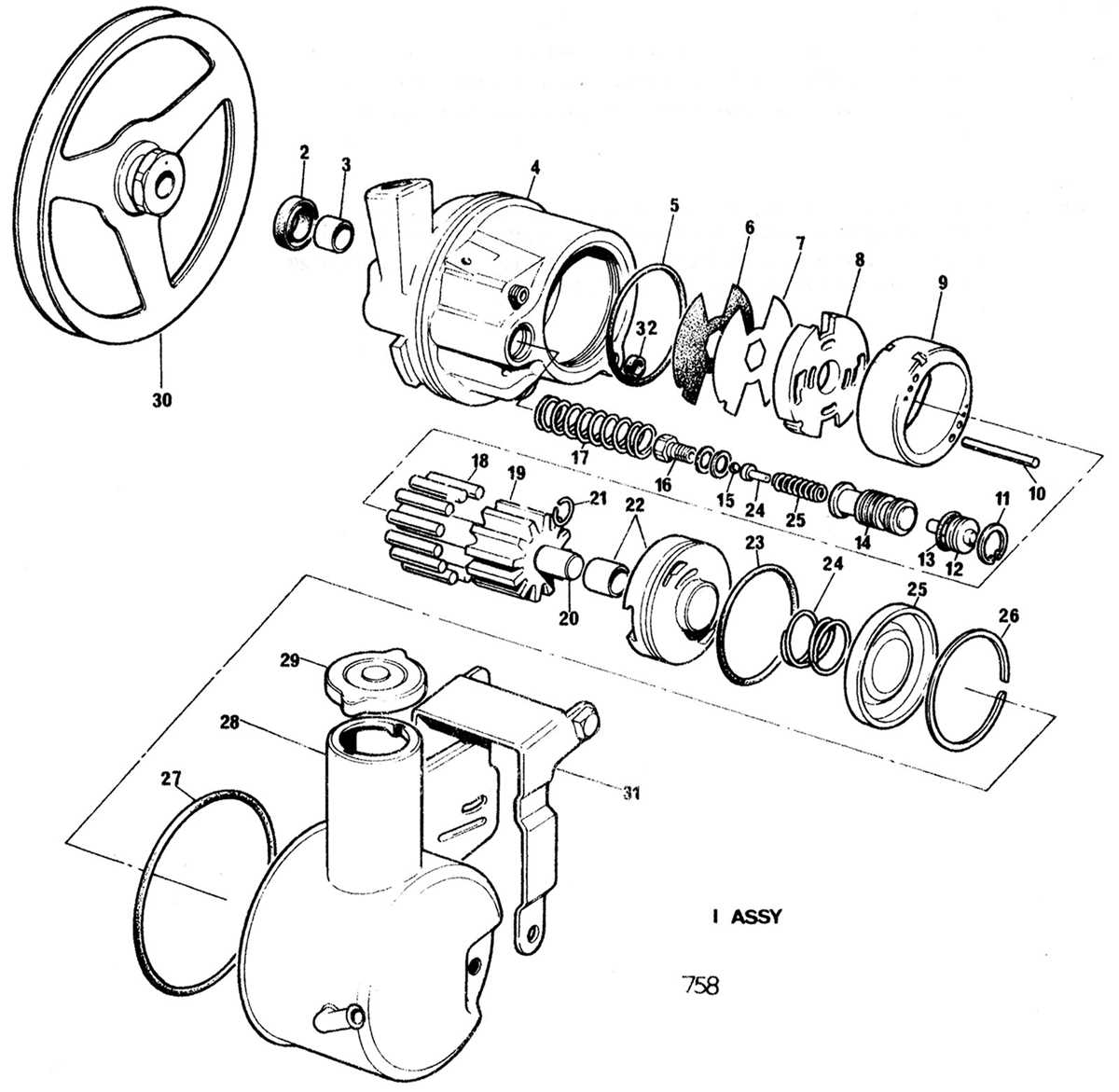

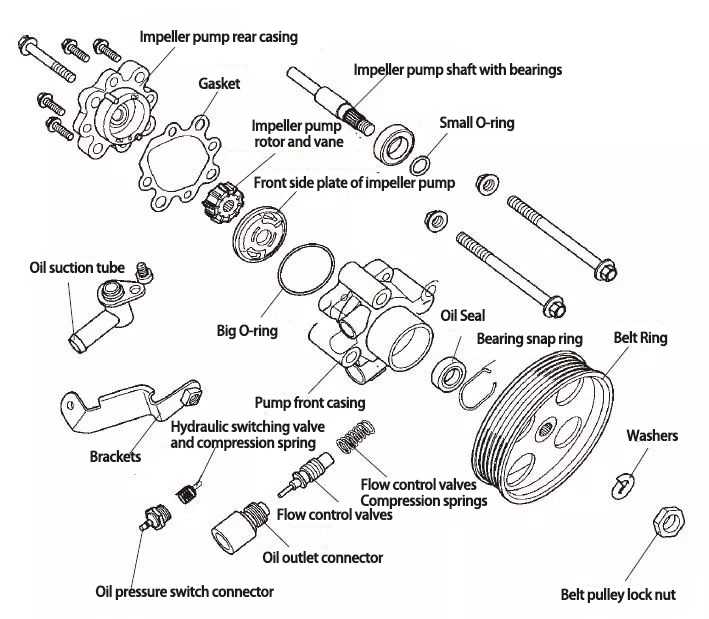

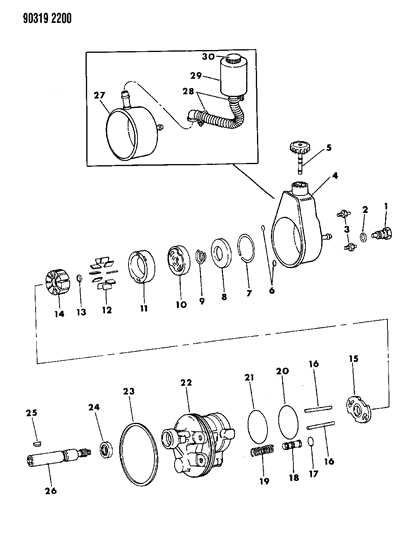

How to Interpret an Automotive Hydraulic Assist Assembly Exploded View
Locate the input shaft first–the splined rod typically illustrated at the top right of most illustrations. Verify its position matches the orientation markers (often dots, arrows, or color highlights) on the sheet; misalignment here disrupts all subsequent connections. The bearing housing follows directly beneath; count the needle rollers and cage segments–usual configurations include 17 or 20 needles–and confirm no gaps appear between them and the inner race.
- Identify the flow control valve immediately left of the pulley hub–it appears as a slender cylinder with external grooves.
- Check the snap ring securing it; standard sizes are 22mm (for metric systems) or 7/8” (imperial).
- Verify the spring behind the valve compresses evenly; uneven tension indicates wear detectable before disassembly.
Cross-reference the O-rings using both visual identifiers (color, diameter) and the legend on the right–red denotes high-pressure tolerance, blue seals low-pressure zones. Measure each ring’s thickness if replacing; 2.5mm is standard, deviations above 0.1mm necessitate replacement. Conclude by tracing the return line path along the backplate; inconsistencies here cause fluid aeration, evident as whining noises during operation.
Key Components Prone to Deterioration in Hydraulic Assistance Systems
Replace the high-pressure hose every 60,000 to 100,000 miles–earlier if inspections reveal micro-cracks or bulges near the crimp fittings. These hoses endure fluctuating temperatures and constant pulsation, accelerating rubber degradation. Look for leaks at the swivel joints and mounting brackets, where stress concentrations are highest. Use a flashlight to check for internal pitting; even minor roughness can indicate imminent failure.
The vane assembly, housed inside the rotor chamber, should be examined for scoring or uneven wear on the vane tips. A micrometer measurement less than 0.002 inches below original specs signals replacement. The vane slots must also be checked for excessive play; wobble exceeding 0.005 inches suggests bearing fatigue. Contaminated fluid turns vanes blue-black; if discoloration appears, flush the entire circuit before reassembly.
Inspect the shaft seal for hardening or lip wear–visible cracking or a shiny wear band indicates leaks. A properly seated seal should protrude no more than 0.04 inches beyond the housing bore. Replace cotter pins on pivot bolts if they show rust or bent prongs; these hold the control valve in alignment during torque spikes. Never reuse crush washers on pressure ports; aluminum variants deform permanently under clamping force.
Pulley alignment tolerances are critical–use a straightedge across the belt grooves; misalignment exceeding 0.03 inches causes premature bearing failure. Check the reservoir screen for debris accumulation; particles larger than 40 microns restrict flow, starving the internal lubrication circuit. Replace O-rings whenever disassembling fittings–nitrile variants swell after fluid exposure, and Viton alternatives offer superior heat resistance up to 300°F.
Matching Schematic Components with OEM or Alternative Suppliers
Locate the manufacturer’s label on the hydraulic assist unit–typically stamped on the housing near the inlet port–before referencing schematics. Compare this alphanumeric code (e.g., ZF-8096, TRW-4708) against official service bulletins or supplier databases like RockAuto or FCP Euro to confirm direct-fit replacements. OEM identifiers often include prefixes like “OE-,” “Genuine,” or brand-specific sequences (e.g., “BMW 34 43 6 759 617”), while aftermarket equivalents may list cross-reference numbers (e.g., “Cardone 21-5382”). Discrepancies in pulley groove count, shaft spline count, or reservoir mounting points can signal compatibility mismatches, even if external dimensions align.
Cross-Referencing Critical Specs
| Component | OEM Spec | Aftermarket Equivalent | Verification Method |
|---|---|---|---|
| Pulley (Diameter) | 54.0–56.0 mm (Toyota) | 53.5–58.0 mm (Duralast, ACDelco) | Caliper measurement at flange |
| Shaft Splines | 18-tooth (Ford 3.5L EcoBoost) | 16-tooth (GMB, Aisin) | Count via casting mold inspection |
| Outlet Pressure (PSI) | 1,200–1,400 (GM LS-series) | 1,100–1,500 (Maval, Delphi) | Gauge test at 3,000 RPM |
| Reservoir Seal (OD) | 35.0 mm (Honda B-series) | 34.5–36.0 mm (Beck/Arnley, Febi) | Micrometer or snap gauge |
Prioritize suppliers offering ISO 9001:2015 or TS 16949 certifications when sourcing alternate parts. Brands like ZF, JTEKT (under CARDONE Premium), or GMB often replicate OEM tolerances (±0.1 mm for critical dimensions), while budget options (e.g., “Everco” or “Four Seasons”) may deviate by ±1.0 mm, risking leaks or premature wear. Request technical drawings from vendors if schematics omit details like bearing preload specs (typically 0.02–0.05 mm axial clearance). For 2010+ vehicles with variable-displacement units, ensure replacement seals match the O-ring material (FKM for synthetic fluids, NBR for mineral-based).
For pressure hose assemblies, note fitting thread pitches (e.g., M16x1.5 for Bosch, 9/16″-18 UNF for Saginaw) and seal types (crush washers vs. O-rings) before ordering. Aftermarket hoses may substitute materials–SAE J188-Class 2 (aromatic polyamide) for OEM SAE J188-Class 1 (high-temperature PA)–requiring visual confirmation of braid exposure or reinforcement layers. Use a thread pitch gauge to avoid mismatches; even subtle differences (e.g., M14x1.5 vs. M14x1.25) will prevent proper sealing. Corrosion-resistant coatings on mounting brackets (e.g., zinc plating vs. OEM phosphate) can affect torque specs–consult fastener charts for alternate-grade bolts (e.g., Class 10.9 vs. OEM Grade 8).
Validating Fit Before Installation
Test rotational alignment of the pulley with the crankshaft harmonic balancer before finalizing purchases. Misalignment beyond 0.5° (measured via laser or straightedge) accelerates belt wear or bearing failure. For vehicles with serpentine routing, compare groove profiles: OEM poly-V belts (e.g., Gates Micro-V®) may not align with aftermarket 6-rib equivalents due to depth variations (±0.2 mm). If schematics lack fluid compatibility notes, verify with the original unit’s fluid type; Dexron VI (GM), Pentosin CHF 202 (BMW), or generic “Universal PSF” may require system flushing if switching brands. Capture photos of disassembled components with caliper measurements–tolerances as tight as ±0.03 mm (e.g., rotor housing bores) are common in Japanese OEM units (e.g., Nissan VQ35DE).
