Identify the right components for your 42cc chainsaw by referencing the exploded view sheet available through authorized service centers. The ignition module (part #530069632) and air filter assembly (part #530071087) are two of the most frequently replaced elements–verify their condition first if the unit fails to start or runs unevenly. Download the schematic directly from the manufacturer’s official parts portal to avoid counterfeit listings.

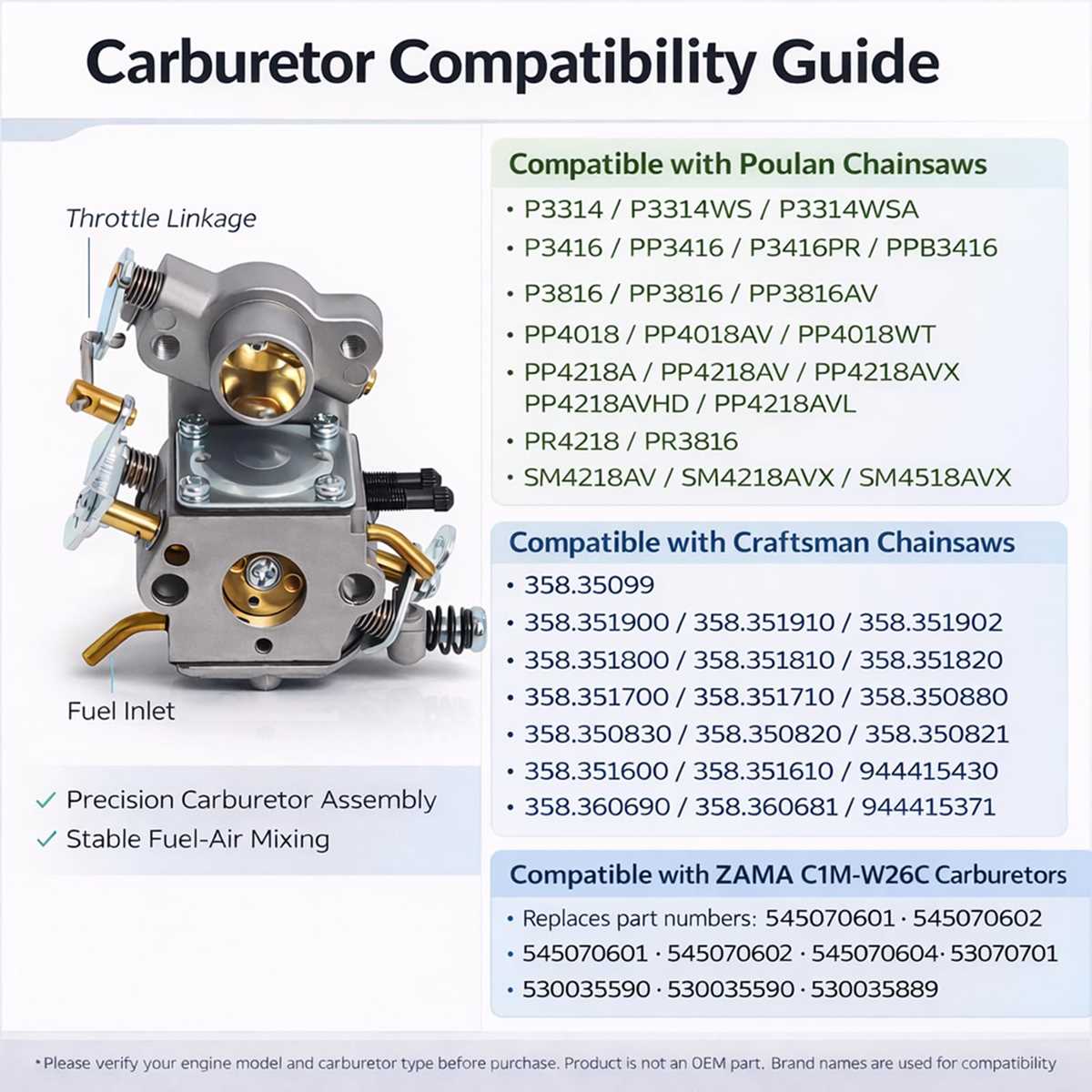

Check the carburetor kit (part #530069845) for clogged fuel passages if the saw bogs down under load. The schematics detail the diaphragm replacement procedure, which requires removal of the fuel tank and linkage adjustments. Record all removed fasteners and their positions–magnetic trays help prevent loss of critical screws like the M6x1.0 barrel bolts securing the cylinder cover.
Inspect the drive sprocket (part #530069583) and clutch drum (part #530069585) for worn teeth or uneven wear patterns. The parts breakdown specifies a torque of 15 Nm for sprocket mounting–use a beam-type torque wrench, not click-style, for consistent results. Bar oil pump replacement (part #530069839) requires partial disassembly of the crankcase; consult step 5-7 in the exploded view for seal orientations.
Order components using the exact part numbers listed on the schematics–cross-referencing OEM numbers against aftermarket suppliers reveals potentially incompatible substitutes. Verify the piston ring gap (0.25–0.35 mm) during rebuilds using a feeler gauge inscribed with metric measurements. Store replaced parts like the exhaust baffle (part #530069644) in labeled, sealable bags to prevent moisture damage.
How to Locate and Interpret Your Chainsaw Repair Blueprint
Begin by securing the official maintenance schematic for the 42cc model. Download the PDF from the manufacturer’s support portal–avoid third-party sources, as outdated revisions may mislabel components. The document typically groups elements into six sections: engine assembly, bar and chain system, handle and controls, fuel delivery, ignition, and outer casing. Cross-reference the part numbers with the exploded view on pages 3-5, where components are indexed numerically with corresponding callouts.
Key Components to Verify in the Schematic
| Section | Part Name | Common Issues | Replacement Signal |
|---|---|---|---|
| Engine Housing | Cylinder Gasket | Compression loss | Oil residue around base |
| Chain System | Drive Sprocket | Uneven wear | Teeth chamfered >1mm |
| Cooling | Flywheel Cover | Overheating | Cracks or warping |
| Fuel Assembly | Fuel Filter | Sputtering | Clogs visible under 10x magnification |
If the schematic lacks clarity, use a multimeter to verify electrical paths in the ignition module. Resistance values should read 3-5 ohms at the coil connector; deviations indicate a faulty winding. For mechanical parts, compare thread patterns–M6 bolts secure the bar clamp, while M8 bolts fasten the crankcase. Misidentification here risks cross-threading during reassembly.
Print the schematic at 100% scale to overlay components during disassembly. Label each piece with masking tape, noting orientation–critical for elements like the oil pump plunger (left-handed groove) or muffler gasket (asymmetric cutout). Store hardware in magnetized trays sorted by size to prevent loss. If a part isn’t listed, measure its dimensions and consult the compatibility chart in the owner’s manual appendix for aftermarket alternatives.
Locating a Full Schematic for Your 2018 Chainsaw Model
Begin with the manufacturer’s official repair portal. Enter the exact serial number etched on the engine housing–this filters results to your unit’s production batch. The exploded view includes OEM item codes, measurements for gaskets, and torque specs for bolts. Ignore third-party listings missing these details.
Sears PartsDirect hosts factory-authorized schematics, but only if the equipment was sold through their outlets. Use the advanced search with the model prefix (e.g., “PR-“) and suffix (e.g., “-18”) to pull the correct revision. Print the PDF at 300 dpi to preserve labels on small components like carburetor jets.
Local dealers holding branded inventory often maintain locked cabinets with binders of original breakdowns. Ask for the service manager–they can scan pages on request. Specify whether you need the engine, bar, or clutch assembly breakdown; schematics are split by subsystem to save space.
LinkedIn groups dedicated to small-engine mechanics share scanned manuals. Search for “chainsaw repair documents” and filter by posts marked “PDF.” Verify the file’s source URL contains “.com/us/en” to avoid counterfeit diagrams with incorrect part numbers.
Specialty forums like ArboristSite and ChainsawBlogger archive user-uploaded schematics. Download the high-resolution version; low-res files blur small text like bearing seals or circlip codes. Cross-reference three different uploads to confirm accuracy before ordering replacements.
United States patent filings sometimes include assembly drawings. Locate the original filing date stamped on the crankcase, then search the USPTO database using the model name. Drawings here show early prototypes, so verify fastener locations against your unit.
Large-format printers at FedEx Office can reproduce oversized schematics from microfilm available at select public libraries. Request the document by technical classification (e.g., “portable gasoline-powered cutting tools”) rather than model number for broader search results. Laminate the output to prevent oil smudging.
Essential Elements of the 42cm Chainsaw Schematic
Replace the air filter every 25 hours of operation or sooner if working in dusty conditions. The OEM filter (part #530071686) traps debris but degrades rapidly under heavy use–clogged filters reduce engine efficiency by up to 30%. Purchase a dozen at once; bulk pricing drops unit cost to under $3 from $5 for single orders. Clean the housing with compressed air before installation to prevent immediate contamination.
- Spark plug (NGK BPMR7A): Gap must be set to 0.5mm–deviations cause misfires. Check resistance with a multimeter: 5,000–10,000 ohms indicates proper function. Fouled plugs (black deposits) signal rich fuel mix; adjust carburetor screws incrementally (turn clockwise 1/8 rotation). Replace plugs every 100 hours regardless of appearance.
- Drive sprocket (part #530069943): Inspect teeth during bar removal. Hooked or uneven wear requires replacement–mismatched sprockets accelerate chain stretch. Apply high-temperature grease (e.g., Mobilgrease 28) to bearings to prevent seizing. Rotate the sprocket 180° at 50-hour intervals to distribute wear evenly.
- Bar (3/8″ pitch, Oregon 18″): Flip the bar weekly to avoid one-sided wear. Groove depth should not exceed 0.025″ beyond manufacturer specs–measure with a groove gauge. If sharpening causes rapid uneven wear, suspect incorrect chain tension (should deflect 3mm at midpoint) or contaminated oil (use only SAE 30 bar-and-chain oil).
Fuel system maintenance dictates performance. The carburetor diaphragm kit (part #545138101) costs $12 and includes gaskets prone to swelling when exposed to ethanol-blended fuel. Disassemble only in a clean, well-lit workspace–even dust particles clog jets irreparably. Calibrate the low-speed screw (L) first: turn until engine runs rough, then back out 1.5 turns. The high-speed screw (H) follows; set at 1 turn from lightly seated, then adjust for maximum RPM under load (use a tachometer for ±200 RPM accuracy).
Overlooked but critical: the oil pump (part #545118801). Test output by running the saw at full throttle for 30 seconds; dipstick should show consistent flow (2–4ml). Insufficient oil leads to premature bar failure–replace seals if flow drops below 3ml. For cold climates, mix 10% kerosene with bar oil to prevent gelling. Store the saw upright to prevent oil seepage into the crankcase, which causes hydraulic lock on startup.
Step-by-Step Guide to Interpreting Your Chainsaw’s Schematics for Maintenance
Locate the identification number on your equipment’s housing near the engine cover–this sequence matches exploded-view illustrations. Cross-reference it with the last three digits of your model variant in the manual’s index. If the number isn’t visible, check the decal on the underside of the fuel tank or the bar’s mounting plate. Incorrect matching wastes time and risks ordering incompatible components.
Isolate the malfunctioning assembly by tracing the issue backward from symptom to source. For example, erratic chain tension usually originates from a damaged clutch drum rather than the sprocket itself. Consult the schematic’s numbered callouts to confirm each linkage, spring, and fastener in the mechanism’s path. The diagram clusters related groups, so follow the dashed lines connecting components like the throttle linkage to its pivot points.
- Bar adjustment: Verify the bar studs’ alignment with the crankcase holes before tightening 13mm nuts–misalignment causes uneven wear.
- Chain brake: Disassemble the brake band only after releasing tension using the adjustment screw shown in blow-up section C-3.
- Air filter: Replace the foam pre-filter (item 47) every 10 operating hours if working in dust; inspect the paper element (48) every fifth refueling.
Label each removed piece with masking tape specifying its position (e.g., “left carb spacer”) and orientation (arrow pointing forward). Store screws under 6mm in separate magnetic trays–mixing sizes risks stripping threads during reassembly. For plastics like the recoil housing (item 12), note the rotational alignment marks; forcing a mismatch cracks the brittle nylon.
Compare the replaced part’s serial imprint to the one listed in the parts list’s fine print. Manufacturers occasionally alter subcomponents without updating schematics–document variances with photos. Before closing the housing, turn the crankshaft manually to confirm no interference occurs between the piston and replaced gears. Use a flashlight to inspect for forgotten washers or o-rings lodged in crevices.
Update your printed reference sheet with pencil notes on torque specs from the service manual’s appendix. Record anomalies like “right muffler bolt corroded–replace 10mm socket next job.” Staple receipts for ordered items to the back of the sheet to track warranty claims. File schematics by engine family rather than product name, as carburetor assemblies often share exploded views across 42cc models.
