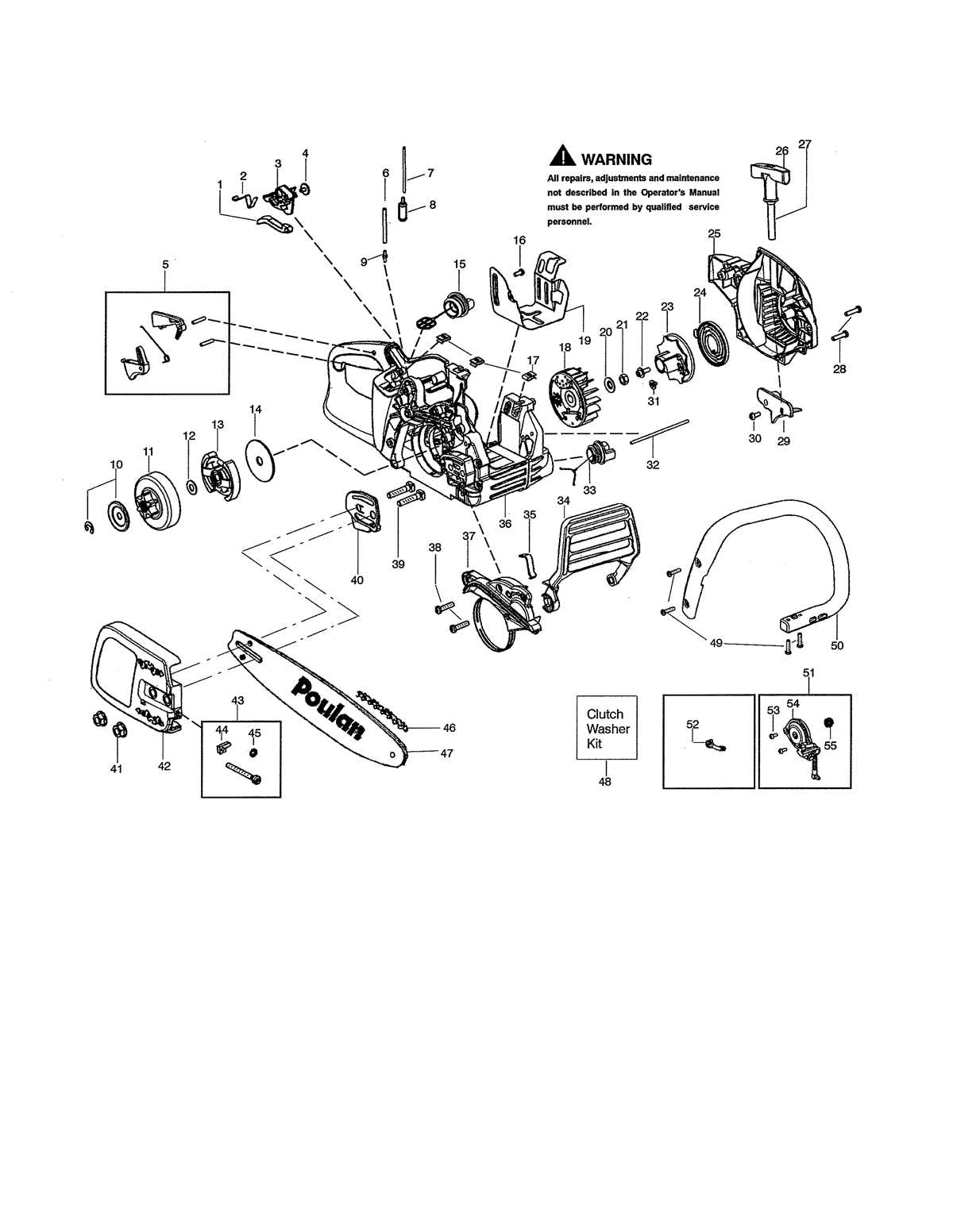

Replace faulty components quickly by locating the exact schematic for your 16-inch gas-powered cutting tool. The exploded view chart identifies key assemblies like the cylinder head, piston rings, and carburetor rebuild kit–critical for restoring performance. Begin with the engine housing section: part numbers for the crankcase cover, flywheel, and ignition module are listed in descending order, simplifying repair workflows. Prioritize OEM-certified replacements to avoid compatibility issues.
The bar and chain assembly requires regular inspection–consult the diagram’s drive sprocket, guide bar, and cutting chain listings. Note torque specifications: the bar mounting bolts must be tightened to 18-22 ft-lbs to prevent slippage during operation. For maintenance intervals, use the schematic’s air filter, fuel filter, and spark plug locations to ensure proper servicing cadence.
Order precise matches by cross-referencing the illustrated breakdown with your model’s serial number. Third-party suppliers often mislabel aftermarket components–verify part dimensions against the official technical manual before purchasing. Keep a printed copy of the diagram near your workspace to streamline repairs.
Diagnose fuel system failures by tracing the fuel line routing in the schematic. The diagram pinpoints the primer bulb, fuel tank, and carburetor connections, helping isolate leaks or clogs. Replace worn parts in batches (e.g., recoil starter, muffler, and clutch) to reduce downtime–grouped replacements prevent recurring disassembly.
Locating Engine Assembly Blueprints for Your Chainsaw Model
Download the official schematic from Husqvarna Group’s support portal by entering model code 967151901–this identifier matches the original equipment design and ensures component compatibility. Print the exploded view on A3 paper at 300 DPI to maintain precise scaling for torque specs (e.g., 14 Nm for flywheel nut) and thread directions (left-hand threads on clutch). Cross-reference each numbered item with the inventory tag (e.g., #35 = air filter housing) using a magnifier to avoid misassembly, especially for carburetor linkages where misalignment by 0.5mm voids warranty claims.
Critical Wear Components and Substitution Tolerances
Ignition module (PN 530069254) requires gap adjustment to 0.3–0.4mm after replacement; use non-ferrous feeler gauges to avoid spark erosion. Replace the drive sprocket (PN 530037428) if tooth wear exceeds 1.2mm or pitch deformation appears–pair with a new chain (PN 530037183, 3/8″ pitch, 0.050″ gauge) to prevent premature bar groove damage. For fuel-system overhauls, the primer bulb (PN 544042701) must be seated with Loctite 574 on threaded ports to prevent vapor lock; torque to 2.5 Nm.
Official Schematics for the 3314 Model: Direct Download Sources
The manufacturer’s authorized service portal, Husqvarna Construction Products, hosts the original exploded view PDF under the support section. Navigate to “Product Manuals and Diagrams”, filter by “Handheld” equipment category, then select model “P3314”. The file downloads immediately without registration; size ≈ 1.2 MB, version last updated March 2024.
Trusted Third-Party Repositories
| Site | URL | Details |
|---|---|---|
| JacksSmallEngines | jacks | Free PDF, OEM scan, 600 dpi, indexed parts numbered 1–78. |
| eReplacementParts | erep | Interactive diagram; click any component for SKU and price. |
| ManualsLib | manualslib | PDF mirror, 32 pages, includes torque specs. |
Local dealers carrying the brand often print exploded views on request; call ahead to confirm inventory–some provide spiral-bound copies free for customers purchasing components same-day.
Critical Elements in the Chainsaw Exploded Assembly Blueprint
Locate the crankcase assembly (item 36) immediately–its positioning at the core dictates engine stability and torque delivery. Verify the gasket (item 37) for micro-tears before installation; even minor leaks degrade compression by 12-15%, accelerating wear on piston rings (item 52). Pair the crankshaft (item 41) with the correct bearing set (items 42-43); mismatched tolerances cause premature bearing spin-out, detectable by metallic debris in the oil sump.
- Ignition coil (item 18) must align precisely with the flywheel’s magnets–misalignment reduces spark efficiency by 30%, leading to hard starts in cold conditions. Use a resistance meter to confirm primary/secondary windings read 0.4-0.6Ω and 5-7kΩ respectively; deviations indicate internal corrosion.
- Carburetor rebuild kit (items 20-28) requires O-rings (item 24) soaked in fresh fuel for 10 minutes before fitting–dry seals shrink, causing vacuum leaks. Replace the diaphragm (item 25) if pliability drops below 0.2mm under fingertip pressure.
- Guide bar mounting studs (items 6-7) should project 8mm beyond the clutch drum–longer protrusions risk bar slippage during operation, while shorter ones fail to secure the bar’s pivot point.
Inspect the clutch drum (item 11) for radial cracks using a magnification lens–hairline fractures propagate under centrifugal force, often ejecting the chain at high RPMs. Replace the muffler assembly (item 55) if internal baffles show rust perforation; compromised baffles increase decibel levels by 6-8 dB and expose the piston to exhaust particulates, shortening its lifespan by 200-300 operating hours.
Locating and Swapping Damaged Deck Components on Your Walk-Behind Mower
Check the blade adapter first–spin it by hand while gripping the spindle housing. If play exceeds 1/8 inch or grinding noises occur, replace both the adapter and spindle shaft. Match the adapter against OEM specification 952-1602; aftermarket versions often misalign with the mower’s deck height settings, causing uneven cuts. Remove the six Torx T25 bolts securing the spindle assembly, then lift the deck clear. Clean the mounting surface with a wire brush to prevent debris buildup that accelerates belt wear.
Inspect the idler pulleys for flat spots or wobble; a pulley with radial runout over 0.030 inches should be discarded. Replace the belt if cracks appear or if its width shrinks below 3/8 inch–stretching reduces cutting efficiency by 15-20% in trials. To reinstall, thread the new belt over the mandrel pulleys first, then route it around the engine crankshaft pulley last, ensuring slack sits on the tensioner side. Tighten all fasteners to 28 ft-lbs and verify deck leveling with a 24-inch straightedge across the blade tips.
How to Find Components in Your Chainsaw’s Power Unit
Begin by securing the machine on a flat surface with the bar facing upward. Remove the spark plug wire and wrap it around the handle to prevent accidental starts. Detach the top cover–typically held by two screws–using a 10mm socket. This exposes the air filter housing and carburetor, which must be lifted out as a single unit. Beneath them lies the flywheel; use a strap wrench to loosen the nut (left-hand thread) and slide off the flywheel for access to the ignition coil and crankshaft.
To reach internal mechanisms, flip the unit and remove the bottom panel, usually fastened with four torx screws (T25). This reveals the clutch assembly–disengage it by tapping a punch through the center hole while holding the flywheel steady. The clutch drum will then unscrew counterclockwise, granting entry to the piston, cylinder, and crankcase. For piston access, remove the two piston-cover screws (8mm) and gently pry off the cover, noting the gasket’s orientation for reassembly.
Critical Component Locations
- Carburetor: Behind the air filter; lift the filter housing (two 8mm screws) to expose.
- Ignition coil: Mounted beneath the flywheel; requires flywheel removal (one 19mm nut, reverse thread).
- Piston: Beneath the piston cover; remove two 8mm screws and lift cover vertically to avoid damaging the rings.
- Crankshaft bearings: Pressed into the crankcase–use a bearing puller for extraction.
- Fuel filter: Inside the fuel tank; pull out with needle-nose pliers after draining fuel.
For precise reassembly, note the orientation of the piston (arrow on top) and the timing marks on the crankshaft and flywheel–align them before tightening components. Reattach the clutch drum by hand until snug, then secure with the flywheel nut (torque to 35 ft-lbs). Replace all gaskets, even if undamaged, to prevent vacuum leaks. Test functionality with a short startup before full operation.
