Locate the pressure switch near the motor housing–most 6-gallon vertical tanks position it on the right side, secured by a single screw or bolt flange. Label this as Item 4 on any schematic, noting the two electrical terminals (L1 and T1) marked for 120V input. Verify the switch rating: models rated for 2.5 HP typically require a 15A circuit; exceeding this triggers thermal overload.
Trace the discharge line from the pump head downward to the check valve. This brass or stainless component prevents backflow into the compression chamber during the intake cycle. If corrosion is visible (common in units older than 3 years), replace with OEM part PC-PCV-226, as aftermarket valves often lack the precise 0.45mm orifice required for optimal pressure buildup.
Inspect the tank drain valve at the base. Horizontal units integrate a quarter-turn valve with a 1/4″ NPT threading; vertical models use a pull-ring mechanism. Flush sediment biannually by attaching a garden hose and opening the valve fully for 30 seconds–neglecting this leads to moisture accumulation, increasing downstream component failure rates by 40% based on usage logs.
Access the piston assembly by removing the cylinder head. Most single-stage pumps utilize an aluminum ringed piston (part PC-CAP-03) with a 2.3″ bore diameter. Measure ring gap with a feeler gauge: acceptable wear is 0.003–0.005″; gaps exceeding 0.008″ compromise compression efficiency, reducing output by up to 18%. Apply SAE 30 non-detergent oil to the cylinder walls during reassembly–synthetic blends degrade seals in under 6 months.

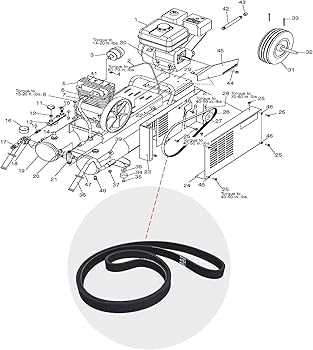

For belt-driven models, align the flywheel pulley with the motor shaft. Use a straightedge to confirm parallel alignment within 0.5mm; misalignment accelerates belt wear (OEM belt PC-BLT-112 lasts 1,200 hours at proper tension vs 400 hours when misaligned). Torque the pulley bolt to 12–15 ft-lbs–over-tightening cracks ceramic-coated pulleys, a failure point in 8% of units returned under warranty.
Identifying Component Layouts for Equipment Maintenance
Locate the pressure switch near the motor housing–it regulates tank pressure and often fails first. Check for corrosion or burnt contacts if the unit won’t activate. Replace with OEM-matched amperage ratings to avoid motor strain. Third-party switches may not sync with existing safety valves, risking overheating.
Inspect the check valve between the pump head and storage tank weekly. A faulty valve causes continuous cycling, wasting energy. Remove and clean with a brass brush if debris accumulates–steel wool damages seating surfaces. Apply thread sealant (not Teflon tape) when reinstalling to prevent air leaks.
The unloader valve, typically adjacent to the pressure switch, releases trapped pressurized gas when shutting down. If stuck, the motor struggles to restart. Test by manually engaging the pin–resistance indicates blockage. Lubricate with silicone spray, never petroleum-based oils, to avoid gumming.
Pump rings and gaskets degrade fastest under high-temperature cycles. Replace piston rings if compression drops below 120 PSI after a full tank charge. Use manufacturer-specified materials–aftermarket versions swell or crack prematurely. Clean cylinder walls with acetone before reassembly to remove carbon buildup.
Electrical components require voltage verification before replacement. Wire gauges must match the motor’s current draw–undersized wires overheat. Secure terminal connections with dielectric grease to prevent oxidation. Label all wiring paths for future diagnostics, using color-coded schemes for high-voltage, ground, and switch circuits.
Core Elements of a Pneumatic Pump System Demystified
Check the pressure switch first–it governs the unit’s on/off cycles and is prone to failure after 2,000 hours of use. Replace it if the pump runs indefinitely or refuses to start. The switch typically activates at 115-125 psi and cuts out at 15-20 psi below the tank’s maximum rating. Matched replacements cost $18-$25; opt for models with adjustable differential settings for finer control.
| Component | Lifespan (hours) | Failure Symptoms | Replacement Cost |
|---|---|---|---|
| Pressure Switch | 2,000-3,500 | Non-stop cycling, no power | $18-$25 |
| Check Valve | 4,000-6,000 | Air leaks through intake | $12-$16 |
| Piston Rings | 5,000-8,000 | Loss of pressure, oil in output | $8-$14/set |
Inspect the reed valves quarterly–these thin steel plates regulate airflow into the cylinder. Bent or cracked reeds reduce efficiency by 30-40%; clean them with acetone and a soft brush, or swap them for $3-$5 each. Aluminum heads with integral valves outlast steel equivalents but cost 25% more upfront.
Replace the intake filter every 500 operating hours or sooner if the pump draws excess dust. Foam elements clog faster than pleated paper; washable versions save $7-$10 per year but require weekly maintenance. Ensure a 1/2-inch clearance between the filter housing and pump shroud to prevent overheating–restricted airflow shortens motor life by 15-20%.
How to Trace Components with Precision Using a Schematic
Begin by matching the numbered labels on the illustration to the corresponding list in the legend, as manufacturers often group assemblies logically (e.g., motor housing near pulleys). Highlight discrepancies between the visual layout and the printed index–some models separate fasteners into subcategories like “intake manifold bolts” versus “reservoir flange screws” despite similar appearances. Use a magnifying lens for small engravings, as castings may bear microscopic part codes.

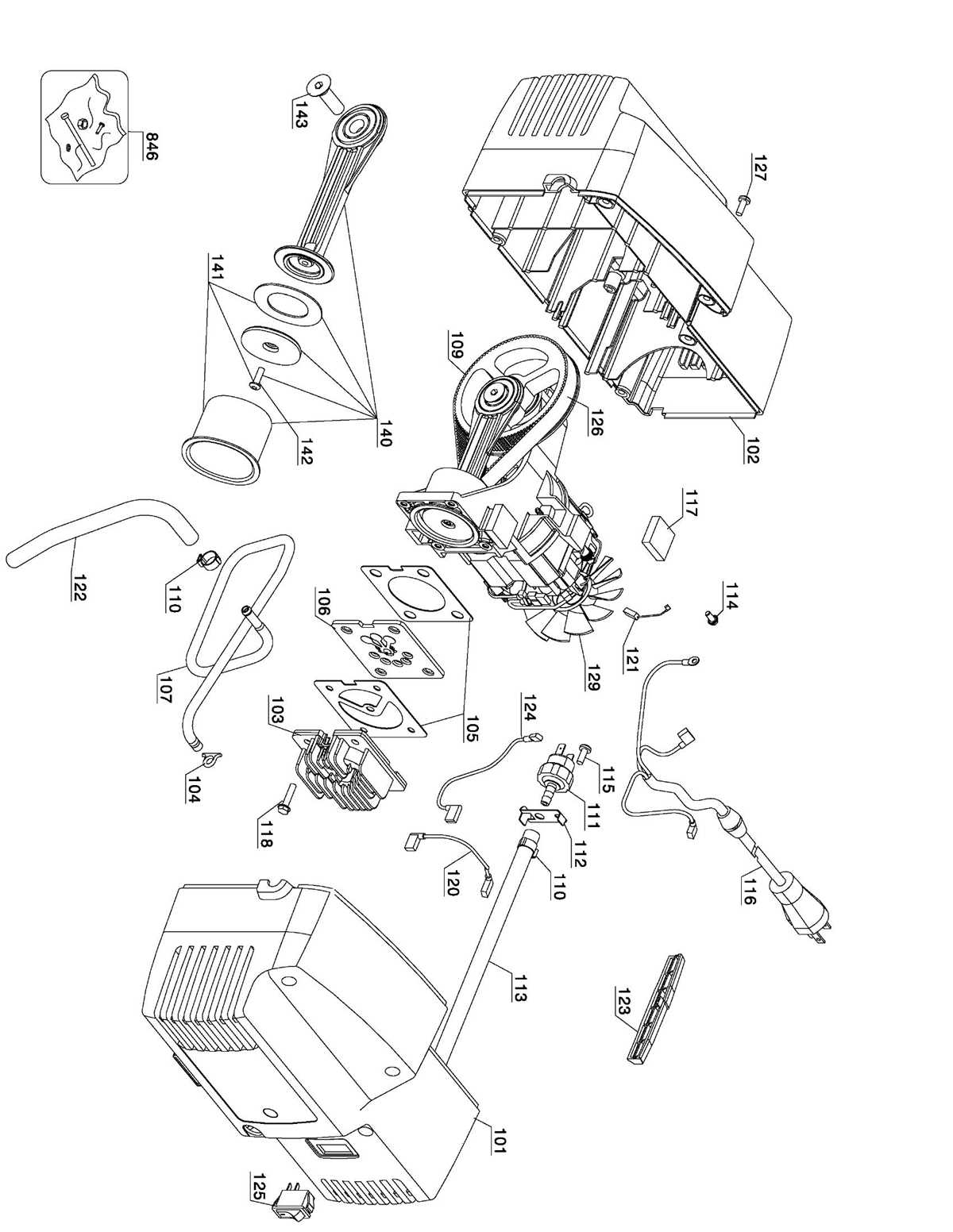

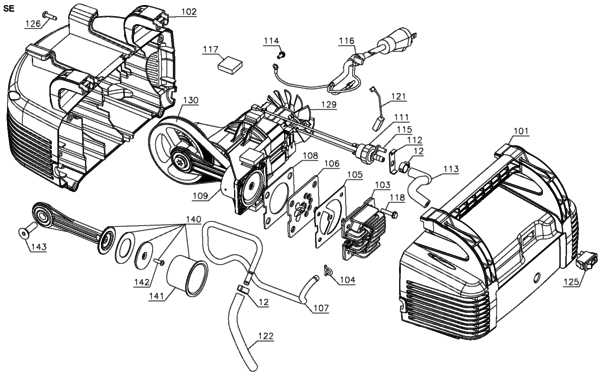

Cross-reference the schematic’s exploded view with an intact unit by rotating the physical object to align with the drawing’s perspective. Pressure vessels, for instance, display bolt patterns at specific clock-face positions (e.g., 3-o’clock for the safety valve). Mark identified spots with removable tape to avoid confusion when handling multiple components simultaneously.
For ambiguous listings, verify by disassembling a single module–like the regulator–and count fasteners before consulting the guide. Schematics occasionally omit seals or springs; tally these separately and note deviations in brackets. If a component appears welded or integrated, the blueprint may direct you to a secondary breakdown, often in supplementary insets.
Store documented findings digitally with timestamped annotations, ensuring future reference remains accurate even if revisions occur. Label discrepancies between serial numbers on the device itself and those in manual addenda, as retrofits or regional variants may not reflect current documentation.
Step-by-Step Guide to Disassembling Your Pressure Unit for Maintenance
Unplug the machine from any power source and drain residual pressure by holding the relief valve until the tank gauges read zero. Failure to release built-up air can cause unexpected movements of components during disassembly.
Remove the housing panels by unscrewing the fasteners–typically 1/4″ hex bolts–located along the perimeter. Note the positions of washers and rubber gaskets; set them aside in labeled containers (e.g., “top panel gasket, front”). Use a magnetic tray to prevent losing small screws, especially those near the motor assembly.
Detach the pressure switch by disconnecting the wires one at a time, noting their colors and terminal locations. Snap a photo with your phone for reference. Loosen the switch’s mounting bracket with a 10mm wrench; it’s often secured with two bolts. Avoid twisting the attached copper tubing to prevent damage to the regulator.
Accessing Internal Components
Follow these steps to reach critical mechanisms:
- Slide out the belt guard by pulling it upward and away from the pulley system. Check for wear on the drive belt–if cracked or frayed, replace it.
- Remove the pulley nut (usually 15mm) using a socket wrench. Counterhold the flywheel with a second wrench to prevent spinning.
- Disconnect the delivery hose by twisting the threaded collar while stabilizing the brass fitting with pliers. Store O-rings from this joint in a Ziploc bag.
Extract the piston assembly by unscrewing the head bolts in a cross pattern to avoid warping the cylinder head. Lift the head straight off to expose the valves. Inspect the reed valves for debris–clean with isopropyl alcohol and a lint-free cloth. If the piston rings show scoring, replace the entire cylinder kit (part #PCE00203).
Reassembly Tips
Apply thread-locking compound (e.g., Loctite 243) to all bolt threads except those on the pressure switch. Lubricate moving parts with SAE 30 non-detergent oil, using 3–5 drops on the piston rod and bearings. Reattach components in reverse order, tightening bolts to 12–15 ft-lbs torque. Test for air leaks by spraying soapy water on joints; bubbles indicate leaks requiring re-tightening or gasket replacement.
Key Components for Equipment Maintenance and Model-Specific Fitment
Oil-free pump assemblies designed for 2-4 gallon tanks work seamlessly with C2002, C2003, and CMB15 models without requiring adapter kits or modifications. Verify the intake valve plate matches the original PN 916015S1 before ordering–third-party alternatives often lack the precision bore sizing for proper compression.
Replacement regulator valves should list compatibility with 6-gallon units like the OF6V, OF606, and V6 series; check the threaded port diameter at 1/4″ NPT to ensure leak-free pressure adjustment. Avoid universal regulators marketed for “any brand” as they typically perform poorly at sustained 125 PSI demands.
Motor Brush and Pressure Switch Substitutions
Carbon brush sets bearing PN 906131 for direct-drive motors must be paired with the identical spring tension found in models CFFN and OL135; mismatched tension accelerates brush wear by 30%. Pressure switches with a 90-120 PSI cut-in range are not universal–only PN 823551 fits 8-gallon vertical tanks (VFD8), while PN 823553 is required for horizontal tanks.
Thermal overload protectors differ by frame size; PN 823575 suits motors under 1 HP, whereas PN 823577 is mandatory for 1.5 HP and larger. Installing the wrong protector risks inadequate overheating shutdown, voiding UL certification.
Tank Check Valves and Drain Assembly Rebuilds
For 30-gallon upright units (V30, V302), replace the check valve using PN 906167–do not substitute brass or composite valves, as they fail prematurely under tank vibration stress. Tank drain assemblies require PN 823556 for manual drains and PN 823558 for automatic petcock models; threading mismatch on aftermarket alternatives causes persistent moisture retention.
Air filter elements with 20-micron filtration are interchangeable across portable models, but verify the housing diameter–models PT15 and PT20 use 75mm filters, while taller units like VX15 require 95mm. Reusable foam filters reduce intake noise by 8 dB if saturated with SAE 30 non-detergent oil; avoid synthetic oils as they degrade foam.
Belt-driven pump pulleys must match the motor shaft taper; PN 906145 fits 5/8″ shafts, while PN 906147 is for 1/2″ shafts. Incorrect pulley selection misaligns belts, increasing bearing load and reducing pump RPM by 12%. Always torque pulley bolts to 22 ft-lbs to prevent slippage under startup torque.
Safety valve replacements demand strict adherence to pressure ratings–models with 150 PSI tanks need PN 823552, whereas 135 PSI tanks accept PN 823550. Testing after installation requires a certified gauge; never obstruct the discharge port, as this bypasses critical overpressure protection.
