Begin troubleshooting or maintenance by locating the impeller housing–typically positioned behind the motor assembly. Remove the clamp or screws securing the rear casing to access internal mechanisms. Inspect the impeller for debris accumulation, as even small obstructions can reduce flow efficiency by up to 40%. A fiberglass mesh pre-filter should be installed before the intake valve to prevent larger particles from reaching critical moving elements.
Check the diffuser gasket for wear or compression gaps; a degraded seal can drop pressure by 15-25% and strain the drive mechanism. Replace gaskets every 24-36 months or when visible cracking appears. The volute (the spiral casing surrounding the impeller) must align precisely with the motor shaft–misalignment of more than 0.5mm accelerates bearing wear and increases energy consumption by 8-12%. Use a dial indicator for precise adjustments.
Examine the capacitor for bulging or leaks; a failing capacitor reduces starting torque, causing the motor to stall under load. Test capacitance with a multimeter–values below 90% of the rated tolerance indicate replacement is necessary. Lubricate bearings annually using high-temperature grease (NLGI Grade 2) to extend lifespan; dry or over-lubricated bearings generate excess heat and noise, reducing operational efficiency.
For electrical connections, ensure terminal screws are tightened to 1.5-2.0 Nm to prevent arcing. Loose connections increase resistance, leading to voltage drops and potential overheating. If the thermal overload protector trips frequently, verify motor insulation resistance with a megohmmeter–readings below 1 megohm suggest winding degradation. Always disconnect power at the circuit breaker before handling any wiring or internal components.
Assemble components in reverse order, confirming impeller rotation direction (clockwise when viewed from the shaft end) matches the volute’s design. Incorrect rotation reverses flow, damaging seals and reducing filtration capacity. Run a 2-hour test cycle while monitoring pressure differential; ideal readings should stabilize between 10-20 PSI for standard residential setups.
Understanding Your Filtration System Schematic
Replace the impeller every 2–3 years if your circulation unit runs 8+ hours daily. Check for cavitation or reduced flow–these indicate wear. Locate the impeller housing beneath the motor bracket; it’s secured by a single large nut. Use a strap wrench to prevent shaft spinning while loosening. Match the replacement model exactly–thread direction and blade count vary by brand.
Key Components to Inspect Regularly
- Diffuser gasket: Deteriorates fastest. Apply silicone lubricant during reassembly to extend lifespan. A cracked gasket causes air leaks, reducing suction by 20–30%.
- Shaft seal: Twice-annual replacement prevents water from reaching the motor. Install with the ceramic side facing the wet end. Misalignment causes immediate failure.
- Basket pre-filter: Clean weekly. A clogged basket increases energy consumption by 12% due to restricted flow. Check for cracks–damaged screens allow debris into the impeller.
Label wires before disconnecting the motor. Photograph connections; color-coding differs across models. Use a multimeter to test for continuity–open circuits signal burnt windings. Lubricate bearings with water-resistant grease rated for 150°C+ if the motor hums but doesn’t start. Ball-type bearings outlast sleeve bearings by 40% in wet environments.
Drain plugs vary by location–front-mounted for above-ground units, side-placed for in-ground. Always power off at the breaker before opening. Store removed screws in a magnetic tray; stainless steel fasteners corrode in 18 months if exposed to chlorinated water.
- Gather tools:
Torx T-25,5/16" socket, needle-nose pliers, and a non-contact voltage tester. - Disassemble in order: volute → impeller → seal plate → motor bracket.
- Align new shaft seal precisely–misalignment voids warranty.
- Prime after reassembly. Run the system for 2 minutes, then check for leaks around the seal plate.
Thermal overload protectors trip at 115°C. Reset by pressing the red button, but if it trips within 30 minutes, the motor requires servicing. Replace capacitors if the unit struggles to start–measure microfarads against the label rating (±10% tolerance). Never exceed 1.5x the recommended ampere draw; overheating destroys insulation within hours.

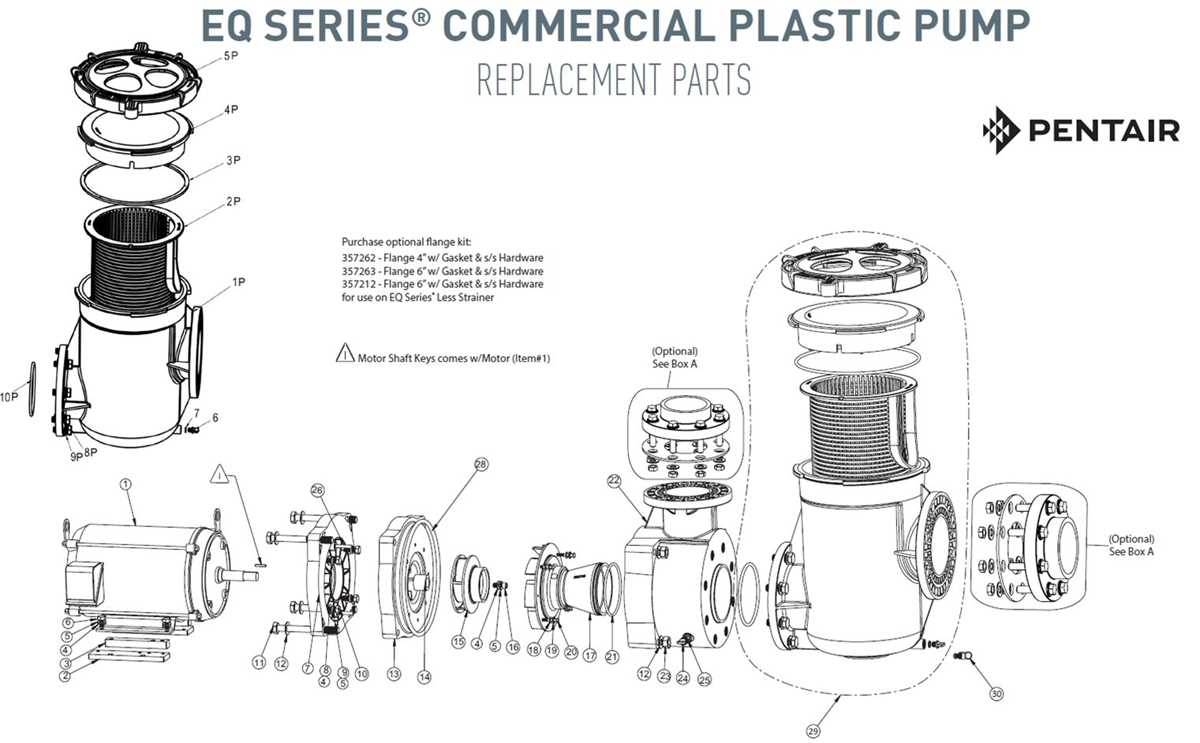

How to Pinpoint Critical Elements in a Circulation Unit Breakdown Schematic
Locate the motor assembly first–it’s typically positioned at the base of the exploded schematic and labeled with voltage specifications (e.g., 115V/230V). Check for a terminal box with color-coded wires: black (hot), white (neutral), and green (ground). If absent, the model may use a sealed, waterproof housing.
Identify the impeller by its distinct curved blades, often made of reinforced thermoplastic or stainless steel. Note the diameter–common sizes range from 5″ to 7″–as this dictates flow rate. Look for a directional arrow molded into the hub; backward installation disrupts performance.
Examine the volute casing for a large threaded inlet and outlet, usually 1.5″ to 2″ in diameter. Some designs include a built-in strainer basket housing, indicated by a perforated plastic or metal insert. Missing threads or cracks here signal replacement necessity.
Trace the shaft seal assembly–visible where the motor shaft enters the wet end. It consists of two ceramic faces held together by a spring. A leak at this junction points to seal failure, especially if white residue or rust appears on the shaft.
Inspect the diffuser, a ring-like component surrounding the impeller. Its vanes straighten water flow; erosion or breakage here reduces efficiency by up to 30%. Compare the shape to the manufacturer’s spec–deviations suggest wear.
Check for auxiliary components like thermal overload protectors, often embedded in the motor housing. Brands like Hayward use a bimetallic disc, while Pentair employs resettable switches. Absence means the unit lacks automatic shutdown safeguards.
Verify O-rings at every joint, particularly around the lid and impeller housing. A dried-out or flattened ring (Shore A hardness
Troubleshooting Hidden Anomalies
Compare the schematic to physical components. A mismatched impeller size (e.g., 6″ in a 5″ volute) causes cavitation. Measure tolerances: gaps > 0.5mm between impeller and diffuser necessitate realignment. For variable-speed models, confirm the presence of a drive board–lacking one limits performance adjustments.
Step-by-Step Guide to Finding the Motor Assembly in Filtration System Blueprints
Begin by identifying the largest circular or cylindrical component on the schematic–this typically represents the driving force of the entire unit. Look for labeling such as “Motor,” “Drive Unit,” or “Power Core” near this section, as manufacturers often highlight it with bold lines or shading to distinguish it from auxiliary elements.
Examine the electrical connections depicted as thin, dashed, or solid lines extending outward. The motor assembly will usually have multiple wires leading to a capacitor, thermal protector, or control panel. If the diagram includes a wiring legend, cross-reference these symbols to confirm the exact location.
- Capacitor: Often a small oval or rectangle near the motor housing.
- Thermal Overload: A zigzag line or triangular symbol adjacent to the motor casing.
- Power Input: Thick lines converging at the motor’s base or side.
Trace the outline of the main body–most schematics position the motor assembly at the rear or underneath the impeller chamber. If the diagram shows an exploded view, the motor will appear as a standalone unit separate from the wet end, often connected by a shaft or coupling interface.
Locate the shaft extending from the motor to the impeller (depicted as curved vanes or a spiral design). The motor’s output end–where the shaft exits–will be clearly marked, sometimes with measurements (e.g., “0.5 HP” or “1.5 kW”) to indicate power output. This is a critical identifier.
If the blueprint lacks clear labeling, search for a rectangular box or cylindrical shape with cooling fins–these are standard motor housing features. Side-mounted components like a junction box or conduit entry point further confirm the motor’s position. Compare the diagram to a physical inspection if possible: the motor is usually the heaviest and most robust component of the assembly.
For variable-speed units, look for additional modules attached to the motor, such as a digital display, control dial, or communication wires leading to a separate control board. These are often grouped near the motor but may appear in a detached section of the schematic.
- Isolate the impeller housing (the second largest component).
- Follow the shaft backward–it will always lead to the motor.
- Check for mounting brackets or flanges securing the motor to the base.
- Verify the presence of a nameplate label on the diagram (e.g., “Motor Model: XX-2000”).
In rare cases where the motor is integrated into a sealed system, the diagram will show it encapsulated within the main body. Here, focus on identifying the motor’s ventilated section–often depicted with slotted lines or perforations–to confirm its hidden placement. If the schematic includes sectional views, the motor will appear as a cross-hatched area with internal coils or windings visible.
