Locate the model number on your valve–typically engraved beneath the spout or inside the handle base–to access precise schematics. Brands like this one follow a standard labeling system, where prefixes such as “GT,” “T48,” or “LF” indicate specific series, while trailing digits pinpoint the exact configuration. Without this code, cross-referencing parts becomes inefficient and prone to error.
For single-handle valves, disassemble the bonnet nut first–counterclockwise with adjustable pliers, while gripping the body steady–to expose the cartridge. The ceramic-disc cartridge (common in post-2010 models) features two flat discs with inlet/outlet ports; wear here presents as sporadic water flow. Replace with an identical unit–manufacturer codes 974-050 or 974-070 cover most variants. Avoid generic substitutes; tolerance mismatches cause leaks at the stem seal.
Check the aerator housing next. If debris clogs the mesh, unscrew the retaining ring beneath the spout tip–use a 22mm wrench–to inspect the O-ring (part #54711). Hardened rings fracture under torque; replace with silicone-based equivalents, lubricated with plumber’s grease to prevent binding. For pull-down spray heads, detach the hose by loosening the weight bracket; excess tension here strains the internal diverter (replace with 951-030 if spraying patterns distort).
When sourcing gaskets, measure thickness with calipers–standard diameters range 1/4″ to 3/8″, but tolerances vary by 0.2mm. Spout swivels rely on seating washers (part #52825); dry-fit before installation to confirm smooth rotation. For older brass bodies, remove mineral deposits with white vinegar soaks–avoid abrasives that score chrome finishes. Always close shutoff valves before servicing; residual pressure expels debris unpredictably.
How to Identify and Replace Components in Your Kitchen Sink Assembly

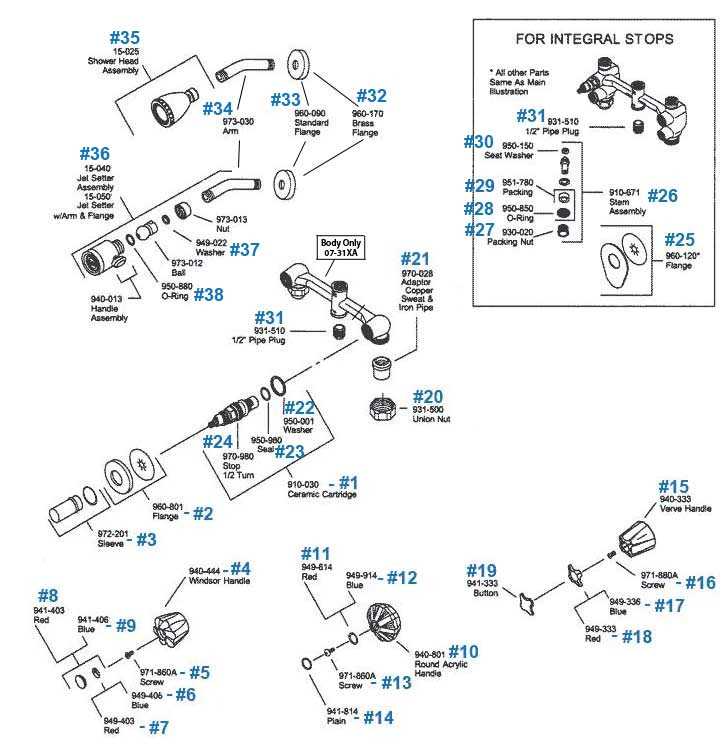

Begin by locating the exploded view illustration for your specific model–often found in the manufacturer’s repair guide or online product page. Key components typically include cartridge valves, aerators, spouts, and handle mechanisms. For example, the 974-0740 cartridge operates under 60 psi pressure and fits most single-handle models; verify compatibility by measuring the stem height (standard: 1.5 inches). If leaks persist after replacing the cartridge, inspect the O-rings–these degrade over time, especially in hard water areas. Use silicone-based lubricant on new O-rings to prevent premature wear.
- Turn off water supply lines before disassembly to avoid flooding.
- Use a basin wrench for tight spaces–adjustable wrenches may strip fittings.
- Label small components (e.g., washers, screws) to simplify reassembly.
- Check the spout’s swivel base for mineral buildup; soak in vinegar for 30 minutes if stiff.
For two-handle systems, the diverter stem (commonly part #920-900) directs water between the main outlet and side sprayer. If the sprayer fails to activate or water flows weakly, the diverter may be clogged. Remove the stem and clean the internal passages with a wire brush–avoid sharp tools that could damage the brass housing. Replace the stem if threads are stripped or the seat surface is pitted. For models with pull-down wands, ensure the counterweight (usually #951-550) is securely attached; a loose weight will prevent retracting.
Problematic installations often trace back to incorrect washer placement. The inlet washer (standard size: 3/8″ ID) must sit flush against the valve body–misalignment causes slow leaks that worsen over time. For older installations, upgrade to ceramic disc cartridges (e.g., #910-0300), which withstand sediment better than rubber seals. If replacing the entire unit, note that braided stainless steel supply lines (12″ length) reduce kinking compared to vinyl-coated lines. Secure connections with Teflon tape on male threads, wrapping clockwise to avoid unraveling during tightening.
Tools required for repairs:
- Channel locks (for stubborn nuts)
- Allen wrench set (for set screws)
- Adjustable pliers (for supply lines)
- Flashlight (to inspect dark cavities)
- Towel (to catch residual water)
For persistent drips, test the pressure balance valve–sudden temperature shifts indicate failure. Models like the GT529-CP include built-in thermostatic protection; if malfunctioning, replace the entire cartridge rather than individual membranes. Always cross-reference the serial number (engraved on the valve body) with the manufacturer’s part database to avoid mismatched components.
How to Recognize Popular Single-Handle Valve Assemblies by Component Arrangement
Check the cartridge orientation first–most rotary-handle designs from this brand place the ceramic disc unit vertically, while lever-style mixers often embed it horizontally. Locate the retaining clip: if it secures a cylindrical core with three inlet ports on the underside, the unit follows the G-series design. Should the clip hold a shorter, wider component with two ports on opposite ends, it matches the older T-series layout.
- Rotary models: single locking ring above the spout base.
- Lever models: two separate locknuts beneath the deck plate.
- Pull-down sprayers: integrated diverter with a brass push rod.
- Center-set installations: identical triangular baseplate cutouts.
Examine the mounting hardware beneath the sink. Four-hole configurations typically show a dedicated soap dispenser port adjacent to the spout, confirming a widespread vessel-sink model. Three-hole setups with a 4-inch spacing between handles indicate transitional lavatory styles, while 8-inch spacing denotes standard widespread units. Single-hole variants often include a plastic escutcheon that snaps directly around the valve body.
Compare the aerator threading–standard models use a 55/64″-27 male thread, whereas high-arc pre-rinse units have a 15/16″-27 connection. Identify the supply line connectors: compression fittings usually mark older builds, while newer installations feature proprietary quick-connect adapters with distinct red/blue color coding for hot and cold lines.
How to Precisely Identify Components Using Manufacturer Schematics
Locate the exploded view illustrations in the official repair manual–typically labeled by model number on the baseplate or under the handle. Compare the symbols adjacent to each internal element with the numbered legend at the bottom right of the schematic; mismatches commonly occur between O-rings (marked with circles) and cartridge assemblies (rectangular outlines). If the manual lacks a legend, cross-reference the component shape and position with online product specifications specific to the year of production, as tolerances vary between early and late editions.
Key Visual Indicators to Verify
Check for subtle engravings on each piece–stems often feature microscopic alphanumeric codes near the threading. Washers frequently display a colored stripe correlating to pressure ratings; consult the “Material Codes” section of the repair document for exact distinctions. Replace components with identical dimensions rather than generic alternatives, as third-party equivalents may deviate by ±0.2mm, causing leaks under temperature shifts. Measure widths with digital calipers if visual inspection proves ambiguous, particularly for pivot nuts susceptible to wear.
Assemble a temporary mock-up using transparent adhesive tape to confirm alignment before final installation. Misaligned flow restrictors or diverter valves commonly disrupt water distribution, visible in schematics as dotted pathways–verify continuity with a multimeter at ohms settings if performance falters post-repair. Store extra gaskets in labeled resealable bags, sorted by installation location, to expedite future servicing.
Decoding Exploded Views for Plumbing Fixture Maintenance
Start by matching the illustration to your fixture’s model number–printed on a small metal tag beneath the sink or behind the handle. Each drawing separates components into numbered sections with a corresponding legend on the right. Note the arrows indicating assembly direction; reversed orientation is the most common installation error leading to leaks.
Identify seal locations first. Washers, O-rings, and gaskets appear as dashed circles or shaded areas in the view. Replace these every repair, regardless of visible wear–most failures trace back to degraded seals, not metal fatigue.
Isolating the Problem Zone
Trace the water path from spout through valve body. Hot and cold supply lines enter at designated ports; mixing occurs in the cartridge chamber. If water drips steadily, focus on cartridge replacement–cartridges degrade predictably after 300,000 cycles. If flow is weak, inspect sediment screens located just ahead of the aerator at the spout tip.
Examine fastener hierarchy. Small retaining clips hold cartridges in place, while larger threaded nuts secure spouts and handles. Remove clips with snap-ring pliers, but extract spout nuts using basin wrenches–standard wrenches round cheap chrome plating. Apply penetrating oil and wait ten minutes before initial loosening attempts on corroded connections.
Assembly Reversal Without Guesswork
Reassemble exactly as disassembled, following arrow cues on the exploded view. Thread sealant tape (three wraps clockwise) belongs only on pipe threads, never on O-ring seals. Torque cartridge retention nuts to 12 Nm; over-tightening distorts valve seats. Test for smooth operation before final securing–binding indicates misaligned cartridge alignment pins.
Flush lines after reassembly. Run both hot and cold full-blast for 30 seconds to clear debris dislodged during work. Recheck connections after one hour–initial expansion from temperature changes reveals slow leaks missed immediately post-repair.
