Begin by identifying the multiport valve–typically located on the upper hemisphere of the unit. This critical assembly manages water flow direction through seven key settings: Filter, Backwash, Rinse, Waste, Recirculate, Closed, and Winter. Each position reroutes internal channels, so verify O-ring integrity before adjustments to prevent bypass leakage. The valve’s spider gasket (part #160388) wears fastest; replace it every 2–3 years during scheduled maintenance to avoid pressure loss or erratic flow patterns.
Inspect the lateral assembly–positioned at the tank’s base–using a flashlight to confirm no quartz granules are trapped between slots. Laterals with 0.5mm gaps (common in models 1450–1800 series) require clearance checks every 1,000 operational hours. If gaps exceed 0.8mm, replace laterals as a complete set (kit #160301) to maintain uniform distribution. Avoid partial replacements; mismatched laterals create dead zones and reduce filtration efficacy by up to 40%.
Examine the pressure gauge mount–threaded into the tank’s side collar–ensuring the Bourdon tube isn’t clogged with quartz fines. A faulty gauge misreads tank pressure by 5–15 psi, leading to premature backwashing cycles. Calibrate annually using a reference gauge; if delta exceeds 3 psi, swap the gauge (part #160370) immediately. For vertical tank models, note that the gauge reads post-media pressure–account for this when setting backwash thresholds (typically 8–10 psi above clean-start baseline).
Dismantle the air relief assembly–top-mounted cap with Schrader valve–by depressing the core to release trapped air. If the valve hisses beyond 5 seconds, the core (part #160012) or cap (part #160013) is compromised. Replace both simultaneously; cross-threading risks tank pressurization failure. During reinstallation, torque to 25 Nm; over-tightening cracks the nylon housing, voiding warranty claims.
Trace the drain plug–usually a 1.5″ threaded port–located at the base. Confirm the rubber gasket isn’t perished; a single crack can leak 0.3–0.7 GPM during operation. Replace the plug (part #160004) if quartz residue is visible on the O-ring surface. For horizontal tanks, ensure the plug faces downward to prevent airlocks during draining. Never force the plug; stripped threads require a complete baseplate replacement (part #160500).
Understanding Your Pool Filtration System Components
Begin troubleshooting by locating the multiport valve–this six-position selector sits atop the tank and controls flow functions. Perform a leak check at the valve’s handle and lid O-ring first; deterioration here causes bypass failures. Replace the O-ring annually (part #150155) or whenever hardness exceeds 30 durometers.
| Component | Common Failure Signs | Diagnostic Tool |
|---|---|---|
| Pressure gauge | Reading above 25 PSI post-backwash | Test with digital manometer |
| Lateral assembly | Sand in return lines | Inspect under tank base for cracked fingers |
| Standpipe | Air bubbles during operation | Apply soap solution to joints |
Remove the top dome by loosening the clamp band–ensure the tank remains upright to prevent grit spillage into the plumbing. Inspect the laterals (specifically the penta-bead design) for hairline fractures; a single compromised finger can release up to 4 lbs of media per week. Genuine replacements (kit #360401) include notched spacers that align perfectly with the manifold’s hexagonal ports.
Check the diffuser screen positioned above the bed; it should freely rotate when gently pushed. A warped screen restricts backwash flow, evidenced by uneven media distribution. The screen’s lifespan typically matches the media’s replacement cycle–every 5–7 years or whenever silica breakdown exceeds 1.5% weight loss during backwash testing.
Verify pump-to-tank plumbing connections using Schedule 40 PVC fittings; solvent weld mismatches cause hidden leaks that mimic media channeling. Seal joints with Teflon tape on male threads only–over-wrapping starves the solvent bond. During winterization, replace both drain plugs (tank #270192, pump #150202) regardless of visible wear; freeze-thaw cycles create micro-fissures undetectable by visual inspection.
Calibrate the pressure switch before adjusting the automatic backwash timer–factory settings (15 PSI delta) reset after power interruptions. For installations above 3,000 feet altitude, decrease the switch setting by 1 PSI per 1,000 feet to compensate for reduced atmospheric pressure. Retain receipts for all consumables; warranty claims require proof of purchase within 90 days for electrical components and 180 days for mechanical elements.
Locating Critical Elements in Your Pool Purification Unit
Start by examining the multiport valve–typically the largest cylindrical component atop the tank. Look for these distinct ports: inlet (from pump), outlet (to pool), waste (for debris discharge), rinse (post-backwash sediment flush), recirculate (bypasses tank media), and closed (blocks all flow). Each position corresponds to a labeled dial; misalignment can damage internal mechanisms. Check the O-ring sealing the valve to the tank–replace if cracked or compressed beyond 2mm thickness. The pressure gauge (usually 0-30 PSI) mounts near the valve; readings above 8-10 PSI over startup pressure indicate clogging.
Inspect the tank interior by removing the clamp and lid. Inside, you’ll find:
- Underdrain system: A hub-like assembly with lateral tubes extending like spokes–ensure no fractures or disconnections; even hairline cracks require full lateral set replacement (model-specific: Sidewinder uses 6×18″ tubes, Triton uses 36×1″ laterals).
- Media bed: Measure depth–12-18″ of #20 silica (0.45-0.55mm diameter) is standard; finer grades compact faster, increasing backwash frequency.
- Air relief valve: Located on the lid or sidewall; opens manually during startup to purge trapped air–failure leads to air binding and reduced flow (
- Baffle plate: A perforated disc above the laterals–distributes water evenly during backwash; warping >2mm reduces efficiency by 30%.
Clean laterals with a high-pressure hose (50 PSI) annually; soak in muriatic acid solution (1:10 ratio) if calcium deposits exceed 1mm thickness. Replace tank gaskets if swelling occurs (Durometer >70A).
Step-by-Step Disassembly for Accessing Internal Components
Shut off the system’s power supply and relieve pressure by opening the release valve before handling any housing elements. Use a wrench to loosen the clamp securing the multiport valve to the tank–rotate counterclockwise while supporting the valve body to prevent lateral stress on the connecting pipes. If corrosion is present, apply penetrating oil and wait 10 minutes to avoid damaging threads. Keep track of gasket positions; misalignment during reassembly will cause leaks.
Removing the Valve and Inspecting Internals
Lift the valve straight upward to detach it from the riser tube. If resistance occurs, gently tap the sides with a rubber mallet–avoid metal tools to prevent gouging the surface. Examine the riser tube and lateral assembly for cracks, mineral buildup, or worn slots; replace damaged sections immediately. Rinse the tank interior with a low-pressure hose to clear debris, but avoid directing water at the laterals to prevent bending.
Use a socket wrench to unscrew the flange bolts securing the tank’s base–work in a crisscross pattern to distribute force evenly. Once removed, tilt the vessel slightly to drain residual water before lifting the lid. Check the O-ring groove for wear; a dry or hardened seal should be replaced with a compatible silicone-based substitute. Document bolt lengths and positions; mismatched reinstallation can warp the flange.
Inspect the drain plug and air relief assembly next. Remove the plug by turning it clockwise–left-hand threading is common in these units. Clear blockages from the vent hole using a small wire brush, ensuring unobstructed airflow during operation. If internal coatings are peeling, scrub the surface with a non-abrasive pad and rinse thoroughly to prevent loose material from clogging outlets during runtime.
Locating and Replacing the Multiport Valve in Your System Layout
Begin by shutting off the water supply and relieving pressure via the purge valve–usually a small lever or knob on the valve housing. Trace the plumbing back to the cylindrical tank; the multiport mechanism sits atop it, identifiable by its six or seven labeled ports (e.g., “Filter,” “Backwash,” “Rinse”). Mark each pipe with masking tape before disassembly to avoid misalignment during reassembly.
Rotate the valve handle counterclockwise to unlock it, then lift straight up to separate the assembly from the standpipe. Inspect the O-ring at the base–replace it if cracked or flattened. Slide the new valve onto the standpipe, ensuring the keyway slot aligns with the tank’s tab, then secure it by reversing the disassembly steps. Use thread sealant on threaded connections if leaks persist.
Troubleshooting Common Issues
If the handle resists turning, check for debris lodged in the rotor or a seized spider gasket–soak the valve in vinegar for 30 minutes to dissolve mineral buildup. For persistent leaks, verify the tank lid’s gasket sits properly in its groove. When backwashing fails to clear water, suspect a blocked lateral or worn valve internals; disassemble the valve to clean or replace the rotor and diverter plate.
Resolving Blocked Underdrain Tubes with Schematic Reference

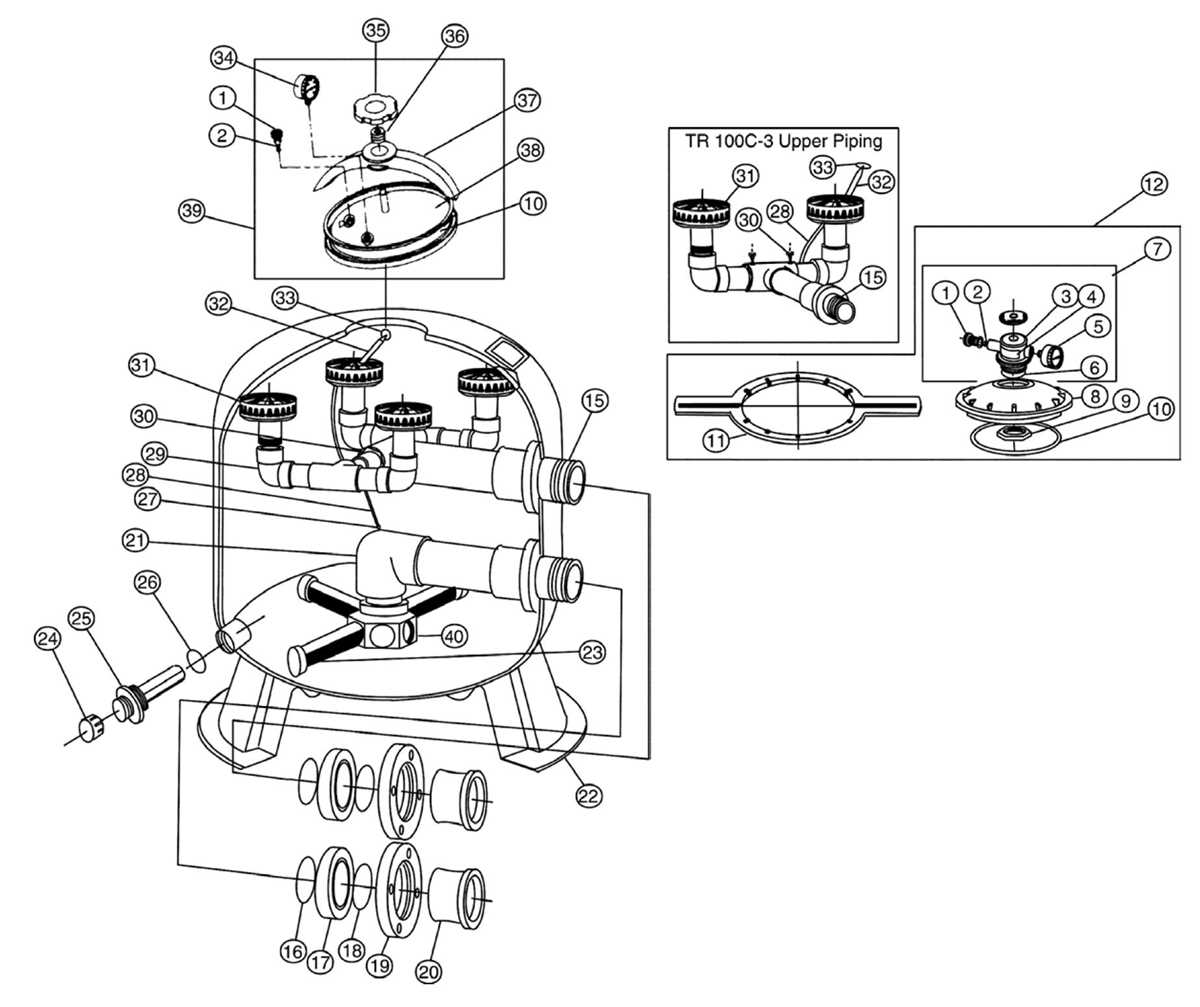

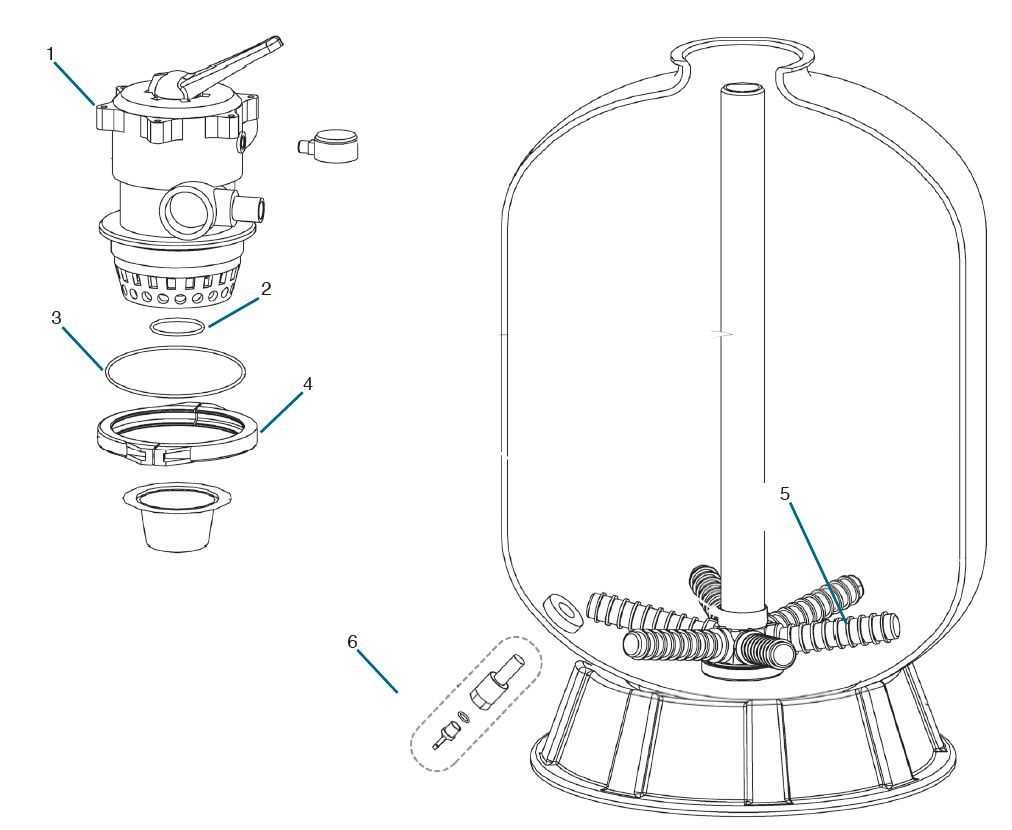

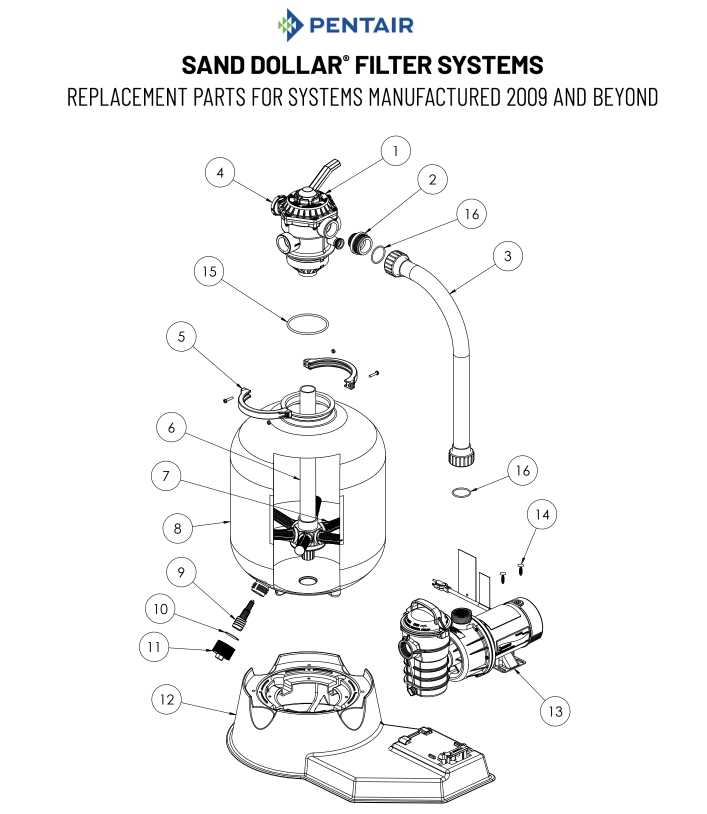

Locate the lateral assemblies in the exploded view of your system–typically shown as thin, perforated tubes branching from the base manifold. If water flow is weak or uneven, detach the main tank and pull out the media bed to expose these components. Blockages often accumulate at the slotted openings or along curved sections of the laterals.
Compare each tube against the reference illustration to confirm alignment. Misplaced or bent segments restrict water passage and require straightening. Use needle-nose pliers for precise adjustments–avoid excessive force to prevent cracking the plastic. Clean out debris with a small brush or compressed air, targeting both the slots and internal channels.
Check for mineral deposits, especially if the system uses hard water. Soak clogged tubes in a solution of one part white vinegar to three parts water for 30 minutes, then rinse thoroughly. If slots remain obstructed, gently ream them using a stainless-steel wire no thicker than 0.5mm–wider tools risk enlarging the openings and reducing filtration efficiency.
Inspect the O-rings securing each lateral to the manifold. Cracked or flattened seals allow unfiltered water to bypass the media chamber, leading to inconsistent pressure. Replace damaged rings with identical size replacements–measure the diameter to ensure a tight seal. Lubricate new rings lightly with silicone grease before reassembly.
Reassemble the unit incrementally, verifying each connection against the schematic. Fill the tank halfway with water and run a backwash cycle to test flow uniformity. If pressure remains low, repeat the cleaning process or examine the valve assembly for additional obstructions.
Document any modifications made during troubleshooting–note whether laterals were repositioned, cleaned with acidic solutions, or fitted with new seals. Keep a record of pressure readings before and after adjustments to track long-term performance degradation. Replace media if it shows signs of channeling or excessive wear.
For persistent issues, cross-reference the tube layout with a pressure gauge reading across individual laterals. A drop greater than 5 PSI between any two points indicates a localized blockage. Targeted cleaning or replacement of the affected tube is needed rather than disassembling the entire unit.
