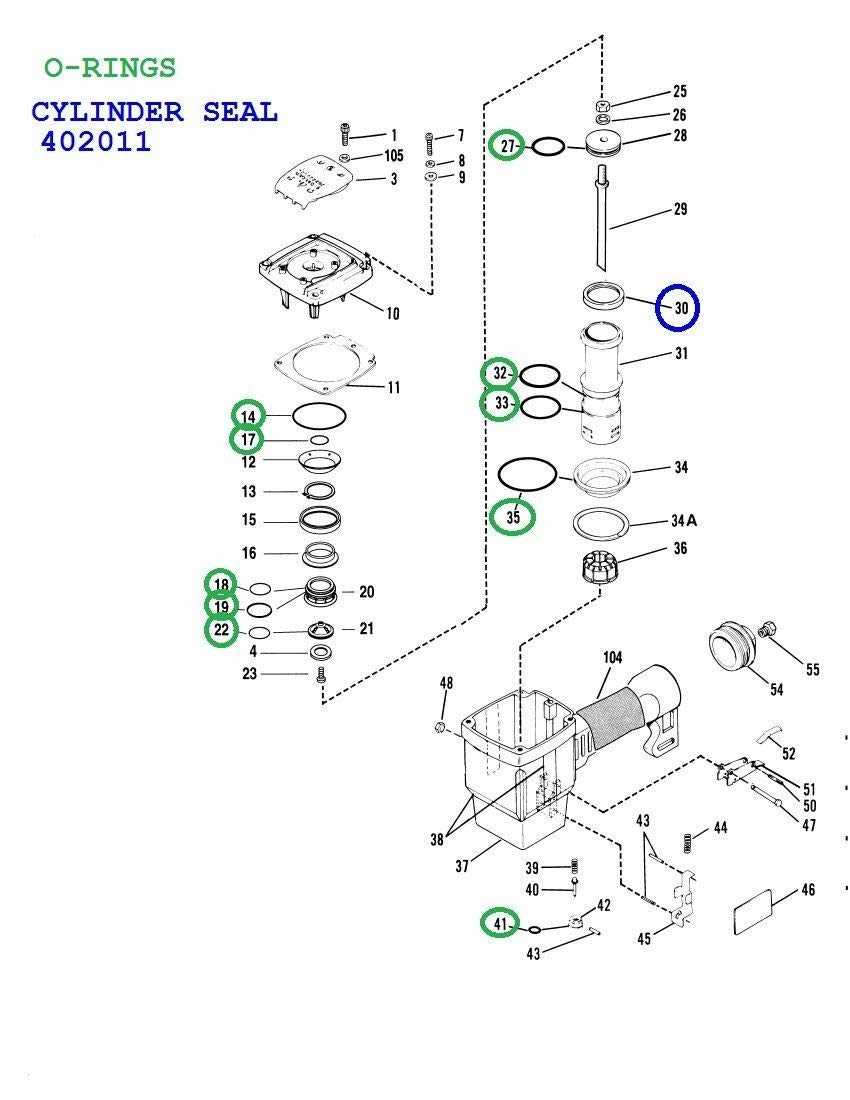

If your pneumatic fastening device fails mid-job, identify the issue immediately by cross-referencing your model’s internal layout with a numbered schematic. Manufacturers embed variation codes in the housing–look for a three-digit suffix on the motor label (e.g., “235” or “440”) to pinpoint the exact revision. Match this code to the exploded view; generic manuals omit critical updates and lead to misalignment during reassembly.
Replace worn O-rings before they tear–measure the outer diameter with calipers, not by sight. Standard sizes (12mm, 16mm, 20mm) deform under torque loads up to 27 Nm; use fluorocarbon seals rated for 300 psi if the original silicone compound has hardened. The firing valve spring loses tension after ~15,000 cycles; swap it at the first sign of delayed ejection rather than waiting for complete failure.
Clean the magazine throat every 500 fasteners–accumulated debris form a slurry that bonds the pusher mechanism. Use a nitrile bristle brush with isopropyl alcohol; avoid wire tools that gouge the channel’s anodized coating. Lubricate the linkage with PTFE grease applied sparingly–excess migrates into the combustion chamber and fouls the fuel cell.
Inspect the driver blade edge monthly. A chamfer radius exceeding 0.2mm necessitates replacement–otherwise penetration rate drops by 22% and misfires increase exponentially. Store replacement blades in a vacuum-sealed ESD bag; oxidation occurs within 72 hours of exposure to ambient humidity.
Verify trigger switch continuity with a multimeter–contact resistance should read <0.1Ω. A crumbling resistor block (usually 10kΩ carbon film) is the primary cause of intermittent activation; solder bridges overheat and melt the adjacent phenolic board within 300 cycles if not addressed.
Understanding the Internal Components of a Cordless Brad Gun
Begin by locating the combustion chamber at the base of the tool–this houses the fuel cell ignition system, where a spark plug ignites the pre-mixed propellant to drive the fastener. Ensure the O-ring sealing this section remains intact; even minor wear can reduce power output by up to 30%. Replace it every 500 shots or if discoloration appears, using only manufacturer-specified lubricants to prevent degradation.
Inspect the driver blade–the hardened steel component that transfers kinetic energy from the piston to the fastener. If misalignment occurs (visible as uneven striking), check for bent edges by sliding a feeler gauge along its length. A deviation exceeding 0.2mm requires professional re-alignment; repeated use with a damaged blade will damage both the fastener and workpiece. Clean residue buildup after every 1,000 cycles with a nylon brush and mineral spirits.
The magazine assembly holds collated fasteners in staggered formation, fed via a spring-loaded pusher mechanism. Jammed feeds often stem from improperly seated strips or debris blocking the track–remove all nails before disassembly. Lubricate the follower spring with dry graphite powder sparingly; excess can attract dust, accelerating wear on the feed rails. Verify the anti-dry-fire pawl moves freely; a stuck pawl prevents proper cycling and risks incomplete drives.
Examine the exhaust port baffle–this directs hot gases away from the user while filtering particulate. A clogged baffle increases operational pressure, forcing the motor to work harder and reducing cycle speed by 15-20%. Remove carbon deposits monthly using compressed air at a 45° angle to avoid embedding debris deeper. For stubborn buildup, a brass wire brush dipped in acetone dissolves residues without scratching protective coatings.
Safety contact tip ensures the tool only fires when pressed firmly against a surface. Test functionality by loading a single fastener and pressing the nose onto scrap lumber–no drive should occur without pressure. If the mechanism fails, disassemble the tip housing to check for bent trigger linkages or dislodged springs. Replace any compromised springs immediately; a faulty tip poses serious injury risk by enabling unintended firing.
Troubleshooting Common Malfunctions Using the Schematic
Refer to exploded views for diagnosing misfires: if the piston fails to return fully after driving, the return air passage may be obstructed. Locate the bleed hole (typically near the cylinder base) and clear obstructions with a 0.3mm wire. For inconsistent depth control, calibrate the depth adjustment collar by marking its position before turning–one full rotation typically alters depth by 1.5mm. Always realign the collar to its original setting after making adjustments to avoid over-driving.
Essential Elements of a Cordless Brad Driver and Their Positions
Begin troubleshooting by inspecting the magazine assembly, typically located at the tool’s base. This section houses a linear fastener strip, holding up to 55 clipped or coil nails in standard models. Check the feed mechanism’s alignment–misalignment often causes jams, detectable by inconsistent nail advancement or a clicking sound during operation. The magazine’s latch release should engage smoothly; lubricate the spring-loaded components with dry silicone spray every 500 fasteners to prevent corrosion and maintain tension.
- Motor module: Positioned near the handle, this high-torque motor drives the piston. Test for overheating–excessive heat indicates worn brushes or a failing battery connection. Replace brushes if runtime drops below 30 minutes per charge.
- Piston and drive blade: Located in the firing chamber, these components translate rotational force into linear motion. Clean carbon residue after every 1,000 cycles with a brass wire brush to avoid sluggish performance. The drive blade should retract fully; partial retraction suggests a weak return spring or gummed lubricant.
- Depth adjustment dial: Found on the tool’s rear, this rotary dial controls fastener penetration. For hardwoods, set the dial 1-2 clicks above the lowest setting; for softwoods, use the middle range. Always test on scrap material first–overdriving risks damaging workpieces.
Examine the nosepiece–critical for precision and safety. The workpiece contact element (WCE) must move freely and return without hesitation. If sticky, disassemble and clean the internal plungers with isopropyl alcohol; replace if grooves appear on the surface. The nosepiece’s tip should align flush with the drive blade’s center–misalignment causes nails to skew. Secure the retention pin tightly to prevent accidental detachment during recoil.
Battery and fuel cell integration demands routine maintenance. Store Li-ion batteries at 40% charge in temperatures between 10°C–25°C to maximize lifespan. For fuel cells, purge residual gas after each 1,000-shot canister by firing 3-4 times without nails into a soft surface. Wipe battery contacts with a microfiber cloth every 10 uses; oxidation here leads to erratic power delivery. Always pair the tool with its original charger–third-party adapters void warranty and risk overheating circuits.
How to Pinpoint Worn or Faulty Components with a Schematic
Start by matching each element in the breakdown to its real-world counterpart, then test for play or deformation. The magazine’s feed track should slide without resistance–any hesitation or scraping signals misalignment or bent metal. Check the driver blade for nicks or curvature; even minor imperfections will prevent proper penetration. Measure the depth-of-drive rod’s length against factory specs–wear often shortens it by 1-2mm, causing inconsistent countersinking.
Visual and Tactile Inspection Methods
Shine a light into the chamber–pitting or discoloration on the piston indicates excessive heat buildup from friction. Run your finger along sealing surfaces; grooves deeper than 0.1mm compromise air retention. Examine rubber gaskets for hardening or cracking–stiffness reduces rebound efficiency. Compare spring tension against a known-good unit; weakened springs compress too easily under finger pressure.
Rotate the flywheel assembly slowly–grinding noises point to worn bearings or debris intrusion. Test the trigger mechanism by pulling it with the tool disconnected; a sluggish return suggests corroded pivot pins or gummed-up lubricant. Inspect battery contacts for oxidation; corrosion increases resistance by up to 30%, reducing firing speed. Listen for air leaks at connection points–hissing during idle operation localizes failed O-rings or loose fittings.
For critical surfaces, use a feeler gauge. Valve seats should seal within 0.05mm tolerance–wider gaps cause power loss. Compare wire harness connectors against the schematic; melted plastic or loose terminals disrupt signal transmission. Replace any component showing more than 20% material loss from original dimensions, even if function appears intact–mental fatigue under load will accelerate failure.
Step-by-Step Guide to Disassembling Your Pneumatic Tool for Inspection
Before starting, disconnect the air supply and remove the fuel cell or battery. Place the tool on a clean, flat surface and gather metric hex keys (2.5mm, 3mm, 4mm), a small flathead screwdriver, and needle-nose pliers. Begin by unscrewing the exhaust port cap–located at the rear–using the 3mm hex key. Set the cap aside with its internal O-ring intact. Next, remove the two 4mm screws securing the magazine latch assembly; lift the latch upward to release it from the housing. Detach the magazine by pulling it straight away from the main body, taking care not to damage the feed mechanism or driver blade alignment.
- Rotate the tool upside down to access the baseplate. Remove the three 2.5mm screws along the bottom edge–two near the nose and one adjacent to the trigger. These fasteners secure the lower guard, which must be pried gently upward using the flathead screwdriver to avoid bending the tabs.
- With the guard removed, locate the retaining pin embedded in the housing (use needle-nose pliers to pull it straight out). This pin locks the cylinder in place. Slide the cylinder forward–if resistance occurs, check for debris near the piston or guide rails.
- Separate the housing halves by lifting the rear away from the front; avoid forcing the split to prevent snapping the plastic clips. Once open, inspect the driver assembly, piston, and return mechanism for wear or carbon buildup. Clean components with a dry cloth; lubricate moving rails with pneumatic tool oil before reassembly.
Critical Safety Checks During Reassembly
Verify the driver blade retracts fully into the nose before securing the housing halves. Misalignment can jam the feed system or cause unintended firing. Test the trigger mechanism after reassembly by cycling the tool without fasteners–listen for smooth operation and confirm the piston resets completely. If unusual resistance persists, disassemble again to check for incorrect component positioning or residual debris.
