Begin by examining the tree–the rigid frame supporting the entire structure. Western models typically feature a forked or one-piece design, while English variants favor a spring tree for flexibility. Verify material: synthetic polymers resist moisture, whereas traditional wood absorbs shock better when properly treated. Check the gullet width first–narrow channels (under 3 inches) suit slender equine breeds, while draft horses require 4+ inches to prevent shoulder compression.
Trace the panels next–these padded sections distribute weight across the horse’s back. Wool-flocked types mold to the animal’s musculature over time, reducing pressure points. Foam alternatives offer instant comfort but degrade faster under sweat. Inspect stitching: reinforced nylon threads last longer than cotton under frequent use. Measure thickness: recreational riders can use 1-inch padding, but endurance competitors need 1.5+ inches for shock absorption.
Locate the skirt–the leather or synthetic layer shielding the panels. Full-length versions protect against friction, while cut-back styles improve saddle movement during jumps. Confirm the stirrup bars placement: they should align with the rider’s hip when seated, avoiding excessive leg extension. Adjustable models accommodate multiple riders, though fixed bars provide stability for equestrian disciplines requiring balance precision.
Assess the flaps and bilts–these determine leg positioning. Long, contoured flaps suit dressage, while shorter, straighter ones fit jumping. Hook-and-loop fasteners simplify adjustments, but buckled straps ensure security during high-impact activities. Finally, confirm the cinch rings or girth straps are positioned midrib cage for even pressure distribution; uneven placement causes discomfort and behavioral resistance.

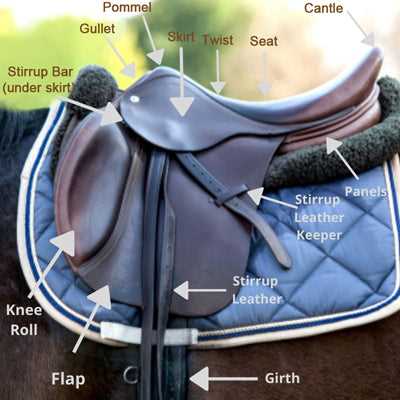

Key Components of Equestrian Seat Illustration
Adjust cantle height first–optimal clearance prevents rider slippage while maintaining balance. Target 3–5 cm gap between seat bones and rear frame edge; less risks pressure sores, more reduces stability. Skirt length should extend just past stirrup bars; shorter skirts expose hardware, longer add unnecessary bulk. Contrary to common practice, flap angle matches rider leg position–not saddle tree width–with 10–15° forward tilt standard for dressage models, 20–25° for jumping variants. Check billet alignment monthly; misrouted straps accelerate girth wear and create uneven girth tension, detectable by uneven sweat patterns on horse hide.
Material Considerations in Seat Framework
Kevlar-reinforced panels outlast leather by 40% under identical conditions but require specialized stitching to avoid abrasion. Memory foam layers compress at 0.8 kg/cm²–ideal for distributing weight evenly–while closed-cell foam maintains shape longer but traps heat. Sheepskin liners absorb 70% more moisture than synthetic alternatives but harbor bacteria if not treated weekly with silver-ion spray. Stainless steel D-rings rated for 250 kg load should be inspected for micro-fractures bi-annually using dye penetrant testing; aluminum rings offer 30% weight reduction but corrode if exposed to chlorine-based cleaners.
Recognizing the Saddle Framework’s Core Support
Locate the central beam–the longest, horizontal spine running beneath the seat. This element bears primary load distribution and connects directly to the cantle, pommel, and side panels. Trace its edges for notches or reinforcements; these indicate stress points requiring regular inspection for cracks or splintering.
Examine side bars–flat or slightly curved extensions flanking the beam. Their thickness determines stability: thinner profiles flex more under rider weight, while thicker variants offer rigidity but may restrict movement. Check for warping by placing a straightedge along their length; gaps signal distortion needing realignment or replacement.
Identify the gullet plate, the U-shaped metal insert beneath the beam’s front. Measure its width against the horse’s withers; a mismatch risks pressure points. Polished surfaces reduce friction, while rough edges can chafe the animal’s hide. Remove dirt buildup monthly using a stiff brush and mild soap solution.
Inspect rigging slots, often three pairs along the beam’s sides. These house buckles securing straps–confirm all six are present and aligned. Misplaced rigging tears leather over time. Lubricate pivot points every 50 riding hours with silicone-based grease to prevent corrosion.
Distinguish skirt layers–the lower protective flaps covering the framework. Heavy-duty leather skirts last longer but trap heat; synthetic variants weigh less but degrade under UV exposure. Test thickness by pressing firmly; impressions persisting beyond 5 seconds indicate compromised material requiring reconditioning.
Trace stirrup bars–the downward projections near the seat’s rear. Ensure they angle forward by 10–15 degrees to prevent the rider’s foot from sliding too far back. Bent bars break under sudden stress–inspect for hairline cracks using a magnifying lens after each fall. Replace immediately if deformation exceeds 2mm.
Verify the cross-bracing–short, diagonal supports linking the beam to the cantle. These transfer impact forces to the framework rather than the horse’s spine. Missing or loose cross-braces create uneven pressure; tighten screws to 25 Nm torque annually. Use lock washers to prevent loosening during high-motion activities like jumping.
Identifying and Marking the Seat Area on Equine Tack Drafts
Measure 60-70% of the total length from the pommel’s leading edge backward to pinpoint the seat’s center on blueprints. Use calipers set to 12-15mm for consistent depth checks–shallow arcs below 8mm indicate incorrect placement. Trace the perimeter with dashed red lines, ensuring a 3-5mm offset from the cantle’s rise to avoid confusion with the rear quilted panel.
Verification Techniques for Draft Accuracy
Overlay a transparent grid with 20mm squares to confirm symmetry. The widest point of the seat should align within 2% of the tree’s gullet width–typically 100-120mm for dressage models. Cross-reference with manufacturer specs: deviations over 5mm require redrafting. Annotate thickness gradients where leather transitions from 4-5mm at edges to 7-9mm near stress zones.
Label the seat using vertical text rotated 90° clockwise, placed 5mm above the right boundary. Include numeric depth markers at 25mm intervals along the centerline, prefixed with “S-” (e.g., “S-25”, “S-50”). For synthetic tack, add a secondary green outline to denote cushion thickness variances–polyurethane cores often require 10-15% oversizing compared to leather.
Panel Varieties and Strategic Placement in Equestrian Gear Schematics
Choose wool panels for riders prioritizing breathability and moisture absorption during long rides. Position them directly beneath the cantle and pommel, extending toward the seat ridge to maximize rider stability. Wool’s natural cushioning reduces pressure points, though it requires periodic re-stuffing to maintain optimal thickness.
Foam-filled panels dominate modern designs due to their low-maintenance durability. Place high-density foam beneath the seat, tapering toward the flaps to avoid bulkiness. Foam’s uniform resilience distributes weight evenly, but it lacks wool’s shock absorption–critical for disciplines like cross-country. Opt for memory foam if custom contours are needed, though it compresses faster under sustained use.
Panel Material Comparison
| Material | Best For | Drawbacks | Placement Priority |
|---|---|---|---|
| Wool | Endurance, eventing | Requires fluffing | Seat ridge, cantle |
| Closed-cell foam | Jumping, dressage | Retains heat | Seat, thigh blocks |
| Memory foam | Custom fit | Compresses permanently | Pommel, lower panels |
| Leather-covered | Show ring | Heavy, stiff initially | Flaps, sweat guards |
Adjustable panels using velcro or screw-in gussets suit riders needing adaptable support across multiple horses. Install them beneath the seat’s midpoint to fine-tune depth without altering flap angles. Brands like Wintec and Bates offer modular systems, but frequent adjustments can weaken attachment points–inspect stitching monthly.
For high-withered horses, cut-back panels (positioned immediately behind the pommel) prevent bridging. Pair with a wider gullet channel to avoid nerve impingement. Use sheepskin overlays only temporarily; prolonged use flattens the natural fibers, reducing effectiveness. Replace overlays when compression exceeds 20% of original thickness.
Avoid stacked panels unless addressing permanent asymmetry (e.g., post-injury rehabilitation). Multiple layers trap heat and create uneven pressure distribution. Instead, opt for a single, thicker panel–30mm minimum for jumping saddles–to maintain consistent support. Position the thickest section under the rider’s weight, not the horse’s spine.
Failure Points and Solutions
| Issue | Cause | Fix |
|---|---|---|
| Rockered panels | Uneven flock dispersal | Redistribute material toward cantle |
| Rear bridging | Overstuffed panels | Reduce flock in cantle, add wedge |
| Flap interference | Oversized panels | Trim edges, re-stitch |
Synthetic panels (e.g., Air Ride) excel in wet climates but require precise placement to avoid slipping. Secure them with rivets along the lower edge to prevent shifting during lateral movements. Check alignment every 10 rides; even slight misplacement alters stirrup bar angle, compromising rider balance. For frequent trail riders, prioritize water-resistant synthetic flock over wool to prevent rot.
