Selecting replacement hardware? Prioritize sash locks with brass or zinc alloy composition–these last 30% longer than steel variants under frequent use. Look for models tested to withstand 20,000+ open-close cycles before degradation begins. Measure the stile width first; standard frames accommodate 2.5″ components, while historic homes often use thinner 1.75″ stiles requiring custom-fitted parts.
Counterbalance mechanisms demand precise calibration. Weigh both upper and lower sections separately–imbalance causes operational failure within 6 months. Spiral balances work best for openings under 80 lbs, while block-and-tackle systems handle weight capacities up to 130 lbs with minimal friction loss. Lubricate friction channels every 12 months using silicone-based grease; petroleum products attract dust buildup causing misalignment.
Install weatherstripping along the meeting rail gap to prevent air infiltration exceeding 0.05 cfm per linear foot. Foam-backed vinyl strips compress efficiently but degrade under UV exposure–replace every 3-5 years. For historic preservation, wool pile offers breathability but requires quarterly cleaning to prevent mold growth. The parting bead must snap securely into the track; improper installation leads to jamming of the sliding mechanism after 50 operational cycles.
Glass retention elements–glazing stops–should flex slightly during temperature fluctuations to prevent seal failure. Use extruded vinyl stops for newer constructions and sealed wooden stops for original historic frames to maintain vapor permeability. Ensure clearance between glass edges and stops remains at 1/16″ to prevent thermal expansion cracks during seasonal temperature swings.
Exterior finishing choices impact longevity. Acrylic latex paint provides 10-year protection but traps moisture if improperly applied–allow 14-day cure time before sealing. Aluminum-clad frames eliminate repainting but corrode around screw holes within 7 years if fastener zinc coatings wear off. Seal raw wood end grains with epoxy resin for historic preservation projects to prevent splitting around mounting hardware.

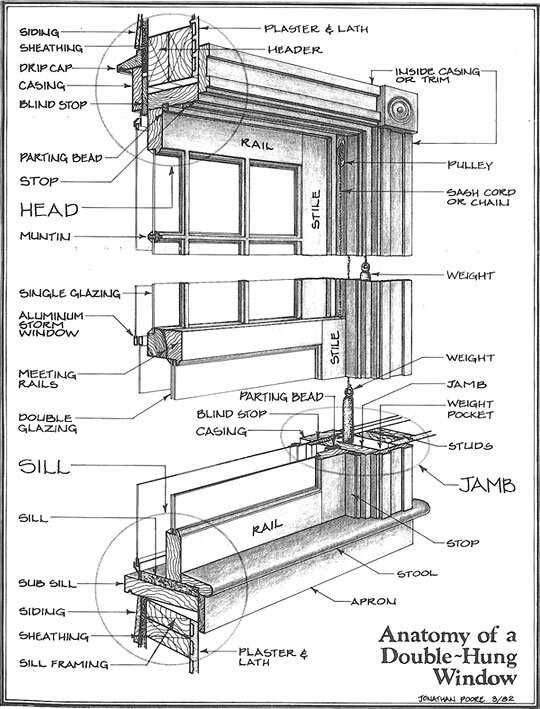

Key Components of a Classic Vertically Sliding Sash Frame
Begin by examining the upper stiles–vertical edges of the top sash–which interlock with the jamb liner via spiral balances or block-and-tackle mechanisms. Ensure these stiles have a minimum thickness of 1.25 inches (32mm) for structural integrity, especially in coastal climates where wind loads exceed 30 psf. Replace worn balances if resistance feels uneven; a stuck upper sash typically signals failed springs or misaligned tracks.
Focus on the meeting rails where the two movable panels overlap. These horizontal members should feature a weatherstrip groove at least 0.25 inches (6mm) deep to accommodate compression seals. Use EPDM rubber for temperatures below -20°C or silicone for UV exposure; avoid foam tapes as they degrade within 3–5 years. The overlap should be no less than 0.75 inches (19mm) to prevent air infiltration at ASHRAE 90.1 thresholds.
Inspect the sill nose–the protruding lower edge of the lower sash–for an integrated drip cap. Molded PVC caps should slope at 10–15° to direct water away from the frame; flat caps risk capillary action. Hidden weep holes must be spaced every 12 inches (305mm) along the sill track and cleared of debris annually. For aluminum frames, ensure the sill nose extends at least 0.5 inches (13mm) beyond the casing to shed water clear of the wall substrate.
Evaluate the locking mechanism choices: cam locks for casement hybrids or lever locks for traditional sashes. Cam locks require precise alignment–tolerance of ±0.02 inches (0.5mm)–or they’ll bind. Replace Zamak alloys with stainless steel if locks corrode within 7 years. For child safety, position locks 38–48 inches (965–1220mm) above finished floor; below that, add tamper-resistant screws with Torx T25 heads.

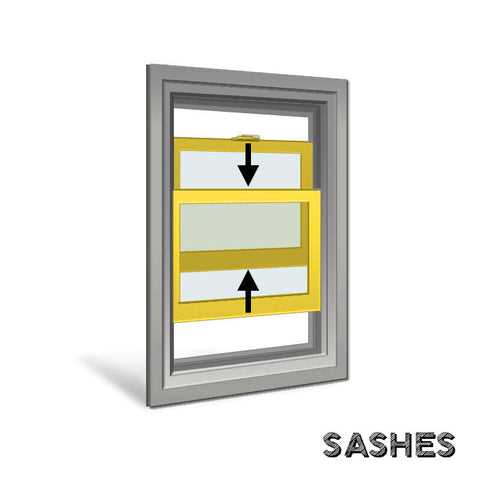

How to Identify the Upper and Lower Panes in a Vertical Slide Frame
Locate the balancing mechanisms on both sides of the frame. The upper pane typically uses spiral or block-and-tackle systems hidden in the side channels; the one attached to the higher pane will have a coil or pulley positioned above its midpoint. The lower pane’s hardware sits below.
Examine the meeting rail–the central horizontal bar where the two panes overlap. The upper pane’s rail often has a lip or flange that overlaps the lower pane’s rail, creating a weather-tight seal. Run your finger along this rail; the upper pane’s edge usually protrudes slightly beyond the lower one.
Check the tilt latches–small spring-loaded devices on the inside edges of each pane. The upper pane’s latches are near the top edge, while the lower pane’s latches sit close to the bottom edge. Activating either latch allows that specific pane to pivot inward.
- Upper pane: latch at top, pulls inward from above.
- Lower pane: latch at bottom, pulls inward from below.
Observe the sash locks–metal tabs or hooks mounted on the meeting rail. In most designs, the lock engages onto a keeper fixed to the face of the lower pane. The lock’s position therefore marks the upper pane’s lower edge.
Measure the stiles–the vertical side members–if any hardware is missing. The upper pane’s stiles are usually shorter; subtract the length of the meeting rail’s overlap (typically 1–1.5 in) from the total height to confirm which stile is attached to the upper unit.
Look for glazing clips or stop beads. The upper unit’s glass is often held by stops or clips positioned at the top and bottom of the frame cavity, while the lower unit’s stops appear at the sill and meeting rail level.
When both panes are closed, slide a thin probe (credit card, putty knife) into the jamb track beside each pane. The upper pane’s track will have more upward clearance; the lower pane’s track ends just above the sill. Probe depth reveals which pane occupies the higher position.

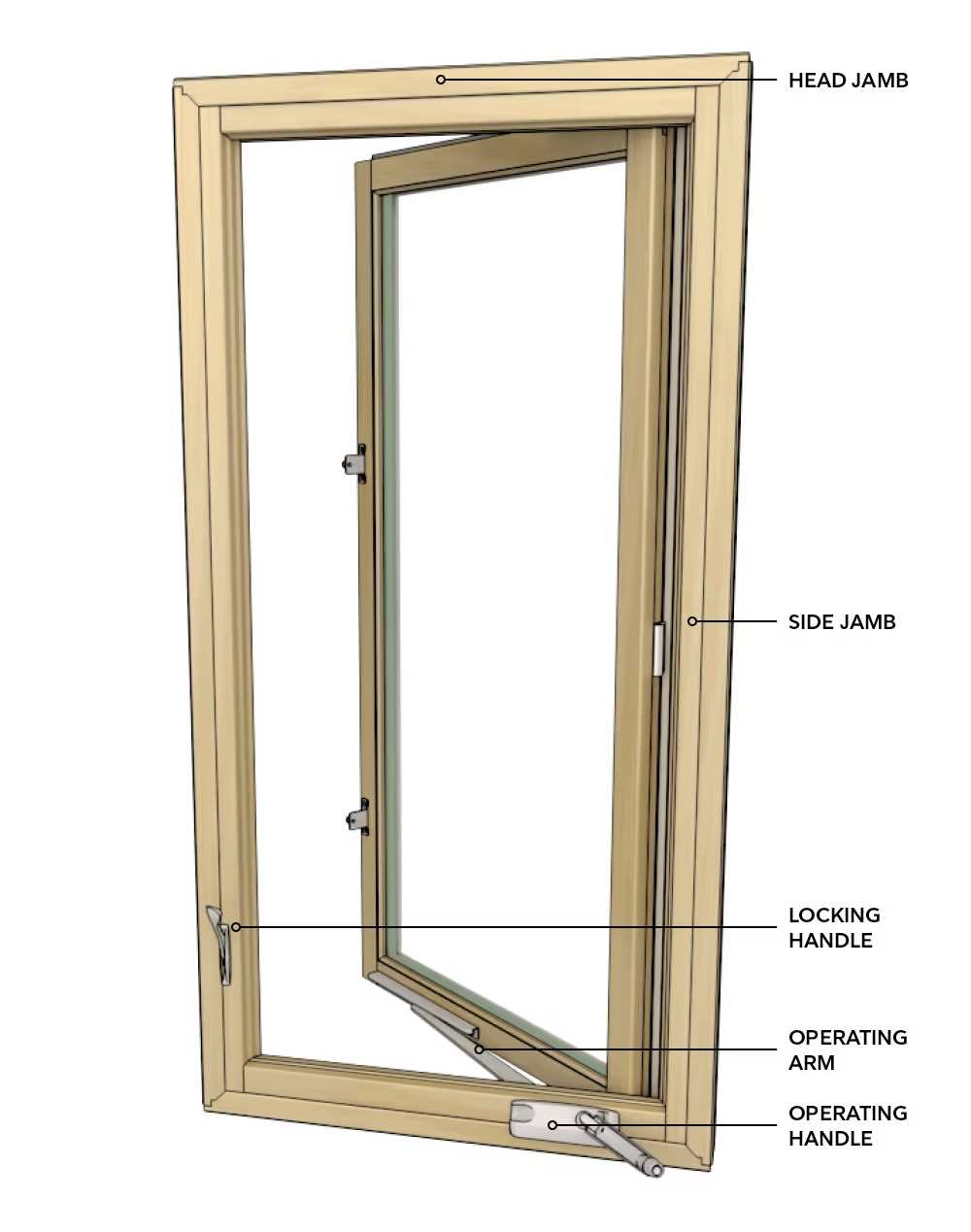

Essential Structural Elements of a Vertically Adjustable Glazing System
Begin by inspecting the jamb–the vertical side structure securing the glazing unit within the wall opening. High-quality jambs, typically crafted from extruded vinyl, fiberglass, or kiln-dried wood, must resist warping, moisture infiltration, and thermal expansion. Ensure the jamb’s depth matches the wall cavity to prevent gaps that compromise insulation. For coastal or humid climates, opt for aluminum-clad or composite jambs to eliminate rot vulnerabilities.
The head and sill form the horizontal boundaries of the frame, each serving distinct roles. The head (top beam) distributes dead loads from the glazing and operational mechanisms, requiring reinforcement if weight-bearing hardware (e.g., sash balances) is installed. The sill (bottom beam) must slope outward to direct water runoff; slope angles between 10–15 degrees prevent pooling, while integrated drainage holes or weep gaps enhance durability in wet conditions.
Focus on the meeting rails–the horizontal bars where upper and lower panels overlap when closed. These rails demand precision-cut profiles to create an airtight seal. Weatherstripping embedded in the rails should be compressible yet resilient (e.g., silicone or thermoplastic elastomer) to block drafts and noise. For soundproofing, specify dual meeting rails with a foam or rubber core sandwiched between metal or wood layers.
Examine the sash tracks, the grooves guiding panel movement. Tracks must maintain smooth operation; debris buildup causes friction, wearing down balance systems. Vinyl or aluminum tracks suit low-maintenance applications, while wood tracks require periodic sealing. For heavy panels, Teflon-coated or roller-bearing tracks reduce drag by 30%, extending the lifespan of counterbalance springs or pivoting hardware.
Prioritize the casing–the trim covering the gap between the frame and adjacent wall. Casing profiles should overlap the frame edge by at least ⅜ inch to conceal expansion gaps and prevent water ingress behind drywall or stucco. Pre-primed wood casing reduces installation steps, while PVC or composite casing eliminates painting but requires UV-stable finishes to avoid discoloration in direct sunlight.
The glazing bead secures the glass pane within the panel, functioning as both a seal and a structural anchor. Choose beads with snap-in designs for tool-free glass replacement, but verify compatibility with insulated units (IGUs) to avoid stress cracks. For impact-resistant designs, specify laminated glass with mechanical beads (e.g., pressure plates) instead of adherent sealants, which degrade under thermal cycling.
Evaluate the check rail (the middle horizontal divider) for structural integrity and weatherproofing. This rail bears the load of both panels when closed, necessitating reinforced joinery (e.g., mortise-and-tenon or aluminum reinforcement bars). Gasketed check rails with multi-point locks enhance security and energy efficiency, reducing air leakage by up to 40% compared to single-point latches.
Why Weatherstripping is Critical for Vertically Sliding Sashes
Install compression-based seals along the meeting rails and jambs–measure gaps with a feeler gauge before selecting materials. Closed-cell foam, silicone, or EPDM rubber (durometer 60-70A) tolerate repeated compression cycles without permanent deformation. Prioritize seals with a 15-year minimum lifespan to offset labor costs of frequent replacements. Apply a thin layer of low-VOC adhesive to secure strips without restricting movement; excess glue creates drag, forcing mechanisms to work harder.
Material Performance Metrics
| Material | Thermal Resistance (R-value per inch) | Moisture Resistance | Lifespan (Years) | Compression Recovery (%) |
|---|---|---|---|---|
| Closed-cell foam | 3.2 | High | 10-12 | 85 |
| Silicone (solid) | 2.8 | Excellent | 20+ | 95 |
| EPDM rubber | 3.5 | Moderate | 15-18 | 90 |
Target a minimum seal compression of 25% during full closure; less risks air infiltration, more increases operational force. Test resistance using a spring scale–ideal closing force ranges from 4 to 7 pounds for balanced operation. Replace deteriorated seals if gaps exceed 1/16 inch; use a razor blade to trim frayed edges before applying new strips. Opt for interlocking seals on upper and lower sashes to eliminate single-point failure; alternating layers create redundant barriers against drafts.
Seal the sash tracks with brush-style or fin-seal weatherstripping–avoid adhesive-backed foam, which binds under dust accumulation. Apply corrosion-resistant screws to secure metal strips; stainless steel or silicon bronze fasteners prevent galvanic reactions with aluminum frames. Focus on the bottom rail exterior seal, which suffers the most wear from debris; pair with a bulb-style sweep to displace water. Audit seals annually; degradation correlates directly with HVAC energy waste–calculate cost savings using blower door test results and local energy rates.
