Begin by identifying the hull–the foundation of any maritime craft. A robust hull determines stability, speed, and load capacity. For monohulls, focus on the keel, which counters lateral drift and improves control. Catamarans and trimarans distribute weight across multiple hulls, reducing draft and enhancing maneuverability in shallow waters. Verify the chine (where the sides meet the bottom) for sharpness, as it influences handling in rough conditions.
Examine the deck layout next. The bow (forward section) should house cleats for mooring, while the stern (rear) requires strategically placed swim platforms or boarding ladders for accessibility. Midship, prioritize hatches for ventilation and storage–secure seals prevent leaks during heavy seas. For sailboats, the mast step and rigging attachments demand reinforced mounting points to withstand dynamic forces.
Inspect propulsion systems separately. Outboard motors require a transom with precise angle cuts to optimize thrust efficiency; incorrect alignment causes cavitation and fuel waste. Inboard engines need bilge pumps strategically placed near the lowest point to manage condensation and minor leaks. Electric vessels require battery banks with ventilation pathways to prevent thermal runaway.
Prioritize safety elements: navigation lights (red/green for port/starboard, white for stern) must comply with IALA standards. Life rings should be mounted at the stern with quick-release mechanisms. For vessels over 20 meters, fire suppression systems near fuel sources and engines are mandatory. Always cross-reference diagrams with ISO 12217 (stability standards) and ABYC guidelines for compliance.
Label electrical systems clearly. Fuse blocks and circuit breakers should be accessible yet protected from water intrusion. Wiring should follow tinned copper specifications to resist corrosion. For sailboats, winches and sheets require color-coded lines (e.g., red for port, green for starboard) to avoid confusion during maneuvers.
Key Components of a Marine Vessel Schematic
Begin by identifying the hull–the foundational structure that divides water from the vessel’s interior. Look for the chine, where the bottom meets the sides, as it defines stability and handling. On flat-bottomed designs, expect minimal draft for shallow waters, while V-shaped hulls slice through waves efficiently. Check the keel, if present, as it counters lateral drift and adds rigidity. Aluminum or fiberglass keels reduce maintenance compared to steel, though wooden variants require annual sealing.

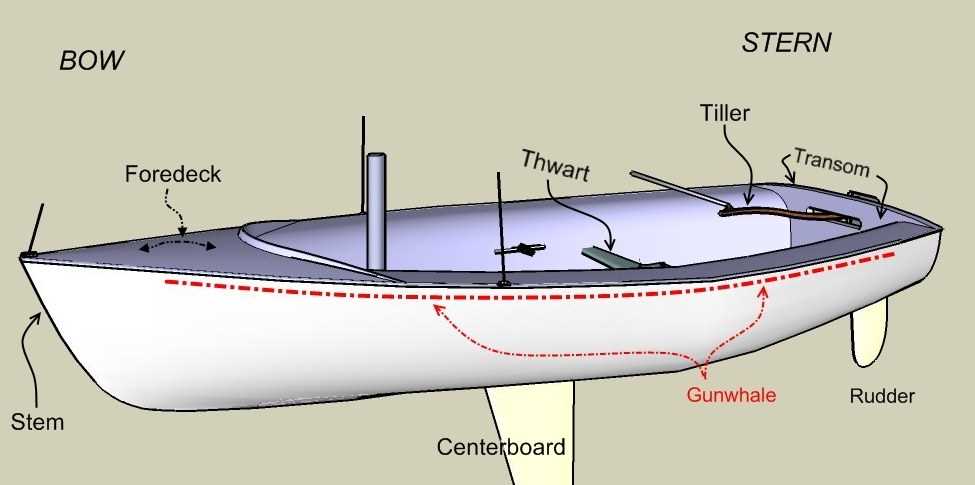

Examine the deck layout next. The gunwale (or gunnel) runs along the upper edge, reinforcing the sides and often housing storage compartments. Locate the freeboard–the section above the waterline–since higher measurements improve wave deflection but increase wind resistance. Smaller craft may feature a swim platform at the stern, which doubles as a boarding aid and should be non-slip even when wet. For sail-driven vessels, the mast step must align precisely with the keel to distribute load without stress fractures.
Prioritize propulsion elements. Outboard motors attach via a transom, which should be reinforced with marine-grade plywood or composite materials to prevent rot or delamination. Inboards have a shaft log sealing the hull penetration, requiring quarterly greasing to avoid leaks. Note the propeller’s pitch and diameter; a 15-inch diameter with 18-degree pitch suits cruising, while 21-degree pitches demand more engine torque. Jet drives lack external propellers, reducing entanglement risks but needing impeller inspections every 50 hours.
Study navigation aids carefully. The helmsman’s station houses the wheel, throttle, and instrument cluster, which should sit at eye level to minimize fatigue. Ensure the compass is gimbal-mounted to remain level regardless of vessel tilt. Radar domes and sonar transducers mount below the waterline but must avoid turbulence zones created by the hull’s wake. For night operations, deck lights should illuminate walkways without blinding the operator–red lights preserve night vision best.
Verify safety features last. The bilge pump автоматически activates when water reaches a 2-inch depth; test it monthly by introducing a cup of water. cleats (typically 6–8 on a 25-footer) must withstand 500 lbs of force per line, so inspect welds annually. Life rings require a floating retrieval line attached, coiled neatly to prevent tangling. Fire extinguishers (Class B for fuel fires) should be mounted within 6 feet of the galley or engine compartment, checked semiannually for pressure.
Critical Hull and Framework Elements in Marine Vessel Schematics
Prioritize verifying the keel’s integrity in any schematic–this backbone distributes structural loads and resists lateral forces, especially in rough seas. A reinforced keel often includes internal ballast for stability, with high-performance vessels using lead or composite materials for weight optimization. Check for notations on the keel’s attachment to the stem and sternpost, as improper junctions can lead to stress fractures under dynamic conditions. Single-chine designs, common in smaller crafts, demand extra scrutiny at the chine’s transition points where the hull’s curvature shifts abruptly.
Deck and Below-Deck Reinforcements
Examine bulkheads–transverse and longitudinal partitions that segment the interior–each serves a dual purpose: structural support and flooding prevention. Marine-grade plywood or aluminum bulkheads with flanged edges resist flexing during wave impacts, while poorly sealed joints invite water ingress. The deck’s camber (lateral curve) should not exceed 1:50 for recreational vessels to ensure proper drainage; flatter profiles risk pooling, accelerating corrosion. Look for stringers embedded in the hull’s inner surface–these longitudinal stiffeners run parallel to the keel, preventing hogging and sagging under uneven loads.
Assess the transom’s build: outboard-powered designs require a thicker, reinforced transom to absorb engine vibrations, typically using cored materials like balsa or foam sandwiched between fiberglass. For inboard engines, the engine bed–a paired set of longitudinal beams–must align precisely with the keel to distribute propulsion forces evenly. Overlooking the skeg’s design (a fin-like extension below the hull) in semi-displacement hulls risks poor tracking; skegs should taper gradually to reduce drag but maintain enough surface area to prevent yawing.
How to Identify and Label Hull Forms in Technical Blueprints
Examine the cross-sectional shape at the vessel’s widest point–flat-bottomed designs exhibit straight, horizontal lines along the keel with minimal curvature, ideal for shallow drafts but prone to choppy movement in rough waters. Rounded hulls display smooth, continuous arcs, reducing drag for displacement-based craft, while V-shaped variants show sharp deadrise angles (typically 12–24°) for planing efficiency in high-speed applications. Multi-chine configurations combine angular transitions between flat panels and hard edges, common in small fishing skiffs for improved stability at rest.
Key markers to annotate:
- Keel profile: Straight (flat/barge), bulged (round), or deep-V (high-performance).
- Deadrise gradient: Measure vertically from the keel to the chine; values below 5° indicate flat, 15–25° moderate V, above 30° high-performance.
- Chine placement: Single (simplistic builds), double, or triple for complex hydrodynamics.
- Transom shape: Square (flat stern), transom-mounted engine cutouts, or notched for outboard brackets.
Use ISO 12199:2023 symbology for consistency: outline rounded hulls with dashed lines (type A), angular hulls with solid lines and perpendicular ticks at chines (type B), and stepped hulls with staggered parallel marks (type C). Label dimensions in millimeters, specifying draft depth at three points–bow, midship, and stern–for accurate reproduction. For catamarans, indicate tunnel width between hulls; trimarans require central hull and float labeling with distinct line weights.
Verify hull type against propulsion system annotations–displacement rounds align with inboard diesels, planing V-shapes pair with outboards, and semi-displacement hybrids often integrate waterjet inlets. Cross-reference material callouts: fiberglass hulls lack rivet clusters, aluminum shows distinct seam welds, and wooden builds display plank orientation lines. Add layers in CAD software (e.g., AutoCAD’s “Mechanical” workspace) to separate hull form from superstructure, ensuring labels remain scalable for detail views without overlap.
Common Deck Fittings and Their Placement on Vessel Schematics
Anchor cleats–typically two–mount near the bow on either side of the stem, spaced symmetrically to handle rodes without fouling. Reinforce backing plates beneath the deck if the hull material is thin; stainless steel plates distribute load better than washers. Check blueprint tolerances: cleats should clear lifelines by at least 20 cm to prevent snagging during anchor retrieval.
Winches for sheet management sit aft of the mast base on sail-driven craft, positioned so loaded lines lead fair without excessive bends. Selden and Harken specify mounting pad heights; follow these dimensions exactly to avoid misalignment that increases wear. Hydraulic winch pedestals require dedicated hydraulic lines on schematics–route them below deck, avoiding electrical conduits to reduce interference.
Mizzen Hardware and Safety Points

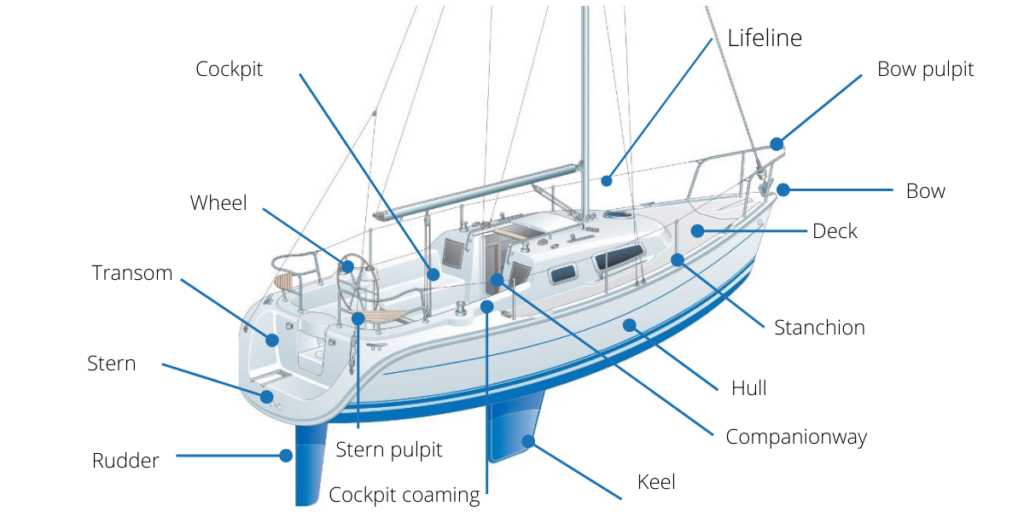

Pulpits at bow and stern extend at least 60 cm above the deck, constructed from 316-grade stainless steel tubing with 5 mm wall thickness. Midships lifeline stanchions, spaced every 2.2 m, should align vertically when viewed from above; deviation indicates hull distortion or structural weakness. Rescue-equipment mounts–such as MOB poles–attach directly to the aft pulpits, marked in red on schematics for immediate identification.
Deck fill ports cluster portside amidships, close to fuel tank vent outlets to simplify hose routing. Use cofferdams around fill necks if the tank sits below the waterline; blueprints often omit this critical spacing. Bilge pump thru-hulls locate at the lowest points, usually aft of the keel on monohulls; each must have an accessible seacock for emergency isolation, clearly labeled in schematics.
Hatches and companionways occupy specific zones: forepeak hatches serve stowage, main companionways lead to saloons, and lazarette hatches grant access to steering gear. On blueprints, hatch coamings should rise at least 5 cm above deck level; lower profiles risk water ingress during heavy weather. Teak tread plates protect areas prone to foot traffic, screwed–not glued–to avoid deck delamination under load.
Navigation lights install on dedicated brackets at bow and stern extremities, wired through dedicated circuits separate from cabin lighting. Radar and VHF antenna mounts sit atop masts or dedicated poles; schematics specify minimum separation distances–typically 1.5 m–from metal rigging to prevent signal degradation. Bollards for dock lines locate near bow and stern quarters, sized according to vessel displacement; blueprints often include safe working load annotations.
