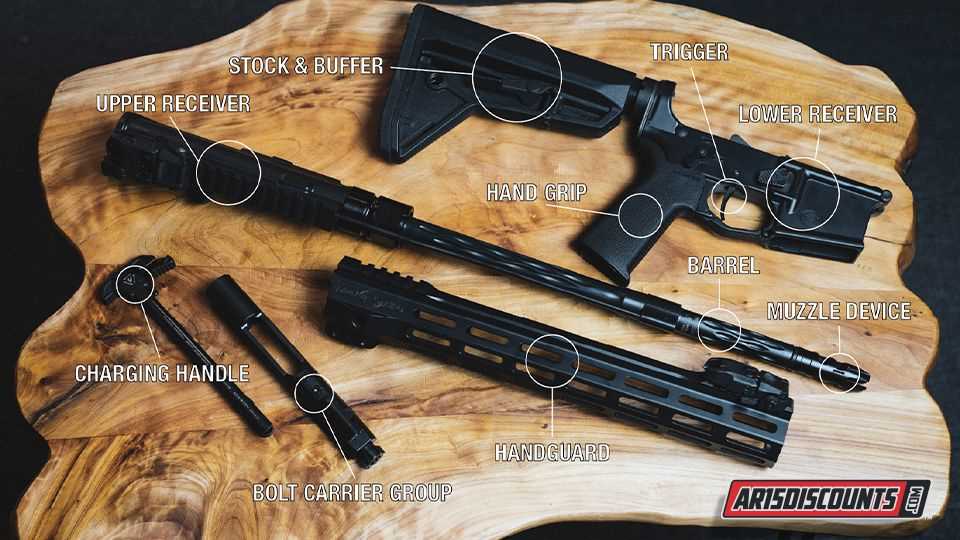

Begin by identifying the muzzle device–this critical piece dictates recoil management and muzzle rise. A proven flash hider, like the A2, reduces visible signature by 70% in low-light conditions, while compensators, such as those from JP Enterprises, cut muzzle climb by up to 40% during rapid fire. Select based on intended use: competition rifles benefit from aggressive porting, whereas home-defense builds prioritize noise suppression.
Examine the handguard next. Rail systems fall into two categories: free-float and drop-in. Free-float designs, like those from Geissele or Midwest Industries, improve accuracy by isolating the barrel from pressure points–critical for maintaining sub-MOA (minute of angle) precision at 100 yards. Drop-in variants, though lighter, introduce flex points that can skew point of impact after sustained fire. Length matters: a 13-inch rail offers optimal balance between accessory mounting and weight savings, while shorter 9-inch setups sacrifice real estate for maneuverability.
Inspect the bolt carrier group (BCG)–the heart of reliability. Full-auto rated BCGs endure 10,000+ rounds without degradation, whereas semi-auto only carriers may fail under heat stress. Coatings matter: nickel boron reduces friction by 60% compared to phosphate, while titanium nitride extends lubrication intervals. Check the gas key staking–improper alignment leads to carrier tilt, causing extraction failures after 300 rounds under rapid conditions.
Barrel selection demands attention to twist rate and material. A 1:7″ twist stabilizes heavier 77-grain projectiles for long-range shooting, while 1:8″ balances versatility. Chrome-moly vanadium barrels withstand 15,000 rounds, whereas stainless steel variants offer superior accuracy but degrade faster under heat. Length correlates directly to velocity: a 20-inch barrel achieves 2,700 fps with .223 Remington, while a 14.5-inch version loses 200 fps–critical for terminal ballistics.
Lower receiver components dictate ergonomics and functionality. A collapsible stock, like the Magpul MOE, adjusts for length of pull in under a second, accommodating body armor or layered clothing. Pistol grips with aggressive stippling reduce slippage during high-stress drills–tested by gripping with sweat-saturated hands under 50 lbs of tension. Trigger choice separates novices from advanced shooters: a single-stage 4.5-lb release reduces trigger slap, while two-stage designs, such as the LaRue MBT, prevent premature disengagement in rapid sequences.
Gas system tuning prevents over-gassing or short-stroking. Carbine-length tubes cycle reliably with 55-grain rounds but falter with subsonic loads. Mid-length systems, found on 16-inch builds, reduce port pressure by 15%, extending parts life. Adjustable gas blocks, like those from Superlative Arms, mitigate cyclic wear by regulating flow–essential for suppressed fire. Recoil springs should match the buffer weight: H (heavy) buffers control bolt carrier bounce in short-barrel configurations, while carbine buffers suffice for standard 16-inch rifles.
Breaking Down the Firearm’s Core Components Visually
Begin by identifying the upper receiver assembly–the heart of the modular system. Label the forward assist and ejection port cover first, as they define the external shell. The bolt carrier group (BCG) sits directly behind the charging handle; trace its path along the barrel extension to confirm proper alignment with the gas tube. Misalignment here causes cycling failures.

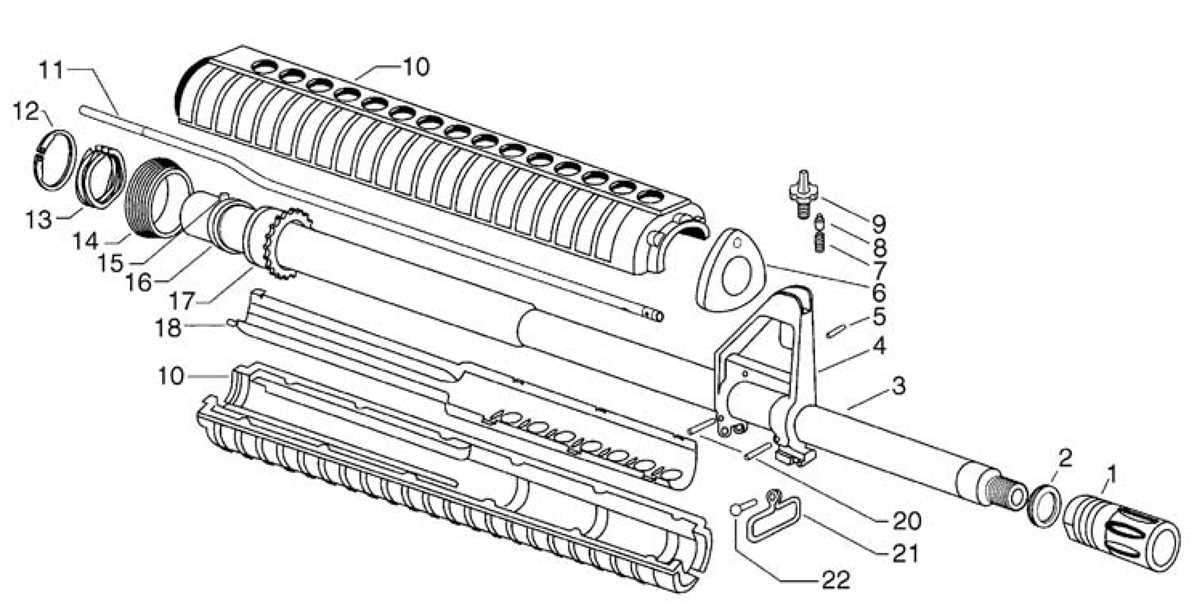

Next, isolate the barrel and its attachments: the muzzle device and handguard. Measure the gas block position–it should sit 7–10 inches from the chamber on most carbine-length setups. A mismatched gas system (pistol, carbine, mid, rifle) disrupts pressure curves, leading to excessive recoil or short-stroking. Reference the manufacturer’s specs for exact port sizes: .062” for carbine, .078” for mid-length.
Critical Assembly Relationships
| Component | Compatibility Notes | Common Failure Points |
|---|---|---|
| Barrel (5.56 NATO) | Mates with .223 Wylde chambers; avoid chrome-lined if precision > 2 MOA is required | Gas port erosion, throat wear at 6,000+ rounds |
| Gas System | Carbine: 9–12″; Mid: 13–15″; Rifle: 16″+ | Over-gassing (excessive recoil), under-gassing (failure to eject) |
| Buffer Tube | H1–H3 weights for carbine; A5 for rifle-length | Incorrect weight causes bolt bounce or sluggish cycling |
Examine the lower receiver’s trigger group separately. Trace the fire control selector’s path from safe to semi-auto; the disconnector must reset the hammer cleanly without stacking. Aftermarket triggers like Geissele’s SSA or Timney’s Calvin Elite drop reset distances by 40–60%, but require polished engagement surfaces to prevent light primer strikes. Test with dummy rounds before live fire.
The buffer spring and weight must match the gas system. A carbine-length setup paired with an H2 buffer yields ideal dwell time for 11.5”–14.5” barrels; anything shorter risks bolt bounce. Rifle-length configurations demand an A5 tube and heavier buffer (4.6–5.4 oz) to delay bolt unlock. Note the back end of the buffer tube: the castle nut torques to 35–45 ft-lbs–over-tightening cracks the receiver extension.
Label vent holes in the handguard if using a free-float design–obstructed airflow raises bore temps by 15–20°F under sustained fire. Direct impingement systems vent into the upper receiver; ensure the gas key screws are staked and torqued to 30–50 in-lbs. Loose screws shed carbon into the carrier, causing bolt tilt and misfeeds.
Diagramming for Assembly

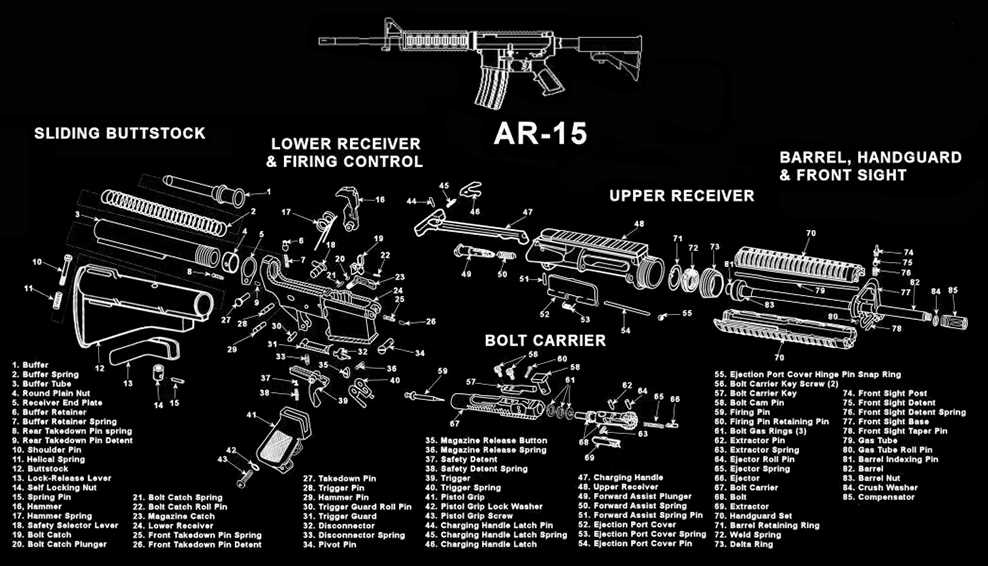

Arrange components left-to-right in assembly order: lower first, then upper. Sketch exploded-view arrows showing three critical interfaces: BCG-to-barrel extension, takedown pins’ pivot axis, and buffer retainer’s spring tension. Color-code torque specs–red for 65+ ft-lbs (barrel nut), blue for 35–45 ft-lbs (castle nut), green for 30–50 in-lbs (gas key). Include a callout box noting lubrication points: bolt tail (DLC-treated), gas rings (MIL-SPEC), buffer spring (light coat).
Critical Upper Assembly Elements and Their Roles
The foremost element to inspect is the bolt carrier group (BCG)–its durability dictates reliability under sustained fire. Opt for a BCG with a phosphate or nitride finish for corrosion resistance and reduced friction. The gas key must be properly staked to prevent loosening from recoil impulses, a common failure point in budget builds. Ensure the extractor uses a black rubber O-ring to maintain consistent tension on spent casings, especially in adverse conditions like mud or sub-zero temperatures.
The barrel determines precision and longevity–match-grade chromoly or stainless steel outperforms carbon steel in accuracy but weighs more. A 1:7 twist rate stabilizes heavier projectiles (77gr+), while 1:8 offers versatility for lighter loads. The muzzle device should match the intended use: a compensator reduces recoil for rapid follow-ups, while a flash hider is critical for low-light engagements. Thread pitch must align with suppressor compatibility if future upgrades are planned.
The handguard impacts grip and heat management–M-LOK or KeyMod attachment systems allow modular accessory placement. Free-float handguards eliminate barrel contact interference, improving accuracy. For extreme conditions, aluminum or carbon fiber construction resists warping better than polymer. The rail space should accommodate optics, lights, and grips without overloading the forend.
The charging handle often goes overlooked–ambidextrous latches enable efficient manipulation with either hand. Upgrading to a large or extended latch reduces snag risk when wearing gloves. The forward assist serves as a redundancy for chambering rounds if the BCG fails to lock; while rarely used, its presence can prevent malfunctions in high-stress scenarios.
The upper receiver itself requires precise alignment with the lower–ensure the recoil lug sits flush to prevent stress fractures. A hardcoat anodized finish resists wear from repeated cycles. For optics mounting, a Picatinny rail provides flexibility, but T-slot cuts reduce weight without sacrificing accessory options. Dust cover springs must retain tension to prevent debris ingress during transport.
How to Spot and Tag Components in the Firearm’s Bolt Assembly
Examine the carrier first–its rear houses the gas key, a cylindrical protrusion secured with two screws. Verify both screws are tight; looseness here causes failures. The key’s interior must be clean, with no carbon buildup obstructing gas flow. Use a pick or pipe cleaner to scrub the three small ports inside the key.
Turn the assembly over. The bolt’s extractor claw should hook the rim of a dummy round firmly. Apply light pressure–it should snap back without hesitation. Check the extractor spring and o-ring beneath it; wear here leads to ejection issues. Replace if the spring feels weak or the o-ring cracks.
- Cam pin: A small, T-shaped steel piece sitting in a groove at the carrier’s front. Rotate the bolt to confirm it moves freely without binding.
- Bolt rings: Three gas-sealing rings circling the bolt’s midsection. Slide each individually–gaps or flat spots signal replacement.
- Firing pin: A slender rod at the carrier’s rear, retained by a cotter pin. Pull the pin, extract the rod, and inspect for deformation or pitting.
Lubricate contact surfaces next. Apply grease sparingly to the cam pin slot, bolt rails where they meet the carrier, and the firing pin channel. Light oil works for the extractor claw and gas rings. Avoid over-lubing the gas key interior; excess attracts fouling.
Label each piece during disassembly. Use masking tape and fine-tip markers, writing directly on the carrier, bolt, and firing pin near non-critical surfaces. Record tolerances if measuring for upgrades–bolt protrusion past the carrier face typically sits at 0.006–0.008 inches.
Match components to a reference sheet while handling. Cross-check against reputable schematics if unfamiliar with proprietary coatings or enhanced geometries. After reassembly, function-test with dummy rounds: cycle, trigger pull, and simulated charging. Any stiff movement indicates misalignment in the gas key, cam pin, or bolt rings.
Store disassembled pieces in trays with magnetic bases or segmented foam. Prevents scratches and loss; ensures easy retrieval for inspection or upgrades. Repeat checks every 500 rounds for civilian use, every 200 for heavy-duty environments.
