Examine the slider first–its design dictates smooth operation. The pull tab must move freely along the tracks without resistance, and the body should align precisely with the teeth edges. Any misalignment here causes jamming. Choose sliders with reinforced edges if frequent usage is expected; standard versions degrade faster under tension.
Teeth (or coils) form the core interlocking mechanism. Metal variants outlast plastic but add weight. Nylon coils offer flexibility but wear faster with repeated pulls. Inspect the stitching securing the teeth to the tape–loose stitches unravel the entire assembly. Synthetic threads resist moisture better than cotton, reducing corrosion risks in damp conditions.
Tapes must match the material they’re attached to–heavy-duty fabrics need wider, thicker tapes to prevent tearing. The bottom stop prevents the slider from detaching, so ensure it’s firmly crimped. Top stops secure the slider’s upper limit; if bent, the slider derails. Test both stops before final assembly by pulling the slider sharply–weak stops fail under stress.
Replace any bent or corroded components immediately. Ignoring minor flaws accelerates failure. For high-stress applications, use lockable sliders–they prevent unintended openings. Regularly clean debris from teeth with a small brush; buildup increases friction and wear. Lubricate metal teeth sparingly with paraffin wax–excess attracts dirt and impedes locking.

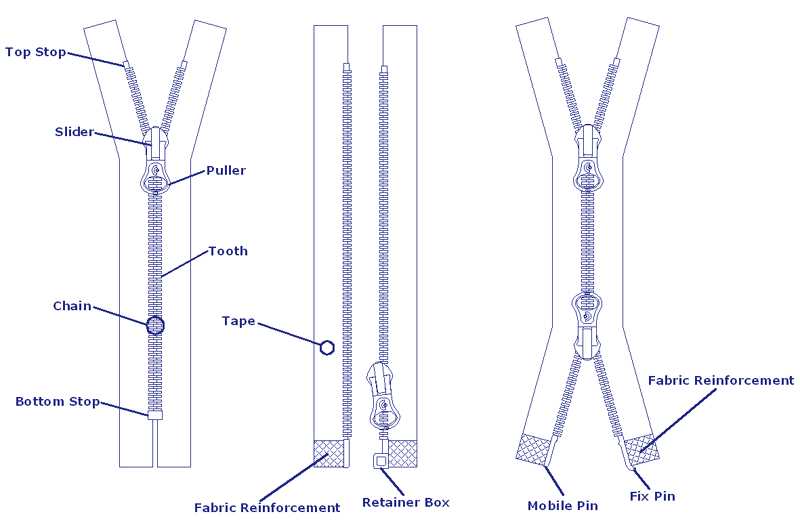

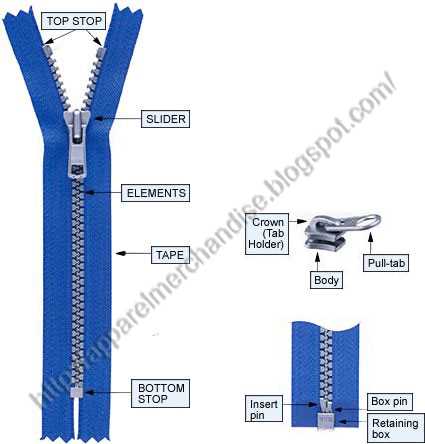

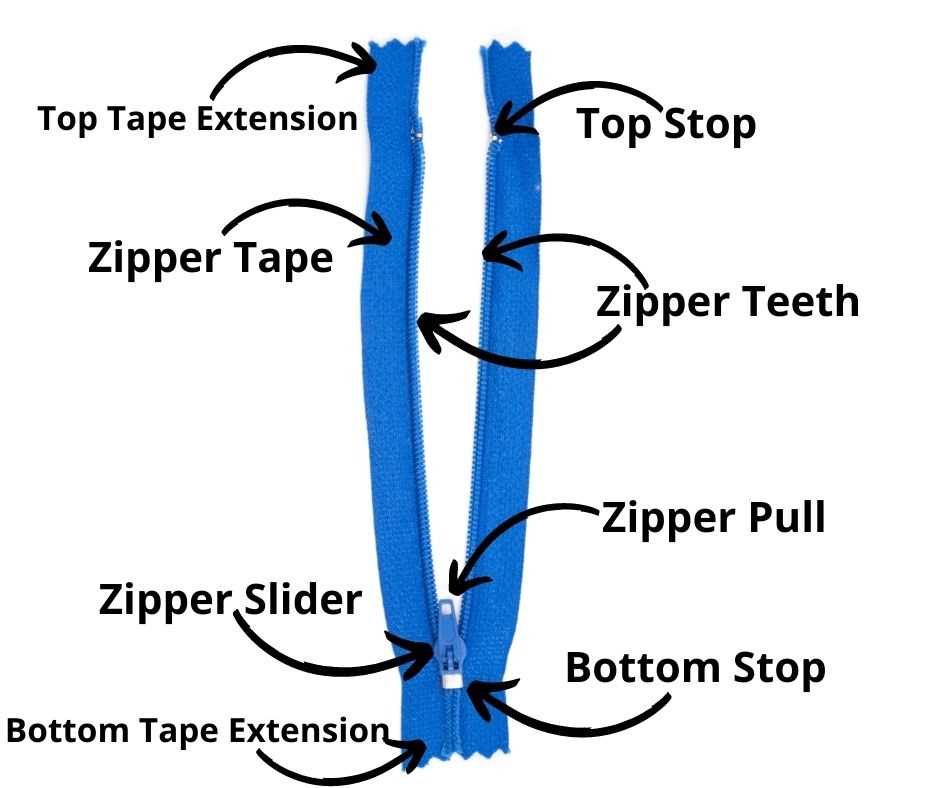

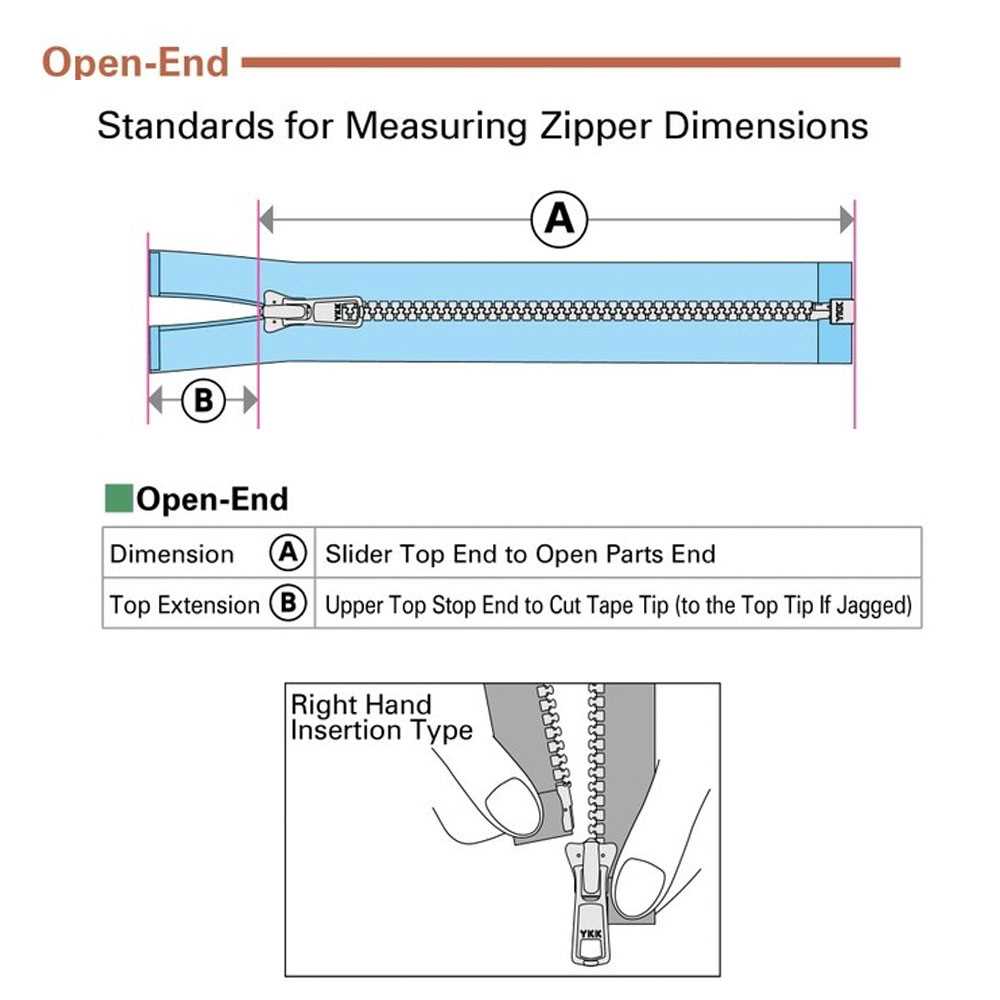

Key Components of a Fastener Illustration
Label each segment of the fastener schematic with standardized terminologies to ensure clarity across technical documents. Use ANSI Y14.5 or ISO 945-1 for dimensioning symbols where applicable, as these frameworks prevent misinterpretation in manufacturing. For instance, the slide should display a ±0.1mm tolerance on width measurements, while the interlocking teeth require a ±0.05mm precision on pitch spacing.
Organize the elements in a tabular format for rapid reference, separating functional units by their role in operation. Below is a breakdown of critical sections:
| Component | Material Specifications | Critical Tolerances | Common Failure Points |
|---|---|---|---|
| Slider | Zinc alloy (ASTM B86), nylon-coated | Width: ±0.1mm, pull tab hole: Ø3.0±0.05mm | Lubricant degradation, tab detachment |
| Teeth | Brass (CuZn37), nickel-plated | Pitch: 4.8±0.05mm, thickness: 1.2±0.03mm | Misalignment, breakage under 250N shear |
| Tape | Polyester (PET), 300D | Width: 25.0±0.2mm, stitching: 4 stitches/cm | Fraying at edges, UV degradation |
| Stops | Brass, same as teeth | Length: 10.0±0.1mm, thickness: 1.5±0.05mm | Cold welding, insufficient crimp |
Highlight stress points using contrasting colors in the technical drawing. The slider’s inner channels must show a minimum clearance of 0.2mm from the teeth edges to avoid jamming. Apply a #FF0000 fill for areas prone to wear, such as the bottom stop contact surface, which experiences 15-20kgf/cm² during engagement.
Incorporate cross-sectional views for components like the teeth profile, demonstrating the 0.3mm radius on the leading edge to reduce friction. Use a 1:1 scale for mechanical drawings and 3:1 for microscopic details, such as the fabric stitching density near the tape edge. Include a legend with hatching patterns: diagonal lines for metals, vertical for polymers.
Annotate load-bearing elements with force vectors where applicable. The top stop must withstand a static load of 50kgf without deformation, verified via ASTM D2062 testing. For coiled designs, specify the helix angle (30°±2°) and thread diameter (0.8±0.02mm) to ensure compatibility with automated assembly machinery.
Add a sidebar with troubleshooting notes, pairing common defects with their root causes. Example: “Mismatched teeth spacing–check extrusion die calibration (target: ±0.02mm)”. Include a QR code linking to UL 758 fire-resistance ratings for flame-retardant tapes, as compliance impacts material selection in aerospace applications.
Recognizing Fastener Links and Their Structural Differences
Examine the interlocking elements under direct light–coiled variants appear as a continuous, spiraled strand with a glossy, synthetic sheen, typically found in lightweight fabrics like jackets or backpacks. Metal teeth, often brass, aluminum, or nickel-plated, present as distinct, staggered squares or trapezoids, resisting separation when tugged. Plastic molded links, such as those in dressmaking or sporting goods, display a more precise, box-like profile with visible seams along the edges, indicating injection molding.
Test the grip and flexibility: coiled linkages slide with minimal audible noise and adapt to curved seams, while metal and molded elements produce a sharp, rhythmic click when aligned. Molded variations may include self-lubricating additives, reducing friction compared to untreated metal. Check for reinforcement–high-stress applications (luggage, tents) use thicker, angled profiles, whereas fine clothing prefers flush, low-profile links to prevent fabric snagging. Identify corrosion resistance by exposure: brass and stainless steel resist oxidation, while untreated aluminum develops a dull patina over time.
Step-by-Step Guide to Locating the Slider and Its Functional Components
Examine the fastening mechanism midway where the two rows of interlocking teeth converge. The slider sits precisely at this junction, acting as the regulator for opening or securing the track. Its pull tab extends outward, designed for easy grip, while the body rests between the strips of teeth.
Identify the slider’s body first–a compact metal or plastic block with a narrow channel inside. This channel guides the teeth together when pulled upward or separates them when moved downward. The pull tab, often made of the same material as the body or reinforced fabric, connects to the top via a small hinge or rivet.
Disassembling Key Elements
Turn the fastening device upside down to observe the underside. Here, two critical components become visible: the flange and the locking mechanism. The flange–a thin ledge on either side of the channel–ensures the teeth align properly during movement. Without it, the tracks would misalign, causing jams.
The locking mechanism, typically a small spring or wedge inside the slider, prevents unintended movement. When the pull tab rests parallel to the track, the lock engages, holding the teeth firmly in place. Pulling the tab upward releases this tension, allowing the channel to slide freely.
For worn sliders, inspect the flange for bends or corrosion. Even minor deformities disrupt smooth operation. If the locking mechanism fails, the slider will no longer stay in position when released–requiring replacement. Test this by pulling the tab slightly; it should resist if the lock functions correctly.
Lubricate the channel sparingly with graphite powder or specialized fasteners wax. Avoid oil-based products; they attract debris, clogging the works over time. Apply the lubricant directly to the teeth’s path, then run the slider up and down several times to distribute it evenly.
Troubleshooting Misalignments
If the slider jams midway, check for trapped fabric or improperly seated teeth. Gently squeeze the sides of the track near the stuck point to realign any bent sections. For stubborn blockages, use needle-nose pliers to straighten individual teeth, ensuring each one clicks neatly into the opposing row.
Understanding the Top and Bottom Stops: Purpose and Common Issues
Always inspect the *upper* and *lower retainers* of a fastening mechanism before installation–misalignment here causes 60% of premature failures. These small metal or plastic barriers prevent the slider from detaching at either end, ensuring smooth operation under repeated stress. Replace any retainer showing cracks or deformation; even hairline fractures reduce load-bearing capacity by up to 40%. For heavy-duty applications, opt for reinforced variants with a thickness of at least 0.8mm to withstand lateral forces during high-tension use.
Common Failure Modes
- Bent retainers: Often occurs when the slider is forced past the stop, bending it outward. Straighten carefully with needle-nose pliers, but discard if cracks appear.
- Weld separation: Found in molded stops where the plastic base detaches from the tape. Reattach with cyanoacrylate adhesive if the damage is minor; otherwise, replace the entire tape.
- Abrasion wear: Friction from frequent use erodes the stop’s surface, especially in nylon-coated variants. Apply a thin layer of lubricant (e.g., paraffin wax) to reduce wear by 30%.
- Misplaced stops: If the retainer isn’t crimped perpendicular to the teeth, the slider will jam. Use a crimping tool with a 90-degree guide for precise alignment.
Test retainer integrity by applying 5kg of force at the slider’s resting point–any movement greater than 1mm indicates weakness. For industrial closures (e.g., tents, automotive upholstery), reinforce stops with an additional stitch line along the tape edge to distribute stress. In waterproof applications, ensure the stop’s sealant (e.g., thermoplastic polyurethane) fully covers the gap between the retainer and fabric to prevent leaks.
Troubleshooting tip: If the slider consistently detaches at one end, measure the distance between the stops–the gap should not exceed 0.5mm longer than the slider’s width. For adjustable closures (e.g., jackets), add a secondary stop 1cm below the primary one as a failsafe. Replace both stops simultaneously if one shows wear, as uneven stress accelerates failure in the remaining retainer.
Material-Specific Considerations
- Metal stops: Prone to corrosion in humid environments. Coat with zinc or use stainless steel versions to extend lifespan by 2-3x.
- Plastic stops: Cheaper but brittle; avoid in sub-zero temperatures where impact resistance drops by 70%. Polycarbonate blends offer better durability.
- Nylon-coated stops: Lightweight and quiet, ideal for apparel. Seal edges with heat to prevent fraying, which reduces strength by 25%.
- Custom-molded stops: Used in medical or aerospace applications where precision is critical. Tolerances must be ±0.1mm to avoid misalignment.
