To accurately identify or repair issues with a glazed aperture, begin by examining the sash. This movable frame holds the glass pane and must align precisely with the stationary surround to prevent drafts. Misalignment often stems from worn hinges or damaged weatherstripping–check these first before considering replacement.
The frame (typically wood, aluminum, or vinyl) defines the structural perimeter. Inspect for warping, cracks, or corrosion, as these compromise insulation. Aluminum frames conduct heat, while wooden ones require periodic sealing to resist moisture. Measure the depth of the reveal–the recessed area where the unit meets the wall–to ensure proper installation; shallow reveals risk condensation buildup.
Glazing seals (gaskets and caulk) prevent air and water infiltration. Silicone-based caulk lasts longer than acrylic but requires a clean surface for adhesion. For double-glazed units, the spacer bar between panes maintains the air gap; if fogging occurs, the seal has failed–replacement is the only remedy.
The head, jamb, and sill form the fixed perimeter. The sill slopes outward to direct water away from the interior; ensure it’s sloped at least 5° and has a drip edge to prevent capillary action. On operable units, the locking mechanism should engage smoothly; lubricate it annually with graphite powder–not oil–to avoid attracting dust.
For thermal efficiency, verify the unit’s U-factor (lower values indicate better insulation). Standard single-pane glass has a U-factor around 1.1, while double-glazed argon-filled units can reach 0.28. Match the glazing type to climate: triple-pane for cold regions, low-emissivity coatings for hot climates to reduce heat gain.
Key Components of a User Interface Frame Visualization
Begin by labeling the title bar at the top–ensure it includes both the application name and icon. This section must stand out with a contrasting background, typically 25–30 pixels in height for optimal visibility. Test contrast ratios (WCAG 2.1 recommends at least 4.5:1) to accommodate users with visual impairments.
- Close button: Position at the far right; use a red (#FF0000) or system-defined color for consistency. Size should be 14×14 pixels (minimum) with an 8-pixel padding from the edge.
- Minimize/Maximize: Place left of the close button, maintaining equal spacing. For Windows OS, use standardized glyphs (underscore for minimize, square for maximize).
Implement a resizable border–default width should be 4–6 pixels. Use CSS resize: both or platform-specific APIs (e.g., Win32 WM_NCHITTEST) to enable dragging. Avoid ambiguous hit zones; users should intuitively grasp edges without accidental triggers.
- Menu bar (if applicable): Keep it directly below the title bar with a 1-pixel divider. Use 12–14pt font (e.g., Segoe UI, Roboto) and uppercase for menu titles (e.g., “FILE”, “EDIT”) to maintain hierarchy.
- Status bar: Reserve the bottom 20–24 pixels for critical feedback (e.g., word count, progress). Right-align dynamic content and left-align static labels.
For scrollable areas, enforce these rules:
- Scrollbar width: 12–15 pixels (track) with a 16-pixel thumb. Ensure thumb color contrasts with the track (e.g., #6B6B6B on #E0E0E0).
- Arrow buttons: Use directional glyphs (chevrons) with 2:1 contrast ratio. Position them 3 pixels from track edges to prevent visual clutter.
Client area (the central workspace) should prioritize content display. Avoid fixed dimensions–use flexible layouts (e.g., flex-grow: 1 in CSS or DockStyle.Fill in WinForms). For multi-pane interfaces, splitters must be 3–5 pixels wide with a 50% opacity indicator during drag operations.
Tooltips: Use sparingly–limit to 2 lines of 80 characters each. Display after 300–500ms of hover; dismiss after 5 seconds or on mouse exit. Font size: 10–11pt, with a semi-transparent (#F5F5DC at 80% opacity) background.
Touch targets: Expand hidden UI elements (e.g., hamburger menus) to 48×48 pixels. Overlap edge targets with screen borders where possible to leverage “edge-swipe” gestures. Test on target devices–responsiveness varies by DPI (e.g., 96 PPI desktop vs. 300 PPI mobile).

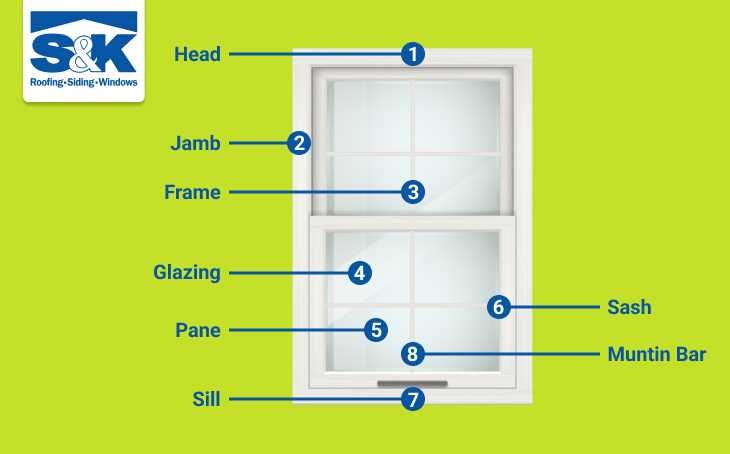

Key Structural Elements in a Typical Glazing Assembly
Start by locating the frame–the outer perimeter that secures the entire unit to the building’s opening. Aluminum, vinyl, or wood are common materials, each influencing thermal performance and durability. Measure the frame’s depth: standard residential variants range from 2.5 to 4 inches, while commercial systems often exceed 5 inches for enhanced insulation. Verify the sill angle–optimal designs slope outward at 5–10 degrees to prevent water pooling.
Examine the sash, the movable section holding the glass. Double-hung units feature two sashes sliding vertically, while casement types pivot on hinges. Check for balance mechanisms: spiral balances (for vinyl/aluminum) or block-and-tackle systems (for heavier wood frames) ensure smooth operation. A misaligned sash indicates worn balances or improper installation, requiring adjustment or replacement within 3–5 years.
The glass pane consists of multiple layers in modern assemblies. Dual-pane units dominate residential use, with a 1/2-inch argon or krypton fill between layers for thermal resistance. Low-emissivity (Low-E) coatings reflect infrared heat while allowing visible light–reducing UV transmission by up to 75%. Tempered glass is mandatory in doors and large panes near floors for safety compliance.
Inspect the muntins–decorative grids dividing the glass surface. True divided lites use individual smaller panes, while simulated versions apply grilles externally (stick-on) or between glass layers. For historical accuracy, choose authentic divided lites, though they increase cost by 30–50% compared to simulated designs.
Critical Sealing and Weatherproofing Zones
Focus on the interlock–where the frame and sash meet. Weatherstripping (vinyl, silicone, or rubber) creates an airtight seal, with compression types outperforming sweep-style in high-wind areas. Replace degraded seals when gaps exceed 1/16 inch, as they account for 25% of heating/cooling loss. Apply backer rod and sealant (polysulfide or polyurethane) around fixed units to prevent water infiltration.
The head and jamb must align perfectly. Misalignment of 1/8 inch or more causes binding–adjust hinge screws or add jamb shims for correction. For casement openings, ensure the operator mechanism (gear-driven or scissor-style) engages the sash securely. Lubricate moving parts annually with dry silicone spray to prevent corrosion in coastal climates.
Evaluate the drainage system last. Weep holes (typically 1/8-inch diameter) in the sill exterior direct moisture outward. Blocked holes lead to frame rot–clean them with compressed air biannually. In humid regions, install a sill pan beneath the frame to channel water away from the structure’s subfloor.
How to Accurately Mark Each Segment of a Glazing Assembly
Begin by securing a clear, scaled blueprint of the glazing unit, ensuring measurements extend at least 5 cm beyond the outer edges of the stiles. Use a fine-tipped erasable marker–preferably 0.3 mm–to prevent smudging on coated surfaces. Label the upper horizontal member first, marking it 12 mm below the mitered joint with the vertical side rails to avoid confusion with the header.
Trace the vertical side rails from the bottom sill upward, stopping 10 mm short of the top intersection. Apply masking tape along the inner edge of each rail before marking to protect the glass surface during cutting. Note the direction of the grain if working with wood; reference marks should run parallel to it for structural integrity.
Indicate the lower sill by drawing a dashed line 3 mm above its actual edge, distinguishing it from the threshold. For double-hung openings, measure and label the meeting rails where the sashes overlap, using a 2 mm offset to denote the weatherproof overlap zone. Verify alignment with a digital angle finder set to 90°–deviations of more than 0.5° require recalibration.
For mullions in multi-light assemblies, mark each division at its midpoint, ensuring symmetrical spacing. Use a Vernier caliper to confirm widths of glazing beads; standard tolerances range between 6.5 mm and 8 mm. Label fixed panels with an “F” followed by dimensions in millimeters (e.g., F-600×900) to avoid ambiguity in installation manuals.
Cross-reference markings with a checklist: headers (H), jambs (J), mullions (M), and shut lines (S). Number each segment sequentially from left to right, top to bottom–e.g., J1 for the left jamb. For thermal breaks, use a high-visibility pen in contrasting color to highlight insulation gaps between metal components.
Conclude by photographing the labeled assembly with a color-corrected reference card held adjacent to the frame. Save files in lossless PNG format at 300 DPI, named according to the project code and date (e.g., PROJ-24-SEP-GLAZING-V1.png). Archive physical blueprints in acid-free folders; digital copies must include metadata tags for material type (aluminum, timber, PVC) and finish (matte, gloss, anodized).
Key Differences Between Interior and Exterior Elements of Glazed Openings
Opt for double-seal gaskets on outdoor-facing frames to prevent moisture infiltration–single-seal variants fail within 3–5 years under UV exposure, while dual-layer systems extend durability to 15+ years.
Interior trim profiles (casings, stool extensions) prioritize aesthetic continuity with interior finishes, often crafted from MDF or primed pine; exterior trim must resist warping and rot, requiring PVC, fiberglass, or pressure-treated lumber with a minimum 0.40 water absorption rate.
Material Selection and Structural Demands
Interior glazing beads hold panes with minimal stress, typically using pine or composite materials–exterior beads bear wind loads up to 50 psf, demanding aluminum or reinforced vinyl with a minimum 0.090″ wall thickness to avoid deflection.
Sash lifts and locks on inner surfaces focus on ergonomics, with smooth polymer coatings; outer hardware must withstand corrosion from salt spray or acid rain, mandating grade 316 stainless steel for coastal regions or zinc-plated steel for inland applications, both with a minimum 500-hour salt spray rating.
Condensation channels inside fenestration systems (e.g., between double-glazed units) use capillary grooves; exterior drainage must integrate weep holes spaced ≤24″ apart, shielded by baffles to block wind-driven rain while permitting airflow–improper installation leads to 90% of water damage claims in low-elevation installations.
