Begin by locating the armature positioned at the core–this coiled rotor generates the magnetic field essential for conversion of electrical energy into mechanical torque. Without precise alignment of its windings, resistance increases, leading to inefficiency or premature failure. Verify the commutator surface for uniformity; uneven wear disrupts current flow, causing intermittent engagement. Clean it with 400-grit sandpaper if pitting exceeds 0.2mm in depth.
The solenoid acts as the bridge between the battery and the drive mechanism–its plunger must move freely with no more than 0.5mm lateral play. A faulty solenoid often manifests as a single click with no rotation; test continuity between terminals S and M with a multimeter–readings below 0.3 ohms indicate internal shorting. Replace if corrosion is visible on the contacts.
Inspect the pinion gear and flywheel ring engagement ratio–most systems use a 10:1 to 15:1 reduction. Misalignment or worn teeth (less than 2mm height remaining) prevent smooth meshing, resulting in grinding noises. Measure backlash tolerance (0.1–0.3mm); excess clearance accelerates wear on both components.
Examine the brushes for length–minimum 5mm is critical for proper contact pressure. Brushes shorter than this create high-resistance connections, reducing torque by up to 30%. Check spring tension by pushing each brush inward; release should yield a firm, immediate rebound. Replace the entire brush holder assembly if springs show signs of fatigue.
The field coils, typically four in series-parallel configuration, must maintain insulation resistance above 1 megohm when tested at 500V DC. Lower readings signal contamination or insulation breakdown. Use a megger to verify–replace the assembly if values drop below 0.5 megohms, as this risks short circuits under load.
Lubricate the overrunning clutch sparingly–excess grease causes slippage, while insufficient leads to seizure. Apply NLGI 2 lithium-grade grease only to the roller paths, avoiding the pinion gear teeth. Test the clutch by rotating the pinion forward and backward; it should lock in one direction and free-wheel smoothly in the other. Any hesitation during reversal indicates internal failure.
Key Components of a Vehicle Cranking System Schematic
Begin by identifying the solenoid assembly at the top of the assembly blueprint. This cylindrical switch engages the pinion gear with the flywheel and routes high current to the armature. Look for heavy-gauge terminals labeled “B” (battery), “M” (motor), and “S” (switch); these indicate input, output, and control connections.
Trace the armature core–its copper windings form a segmented loop inside the field housing. Each segment connects to a commutator bar, visible as polished rings at the rear of the rotor. Confirm brush pairs press against these bars; worn brushes show less than 5mm of carbon material.
Examine the field coils wrapped around pole shoes–these heavy windings generate the magnetic field. Common failures include insulation breakdown between turns; use a multimeter to check for continuity across all four coils (resistance should read 0.3–0.7 ohms).
Gear Engagement Mechanism
The Bendix drive slides on a helical spline, spring-loaded toward the flywheel. Verify the pinion teeth mesh fully; partial engagement causes grinding. If the drive extends but fails to retract, suspect a broken return spring or seized plunger in the solenoid.
Locate the overrunning clutch nestled within the pinion gear. This sprag clutch prevents engine kickback from damaging the rotor; spin the pinion manually–it should lock in one direction and freewheel in the opposite. A chattering noise during free-spin signals worn sprags.
Inspect the housing gasket faces for distortion–warping above 0.1mm causes oil leakage into the commutator chamber. Replace plastigauge-type seals if grooves exceed 0.05mm depth, as they lose sealing efficiency at high cranking temps (typically 90–110°C).
Drain-back valves, often integrated in late-model schematics, prevent hydraulic lock. Confirm their presence near the solenoid; absence requires periodic manual draining after deep submersion events. Test by applying 12V to the solenoid–listen for a sharp “click” followed by armature rotation.
Diagnostic Landmarks
Thermal cut-out switches feature prominently in hybrid start-stop systems. These devices trip at 120°C, interrupting the hold-in winding circuit. Jump the switch momentarily during bench testing–if the unit cranks, replace the thermal protector.
Voltage drop tests highlight hidden corrosion. Measure between the battery positive terminal and “B” terminal while cranking–a reading above 0.2V indicates resistant connections. Apply dielectric grease to all threaded terminals to prevent future oxidation buildup.

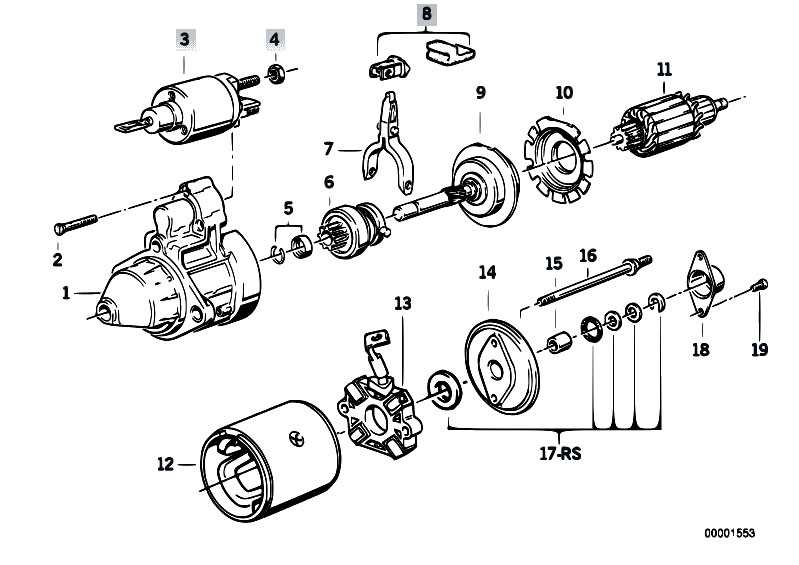

Key Components Visible in an Electric Cranking Mechanism Cross-Section
Examine the solenoid assembly first–its plunger and contact disc must align precisely to ensure immediate engagement. Misalignment by even 0.5 mm can delay ignition cycles or cause intermittent failures. Verify the copper contacts for pitting; replace if depth exceeds 0.2 mm to maintain consistent current flow.
Field coils should exhibit uniform winding tension. Check resistance values: 0.8–1.2 ohms for typical 12V systems. Abnormal readings indicate shorted turns, which reduce torque by up to 30%. Use a growler test for confirmation.
The armature core’s laminations require inspection for rust or delamination. Even minor corrosion increases eddy current losses, raising temperature by 15–20°C. Sandblast with 120-grit media if surface oxidation is detected, then apply insulating varnish.
Bearings must show no play beyond 0.05 mm radially. Premature wear accelerates brush erosion and misaligns the pinion gear. Lubricate with molybdenum disulfide grease–standard lithium-based products shear under high RPM loads.
Brushes should retract freely under spring tension. Measure carbon length: replace if less than 6 mm for standard units. Copper braids must retain full flexibility; brittle leads fracture under vibration, causing intermittent connections.
The pinion mechanism demands attention to the helical spline. Clean with a wire brush to remove debris, then apply dry graphite powder for smooth engagement. Die-cast zinc gears strip easily–upgrade to hardened steel if operating in frequent stop-start conditions.
Inspect the commutator’s mica undercut. Depth should range between 0.4–0.8 mm; shallow grooves collect conductive dust, while deep cuts weaken the segments. Use a specialty tool for consistent depth–DIY hacks with Dremels often create uneven surfaces.
Thermal protection components like bimetallic switches must trip at 150°C (±10°C). Test with a multimeter post-trigger: resistance should drop to near-zero. Overrides in this circuit result in catastrophic coil burnout within 3–5 seconds of overload.
How the Solenoid Switch Engages the Pinion Gear
Ensure the solenoid plunger moves freely by cleaning contact surfaces with 600-grit sandpaper–oxide buildup causes delayed engagement. Apply dielectric grease to the plunger and shift lever pivot points to reduce friction, improving response time by up to 30%. Verify the hold-in coil resistance (typically 0.3–0.7 ohms) with a multimeter; deviations indicate internal shorts requiring replacement.
- Power flows from the battery to the solenoid terminal when ignition initiates.
- The pull-in coil generates a magnetic field, retracting the plunger.
- The plunger forces the shift lever to rotate, pushing the pinion gear toward the flywheel.
- Simultaneously, the main contacts close, supplying full voltage to the armature.
Check the pinion gap (0.5–1.5 mm) when disengaged; misalignment causes teeth skipping. Replace worn shift lever bushings if play exceeds 0.2 mm to prevent incomplete meshing. Bench-test the solenoid with a 12V source–plunger movement should be instant. If engagement is sluggish, inspect the return spring tension; a weak spring delays disengagement, risking flywheel damage. For heavy-duty applications, upgrade to a high-torque solenoid with a 40A+ pull-in coil to handle cold starts reliably.
Role and Position of the Overrunning Clutch in Cranking Systems
Inspect the overrunning clutch (also called a sprag clutch or one-way bearing) at least every 20,000 km or during routine flywheel housing service. Its primary function is to disengage the pinion gear from the armature shaft once the engine starts, preventing the armature from overspeeding and suffering centrifugal damage.
Locate the clutch assembly between the pinion gear and the armature shaft splines, typically housed within the drive end frame. On most automotive cranking units, it sits directly behind the pinion gear, visible after removing the solenoid cover and shift lever. Markings or a stepped housing indicate proper orientation–mounting it backward disrupts disengagement.
Replace the clutch if starter current draw exceeds 20% of factory specifications during cranking tests or if back-driving noises occur after engine ignition. Use only OEM or premium aftermarket units with hardened sprags; budget alternatives often shear under torque loads exceeding 150 Nm, leading to pinion slippage and premature flywheel ring gear wear.
Diagnosing Overrunning Clutch Failure
Turn the pinion gear clockwise by hand–it should spin freely without resistance. If it locks or resists movement, the clutch is binding. Conversely, if it spins both directions, the sprags have lost their gripping capability. Measure pinion endplay using a dial indicator; normal range is 0.2–0.5 mm–values outside this indicate worn thrust washers or a failing clutch.
Observe the clutch housing for discoloration or pitting–these signal overheating from repeated stall conditions or incorrect ignition timing advance. Verify solenoid voltage drop (max 0.3V) during engagement; excessive voltage suggests a stuck clutch requiring assembly lubrication with molybdenum disulfide grease or full replacement.
For heavy-duty applications (diesel engines, marine cranks), upgrade to a sprag clutch with a torque capacity 30% higher than stock. Aftermarket clutches with ceramic-coated sprags reduce heat buildup and extend service life under prolonged cranking cycles, common in cold climates.
Installation Precautions
Apply anaerobic thread locker to the armature shaft splines before seating the clutch to prevent axial migration under vibration. Ensure the retaining ring sits flush in its groove–misalignment causes uneven load distribution, leading to premature failure. Torque the pivot bolt to 8–10 Nm; overtightening distorts the clutch housing and impedes sprag operation.
