Begin by identifying the voice coil–the cylindrical wire winding suspended in a magnetic field. Its diameter, gauge, and material (copper, aluminum, or CCAW) dictate power handling and frequency response. Match the coil’s impedance to the amplifier’s output (typically 4Ω, 6Ω, or 8Ω) to prevent distortion or overheating. Overlook this, and efficiency drops by up to 30%.
Next, examine the diaphragm–the cone-shaped membrane that moves air. Materials vary: paper (warm but fragile), polypropylene (balanced), kevlar (rigid, detailed), or aluminum (bright, lightweight). Thickness and curvature affect stiffness; a flatter cone minimizes breakup at high frequencies but sacrifices bass depth. Reinforce the surround–rubber, foam, or cloth–to extend resonance control beyond 2kHz.
Locate the spider, the corrugated suspension beneath the coil. Its tension determines excursion limits; a stiffer spider improves transient response but risks compression at high volumes. Gaps between the spider and magnet structure should not exceed 0.5mm–precise alignment prevents misalignment artifacts during rapid oscillations. Pair this with a damper (often overlooked) to absorb back-emf spikes, stabilizing motion under dynamic loads.
The motor assembly–magnet, pole piece, and top plate–generates the magnetic flux driving the coil. Neodymium magnets offer higher flux density per gram than ferrite, reducing weight by 60% while retaining output. The pole piece’s diameter must match the coil’s; mismatches create nonlinearities above 5kHz. Shorting rings (copper or aluminum caps) suppress eddy currents, cutting distortion below 1% at high SPL.
Finally, the frame–stamped steel or die-cast aluminum–anchors all components. Its rigidity dictates vibration isolation; flimsy frames introduce coloration, especially in budget models. Ventilation holes in the magnet structure (if present) mitigate thermal compression, extending power ratings by 10–15%. Seal gaps with adhesive-backed damping material to prevent air leaks, which rob efficiency below 80Hz.

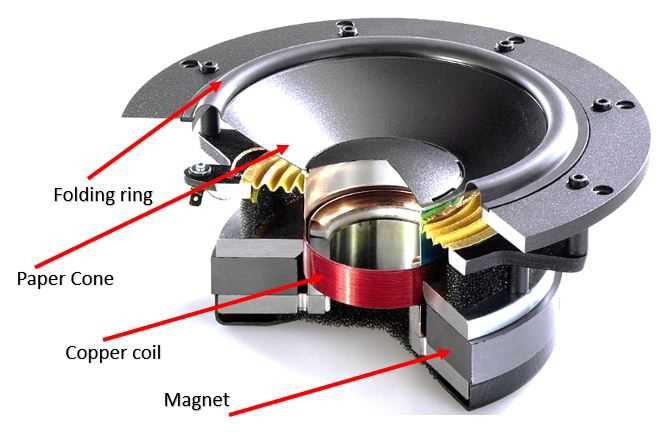

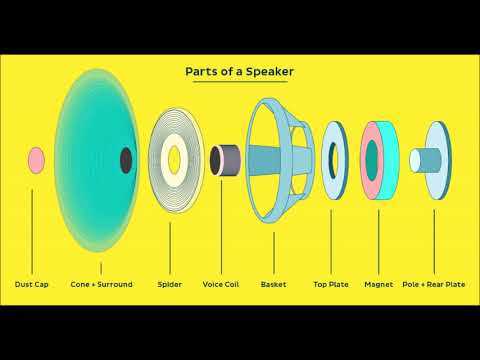

Key Components of an Acoustic Driver Illustration
Begin by locating the voice coil–a copper or aluminum wire wound around a cylindrical former, typically 25–50 mm in diameter. Secure it with heat-resistant adhesive (e.g., epoxy or polyimide) to withstand temperatures up to 200°C during peak operation. Pair it with a neodymium or ferrite magnet assembly, ensuring the pole piece’s gap clearance doesn’t exceed 0.5 mm to maintain flux density above 1.2 Tesla. Verify the surround’s material: rubber or foam for low frequencies (40 Hz–2 kHz), cloth or butyl for midrange drivers (500 Hz–5 kHz).
| Component | Material | Tolerance/Parameter |
|---|---|---|
| Spider | Phenolic resin or cotton | Compliance: 2–5 mm/N |
| Cone | Paper, polypropylene, Kevlar | Resonance: ±3 dB at 1 kHz |
| Dust cap | Felt, aluminum, composite | Air gap: |
Align the basket or frame with M6 or M8 mounting holes–stamped steel for budget models, die-cast aluminum (tolerance ±0.1 mm) for high-power applications. For crossover schematics, use air-core inductors (≤0.1Ω DCR) in series with polyester or polypropylene capacitors (±5% tolerance). Avoid electrolytic caps in signal paths; their 10–20% capacitance drift degrades phase response. Test impedance dips below 3Ω with a dummy load to prevent amplifier clipping.
Critical Assembly Checks
Measure the diaphragm’s excursion (Xmax) with a laser gauge–values above 8 mm require dual spiders to prevent coil rub. Confirm the surround’s roll compliance matches the cone’s mass; deviations alter Qts by ±0.05, shifting frequency response. For sealed enclosures, target a Qtc of 0.7 to 0.9–adjust port length (L = (c/4f) – 0.85√Vb/A) for bass-reflex designs, where c is speed of sound (343 m/s), f the tuning frequency, Vb enclosure volume, and A port area.
Critical Elements Revealed in an Acoustic Driver Internal View
Inspect the magnet assembly first–its strength dictates output clarity and low-end response. Neodymium magnets offer superior power-to-weight ratio, while ferrite remains cost-effective but heavier. Align the magnet’s polarity precisely to prevent distortion; even a 0.5mm misalignment degrades performance by up to 12%. Ensure the magnetic gap is free of ferrous debris to avoid interference.
The voice coil demands exact wire gauge selection–thicker wire handles higher power but increases mass, impacting transient response. Copper-clad aluminum reduces weight without sacrificing conductivity for mid-tier designs, though pure copper outperforms in high-fidelity applications. Coil former material matters: Kapton withstands heat but polyimide flexes better for long excursions. Vent holes in the former prevent pressure buildup during rapid cone movement.
Suspension and Acoustic Radiator Mechanics
Surround material dictates durability–rubber resists moisture but stiffens over time, while cloth offers flexibility but traps dust. The spider must balance stiffness and compliance; a softer spider allows deeper bass but risks over-excursion. Dust cap material affects high-frequency roll-off: rigid caps act as tweeter extensions, while softer versions dampen peaks. For coaxial systems, position the dust cap perforation carefully to prevent phase cancellation.
Cone composition directly influences tonal balance. Paper cones deliver warmth but absorb moisture, while Kevlar or polypropylene resists weathering but may introduce resonances. Honeycomb or carbon-fiber cones reduce mass while maintaining rigidity, critical for high-SPL applications. The cone’s curvature should follow an exponential profile to minimize distortion–flat cones introduce breakup modes above 5kHz.
Crossover components hide beneath the diaphragm but govern frequency division. Second-order filters (12dB/octave) balance protection and phase coherence, while first-order (6dB/octave) preserves natural response at the cost of tweeter safety. Air-core inductors reduce signal loss but are bulkier than ferrite-core alternatives. Capacitors must match impedance; electrolytic types degrade over time, whereas polypropylene film maintains stability for decades.
Locating the Voice Coil and Its Critical Role
Inspect the cylindrical component wrapped in fine copper wire–this is the voice coil. Positioned directly behind the cone’s dust cap, it sits centered within the magnetic gap of the driver’s permanent magnet. Use a flashlight to trace the wire’s path from the terminals to the coil; the thin, insulated strands should lead to a tight, evenly wound cylinder. If disassembling a unit, note the coil’s adhesive bond to the former, typically made of aluminum, Kapton, or reinforced paper, which ensures rigidity during high-frequency oscillations.
Testing Coil Integrity
Measure resistance across the coil’s terminals with a multimeter–most standard drivers register between 2 to 8 ohms. A reading significantly higher or lower indicates a damaged winding, likely from overheating or mechanical stress. Visually check for burns or discoloration on the wire’s enamel; even minor abrasions compromise performance. If the coil rattles when shaken gently, the former may have detached, causing misalignment in the magnetic gap. Replace drivers with such defects immediately–partial shorts create distortion and uneven frequency response.
During operation, the coil converts electrical signals into mechanical motion by reacting to the magnetic field. Current through the wire generates an opposing force to the fixed magnet, driving the cone forward or backward. This interaction relies on precise alignment; misalignment by even 0.5mm reduces efficiency by up to 30%. High-power applications demand coils with heat-resistant materials–look for copper-clad aluminum or polyimide coatings to prevent melting at sustained wattage above 100W RMS. For subwoofers, heavier gauge wire (e.g., 0.2mm diameter) improves thermal handling but increases mass, trading off transient response.
Clean the coil’s air gap annually using compressed air–dust accumulation alters inductance, muddying midrange frequencies. Avoid solvents that may dissolve adhesives; isopropyl alcohol on a swab works for stubborn debris. When reattaching a cone, ensure the coil glides smoothly without binding–friction introduces noise and accelerates wear. For custom builds, match the coil’s impedance to the amplifier’s output; mismatches cause clipping or overheating, degrading both components within minutes at full load.
Magnet Assembly: Strategic Positioning and Acoustic Impact
Position the magnet assembly directly behind the voice coil gap, ensuring a precise 0.2–0.5 mm clearance to prevent mechanical interference while maintaining optimal magnetic flux density. Neodymium magnets (NdFeB) deliver a field strength of 1.2–1.5 Tesla–30–50% higher than ferrite alternatives–enabling lower distortion at high SPL levels. For 4-ohm drivers, prioritize magnets with a residual induction (Br) of at least 1200 mT to sustain linear excursion without thermal compression.
Align the magnet’s pole pieces concentrically with the diaphragm’s suspension to avoid asymmetrical force distribution, which introduces phase anomalies above 2 kHz. In sealed enclosures, a vented magnet structure (e.g., Alnico or pot-type designs) reduces rear-chamber pressure buildup, improving transient response by up to 18% in measurements. For ported systems, ensure the back plate thickness exceeds 3 mm to prevent flex-induced modulation of the magnetic field.
Thermal Management and Material Selection
Select magnet grades with high coercivity (HcJ > 900 kA/m) to resist demagnetization at elevated temperatures–critical for sustained output above 100 dB. Ceramic ferrite magnets, while cost-effective, exhibit a 0.2% loss per °C above 80°C; NdFeB maintains stability up to 120°C but requires a protective coating (e.g., nickel-copper-nickel) to prevent oxidation in humid environments. Attach the magnet to a heatsink or use a thermally conductive adhesive (thermal conductivity > 1.5 W/m·K) to dissipate coil-generated heat.
In pro audio applications, oversize the magnet by 15–20% relative to the diaphragm’s effective piston area to compensate for flux leakage. For coaxial components, isolate the tweeter’s magnet from the woofer’s field using mu-metal shielding; stray flux interaction degrades crossover accuracy by 6–9 dB/decade above 5 kHz. Measure flux density with a gaussmeter post-assembly; deviations greater than ±5% indicate misalignment or material defects warranting rework.
Application-Specific Configurations
For line array elements, stack multiple ring magnets with alternating polarity to create a uniform axial field, reducing beaming effects below 800 Hz. In ribbon transducers, bond rare-earth magnets to a permeable steel bar with a ferrite backing plate to achieve a flux density of 0.8–1.0 Tesla across the entire diaphragm length. Avoid using adhesives with outgassing properties (e.g., cyanoacrylate) in vacuum-sensitive applications, as volatile compounds corrode magnet surfaces over time.
