To analyze an acoustic grand or upright model effectively, begin with the soundboard. This large wooden panel, typically crafted from spruce or cedar, amplifies string vibrations by acting as a resonator. Its thickness (normally 8–10 mm) and grain direction directly influence tonal richness–thin or improperly aligned boards produce muddy resonance. Inspect for cracks, warping, or glue separation, as these defects weaken volume and sustain.
Examine the iron frame, often called the plate, next. This cast-iron structure bears the cumulative tension of 220–240 strings (16,000–20,000 pounds in a concert grand), preventing structural collapse. Look for hairline fractures near tuning pin holes or agraffe anchor points, where stress concentrations occur. A compromised frame manifests as persistent tuning instability, even after professional regulation.
The action mechanism–comprising hammers, dampers, whippens, and jack assemblies–determines touch responsiveness. In a well-maintained instrument, hammers should strike three strings per note in middle/upper registers and two in bass, with felt density graded from softer bass to firmer treble. Misaligned jacks or worn hammer shanks cause note unisons to “block,” producing a muted or percussive thud. Adjust let-off distance (1–2 mm) and drop (3–5 mm) using a regulation gauge for consistent repetition.
Strings divide into wound (bass) and plain (treble) types. Bass strings use copper-wound steel cores for low-frequency vibration, while treble strings are single-strand steel or iron. Replace corroded strings immediately–oxidation thins the wire, reducing harmonic complexity. Tuning pins, inserted into the pinblock (commonly hard maple), must rotate smoothly with 6–8 lb.-inch torque during tuning. Loose pins indicate pinblock cracking, a costly repair often requiring partial disassembly.
Pedals interact with the action via lyre rods and trapwork levers. The una corda pedal shifts the entire action right, letting hammers strike fewer strings; verify it engages fully without sticking. The sostenuto pedal, found in higher-end models, sustains only selected notes–check for proper vertical alignment of the sostenuto tab. Damper pedals should lift dampers uniformly across all registers; uneven lifting suggests worn damper felts or misadjusted trapwork.

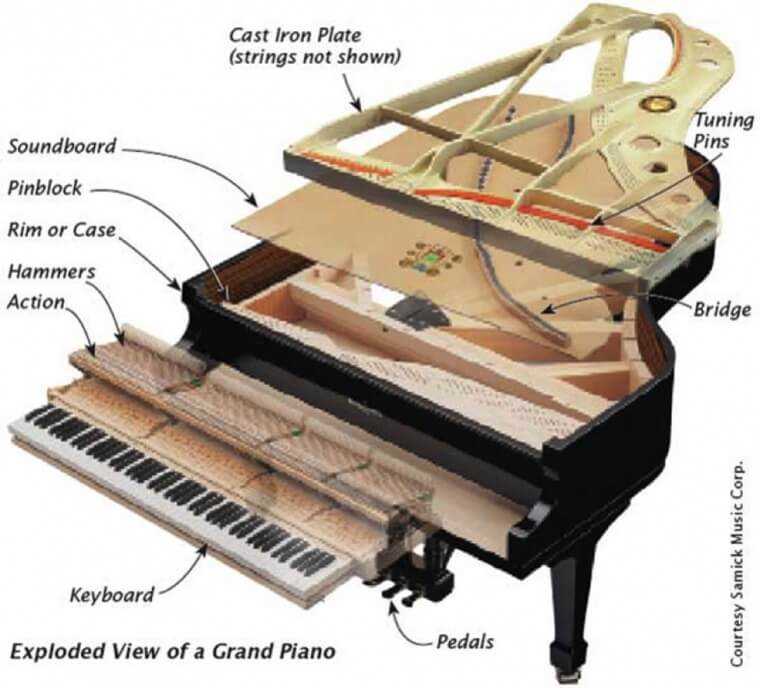

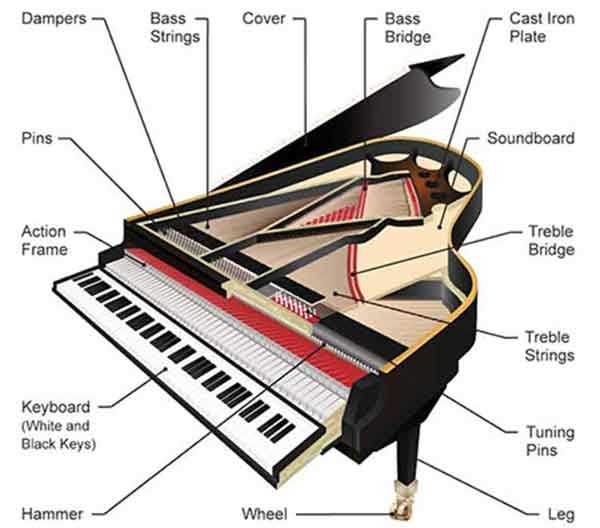

Key Components of an Acoustic Keyboard Illustration
Label each string set distinctly in your schematic–bass strings (typically triple-wound copper) occupy the left third of the instrument’s interior, while treble strings (single or double steel) span the remaining two-thirds. Mark the exact transition point where the duplex scale begins, as this affects harmonic resonance.
Identify the damper mechanism beneath the soundboard: note that modern grand keyboards use individual felt pads for each hammer, unlike older designs where a single rail sufficed. Add arrows in your sketch to indicate the motion path of the action assembly–from key press to hammer strike–ensuring scale accuracy within +/- 2mm for proper escapement.
Critical Frame and Structural Elements
Highlight the cast-iron plate in red or bold outline, specifying its role in withstanding the cumulative 18-20 tons of string tension. Include the agraffes (metal pins that guide strings) and capo tasto bar, which raises tension in the treble section–omitting these details risks misrepresenting string termination physics.
For upright models, denote the backposts’ angle relative to the vertical frame (typically 7-12 degrees). Measure the soundboard’s crown curvature–peaks should range between 5-8mm at the center to optimize vibrational efficiency. Failure to document these nuances reduces the diagram’s utility for acoustic diagnostics.
Recognizing Key Exterior Elements of a Grand Instrument and Their Roles
Begin by inspecting the lid–the large, hinged cover that protects internal mechanisms. A well-maintained lid should open smoothly without sagging; if resistance occurs, check the hinges for misalignment or debris. The long hinge often includes a prop stick, a wooden or metal rod that holds the lid at different angles for varying acoustics. Always secure it in one of the notched positions to prevent accidental closure, which can damage the instrument or injure fingers.
The fallboard, or key cover, serves two critical purposes: shielding the keys from dust and acting as a noise buffer when closed during non-playing periods. Ensure the soft-close mechanism (if present) functions properly–it should descend silently, not slam. If it sticks, clean the rails with a dry cloth and check for obstructions. Avoid forcing it open or closed, as this can warp the wood over time.
Examine the cheek blocks, the decorative panels flanking the keyboard. These not only contribute to the aesthetic but also stabilize the structure. Look for cracks or gaps at the joints; even minor separations can allow moisture to penetrate, swelling the wood and affecting key action. For minor gaps, use wood glue and clamps to realign, then seal with shellac for protection.
- Legs: Typically three on a grand model, often reinforced with metal casters for movement. Verify the threaded inserts are tight–loose legs can cause instability during play. For disassembly, mark each leg and its corresponding socket to ensure proper reassembly.
- Music desk: The adjustable shelf that holds sheet music. Its position should allow unobstructed view and airflow. If wobbly, tighten the screws at the base; if broken, replace with a matching wood type to maintain resonance integrity.
- Pedal lyre: The harp-shaped assembly housing the pedals. Ensure the braces are firmly attached to the underside–loose pedals disrupt sustain, soft, or sostenuto functions. Grease the hinge points annually to prevent squeaking.
The outer rim–the curved side structure–is usually built from laminated hardwood like maple or beech. Its thickness directly impacts sound projection; thinner rims (common in smaller models) produce brighter tones, while thicker rims (found in concert grands) deliver deeper bass. Avoid placing drinks or plants on it, as moisture can seep into seams and delaminate the layers. If scratches occur, use a touch-up marker matched to the finish, not wax, which can attract dust.
Note the lid lock, a small hook near the hinge of some instruments designed to prevent the lid from unintentionally closing. Lubricate the mechanism with graphite if it binds, but never oil–this attracts lint and accelerates wear. If missing or broken, replace it immediately; without it, the lid can become a safety hazard.
Inspect the ventilation strips–slotted openings along the underside or sides. These allow air circulation to prevent humidity buildup, which warps soundboards and keys. Blocked vents should be cleared with compressed air, not sharp objects that can puncture the wood. For instruments in humid climates, consider adding a climate-control system like a humidifier/dehumidifier unit.
- Check the enameled or polished finish regularly. Dust with a microfiber cloth first, then use a dedicated cleaner (never silicone-based or household polish) to avoid buildup. For stubborn marks, test cleaner on an inconspicuous area first.
- For mahogany or ebony surfaces, apply a thin layer of paste wax every six months to preserve the patina. Buff with a soft cloth, but avoid excessive pressure–this can erase fine details carved into the case.
- Replace any damaged felt pads under the lid or key cover immediately. Torn or compressed felt allows dust to enter and can modify the instrument’s acoustics. Use only high-density felt, never substitute with foam or fabric.
Identifying and Marking the Grand Instrument’s Core Movement System
Begin by removing the fallboard–the hinged cover above the keys–to expose the internal framework. Slide fingers along the key surfaces to locate the narrow gaps between each wooden lever; these indicate where the capstans and wippen assemblies connect. Use a flashlight angled at 45 degrees to highlight the reflection off polished metal components, making vertical wires (hammer shanks) instantly visible beneath the strings. Secure a thin rod or skewer to trace the path from the key’s rear pivot point upward–this marks the action rail, a horizontal beam housing the action brackets.
Key Sequence for Labeling Components
| Step | Target Component | Verification Method |
|---|---|---|
| 1 | Capstan | Press key halfway; confirm upward motion against a felt pad |
| 2 | Wippen | Observe pivot under controlled key press; ensure quiet motion without friction |
| 3 | Jack | Gently lift with tweezers; must disengage smoothly from escapement |
| 4 | Hammer Butt | Check alignment by tapping key; hammer should rebound without sticking |
| 5 | Damper Lever | Depress sostenuto pedal; verify all dampers lift uniformly |
For precise marking, use removable adhesive dots in contrasting colors: red for regulating screws, blue for springs, and yellow for felt cushions. Record measurements between each action bracket and the nearest string termination point–distances typically range from 18 to 22 cm on a 7-foot model. Note any deviations in symmetry; misalignment greater than 1 mm warrants adjustment via the regulation screw or rail shims. Avoid touching bridle straps–thin leather loops connecting hammers to wippens–with bare fingers; oils accelerate decay and shift timing.
Key Mechanisms Inside a Vertical Acoustic Instrument: An Illustrated Guide
Start by examining the action assembly–the core system transferring finger pressure to sound. Located directly behind the keyboard, it consists of hammers, dampers, and whippens, each calibrated to respond within milliseconds. For optimal performance, check the let-off distance (typically 1–2 mm) between hammer and string; misalignment here causes inconsistent tone or double-striking. Lubricate pivot points with specialized graphite powder, avoiding oils that attract dust. Regularly inspect bridle straps for wear–they connect hammers to dampers and can stretch or fray, leading to delayed note release.
The soundboard, usually crafted from spruce, acts as an acoustic amplifier, resonating vibrations from the strings. Its crown shape (slightly convex) maximizes projection; cracks or warping mute volume and clarity. Tap it lightly–dead spots indicate delamination. If refinishing, use a breathable varnish (e.g., nitrocellulose) to preserve wood resonance. Underneath, the bridge transfers energy from strings to the soundboard via two precise pressure points per note; even a 0.1 mm misalignment dulls sustain.
Tuning pins, embedded in the pinblock, secure strings while allowing pitch adjustment. Replace a failing pinblock if pins feel loose (indicating compression)–tuning stability depends on its density. Strings attach via agraffes (in high-end models) or pressure bars, which prevent buzzing by maintaining down-bearing pressure. Bass strings feature copper winding; inspect for corrosion or kinks that dampen harmonics. Ensure the duplex scale (unwound string segments behind the bridge) isn’t muted–these segments enrich overtone complexity but often collect debris.
The pedal lyre houses three levers: the soft pedal (shifts hammers closer to strings for quieter play), sostenuto (sustains only depressed notes), and sustain (lifts all dampers). Test the sostenuto’s catch mechanism monthly–it relies on a fragile latch that can slip, causing unintended note decay. Dampers, felt-covered with hardwood cores, must rest flush against strings when released; warped dampers cause sympathetic vibrations. After humidity changes (ideal: 40–50% RH), check for string misleveling–high strings buzz, low ones feel stiff under touch.
Behind the fallboard, the keybed supports the action and keys, absorbing impact. Warped keybeds create uneven key dip (required: 10–11 mm); sanding or shimming may be needed. Balance rail pins and front rail pins define key movement–replace felt washers if keys wobble laterally. Keytops (ivory, plastic, or synthetic) crack under UV exposure; store instruments away from direct sunlight. For repairs, avoid superglue–it deadens sound. Instead, use hide glue for reversible fixes. Replace underlever felts if sustain pedal return feels sluggish–they cushion the damper lift mechanism.
